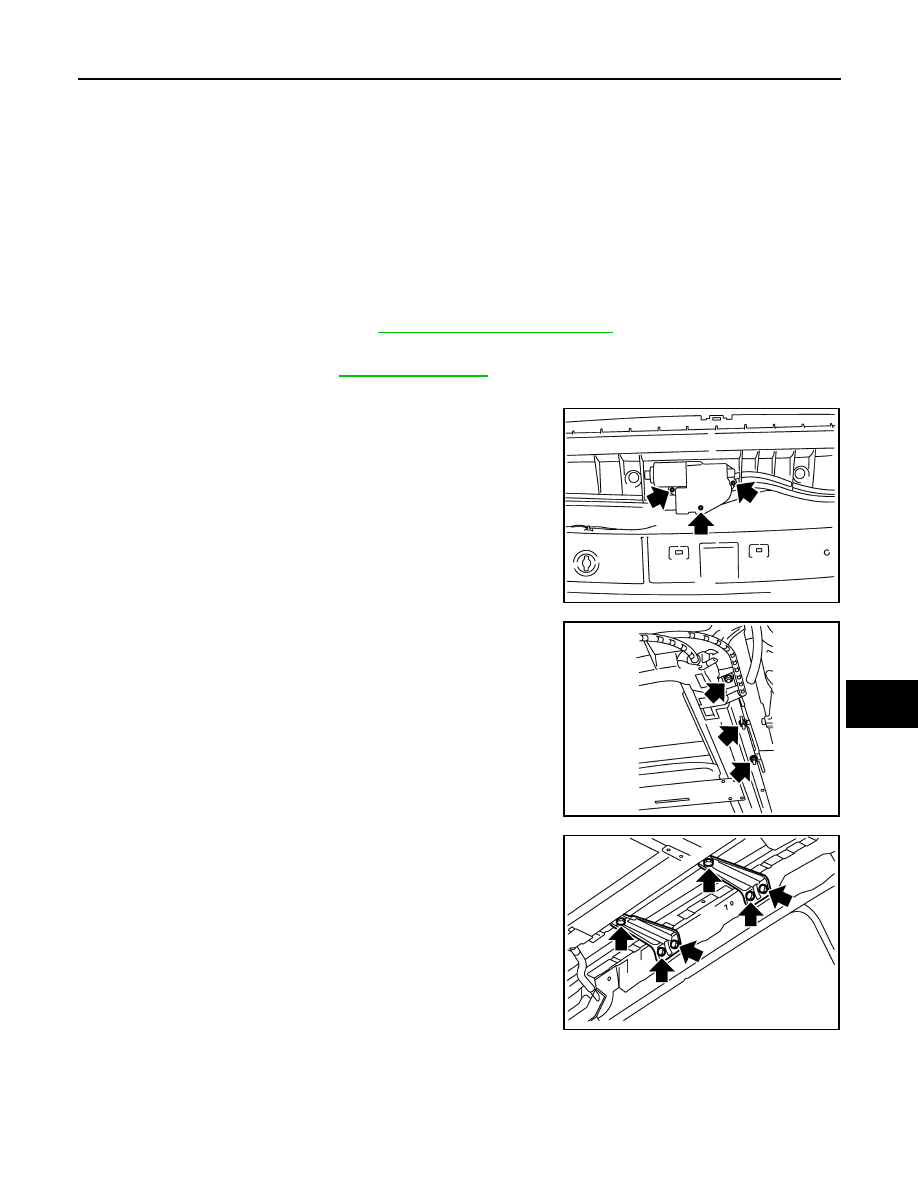

SUNROOF SYSTEM

RF-35

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Removal and Installation

INFOID:0000000001724429

CAUTION:

• After installation or any adjustment, check clearances for sunroof operation and glass lid alignment.
• Handle glass lid with care to prevent damage.
• Fully close the glass lid before removal, then do not operate sunroof motor assembly after removal.
• When removing sunroof unit assembly, use shop cloths to protect the seats and trim from damage.
• Always work with a helper.
NOTE:
For easy installation, mark each point before removal.

SUNROOF UNIT ASSEMBLY

Removal

1.

Tilt glass lid up, then remove. Refer to

RF-35, "Removal and Installation"

.

2.

Position sunroof unit assembly to the fully closed position.

3.

Remove the headlining. Refer to

INT-29, "Component"

.

4.

Disconnect drain hoses.

5.

Remove the screws, then disconnect the sunroof motor assem-
bly.
NOTE:
• Before removing sunroof motor assembly, make sure that sun-

roof is fully closed.

• After removing sunroof motor assembly, do not attempt to

rotate sunroof motor as a single unit.

6.

Remove the side and front sunroof unit assembly nuts.

7.

Remove sunroof bracket bolts, then remove sunroof unit assem-
bly from roof panel.
• Remove sunroof unit assembly through the passenger com-

partment.

CAUTION:

Use care during assembly removal and installation to avoid
damage to seats and trim.

Installation

PIIB4745J

PIIB4747J

PIIB4748J

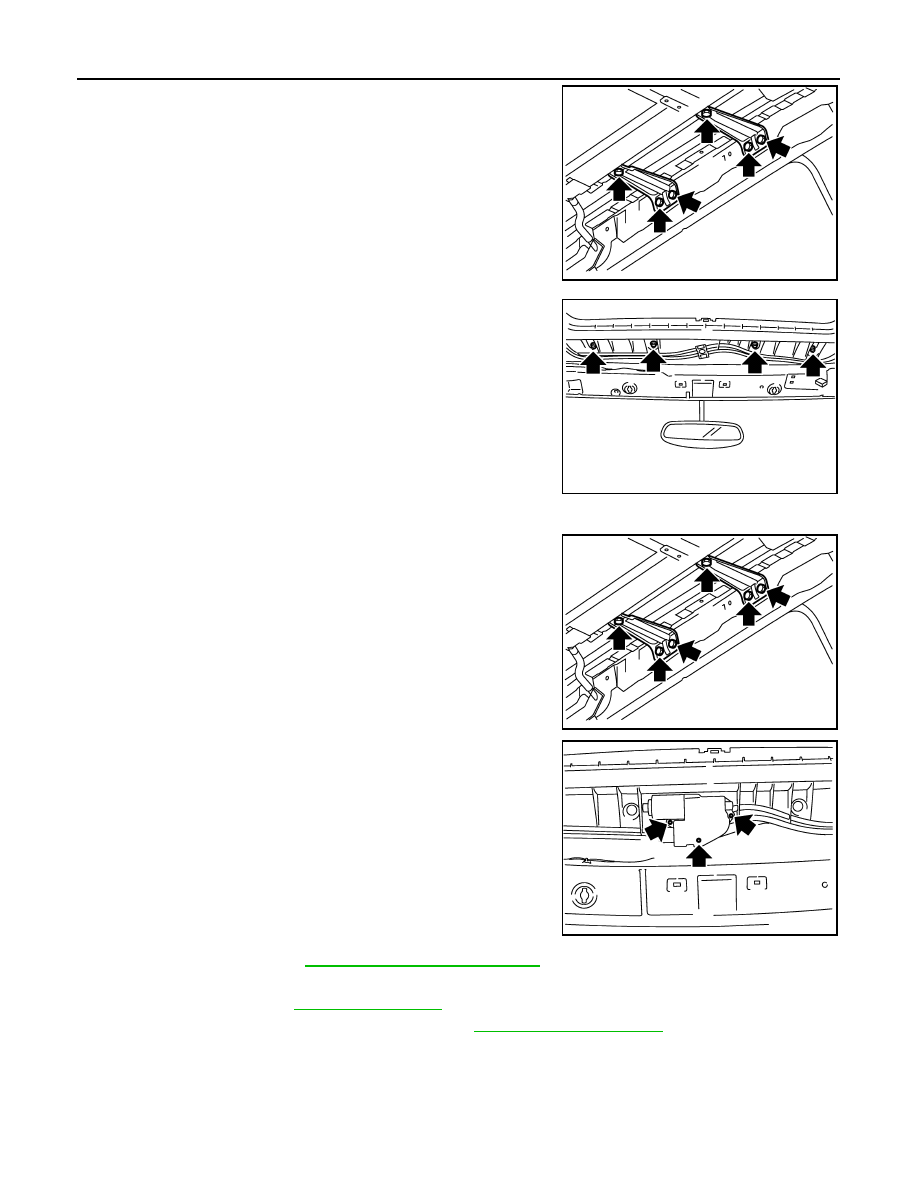

RF-36

< ON-VEHICLE REPAIR >

SUNROOF SYSTEM

1.

Install sunroof brackets and bolts to the roof panel side only, but
do not tighten.

2.

Bring sunroof unit assembly into passenger compartment and
position it so the rear rests on the sunroof brackets.

3.

Install sunroof bracket bolts to the sunroof unit assembly side,
but do not tighten.

4.

Install the front and side sunroof unit assembly nuts, but do not
tighten.

5.

Tighten the sunroof unit assembly.

a.

First, tighten the sunroof bracket bolts at the vehicle side, then
tighten the bolt on the rail side.

b.

Next, tighten the front and side sunroof unit assembly nuts diag-
onally.

6.

7.

Connect the sunroof motor assembly connector and install the
screws.

8.

Install the glass lid. Refer to

RF-35, "Removal and Installation"

.

9.

Connect drain hoses.

10. Install headlining. Refer to

INT-29, "Component"

.

11. Perform fitting adjustment and test for leaks, refer to

RF-32, "Fitting Adjustment"

.

GLASS LID

Removal

1.

Open the sunshade fully and close the glass lid.

PIIB4748J

PIIB4746J

PIIB4748J

PIIB4745J

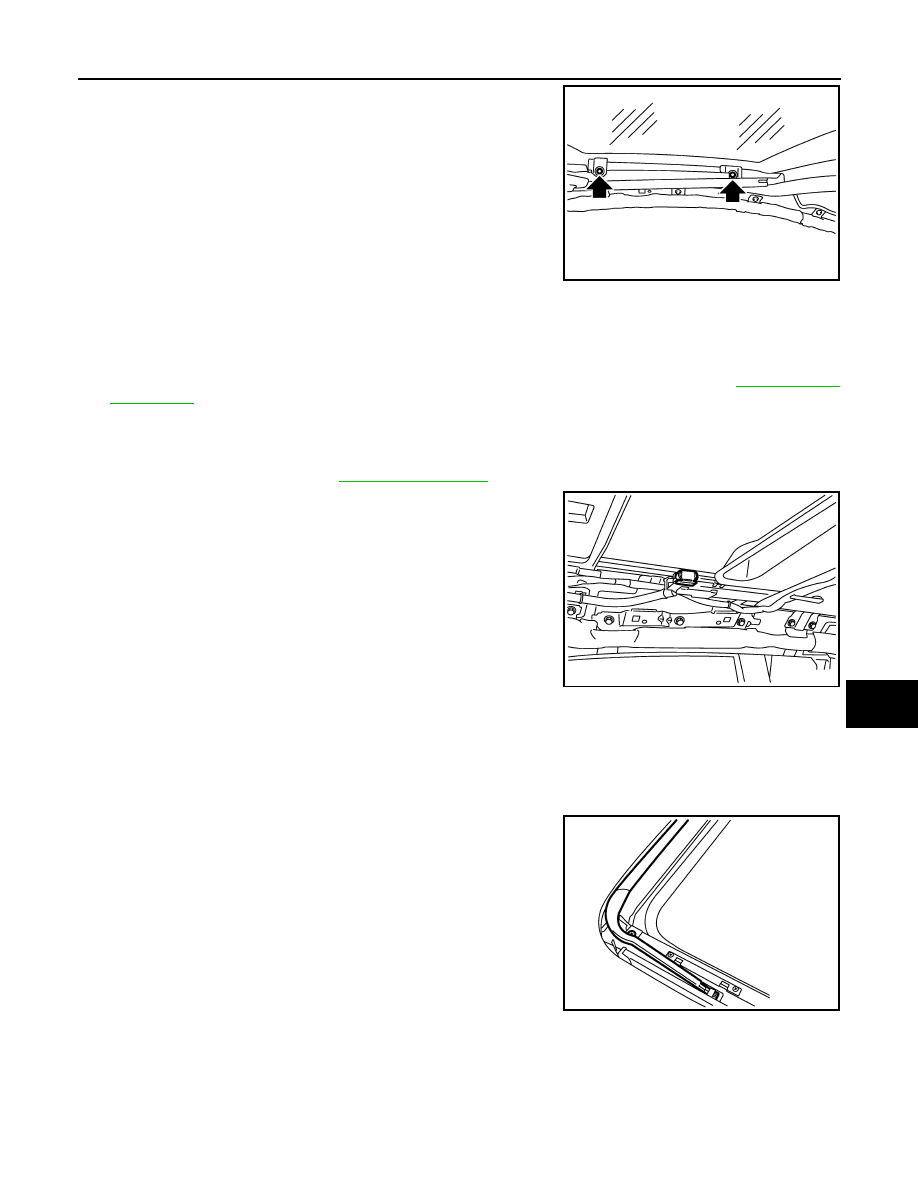

SUNROOF SYSTEM

RF-37

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

2.

Remove glass lid bolts, then remove glass lid.

Installation

1.

Position the glass lid on sunroof unit assembly.

2.

Partially install glass lid bolts. Tighten left front bolt first, then right rear to prevent uneven torque while
tightening remaining bolts.

3.

After installation, check sunroof operation and glass lid assembly alignment. Refer to

RF-32, "Fitting

Adjustment"

.

SUNSHADE

Removal

1.

Remove the headlining. Refer to

INT-29, "Component"

2.

Remove sunshade stopper RH/LH.

3.

Pull sunshade out rear of sunroof frame to remove it from sun-
roof unit assembly frame.

Installation

Installation is in the reverse order of removal.

WIND DEFLECTOR

Removal

1.

Open the glass lid.

2.

Remove spring retainer screws RH/LH, then slide retainer for-
ward in vehicle out of sunroof unit assembly channel.

3.

Lift wind deflector and rotate arms upward to release from sun-
roof unit assembly.

Installation

Installation is in the reverse order of removal.

SUNROOF MOTOR ASSEMBLY

Removal

1.

Close the glass lid.

PIIB4749J

PIIB4750J

PIIB4751J

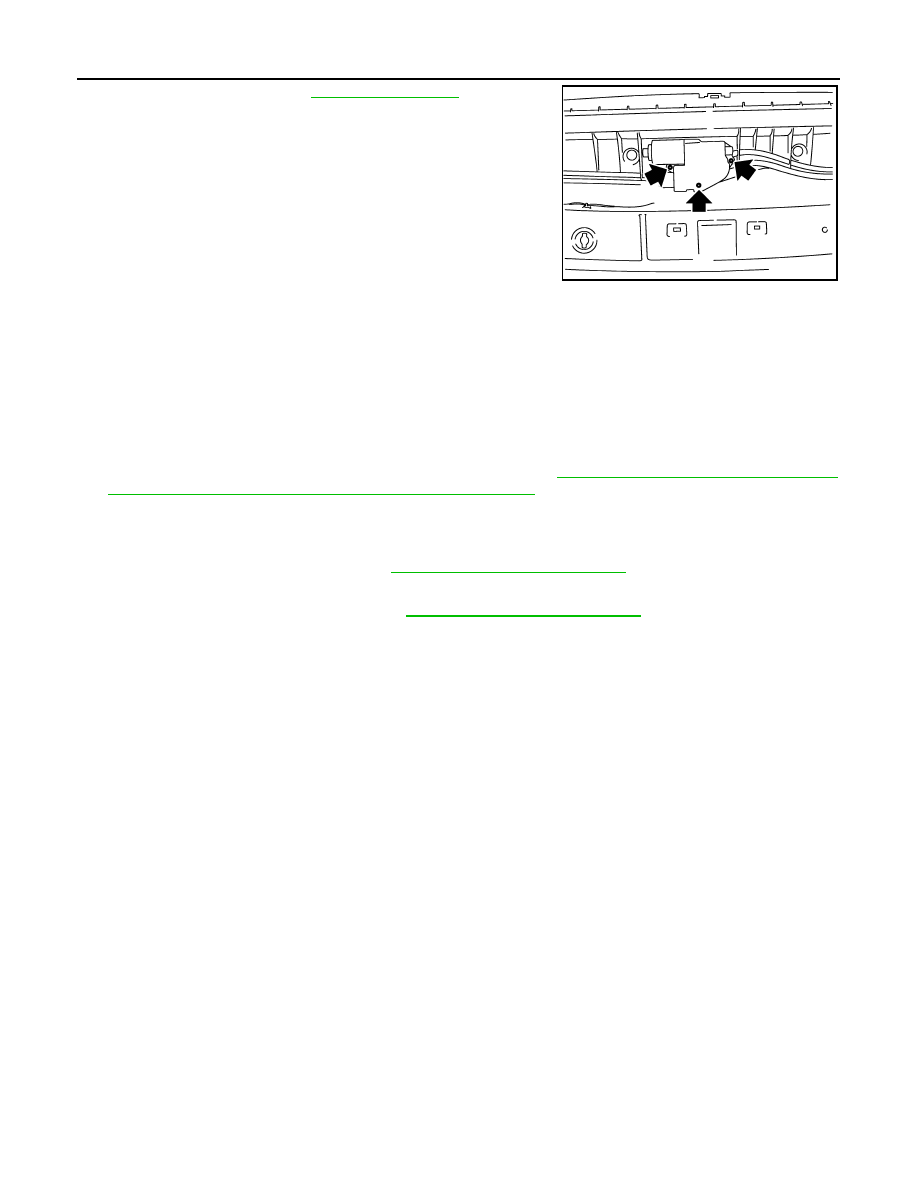

RF-38

< ON-VEHICLE REPAIR >

SUNROOF SYSTEM

2.

Remove headlining. Refer to

INT-29, "Component"

.

3.

Remove sunroof motor assembly screws.

4.

Disconnect harness connector from sunroof motor assembly,
then remove sunroof motor assembly.

CAUTION:

• When removing the sunroof motor assembly, be sure that

the sunroof lid is in the fully closed position.

• Do not operate the removed sunroof motor assembly as a

single unit.

Installation

CAUTION:

• Before installing the sunroof motor assembly, be sure the link assembly is in the symmetrical and

fully closed position.

• Align the link notch with the hole of the guide track (fully closed: RH and LH).

1.

Place the sunroof motor assembly flat onto the sunroof unit assembly surface.

2.

Laterally move the assembly little by little so that the gear is completely engaged into the wire and there is
no gap between the sunroof unit assembly and sunroof motor assembly.

3.

Install the sunroof motor assembly screws, then connect the harness connector.

4.

After installing, perform the initialization procedure. Refer to

RF-7, "ADDITIONAL SERVICE WHEN

REPLACING CONTROL UNIT : Special Repair Requirement"

.

LINK ASSEMBLY

Removal

1.

Remove sunroof unit assembly. Refer to

RF-35, "Removal and Installation"

.

2.

Remove screws, then remove rear drain assembly.

3.

Remove sunroof motor assembly. Refer to

RF-35, "Removal and Installation"

.

4.

Remove link assembly from the rear end of the sunroof frame.

Installation

Installation is in the reverse order of removal.

PIIB4745J
