SUNROOF SYSTEM

RF-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

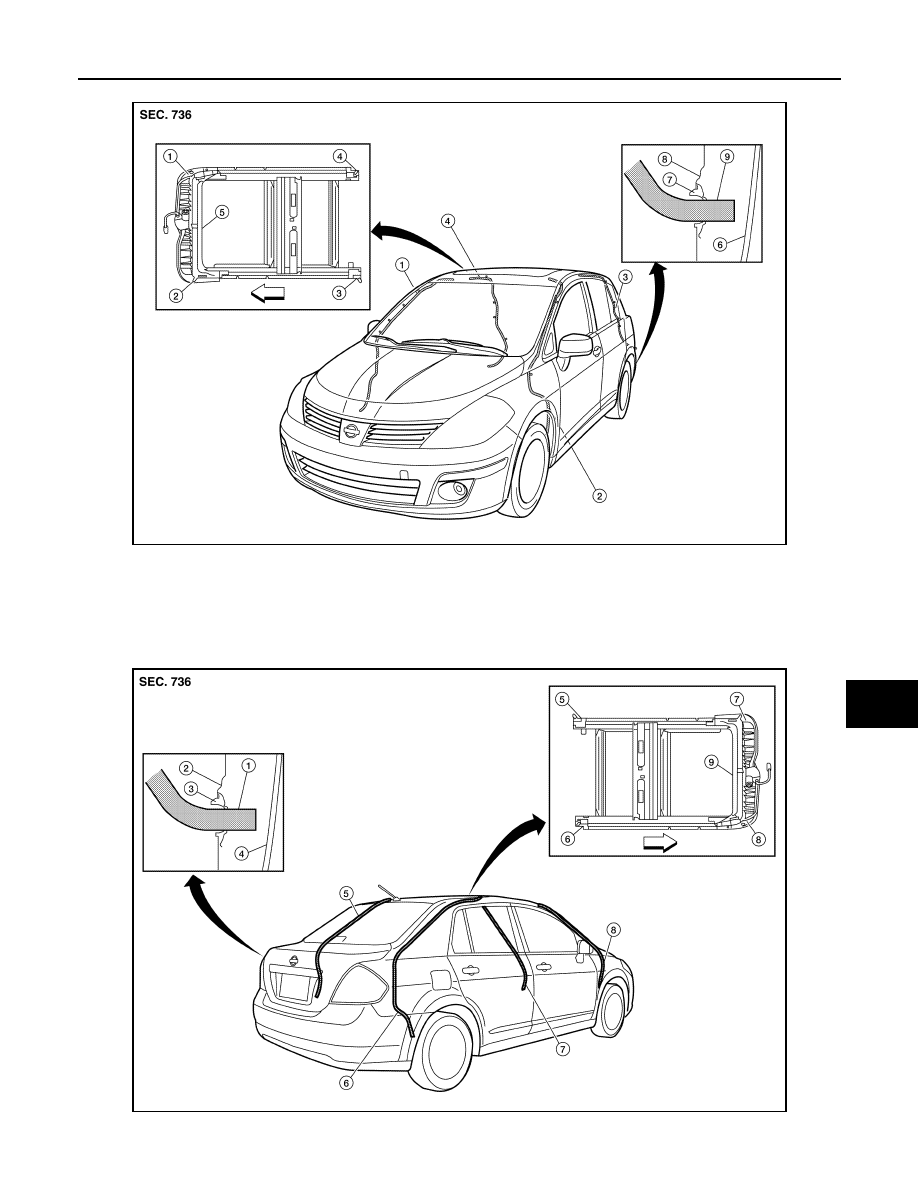

Hatchback Models

Sedan Models

WIIA1253E

1.

Drain hose front RH

2.

Drain hose front LH

3.

Drain hose rear LH

4.

Drain hose rear RH

5.

Sunroof unit assembly

6.

Fascia

7.

Seal

8.

Fender

9.

Drain hose

⇐

Vehicle front

WIIA1417E

RF-32

< ON-VEHICLE REPAIR >

SUNROOF SYSTEM

1.

Remove headlining. Refer to

INT-29, "Component"

.

2.

Visually check drain hoses for:
• Proper connection at sunroof unit assembly.
• Damage, pinch, cracks, deterioration.
• Proper fastening and routing on body panels.

3.

Pour water through drain hoses to determine watertight performance.

If a damaged or leaking portion in any drain hose is found, replace entire drain hose as an assembly.

Fitting Adjustment

INFOID:0000000001724430

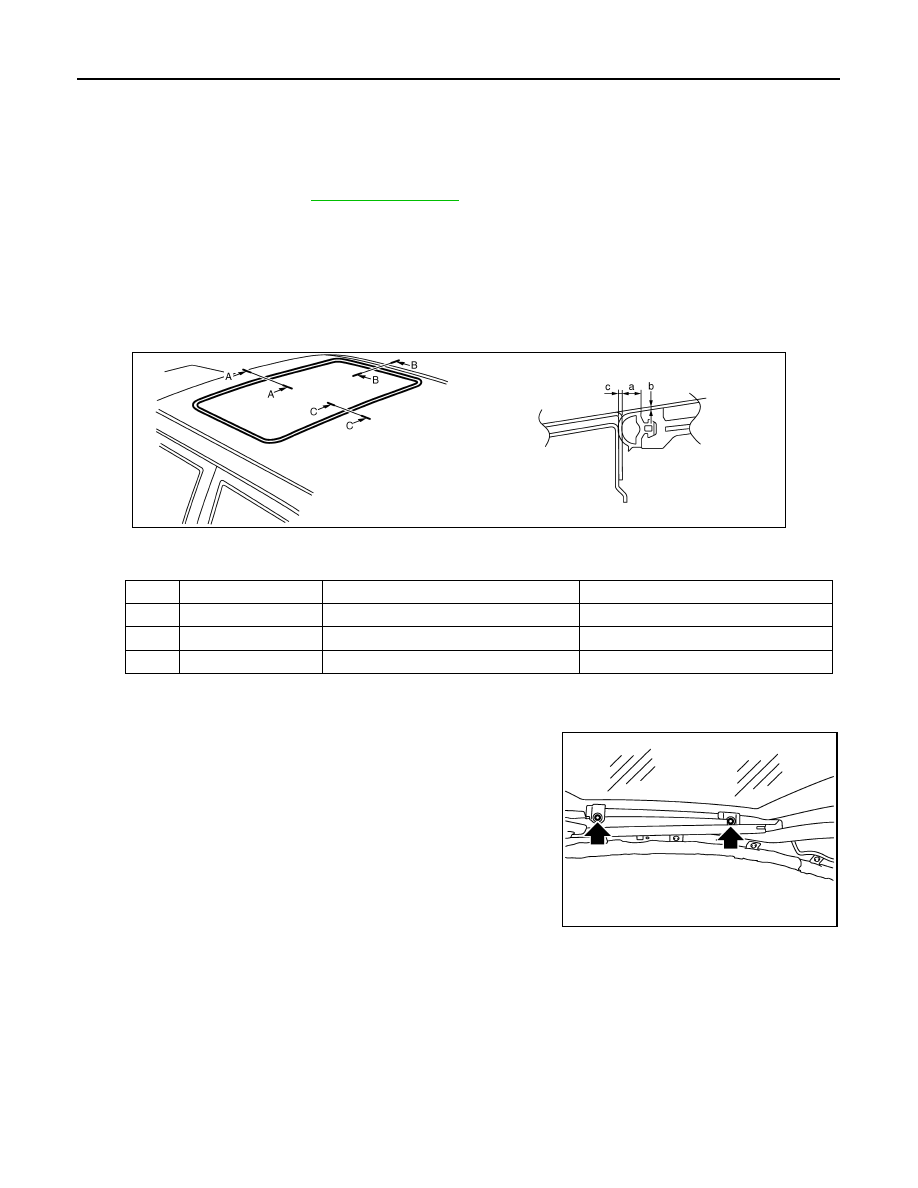

GAP ADJUSTMENT

1.

Tilt up glass lid.

2.

Loosen glass lid bolts, then tilt down glass lid.

3.

Adjust glass lid from outside of vehicle so it resembles “A–A” “B–
B” “C–C” as shown in the figure.
• For gap adjustment "A-A" "C-C", carefully slide glass lid for-

ward and rearward in vehicle.

• For gap adjustment "B-B", loosen sunroof unit assembly and

shift side to side.

NOTE:
To prevent glass lid from moving after adjustment, lightly tighten
the bolts.

4.

Tighten left front bolt, then right rear bolt to prevent uneven
torque. Tighten remaining bolts, being careful to prevent glass
lid from moving.

5.

Tilt glass lid up and down several times to check that it moves smoothly, and retains the adjustment.

HEIGHT ADJUSTMENT

1.

Tilt up glass lid.

2.

Loosen glass lid bolts, then tilt down glass lid.

3.

Adjust glass lid from outside of vehicle so it resembles "A-A" "B-B" "C-C" as shown in the figure.
• For height adjustment, manually raise/lower glass lid assembly until height difference is within specifica-

tions.
NOTE:

1.

Drain hose

2.

Fender

3.

Seal

4.

Fascia

5.

Drain hose rear LH

6.

Drain hose rear RH

7.

Drain hose front LH

8.

Drain hose front RH

9.

Sunroof unit assembly

⇐

Vehicle front

PIIB2457E

a

b

c

A–A

5.8 mm (0.228 in)

 0.75

±

 1.5 mm (0.03

±

 0.059 in)

1.4

±

 0.8 mm (0.055

±

 0.031 in)

B–B

5.8mm (0.228 in)

0.75

±

 1.5 mm (0.03

±

 0.059 in)

1.4

±

 0.8 mm (0.055

±

 0.031 in)

C–C

5.8mm (0.228 in)

0.75

±

 1.5 mm (0.03

±

 0.059 in)

1.4

±

 0.8 mm (0.055

±

 0.031 in)

PIIB4749J

SUNROOF SYSTEM

RF-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

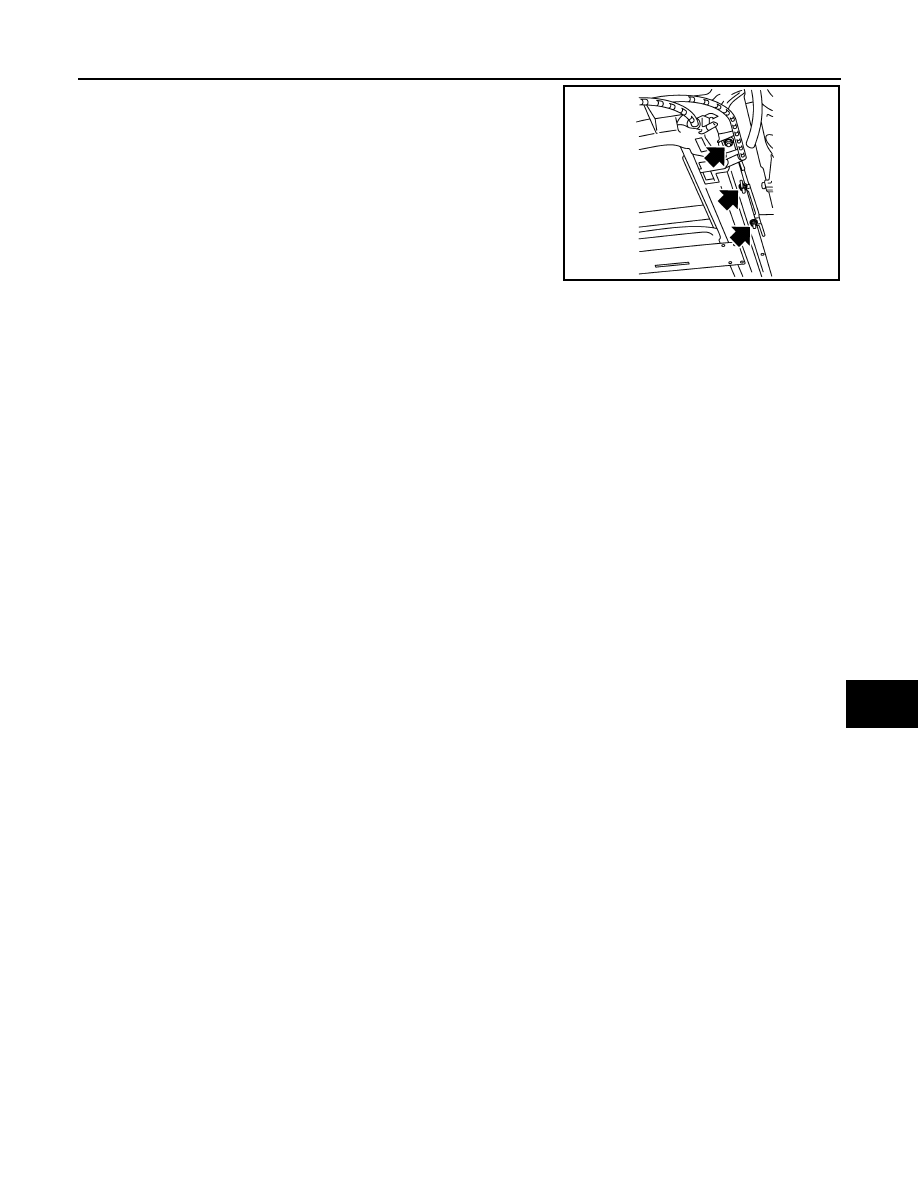

• If necessary, shims may be added between sunroof unit

assembly and roof panel to increase glass lid height adjust-
ment range.

• To prevent glass lid from moving after adjustment, lightly

tighten the bolts.

4.

Tighten left front bolt, then right rear bolt to prevent uneven
torque. Tighten remaining bolts, being careful to prevent glass
lid from moving.

5.

Tilt glass lid up and down several times to check that it moves
smoothly, and retains the adjustment.

PIIB4747J

RF-34

< ON-VEHICLE REPAIR >

SUNROOF SYSTEM

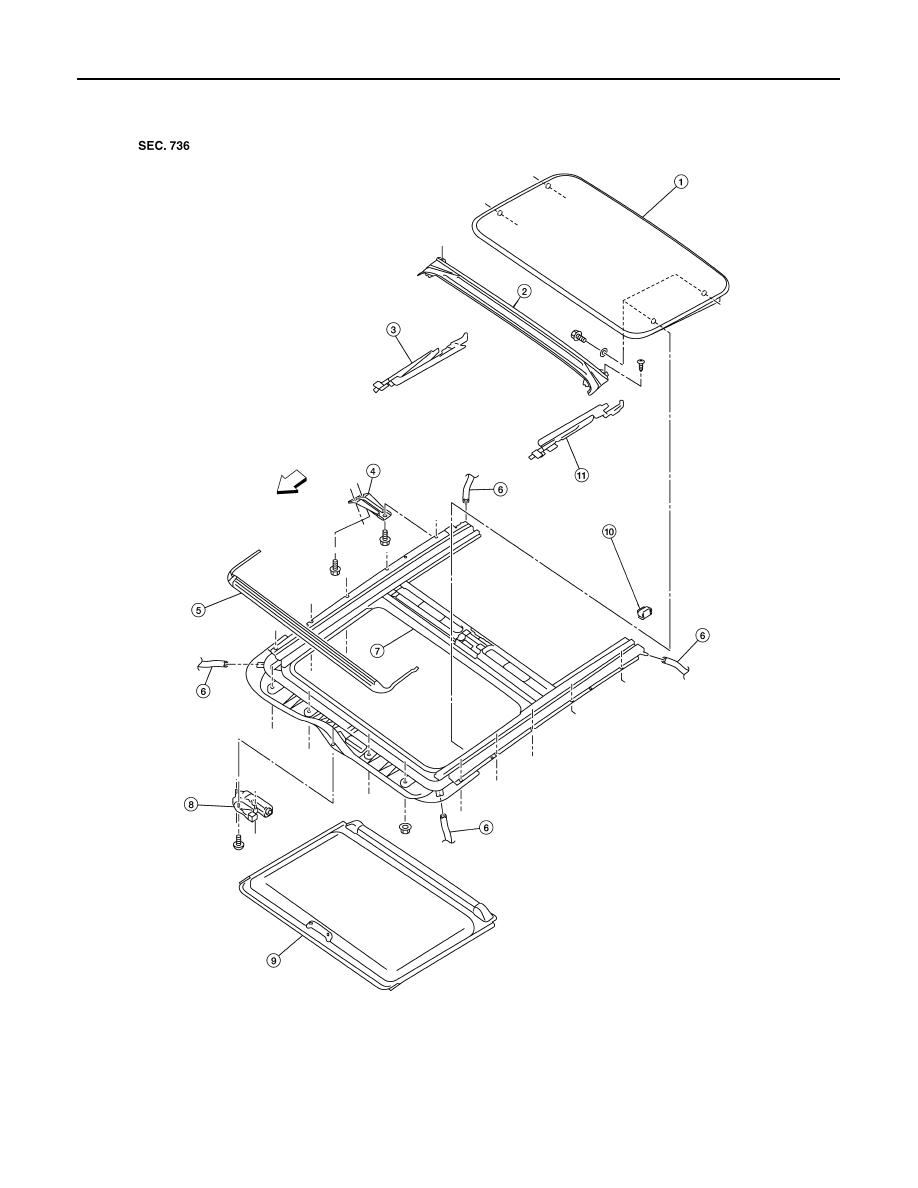

Exploded View

INFOID:0000000001724662

1.

Glass lid

2.

Rear drain assembly

3.

Link assembly (RH)

4.

Sunroof bracket

5.

Wind deflector

6.

Drain hose

7.

Sunroof unit assembly

8.

Sunroof motor assembly

9.

Sunshade

10. Sunshade stopper

11.

Link assembly (LH)

⇐

Vehicle front

WIIA1243E
