CHG-30

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR18DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Generator

INFOID:0000000001690788

Type

H90-128SC

MITSUBISHI make

Nominal rating

12 V - 90 A

Ground polarity

Negative

Minimum revolution under no-load (when 13.5 V is applied)

 Less than 1,200 rpm

Hot output current (when 13.5 V is applied)

More than 27 A/1,300 rpm
More than 76 A/2,500 rpm
More than 85 A/5,000 rpm

Regulated output voltage

14.1 - 14.7 V

Minimum length of brush

More than 6.00 mm (0.236 in)

Brush spring pressure

1.1 - 3.7 N (112 - 378 g, 4.00 - 13.3 oz)

Slip ring minimum outer diameter

More than 14.7 mm (0.579 in)

Rotor (field coil) resistance

1.61 - 1.91

Ω

CHG

PRECAUTIONS

CHG-31

< PRECAUTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001731369

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

CHG-32

< PREPARATION >

[K9K]

PREPARATION

PREPARATION

PREPARATION

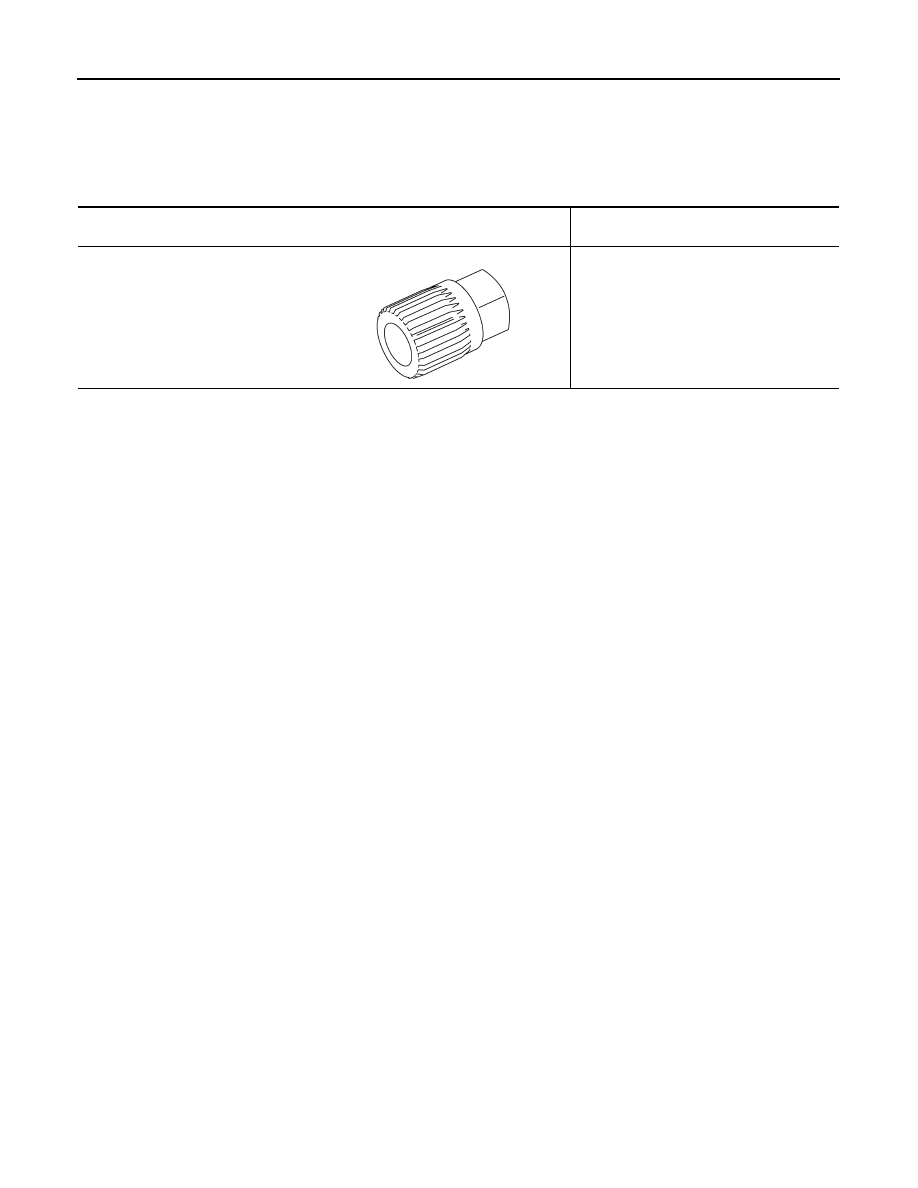

Special Service Tools

INFOID:0000000001691353

Tool number
Tool name

Description

KV10118200 (included in the adapter
kit: Mot. 1732)
Alternator pulley adapter

Removing and installing alternator pulley

PKIA1241E

CHG

DIAGNOSIS AND REPAIR WORKFLOW

CHG-33

< BASIC INSPECTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

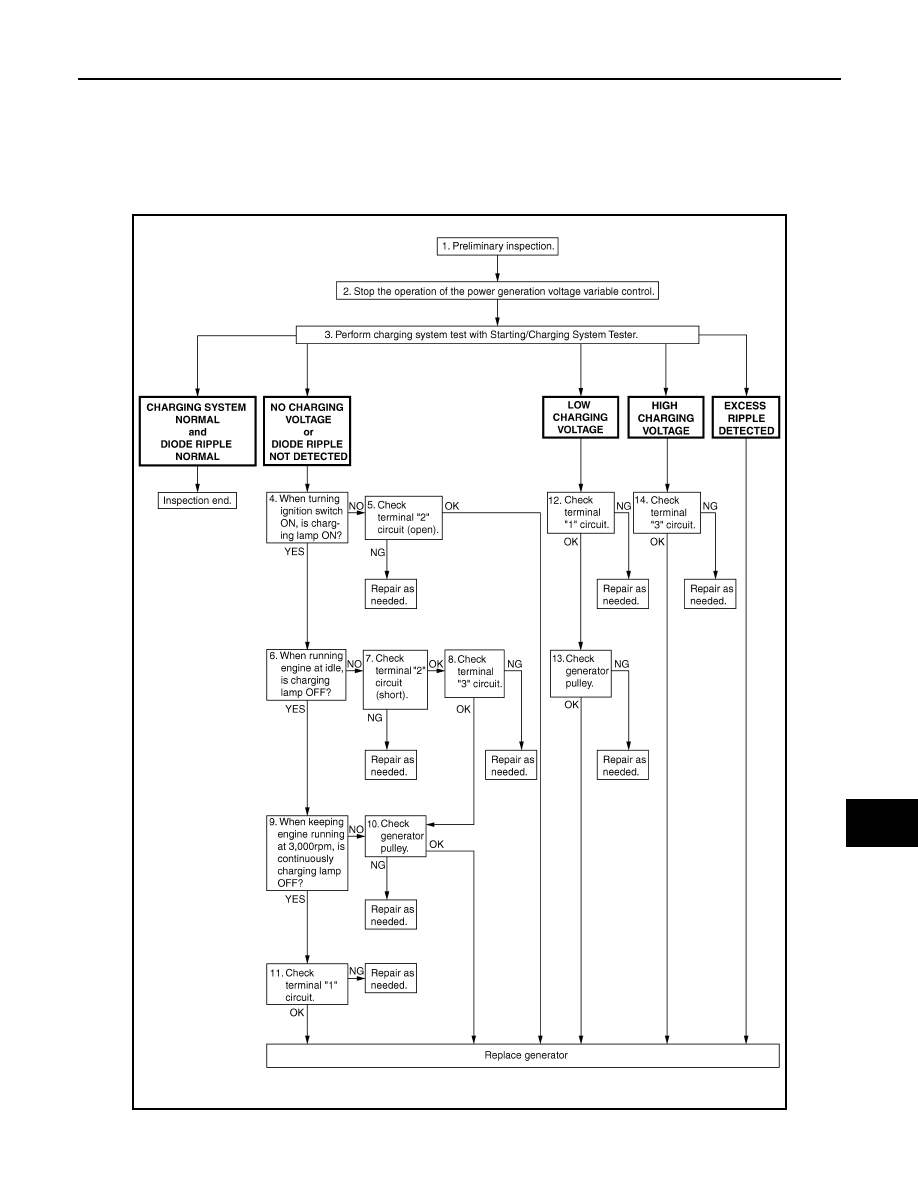

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001724500

OVERALL SEQUENCE

DETAILED FLOW

ALMIA0055GB
