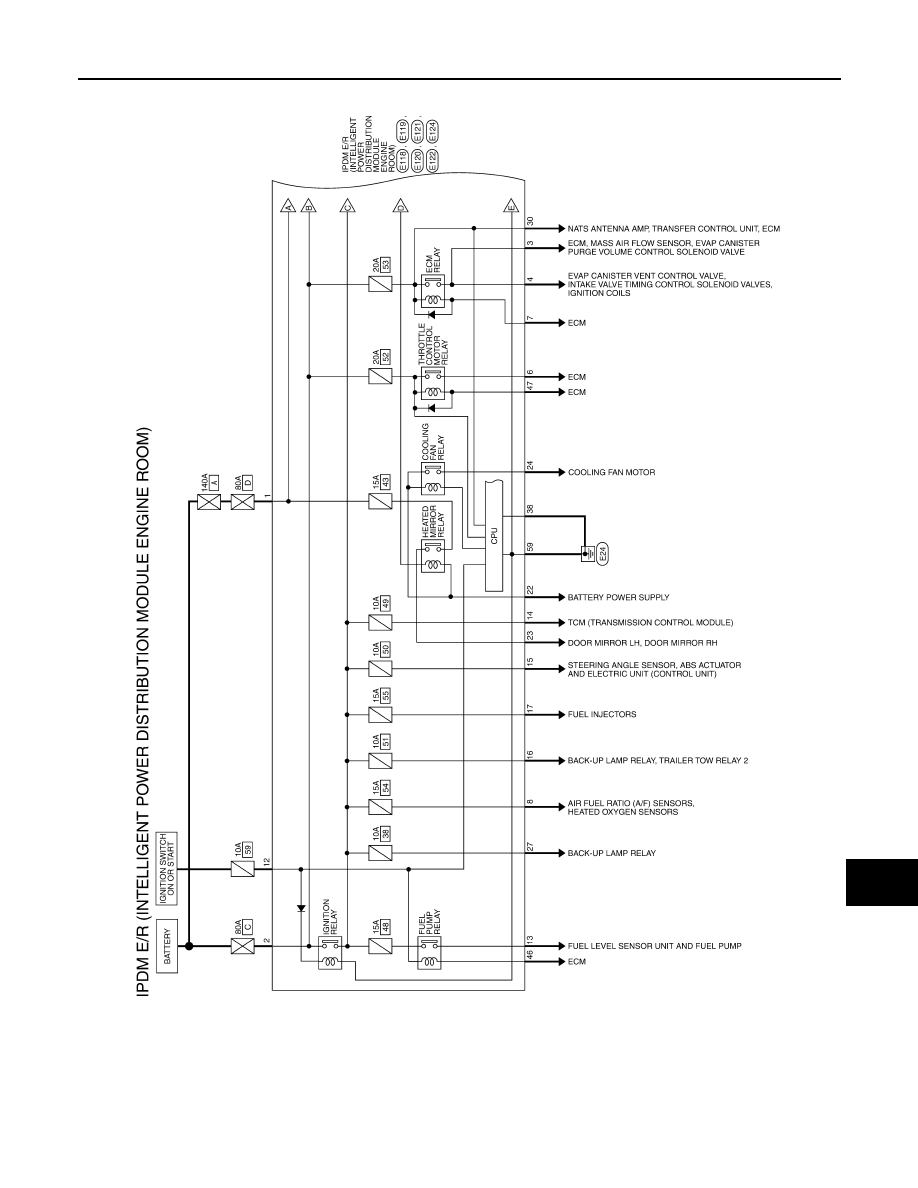

MWI-78 < ECU DIAGNOSIS > IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) Terminal Wire color Signal name Signal input/ output Measuring condition Reference value (Approx.) Ignition switch Operation or condition 1 R Battery power supply Input OFF — Battery voltage 2 G Battery power supply Input OFF — Battery voltage 3 Y ECM Relay Output — Ignition switch ON or START Battery voltage Ignition switch OFF or ACC 0V 4 G ECM relay Output — Ignition switch ON or START Battery voltage Ignition switch OFF or ACC 0V 6 GR Daytime light relay Input ON Daytime light system active. Less than battery voltage Daytime light system inactive. Battery voltage 7 G ECM relay control Input — Ignition switch ON or START 0V Ignition switch OFF or ACC Battery voltage 8 G Throttle control motor Output — Ignition switch ON or START Battery voltage Ignition switch OFF or ACC 0V 11 W A/C compressor Output ON or START A/C switch ON or defrost A/C Battery voltage A/C switch OFF or defrost A/C 0V 12 O Ignition switch sup- Input — OFF or ACC 0V ON or START Battery voltage 14 BR (M/T) R (A/T) Fuse 49 Output — Ignition switch ON or START Battery voltage Ignition switch OFF or ACC 0V 15 V Fuse 50 Output — Ignition switch ON or START Battery voltage Ignition switch OFF or ACC 0V 16 SB Fuse 51 Output — Ignition switch ON or START Battery voltage Ignition switch OFF or ACC 0V 19 R Starter motor Output START — Battery voltage 20 L (with A/C) LG (with- out A/ C) Cooling fan relay-1 Output — Conditions correct for cooling Battery voltage Conditions not correct for 0V 21 W Ignition switch START Input START — Battery voltage 22 G Battery power supply Input — — Battery voltage 23 L Cooling fan relay-2 Input — Conditions correct for cooling Battery voltage Conditions not correct for 0V 24 Y Cooling fan relay-3 Output — Conditions correct for cooling Battery voltage Conditions not correct for 0V 27 BR Tail lamp relay (park- Output — Lighting switch in 2nd position Battery voltage |
