BCM (BODY CONTROL MODULE)

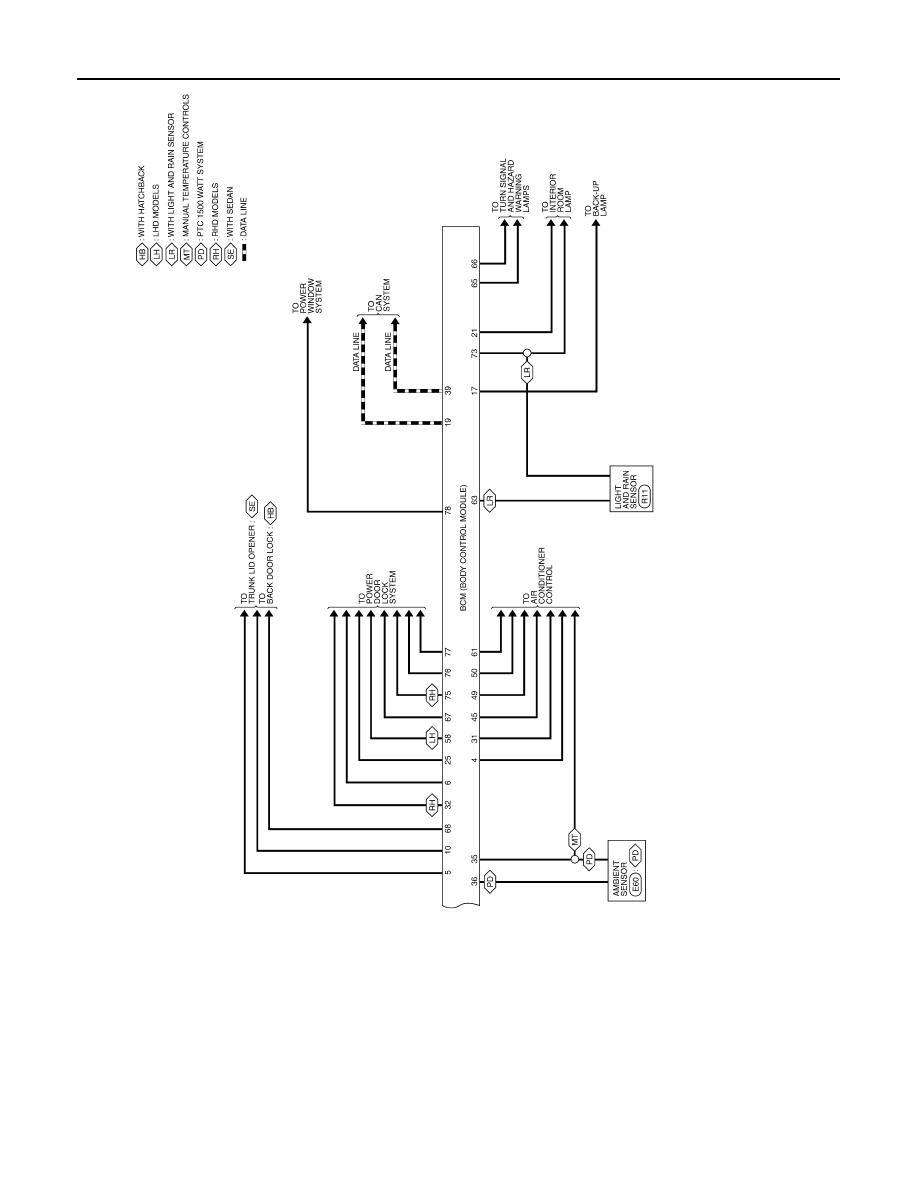

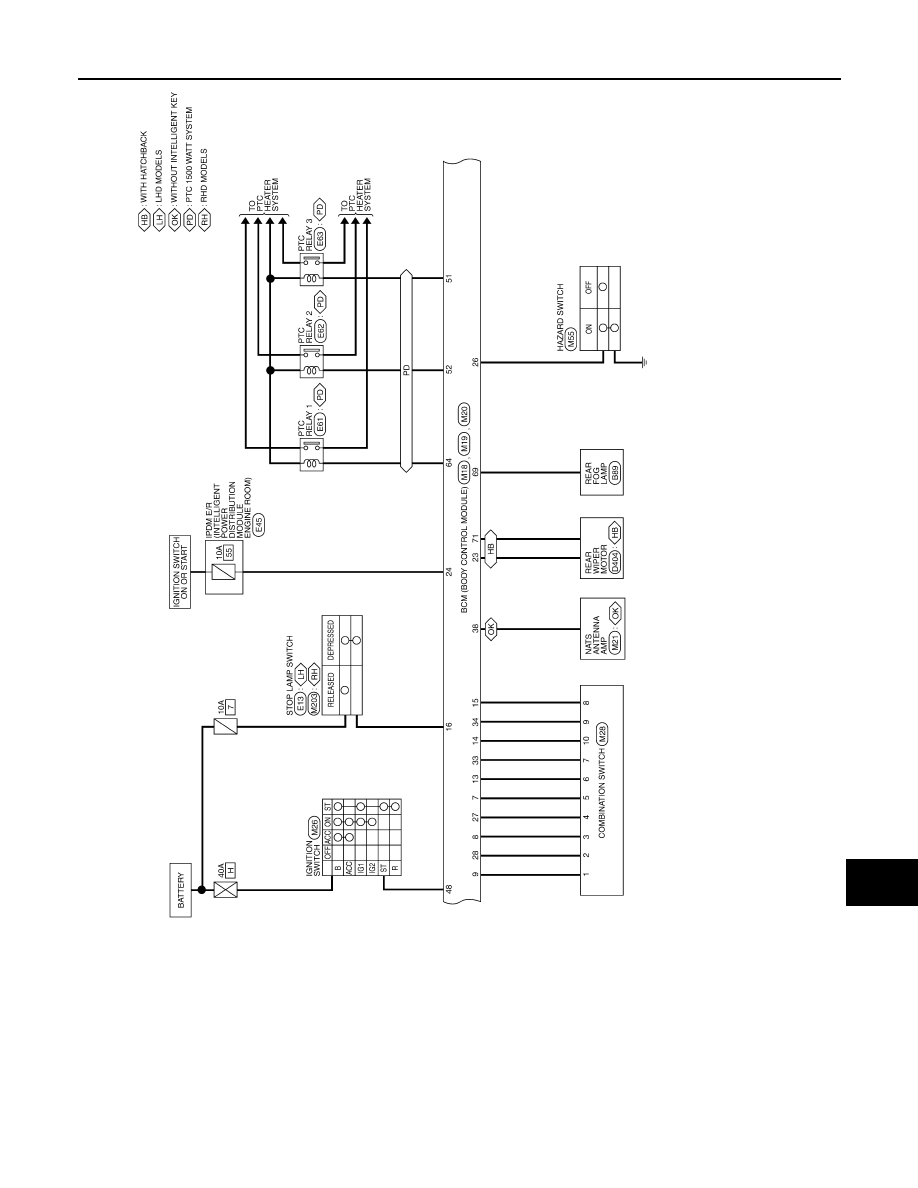

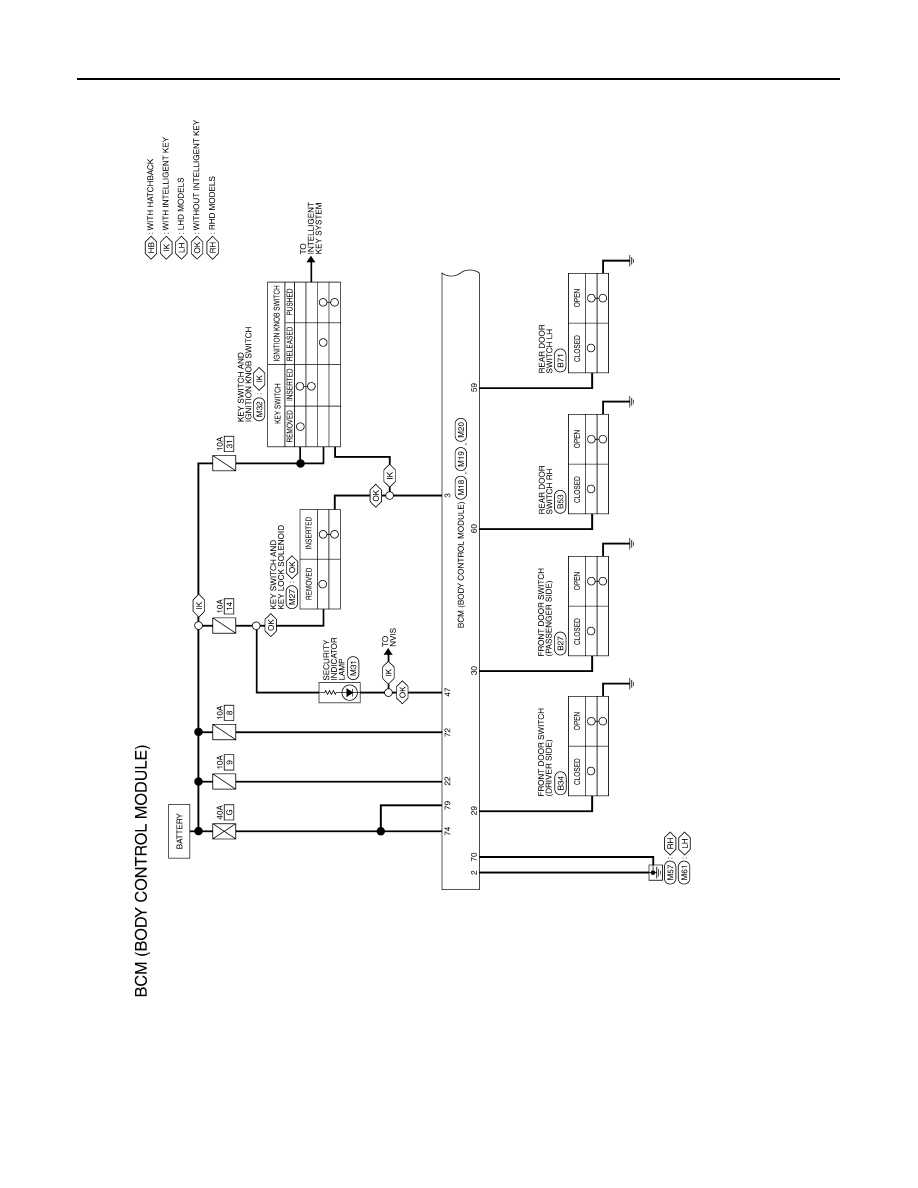

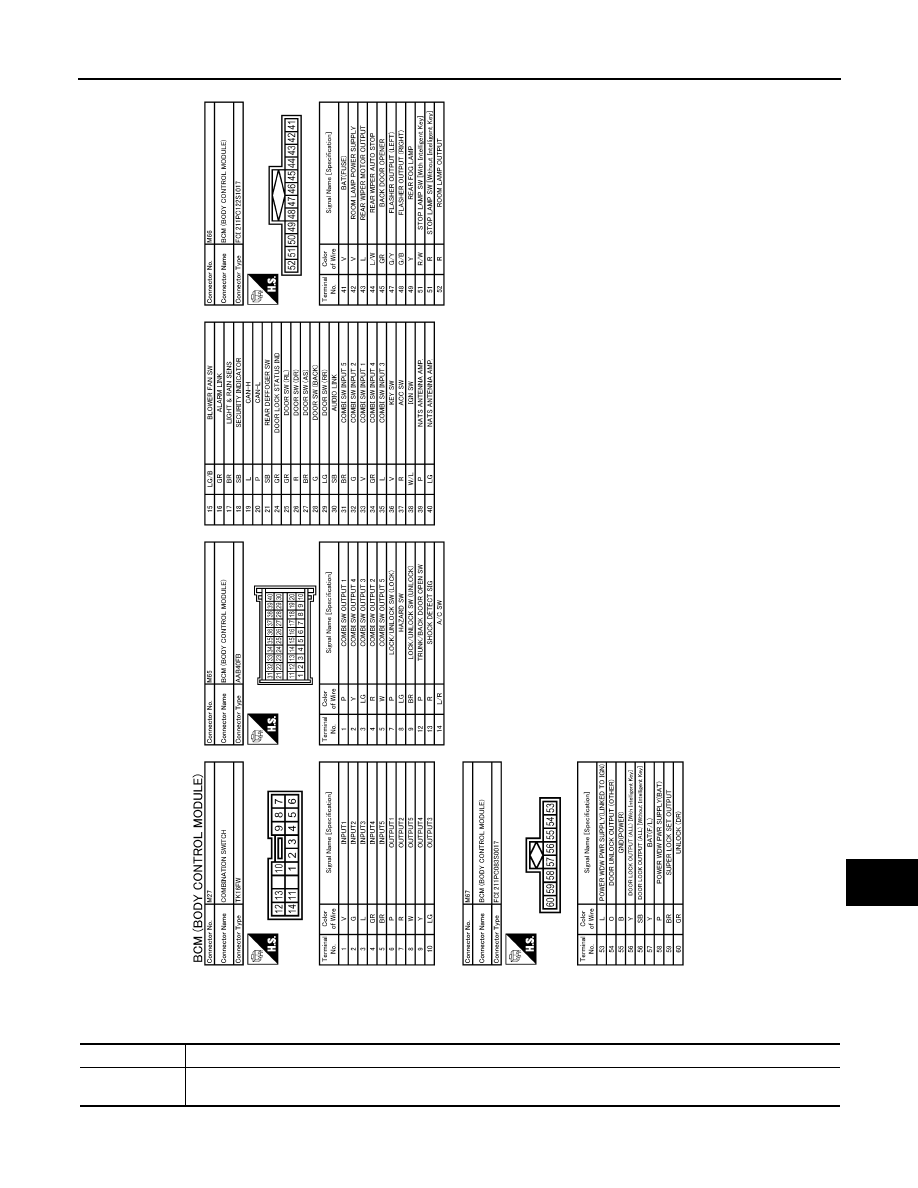

Wiring Diagram

INFOID:0000000001713122

ALMWA0067GB

MWI

BCM (BODY CONTROL MODULE)

MWI-71

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ALMWA0068GB

MWI-72

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

ALMWA0069GB

MWI

BCM (BODY CONTROL MODULE)

MWI-73

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Inspection Priority Chart

INFOID:0000000001713123

JCMWA0411GB

Priority

DTC

1

• U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)
