CONTENTS

MAINTENANCE

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

Pre-Delivery Inspection Item  .....................................

5

ON-VEHICLE MAINTENANCE .....................

6

GENERAL MAINTENANCE  ................................

6

General Maintenance ................................................

6

PERIODIC MAINTENANCE  ................................

7

Periodic Maintenance ................................................

7

RECOMMENDED FLUIDS AND LUBRI-
CANTS ................................................................

19

Fluids and Lubricants  ..............................................

19

SAE Viscosity Number  ............................................

20

Engine Coolant Mixture Ratio  .................................

21

ENGINE MAINTENANCE (HR16DE)  .................

22

DRIVE BELTS  ...........................................................

22

DRIVE BELTS : Checking .......................................

22

DRIVE BELTS : Tension Adjustment  ......................

22

ENGINE COOLANT ...................................................

23

ENGINE COOLANT : Inspection .............................

23

ENGINE COOLANT : Changing Engine Coolant ....

23

RADIATOR ................................................................

25

RADIATOR : Checking Radiator  .............................

25

FUEL LINES  ..............................................................

25

FUEL LINES : Inspection  ........................................

25

AIR CLEANER FILTER  .............................................

25

AIR CLEANER FILTER : Removal and Installation

....

26

ENGINE OIL ...............................................................

26

ENGINE OIL : Draining ............................................

27

ENGINE OIL : Refilling  ............................................

27

OIL FILTER  ................................................................

27

OIL FILTER : Removal and Installation  ...................

27

OIL FILTER : Inspection  ..........................................

28

SPARK PLUG  ............................................................

28

SPARK PLUG : Removal and Installation  ...............

28

SPARK PLUG : Inspection  ......................................

29

EVAP VAPOR LINES  ................................................

30

EVAP VAPOR LINES : Inspection ...........................

30

ENGINE MAINTENANCE (MR18DE)  ...............

31

DRIVE BELTS ............................................................

31

DRIVE BELTS : Component ....................................

31

DRIVE BELTS : Checking Drive Belts .....................

31

DRIVE BELTS : Tension Adjustment  ......................

31

ENGINE COOLANT  ...................................................

31

ENGINE COOLANT : Inspection  .............................

31

ENGINE COOLANT : Changing Engine Coolant ....

32

RADIATOR .................................................................

33

RADIATOR : Checking Radiator Cap ......................

34

RADIATOR : Checking Radiator  .............................

34

FUEL LINES ...............................................................

34

FUEL LINES : Inspection .........................................

35

AIR CLEANER FILTER  .............................................

35

AIR CLEANER FILTER : Removal and Installation

....

35

ENGINE OIL ...............................................................

36

ENGINE OIL : Inspection .........................................

36

ENGINE OIL : Changing Engine Oil  ........................

37

MA-2

OIL FILTER  ...............................................................

38

OIL FILTER : Removal and Installation  ..................

38

OIL FILTER : Inspection  .........................................

39

SPARK PLUG  ...........................................................

39

SPARK PLUG : Component  ...................................

40

SPARK PLUG : Removal and Installation ..............

40

EVAP VAPOR LINES ................................................

41

EVAP VAPOR LINES : Inspection ..........................

41

ENGINE MAINTENANCE (K9K)  .......................

42

DRIVE BELTS  ...........................................................

42

DRIVE BELTS : Exploded View  .............................

42

DRIVE BELTS : Inspection and Adjustment  ...........

42

ENGINE COOLANT  ..................................................

42

ENGINE COOLANT : Inspection  ............................

42

ENGINE COOLANT : Draining  ...............................

43

ENGINE COOLANT : Refilling ................................

43

ENGINE COOLANT : Flushing  ...............................

44

RADIATOR ................................................................

44

RADIATOR : Checking Radiator Cap  .....................

44

RADIATOR : Checking Radiator  ............................

45

FUEL LINES ..............................................................

45

FUEL LINES : Inspection ........................................

45

AIR CLEANER FILTER .............................................

46

AIR CLEANER FILTER : Removal and Installation

...

46

ENGINE OIL  ..............................................................

46

ENGINE OIL : Inspection  ........................................

47

ENGINE OIL : Draining  ...........................................

47

ENGINE OIL : Refilling ............................................

48

OIL FILTER  ...............................................................

48

OIL FILTER : Replacement .....................................

48

CHASSIS AND BODY MAINTENANCE  ...........

50

Air Conditioner Filter  ...............................................

50

Checking Exhaust System  ......................................

50

Checking Clutch Fluid Level and Leaks ..................

50

Checking Clutch System .........................................

50

Checking M/T Oil  ....................................................

50

Changing M/T Oil  ....................................................

51

Checking A/T Fluid: RE4F03B  ................................

51

Changing A/T Fluid: RE4F03B ................................

52

Checking A/T Fluid: RSF91R ..................................

52

Changing A/T Fluid: RS9F94R  ...............................

52

Balancing Wheels  ...................................................

53

Rotation ...................................................................

53

Checking Brake Fluid Level and Leaks ...................

54

Checking Brake Line and Cables ............................

54

Changing Brake Fluid  .............................................

54

Drain and Refill  .......................................................

54

Checking Disc Brake ...............................................

55

Axle and Suspension Parts .....................................

56

Drive Shaft  ..............................................................

56

Lubricating Locks, Hinges and Hood Latch  ............

57

Checking Seat Belts, Buckles, Retractors, An-
chors and Adjusters  ................................................

57

PRECAUTIONS

MA-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001731952

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

MA-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000001277594

Commercial Service Tool

INFOID:0000000001277595

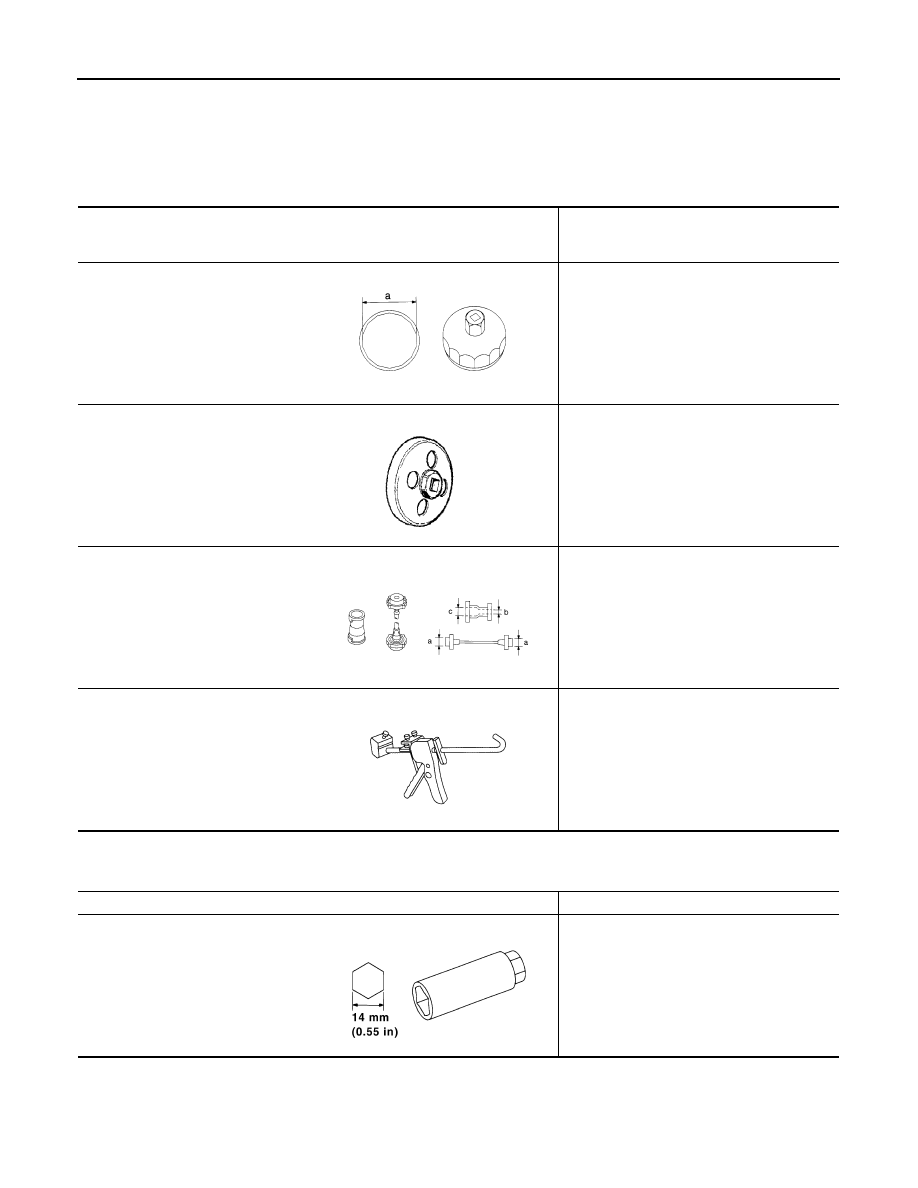

Tool number
(RENAULT Tool number)
Tool name

Description

KV10115801
(  —  )
Oil filter wrench

Removing and installing oil filter
(HR16DE and MR20DE engine models)
a: 64.3 mm (2.531 in)

KV113C0010
(Mot.1329)
Oil filter wrench

Removing and installing oil filter
(K9K engine models)

(J-33984-A)
Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

WS39930000
Tube pressure

Pressing the tube of liquid gasket

S-NT375

MBIB0369E

S-NT564

S-NT052

Tool name

Description

Spark plug wrench

Removing and installing spark plug
(HR16DE and MR20DE engine models)

PBIC3874E
