LU-10

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000001381532

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

 (lmp qt)

Engine Oil Pressure

INFOID:0000000001381533

*: Engine oil temperature at 80

°

C (176

°

F)

Drain and refill

With oil filter change

4.3 (3-3/4)

Without oil filter change

4.1 (3-5/8)

Dry engine (Overhaul)

4.8 (4-1/4)

Engine speed (rpm)

Approximate discharge pressure* [kPa (bar, kg/cm

2

, psi)]

Idle speed

More than 60 (0.60, 0.61, 9)

2,000

More than 270 (2.7, 2.8, 39)

LUBRICATION SYSTEM

LU-11

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

FUNCTION DIAGNOSIS

LUBRICATION SYSTEM

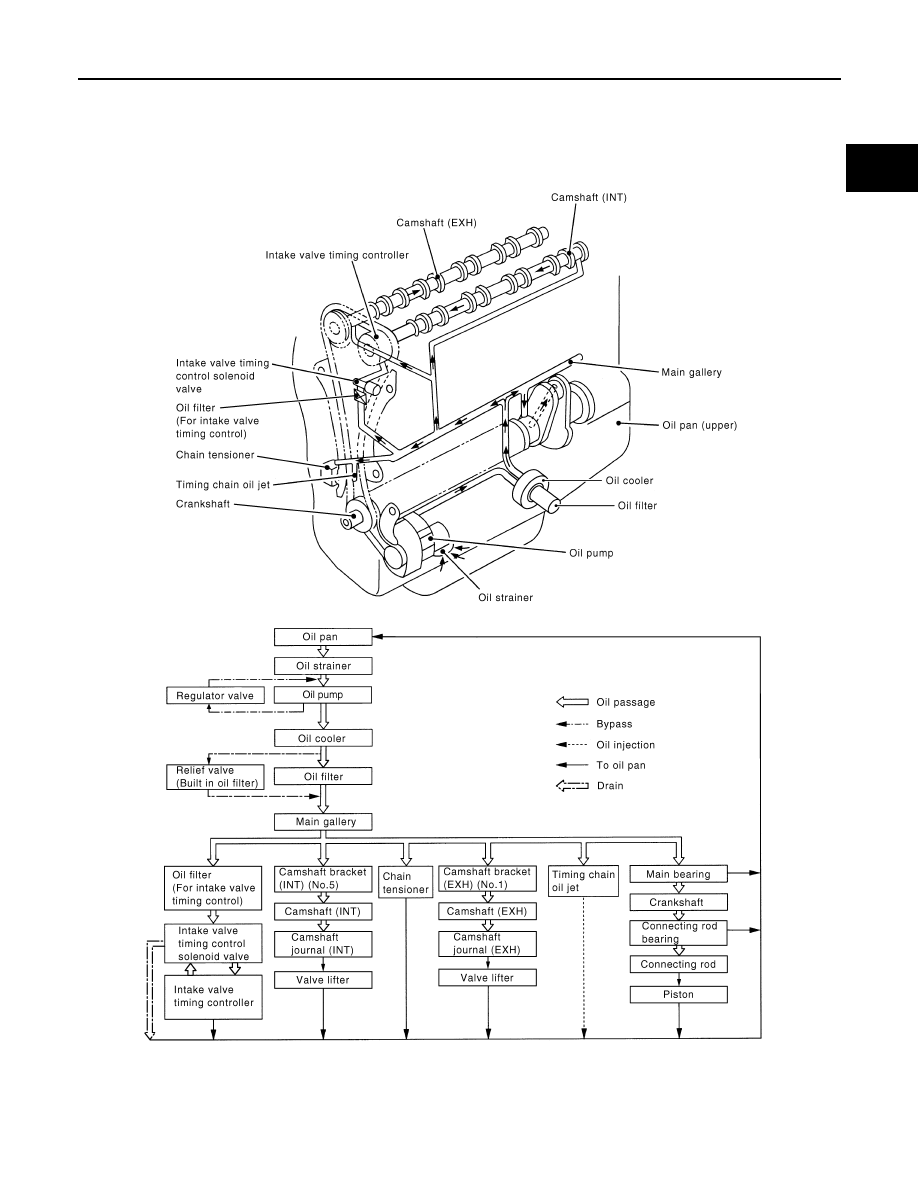

Lubrication Circuit

INFOID:0000000001337826

PBIC4546E

LU-12

< PRECAUTION >

[MR18DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001532084

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Liquid Gasket

INFOID:0000000001337823

LIQUID GASKET APPLICATION PROCEDURE

1.

Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
• Remove liquid gasket completely from the liquid gasket application surface, bolts, and bolt holes.

2.

Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.

3.

Attach liquid gasket tube to the Tool.
Use Genuine Silicone RTV Sealant or equivalent. Refer to

GI-27, "Recommended Chemical Products and Sealants"

.

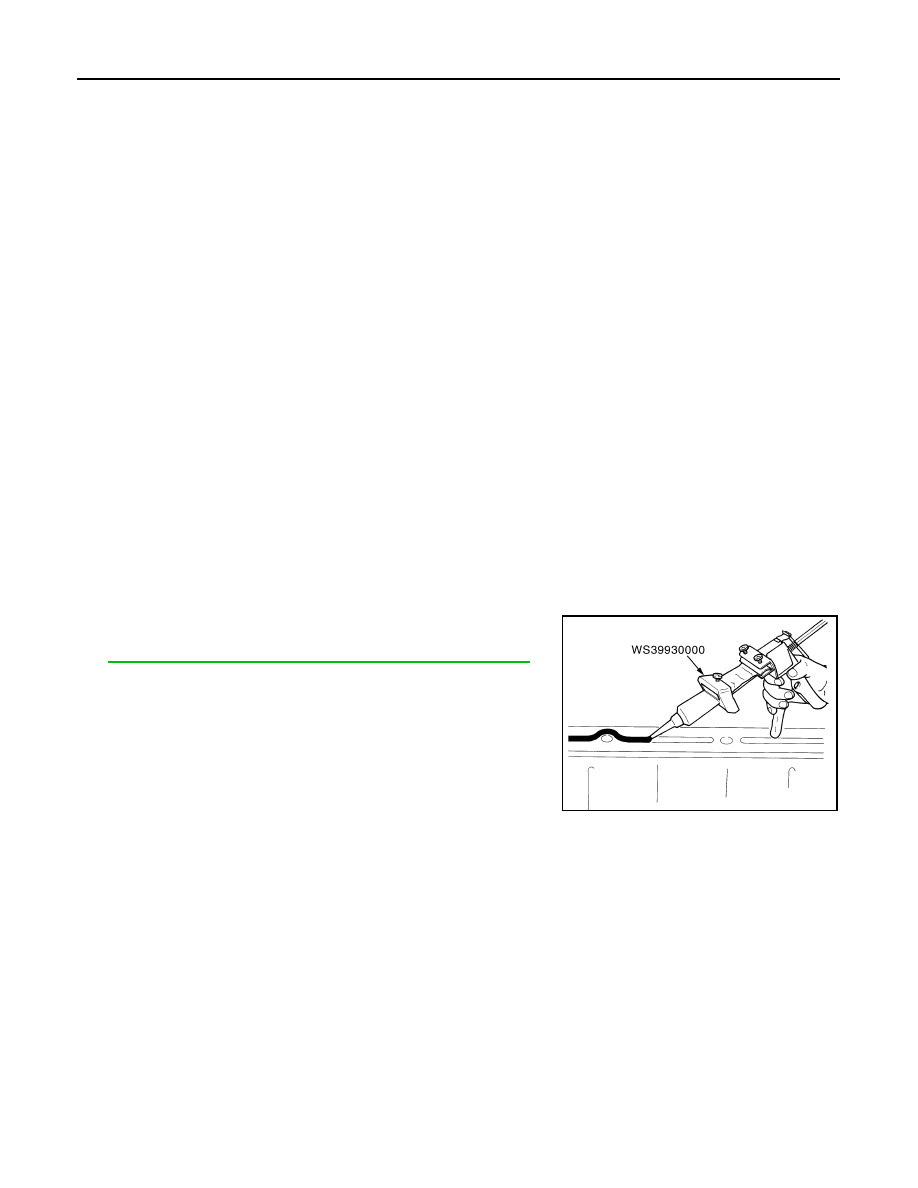

• Within 5 minutes of liquid gasket application, install the mating

component.

• If liquid gasket protrudes, wipe it off immediately.
• Do not retighten bolts or nuts after the installation.
• Wait 30 minutes or more after installation before refilling

engine oil and engine coolant.

Tool number

:WS39930000 (

)

PBIC2160E

PREPARATION

LU-13

< PREPARATION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000001337824

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000001337825

Tool number
(Kent-Moore No.)
Tool name

Description

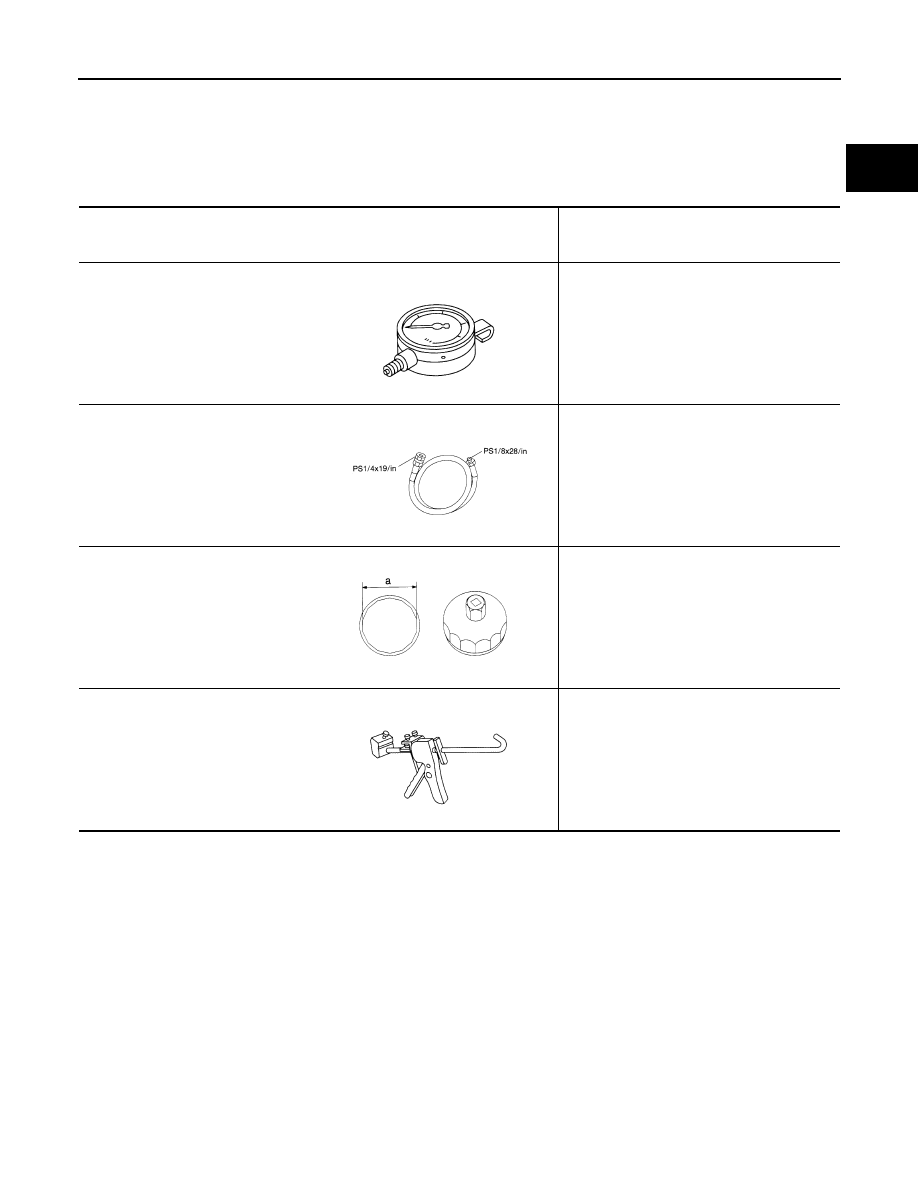

ST25051001
(J-25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range: 2,452 kPa (25

kg/cm

2

, 356 psi)

ST25052000
(J-25695-2)
Hose

Adapting oil pressure gauge to oil pan (upper)

KV10115801
(J-38956)
Oil filter wrench

Removing oil filter
a: 64.3 mm (2.531 in)

WS39930000
(

)

Tube presser

Pressing the tube of liquid gasket

NT050

S-NT559

S-NT375

NT052
