Nissan Tiida C11. Manual - part 75

BRC-66

< ECU DIAGNOSIS >

[ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

NOTE:

• 1: Confirm tire pressure is normal.

• 2: Only 4WD models.

• 3: On and off timing for warning lamp and indicator lamp.

- ABS warning lamp: Refer to

BRC-60, "Description"

.

- Brake warning lamp: Refer to

BRC-61, "Description"

.

- VDC OFF indicator lamp: Refer to

XX-XX, "*****"

.

- SLIP indicator lamp: Refer to

XX-XX, "*****"

.

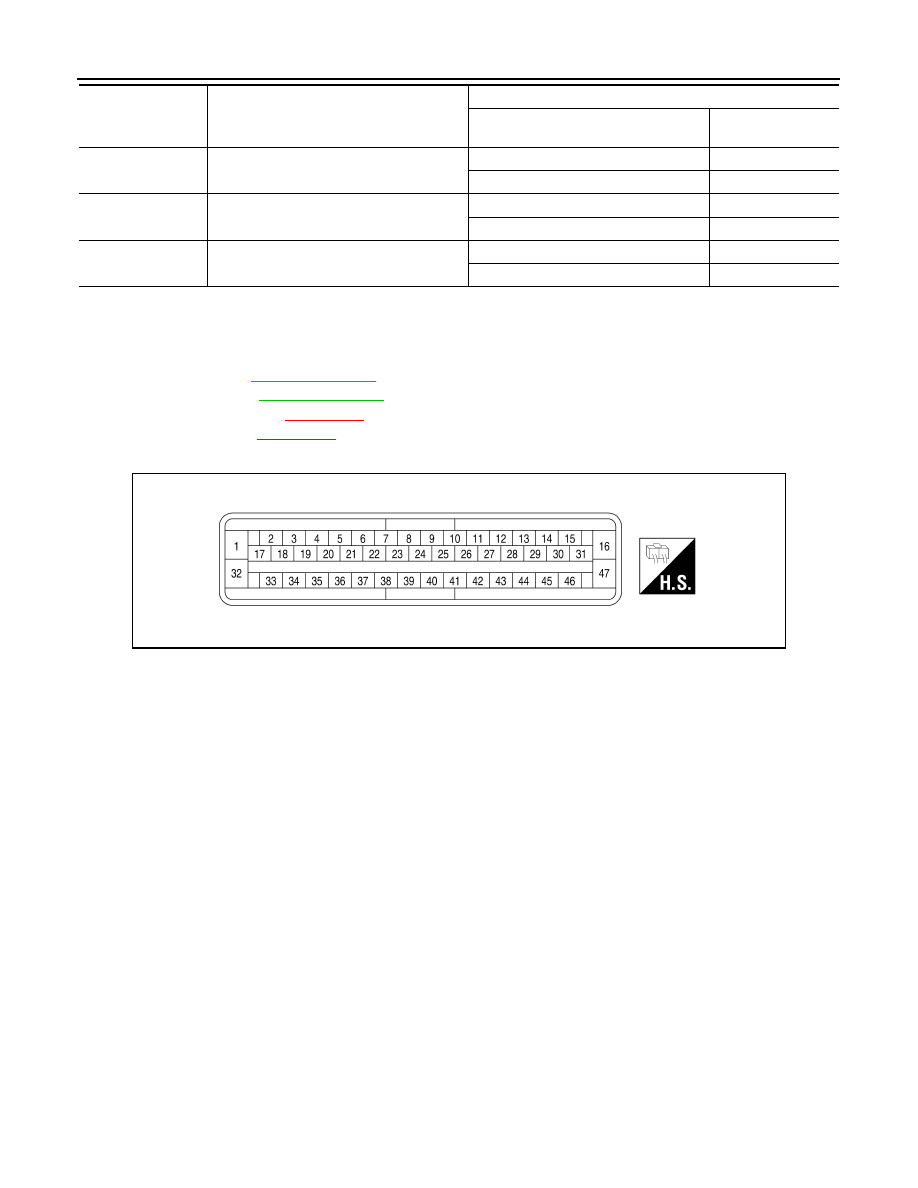

TERMINAL LAYOUT

DELTA S SEN

 Value detected by delta stroke sensor

When brake pedal is depressed

1.05 - 1.80 mm

When brake pedal is released

0.00 mm (+0.6/-0.4)

RELEASE SWITCH
NO

 Active booster signal status

When brake pedal is depressed

ON

When brake pedal is released

OFF

RELEASE SWITCH
NC

 Active booster signal status

When brake pedal is depressed

OFF

When brake pedal is released

ON

 Monitor item

Display content

Data monitor

Condition

Reference value in

normal operation

AWFIA0032ZZ

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-67

< ECU DIAGNOSIS >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Wiring Diagram - LHD

INFOID:0000000001731340

AWFWA0012GB

BRC-68

< ECU DIAGNOSIS >

[ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

ALFWA0019GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-69

< ECU DIAGNOSIS >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Wiring Diagram - RHD

INFOID:0000000001731382

AWFWA0013GB
