EBD

EBD

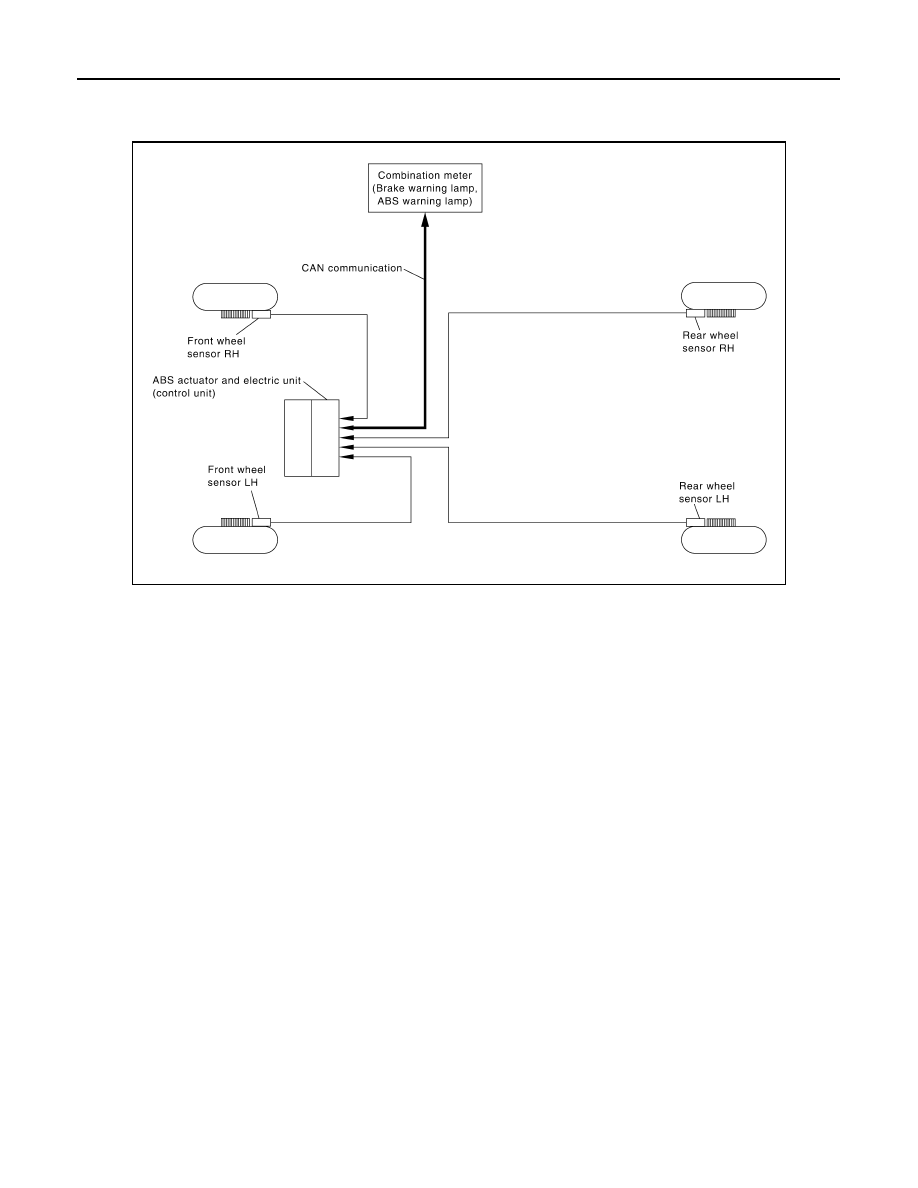

System Diagram

INFOID:0000000001731220

System Description

INFOID:0000000001731221

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then it electronically controls the rear
braking force (brake fluid pressure) to reduce rear wheel slippage. Accordingly, it improves vehicle stability.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0014GB

EBD

BRC-23

< FUNCTION DIAGNOSIS >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

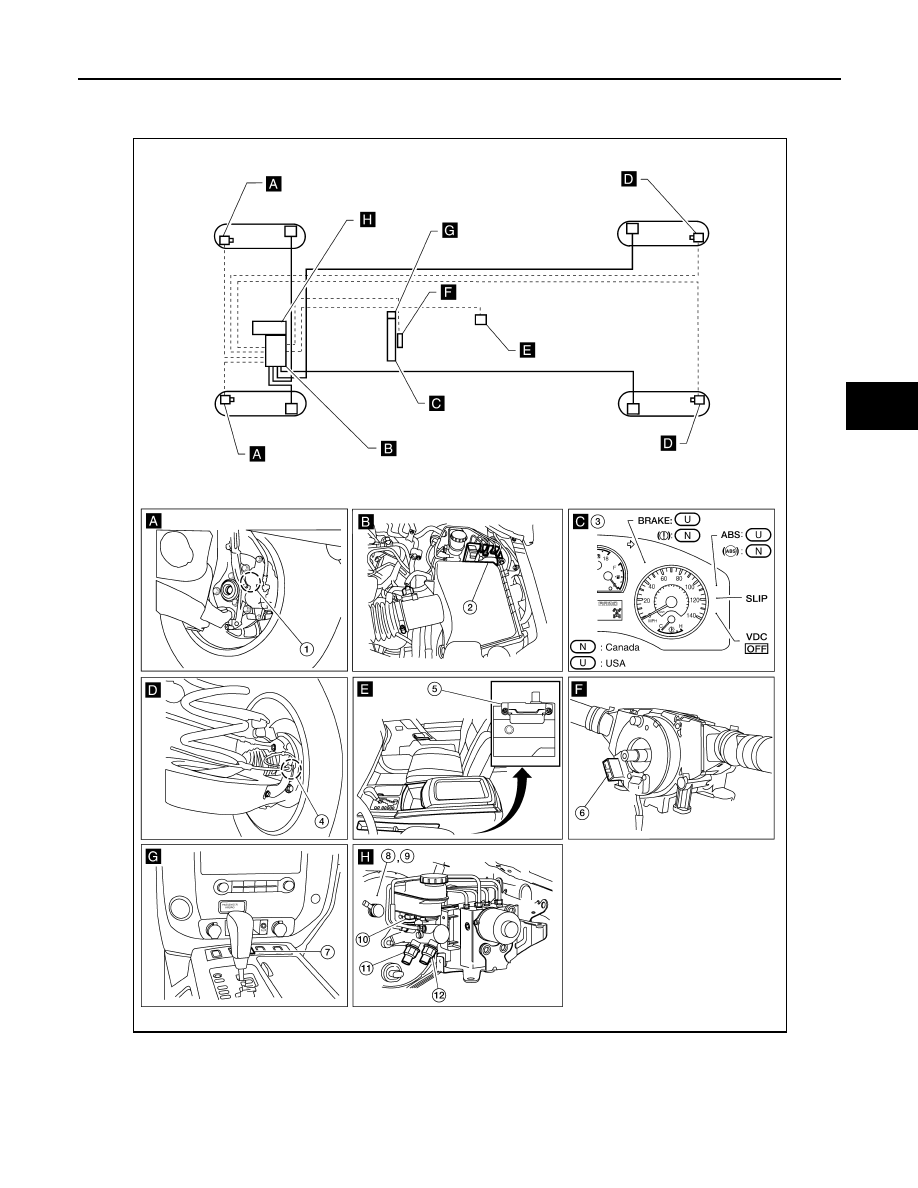

Component Parts Location

INFOID:0000000001731222

AWFIA0013GB

BRC-24

< FUNCTION DIAGNOSIS >

[ABS]

EBD

Component Description

INFOID:0000000001731223

1.

Front wheel sensor
LH E18
RH E117

2.

ABS actuator and electric unit (con-
trol unit) E125

3.

Combination meter M24

4.

Rear wheel sensor
LH C11
RH C10

5.

Yaw rate/side/decel G sensor M108

6.

Steering angle sensor M17 (view
with steering wheel removed)

7.

VDC OFF switch M257

8.

Active booster E49

9.

Delta stroke sensor E114

10. Brake fluid level switch E21

11.

Front pressure sensor E31

12. Rear pressure sensor E32

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-39, "Description"

Motor

Actuator relay

BRC-54, "Description"

Solenoid valve

BRC-46, "Description"

Wheel sensor

BRC-30, "Description"

ABS warning lamp

BRC-60, "Description"

Brake warning lamp

BRC-61, "Description"

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL

UNIT)]

BRC-25

< FUNCTION DIAGNOSIS >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]

CONSULT-III Function (ABS)

INFOID:0000000001731224

FUNCTION

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

SELF-DIAG RESULTS MODE

Operation Procedure

1.

Before performing the self-diagnosis, start engine and drive vehicle at 30 km/h (19 MPH) or more for
approximately 1 minute.

How to Erase Self-diagnosis Results

1.

After erasing DTC memory, start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately
1 minute as the final inspection, and make sure that the ABS warning lamp, VDC OFF indicator lamp,
SLIP indicator lamp and brake warning lamp turn OFF.

CAUTION:

If memory cannot be erased, perform applicable diagnosis.
NOTE:
• When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning lamp,

VDC OFF indicator lamp, SLIP indicator lamp and brake warning lamp will not turn OFF even when the
system is normal unless the vehicle is driving at approximately 30 km/h (19 MPH) or more for approxi-
mately 1 minute.

• Brake warning lamp will turn ON in case of parking brake operation (when switch is ON) or of brake fluid

level switch operation (when brake fluid is insufficient).

• VDC OFF switch should not stay “ON” position.

Display Item List

Refer to

BRC-71, "DTC No. Index"

.

DATA MONITOR MODE

Display Item List

Diagnostic test mode

Function

Work support

This mode enables a technician to adjust some devices faster and more accurately by following
the indications on CONSULT-III.

Self-diagnostic results

Self-diagnostic results can be read and erased quickly.

Data monitor

Input/Output data in the ABS actuator and electric unit (control unit) can be read.

Active test

Diagnostic test mode is which CONSULT-III drives some actuators apart from the ABS actuator
and electric unit (control unit) and also shifts some parameters in a specified range.

ECU part number

ABS actuator and electric unit (control unit) part number can be read.

CAN diagnostic support monitor

The results of transmit/receive diagnosis of CAN communication can be read.

Item

(Unit)

Data monitor item selection

Remarks

ECU INPUT

SIGNALS

MAIN

SIGNALS

SELECTION

FROM MENU

GEAR

×

×

×

Gear position judged by PNP switch
signal is displayed.

FR RH SENSOR
 (km/h, MPH)

×

×

×

Wheel speed calculated by front RH
wheel sensor signal is displayed.

FR LH SENSOR
 (km/h, MPH)

×

×

×

Wheel speed calculated by front LH
wheel sensor signal is displayed.

RR RH SENSOR
 (km/h, MPH)

×

×

×

Wheel speed calculated by rear RH
wheel sensor signal is displayed.
