AV-26

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000001724679

REAR DOOR SPEAKER

Removal

1.

Remove the rear door finisher. Refer to

INT-13, "Removal and Installation"

.

2.

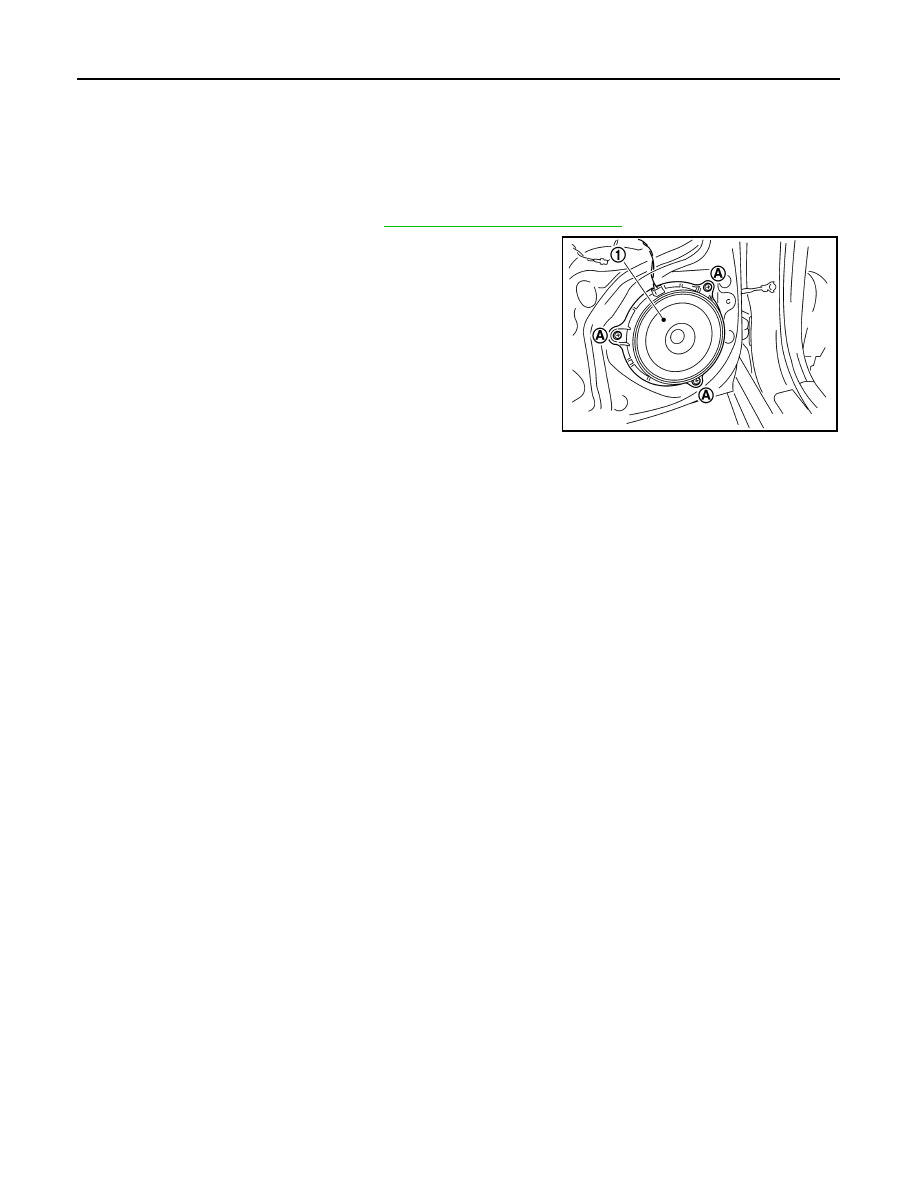

Remove the rear door finisher screws (A), disconnect the con-
nector and remove the rear door speaker (1).

Installation

Installation is in the reverse order of removal.

SKIB4729E

AV

STEERING SWITCH

AV-27

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Removal and Installation

INFOID:0000000001724685

STEERING WHEEL BLUETOOTH CONTROL SWITCH

Removal

1.

Remove the steering wheel. Refer to

ST-8, "Removal and Installation"

.

2.

Remove the steering wheel finisher cover.

3.

Remove the screws and the steering wheel Bluetooth control switch.

Installation

Installation is in the reverse order of removal.

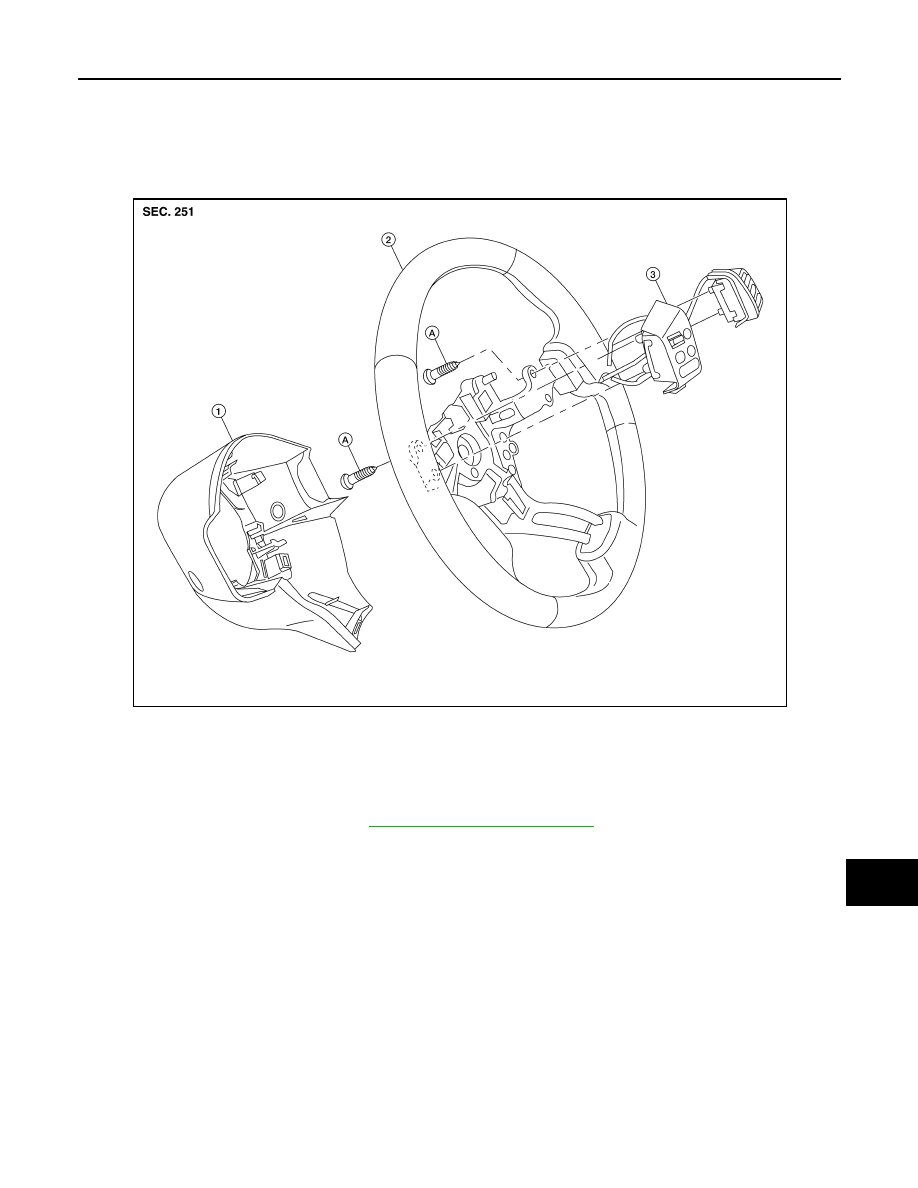

1.

Steering wheel finisher cover

2.

Steering wheel

3.

Steering wheel Bluetooth control
switch

A.

Screws

AWNIA0257ZZ

AV-28

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

AUDIO ANTENNA

AUDIO ANTENNA

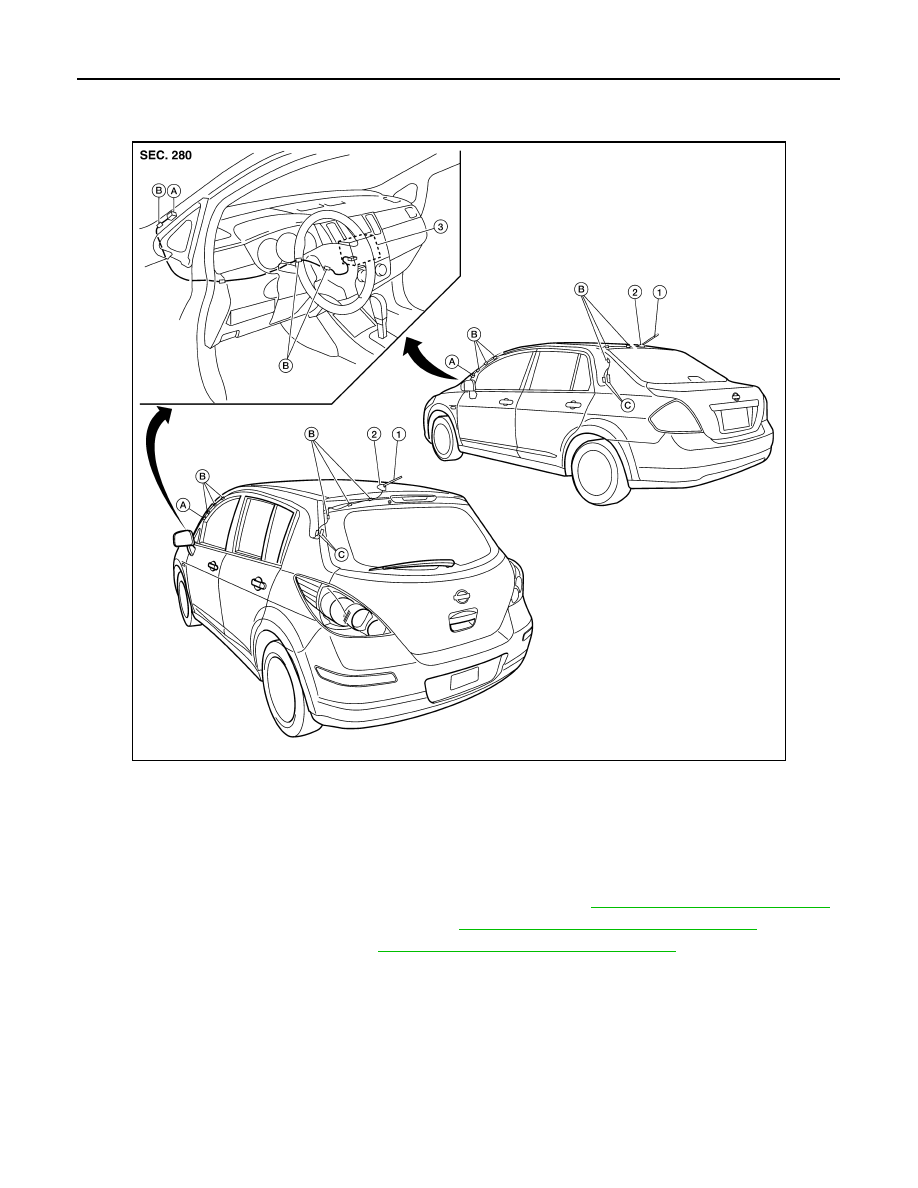

Location of Antenna

INFOID:0000000001724655

Removal and Installation of Roof Antenna

INFOID:0000000001724656

REMOVAL

1.

For hatchback, remove the luggage side upper finisher (LH). Refer to

INT-35, "Removal and Installation"

.

2.

For sedan, remove the rear pillar finisher. Refer to

INT-33, "Removal and Installation - Sedan"

.

3.

Remove rear assist grip (LH). Refer to

INT-33, "Removal and Installation - Sedan"

.

4.

Remove three clips of headlining (rear side). Pull down headlining (rear side) and obtain space for work
between vehicle and headlining.

5.

Disconnect the roof antenna harness connectors.

LKIA0942E

1.

Roof antenna

2.

Roof antenna base

3.

Audio unit

A.

Audio antenna harness connector

B.

Harness clips

C.

Roof antenna harness connectors

AV

AUDIO ANTENNA

AV-29

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

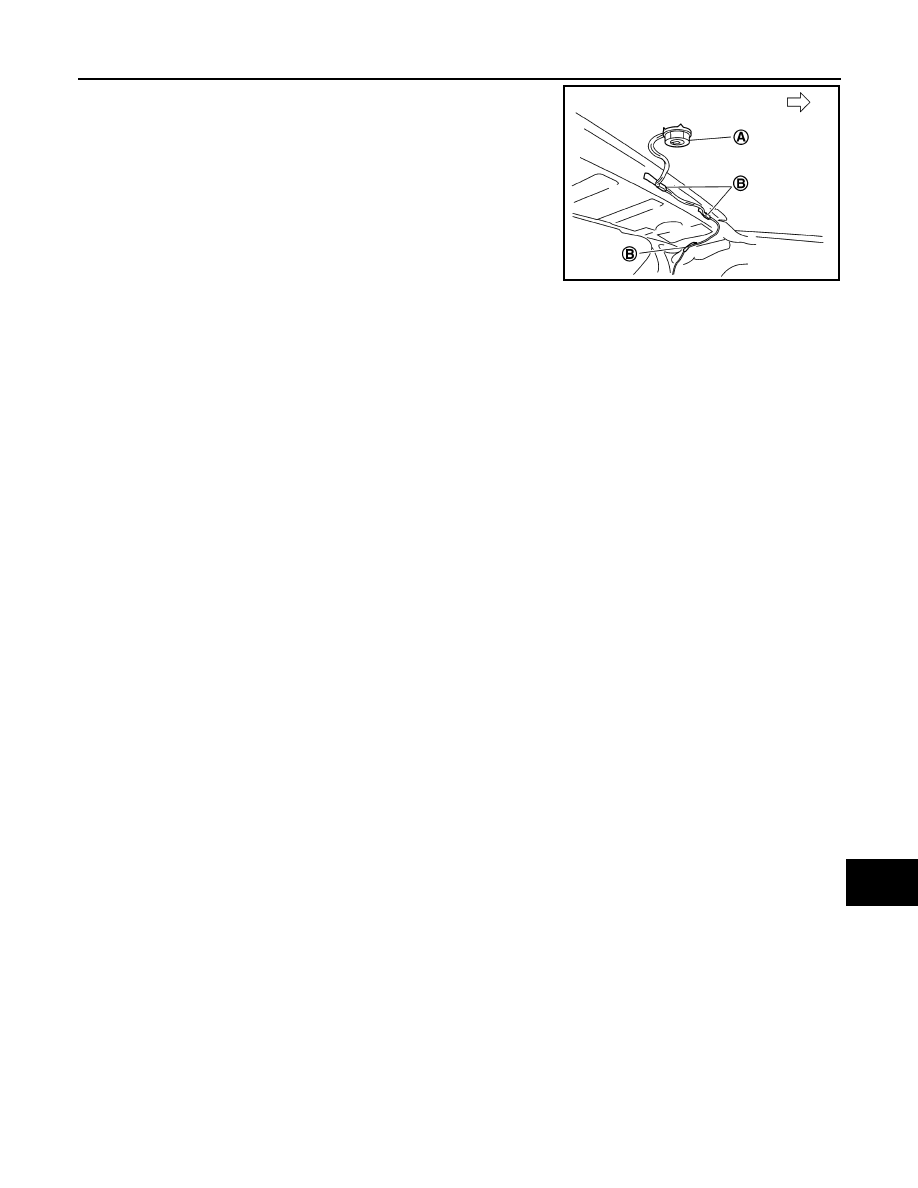

6.

Remove nut (A) and clips (B).

7.

Remove the roof antenna.

INSTALLATION

Installation is in the reverse order of removal.

SKIB4772E
