Vehicle labelling
Vehicle identification number
Engine model/number
plate (RHD vehicles only)

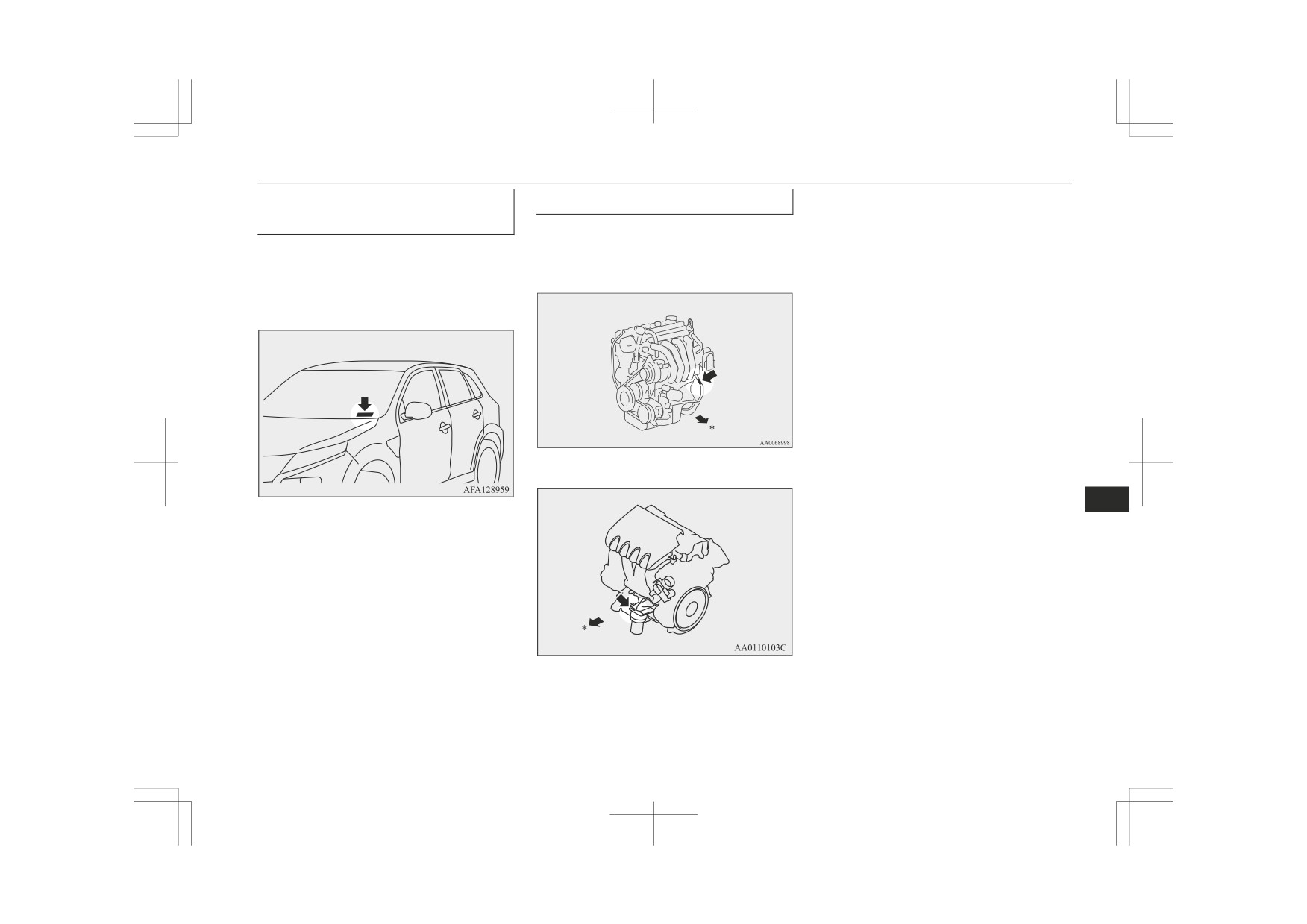

The engine model and number are stamped
The vehicle identification number is stamped
on the engine cylinder block as shown in the
on the plate riveted to the left front corner of
illustrations.
the vehicle body. It is visible from outside of
the vehicle through the windscreen.
1600 models
*: Front of the vehicle
2000 models
11
*: Front of the vehicle
Specifications
11-03

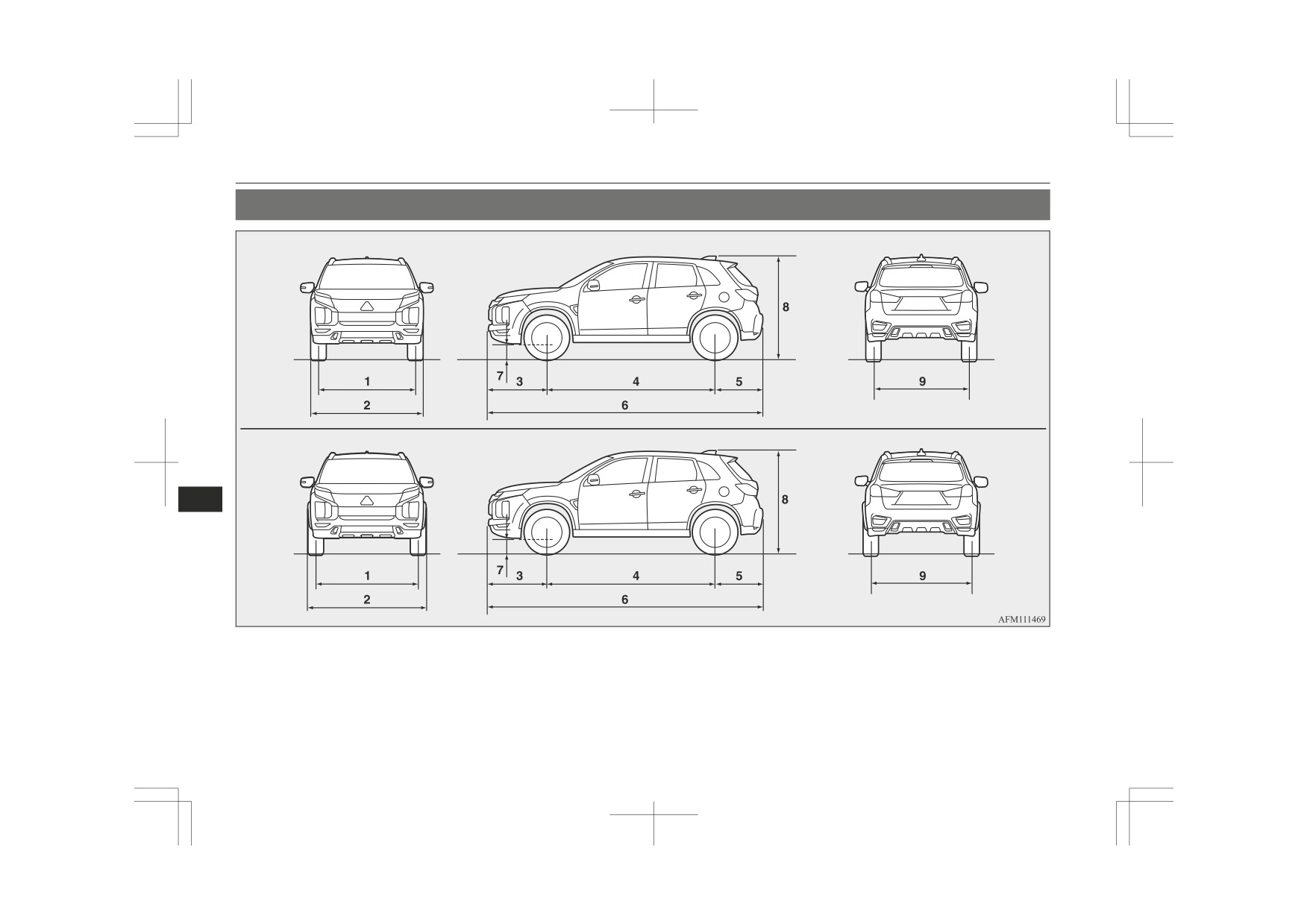

Vehicle dimensions
Vehicle dimensions
Except for vehicles equipped with wheel lip moldings
Vehicles equipped with wheel lip moldings
11
11-04
Specifications
Vehicle dimensions
Vehicles for Moldova and Uk-
Except for vehicles for Moldova
raine
and Ukraine
Item
Vehicles with
Vehicles with
Vehicles with
Vehicles with
16 inch tyres
18 inch tyres
16 inch tyres
18 inch tyres
1
Front track
1,525 mm
1,540 mm
1,525 mm
1,545 mm
Without wheel lip molding
—
—
1,770 mm
—
2
Overall width
With wheel lip molding
1,810 mm
―
1,810 mm
3
Front overhang
930 mm
4
Wheel base
2,670 mm
5
Rear Overhang
765 mm
6
Overall length
4,365 mm
7
Ground clearance (unladen)
195 mm
215 mm
190 mm
190 mm
8
Overall height (unladen)
1,630 mm
1,645 mm
1,640 mm
1,640 mm
9
Rear track
1,530 mm
1,540 mm
1,530 mm
1,545 mm
11
Body
5.7 m
Minimum turning radius
Wheel
5.3 m
NOTE
z The overall width varies depending on whether the vehicle is equipped with wheel lip moldings.
To determine whether your vehicle is equipped with wheel lip moldings, refer to “Exterior” on page 1-12.
Specifications
11-05
Vehicle performance
Vehicle performance
1600 models
183 km/h (114 mph)
Maximum speed
2000 models
190 km/h (118 mph), 191 km/h (119 mph)*
*: Vehicles for Moldova and Ukraine
Vehicle weight
Vehicles for Moldova and Ukraine
2000 models
Item
1600 models
GA2WXTSHZL6Z
GA2WXTHHZL6Z
Without optional parts
1,290 kg
1,445 kg
1,450 kg
Kerb weight
With full optional parts
1,314 kg
1,468 kg
1,509 kg
11
Maximum gross vehicle weight
1,870 kg, 1,825 kg*
1,970 kg, 2,035 kg*
Front
930 kg
1,030 kg
Maximum axle weight
Rear
1,000 kg, 1,070 kg*
1,000 kg, 1,085 kg*
With brake
1,200 kg
1,300 kg
Maximum towable weight
Without brake
670 kg
745 kg
Maximum trailer-nose weight
60 kg
65 kg
Maximum roof load
80 kg
Seating capacity
5 persons
*: In case of trailer towing
11-06
Specifications
Vehicle weight
NOTE
z Trailer specifications indicate the manufacturer’s recommendation.
Except for vehicles for Moldova and Ukraine
CVT
MT
2WD
4WD
Item
Vehicles
Vehicles
Vehicles
Vehicles
Vehicles
Vehicles
with 16 inch
with 18 inch
with 16 inch
with 18 inch
with 16 inch
with 18 inch
tyres
tyres
tyres
tyres
tyres
tyres
Without optional parts
1,355 kg
1,375 kg
1,385 kg
1,405 kg
1,450 kg
1,470 kg
Kerb weight
With full optional parts
1,375 kg
1,430 kg
1,405 kg
1,460 kg
1,470 kg
1,525 kg
Maximum gross vehicle weight
1,970 kg, 2,035 kg*
Front
1,030 kg
Maximum axle weight
11
Rear
1,000 kg, 1,090 kg*
With brake
1,300 kg
Maximum towable weight
Without brake
710 kg
720 kg
730 kg
740 kg
750 kg
750 kg
Maximum trailer-nose weight
65 kg
Maximum roof load
80 kg
Seating capacity
5 persons
*: In case of trailer towing
Specifications
11-07
Engine specifications
NOTE
z Trailer specifications indicate the manufacturer’s recommendation.
Engine specifications
Item
1600 models
2000 models
Engine model
4A92
4B11
4J11
No. of cylinders
4 in line
4 in line
4 in line
Total displacement
1,590 cc
1,998 cc
1,998 cc
Bore
75.0 mm
86.0 mm
86.0 mm
Stroke
90.0 mm
86.0 mm
86.0 mm
Camshaft
Double overhead
Double overhead
Single overhead
11
Mixture preparation
Electronic injection
Electronic injection
Electronic injection
Maximum output (EEC net)
86 kW/6,100 r/min
110 kW/6,000 r/min
Maximum torque (EEC net)
154 N•m/4,000 r/min
197 N•m/4,200 r/min
195 N•m/4,200 r/min
Electrical system
Item
1600 models
2000 models
Battery
Voltage
12 V
*1: Vehicles equipped with Auto Stop & Go (AS&G) system
*2: Vehicles for Moldova and Ukraine
11-08
Specifications
Tyres and wheels
Item
1600 models
2000 models
Type (JIS)
75D23L
75D23L, Q-85*1
Capacity (5HR)
52 Ah
52Ah, 55Ah*1
Alternator capacity
85 A
105 A, 130 A*1
NGK
LZFR5BI-11
FR6EI, DILKR6D11G*1
Spark plug type
DENSO
—
K20PSR-B8*2
*1: Vehicles equipped with Auto Stop & Go (AS&G) system
*2: Vehicles for Moldova and Ukraine
NOTE
z Vehicles equipped with the Auto Stop & Go (AS&G) system have a dedicated AS&G battery type.
The use of a different battery could cause the battery to run down quickly or the AS&G system not to operate normally.
Please contact a MITSUBISHI MOTORS Authorized Service Point when replacing the battery.
11
Tyres and wheels
Tyre
215/65R16 98H
215/70R16 100H
225/55R18 98V
P225/55R18 97H
Size
16x6 1/2J
18x7J
Wheel
Offset (inset)
46 mm
38 mm
Specifications
11-09
CO2 Mass Emissions
NOTE
z The tyres that can be installed on your vehicle are shown on the driver’s door label, refer to “Tyre inflation pressures” on page 10-10. For details, contact
your MITSUBISHI MOTORS Authorized Service Point.
CO2 Mass Emissions
Combined
Item
CO2 (g/km)
NEDC*1
WLTC*2 14°C
M/T
154, 161*3
161, 171*3
CVT
2WD
149, 156*3
167, 176*3
4WD
162, 167*3
179, 185*3
11
*1: New European Driving Cycle
*2: Worldwide harmonized Light vehicles Test Cycle
*3: Vehicles equipped with 18 inch tyres
NOTE
z The results given do not express or imply any guarantee of the CO2 mass emissions of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor-
porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and
the standard of maintenance, will all affect its CO2 mass emissions.
11-10
Specifications
Capacity

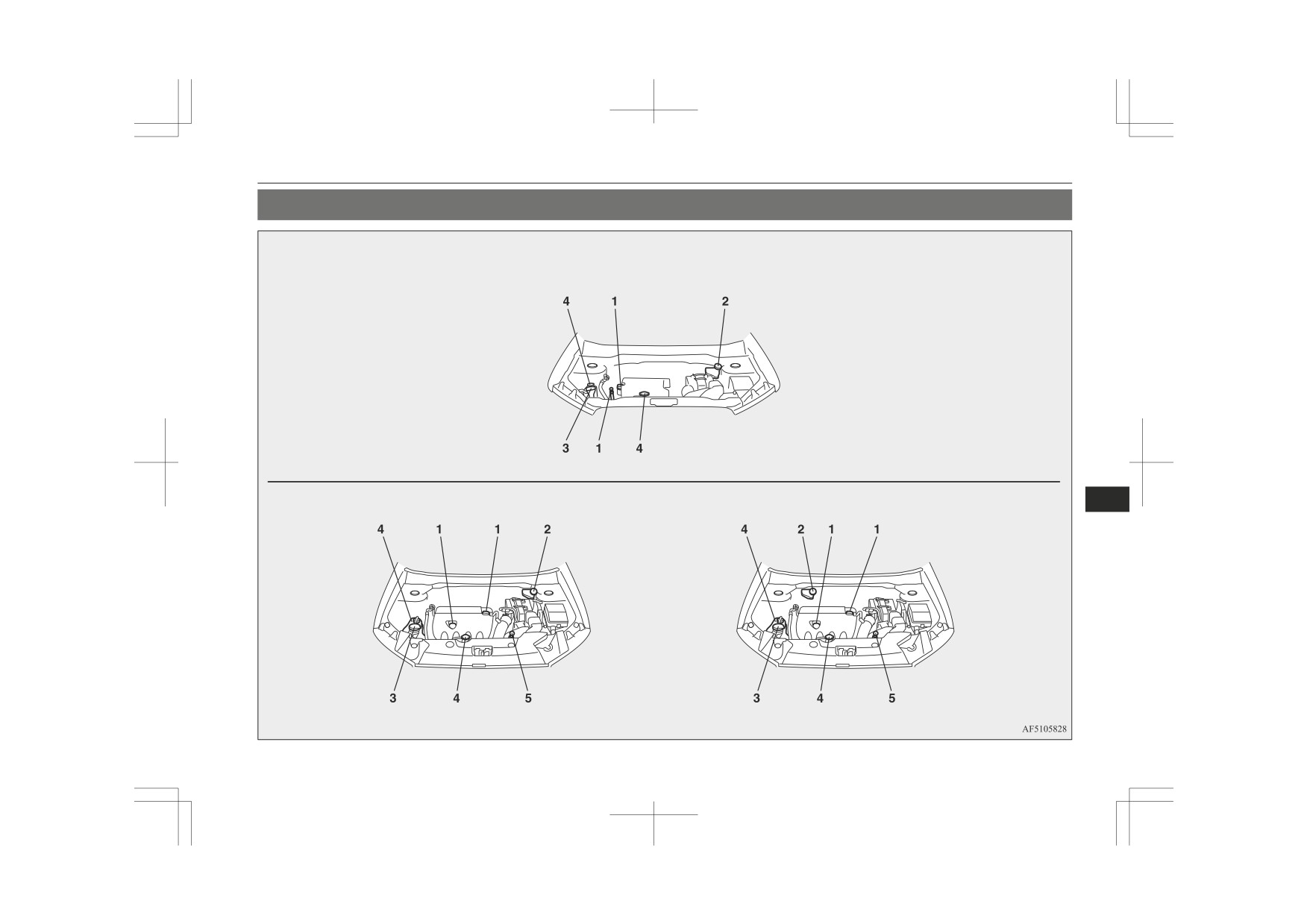

Capacity
1600 models
2000 models
LHD
RHD
11
Specifications
11-11
Capacity
No.
Item
Quantity
Lubricants
Oil pan
4.0 litres
1600 models
Oil filter
0.2 litre
1
Engine oil
Refer to page 10-04.
Oil pan
4.0 litres
2000 models
Oil filter
0.3 litre
Brake fluid
Brake fluid DOT 3 or
2
As required
Clutch fluid
DOT 4
3
Washer fluid
4.3 litres
—
6.0 litres [includes
MITSUBISHI
1600 models
0.65 litre in the re-
MOTORS GENUINE
serve tank]
4
Engine coolant
SUPER LONG LIFE
7.5 litres [includes
COOLANT PREMI-
2000 models
0.65 litre in the re-
UM or equivalent*
serve tank]
11
MITSUBISHI
5
CVT fluid
6.9 litres
MOTORS GENUINE
CVTF-J4
*: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid tech-
nology
CAUTION
z For the CVT fluid, use only MITSUBISHI MOTORS GENUINE CVTF. Use of a different fluid could damage the transmission.
11-12
Specifications
Capacity
No.
Item
Quantity
Lubricants
MITSUBISHI MOTORS
GENUINE NEW MULTI
GEAR OIL ECO API
GL-4, SAE 75W-80 or
1600 models
2.0 litres
MITSUBISHI MOTORS
GENUINE NEW MULTI
6
Manual transmission oil
GEAR OIL API GL-3,
SAE 75W-80
2000 models
2.5 litres
MITSUBISHI MOTORS
GENUINE Super Hypoid
Gear Oil API GL-5 SAE 80
MITSUBISHI MOTORS
7
Transfer oil
0.5 litre
GENUINE Super Hypoid
Gear Oil API GL-5 SAE 80
MITSUBISHI MOTORS
8
Rear differential oil
0.4 litre
GENUINE Super Hypoid
11
Gear Oil API GL-5 SAE 80
Except for
vehicles
for
HFO-1234yf
Refrigerant
(air condition-
Moldova and Ukraine
9
480 - 520 g
ing)
Vehicles for Moldova and
HFC-134a
Ukraine
Specifications
