Mitsubishi L200 (2018 year). Instruction - part 6

Because the front airbags and driver’s knee
airbag do not protect the occupant in all types
of frontal collisions, be sure to always prop-
erly wear your seat belts.

The front airbags and driver’s

knee airbag ARE NOT DE-

SIGNED TO DEPLOY when…

The front airbags and driver’s knee airbag are
not designed to deploy in conditions where
they cannot typically provide protection to
the occupant.
Such conditions are shown in the illustration.

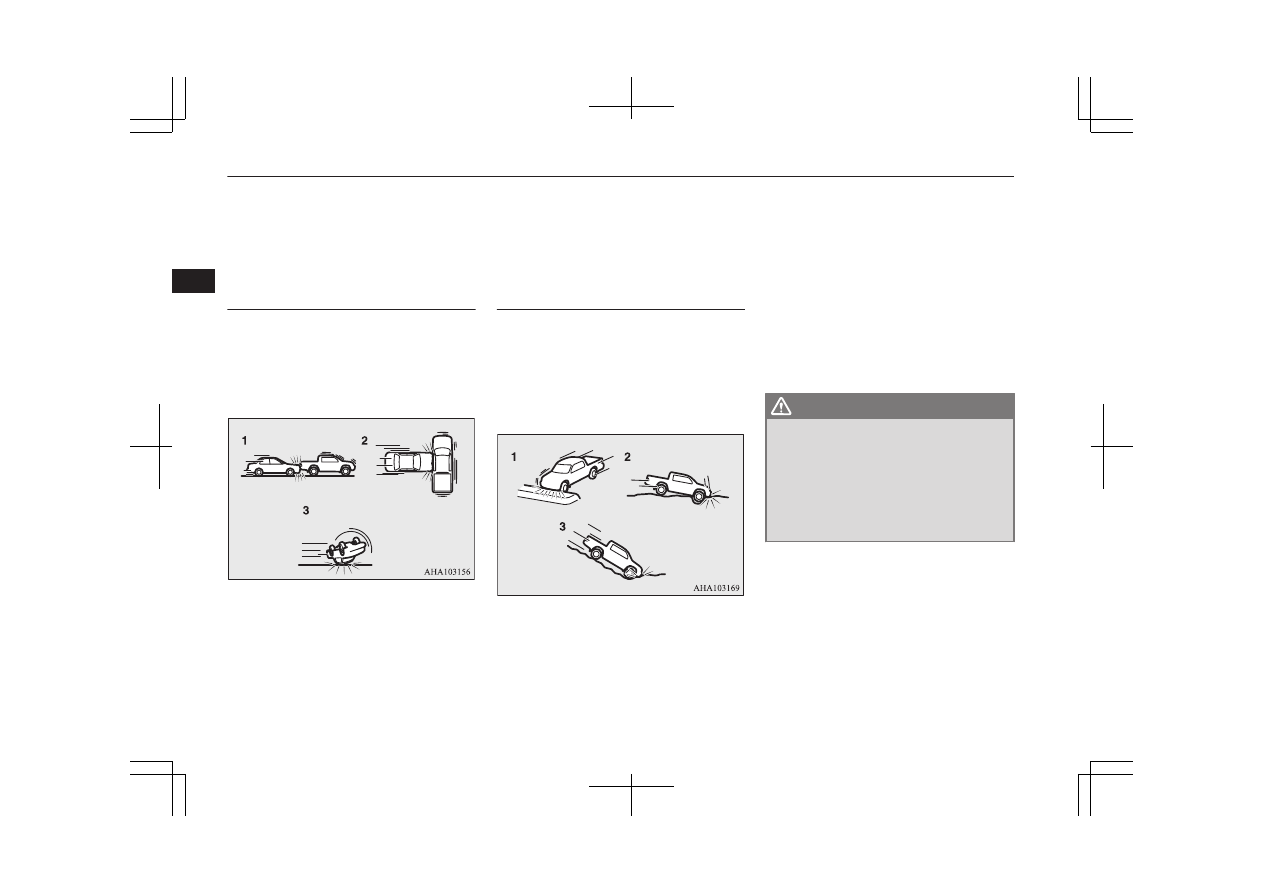

1- Rear end collisions
2- Side collisions
3- Vehicle rolls onto its side or roof

Because the front airbags and driver’s knee
airbag do not protect the occupant in all types
of collisions, be sure to always properly wear
your seat belts.

The front airbags and driver’s

knee airbag MAY DEPLOY

when…

The  front  airbags  and  driver’s  knee  airbag
may deploy if the bottom of the vehicle suf-
fers  a  moderate-to-severe  impact  (undercar-
riage damage).
Examples  of  some  typical  conditions  are
shown in the illustration.

1- Collision with an elevated median/island

or kerb

2- Vehicle travels over a deep hole/pothole
3- Vehicle drives down a steep slope and

hits the ground

Because  the  front  airbags  and  driver’s  knee
airbag  may  deploy  in  certain  types  of  unex-
pected  impacts  as  shown  in  the  illustration
that can easily move you out of position, it is
important  to  always  properly  wear  your  seat
belts.  Your  seat  belts  will  help  keep  you  a
safe distance from the steering wheel and in-
strument panel during the initial stages of air-
bag  deployment.  The  initial  stage  of  airbag
inflation is the most forceful and can possibly
cause serious or fatal injuries if you contact it
at this stage.

WARNING

Do  not  attach  anything  to  the  steering
wheel’s  padded  cover,  such  as  badges  or
accessories.  It  might  strike  and  injure  an
occupant if the airbag inflates.

Do not set anything on, or attach anything
to, the instrument panel above the glove
box. It might strike and injure an occu-
pant if the airbag inflates.

Supplemental restraint system (SRS)-airbag*

4-30

OKTE18E1

Seat and seat belts

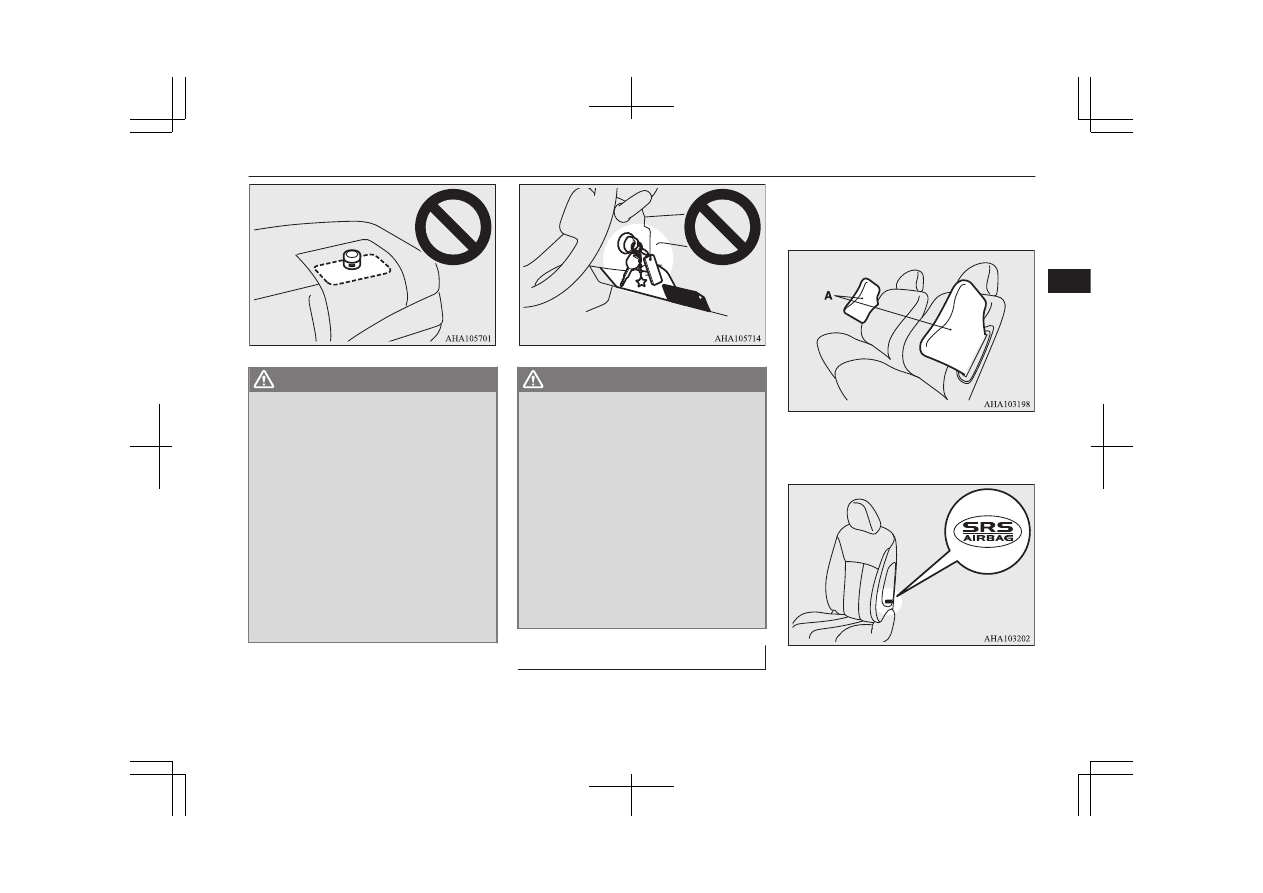

WARNING

Do not attach accessories to, or put them
in front of, the windscreen. These objects
could restrict the airbag inflation, or
strike and injure an occupant if the air-
bags inflate.

Do  not  attach  additional  keys  or  accesso-
ries  (hard,  pointed  or  heavy  objects)  to
the  ignition  key.  Such  objects  could  pre-
vent the driver’s knee airbag from inflat-
ing  normally  or  could  be  propelled  to
cause serious injury if the airbag inflates.

Do  not  attach  accessories  to  the  lower
portion  of  the  driver’s  side  instrument
panel.  Such  objects  could  prevent  the
driver’s  knee  airbag  from  inflating  nor-
mally or could be propelled to cause seri-
ous injury if the airbag inflates.

WARNING

Do not put packages, pets or other objects
between the airbags and the driver or
front passenger. It could affect airbag
performance, or could cause injury when
the airbag inflates.

Right after the airbag inflation, several
airbag system components will be hot. Do
not touch these components. There is a
danger of being burnt.

The airbag system is designed to work on-
ly  once.  Once  the  airbags  have  deployed,
they  will  not  work  again.  They  must
promptly be replaced and we recommend
you  to  have  the  entire  airbag  system  in-
spected  by  a  MITSUBISHI  MOTORS
Authorized Service Point.

Side airbag system*

E00407601892

The side airbags (A) are contained in the
driver and front passenger seatbacks.

The side airbag is designed to inflate only on
the side of the vehicle that is impacted, even
with no passenger in the front seat.

The label shown here is attached to the seat-
backs with a side airbag.

Supplemental restraint system (SRS)-airbag*

4-31

OKTE18E1

Seat and seat belts

Curtain airbag system*

E00409101989

The curtain airbags are contained in the front
pillars and roof side rail. The curtain airbag is
designed to inflate only on the side of the ve-
hicle  that  is  impacted,  even  with  no  passen-
ger in the front seat or rear seat.
Also,  when  the  airbag  control  unit  detects  a
rollover  of  the  vehicle,  the  curtain  airbags
will deploy. (if so equipped)

Deployment of side airbags and

curtain airbags*

E00407702669

The side airbags and curtain

airbags ARE DESIGNED TO

DEPLOY when...

The side airbags and curtain airbags are de-
signed to deploy when the vehicle suffers a
moderate-to-severe side impact to the middle
of the passenger compartment.

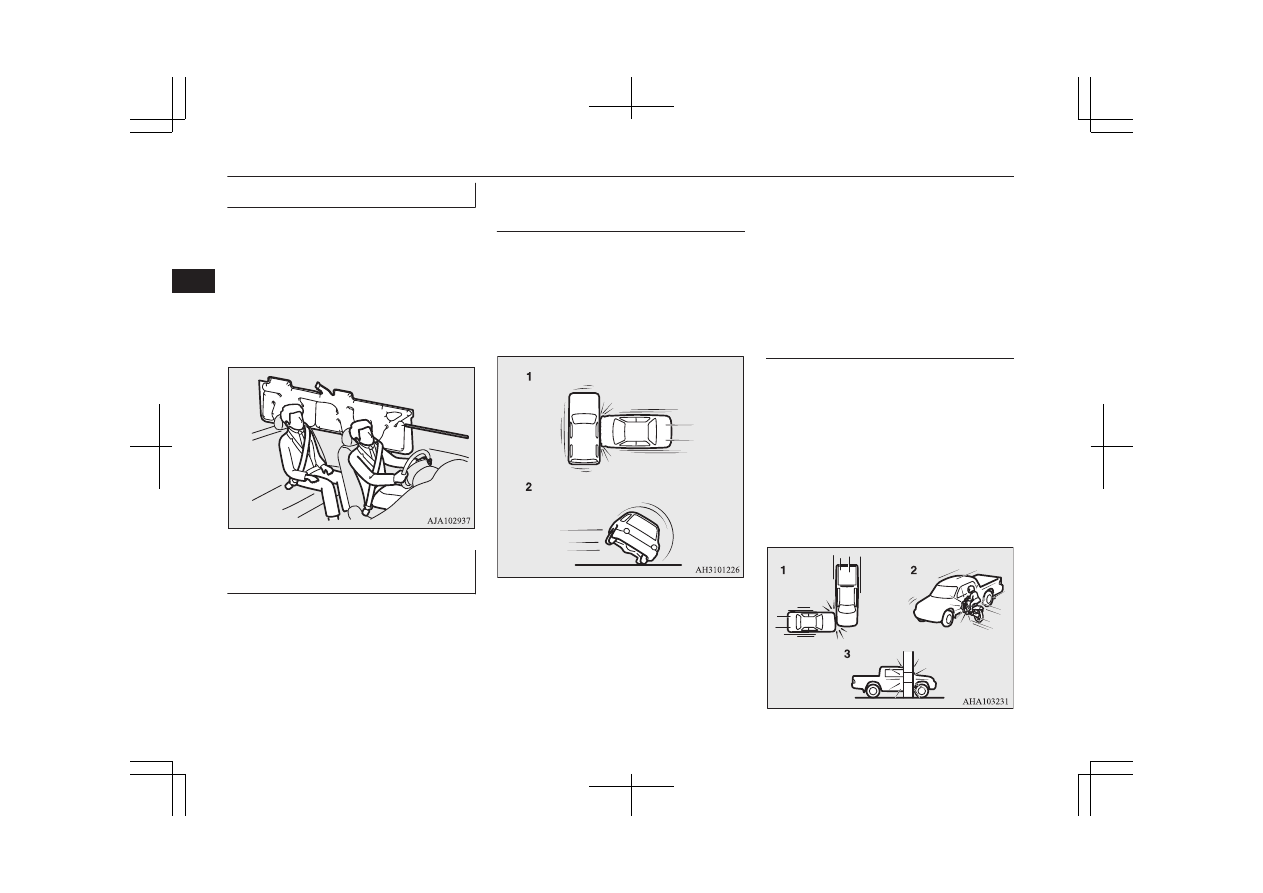

The typical condition is shown in the illustra-
tion.

1. Moderate to severe impact to the middle

of the vehicle body’s side structure

2. When the vehicle detects a rollover of

the vehicle (curtain airbag only)*

The  seat  belts  in  your  vehicle  are  your  pri-
mary means of protection in a collision. The
SRS side airbags and curtain airbags are de-
signed  to  provide  additional  protection.
Therefore,  for  your  safety  and  the  safety  of
all  occupants,  be  sure  to  always  properly
wear your seat belts.

The side airbags and curtain

airbags MAY NOT DEPLOY

when...

With certain types of side collisions, the ve-
hicle’s  body  structure  is  designed  to  absorb
the shock to help protect the occupants from
harm. (The vehicle body’s side area may de-
form  significantly  as  it  absorbs  the  impact.)
Under  such  circumstances,  the  side  airbags
and curtain airbags may not deploy irrespec-
tive of the deformation and damage to the ve-
hicle body. Examples of some typical condi-
tions are shown in the illustration.

Supplemental restraint system (SRS)-airbag*

4-32

OKTE18E1

Seat and seat belts

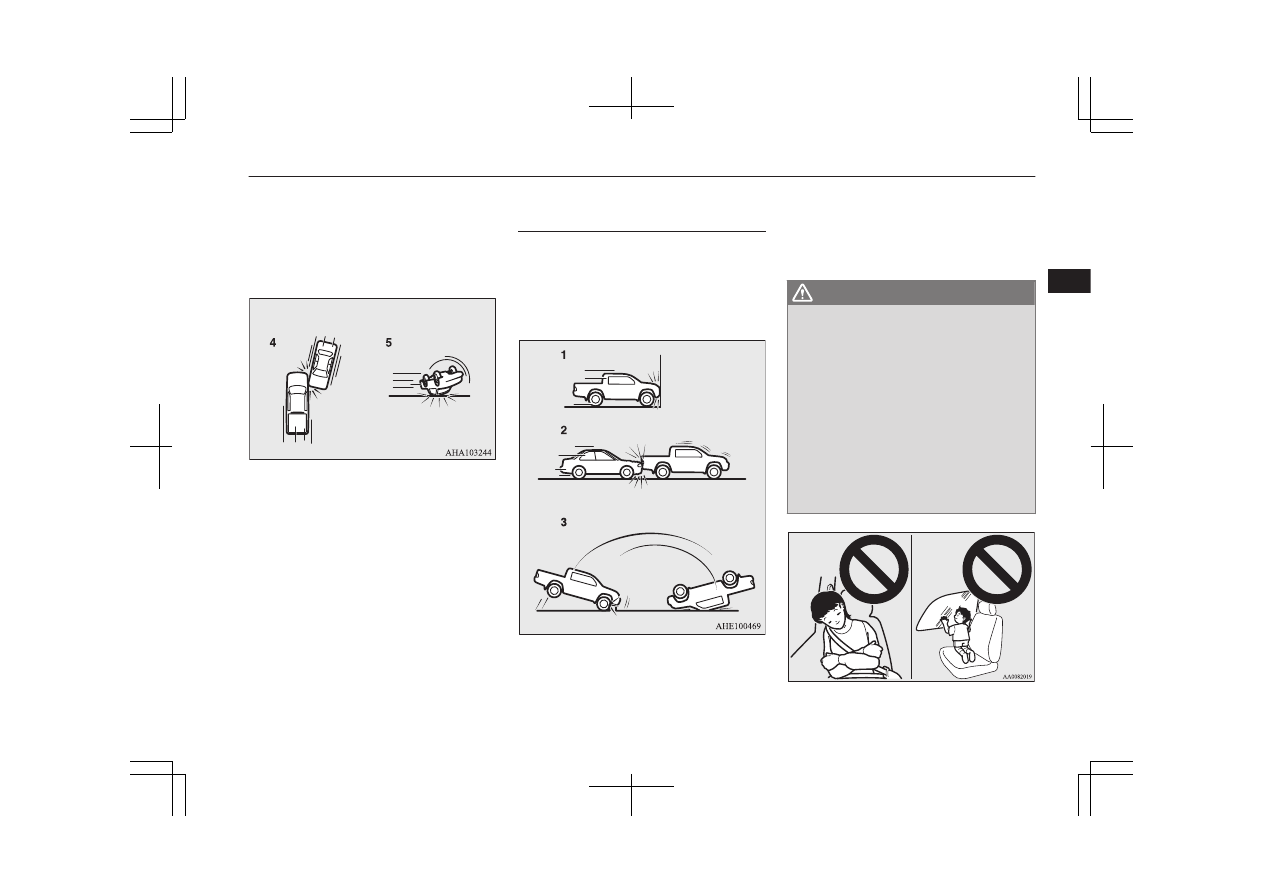

1. Side impacts in an area away from the

passenger compartment

2. Motorcycle or other similar small vehi-

cle collides with the side of vehicle

3. Collision with a utility pole, tree or other

narrow object

4. Oblique side impacts
5. Vehicle rolls onto its side or roof

Because  the  side  airbags  and  curtain  airbags
do  not  protect  the  occupant  in  all  types  of
side  collisions,  be  sure  to  always  properly
wear your seat belts.

The side airbags and curtain

airbags ARE NOT DESIGNED

TO DEPLOY when...

The  side  airbags  and  curtain  airbags  are  not
designed  to  deploy  in  conditions  where  they
cannot  usually  provide  protection  to  the  oc-
cupant.  Typical  conditions  are  shown  in  the
illustration.

1. Head-on collisions
2. Rear end collisions
3. Pitch end over end*

Because  the  side  airbags  and  curtain  airbags
do  not  protect  the  occupant  in  all  types  of
collisions,  be  sure  to  always  properly  wear
your seat belts.

WARNING

The  side  airbags  and  curtain  airbags  are
designed  to  supplement  the  driver  and
passenger  seat  belts  in  certain  side  im-
pacts.  Seat  belts  should  always  be  worn
properly,  and  the  driver  and  passenger
should  sit  well  back  and  upright  without
leaning against the window or door.

The side airbag and curtain airbag inflate
with  great  force.  The  driver  and  passen-
ger  should  not  put  their  arms  out  of  the
window,  and  should  not  lean  against  the
door, in order to reduce the risk of serious
or possible fatal injury from the deploying
side airbag and curtain airbag.

Supplemental restraint system (SRS)-airbag*

4-33

OKTE18E1

Seat and seat belts

WARNING

Do not allow any rear seat occupant to
hold onto the seatback of either front seat,
in order to reduce risk of injury from the
deploying side airbag. Special care should
be taken with children.

Do not place any objects near or in front
of the seatback of either front seat. They
could interfere with proper side airbag in-
flation, and also could cause injury if
thrown free by side airbag deployment.

Do not place stickers, labels or additional
trim on the seatback of either front seat.
They could interfere with proper side air-
bag inflation.

Do  not  install  seat  covers  on  seats  with
side airbags.
Do  not  re-cover  seats  that  have  side  air-
bags.  This  could  interfere  with  proper
side airbag inflation.

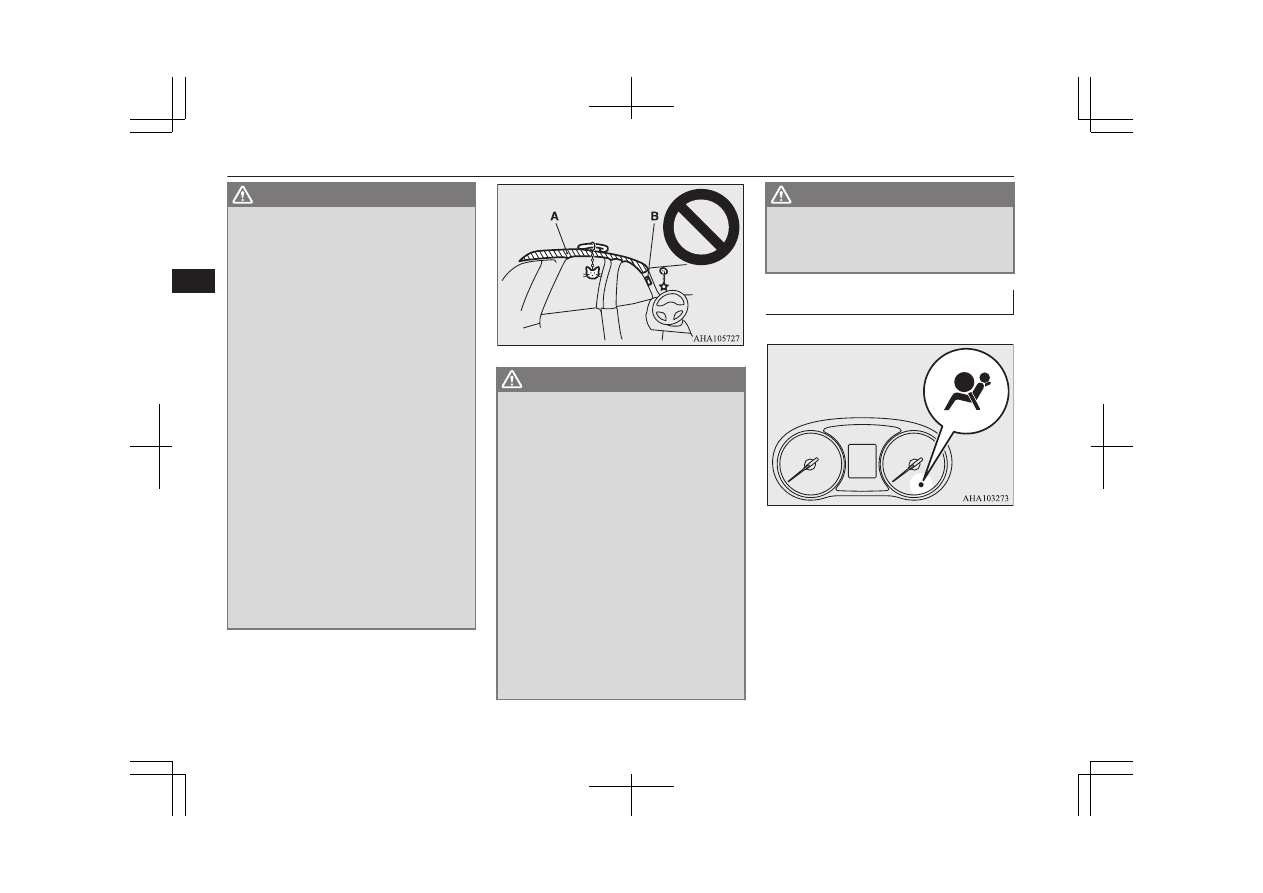

Do  not  attach  a  microphone  (A)  or  any
other  device  or  object  around  the  part
where  the  curtain  airbags  (B)  activate
such as on the windscreen, side door glass,
front and rear pillars and roof side or as-
sist  grips.  When  the  curtain  airbags  in-
flate,  the  microphone  or  other  device  or
object  will  be  hurled  with  great  force  or
the  curtain  airbags  may  not  activate  cor-
rectly, resulting in death or serious injury.

WARNING

Do not put a hanger or any heavy or poin-
ted object on the coat hook. If the curtain
airbag was activated, any such item could
be  propelled  away  with  great  force  and
could prevent the curtain airbag from in-
flating correctly. Hang clothes directly on
the  coat  hook  (without  using  a  hanger).
Make  sure  there  are  no  heavy  or  sharp
objects  in  the  pockets  of  clothes  that  you
hang on the coat hook.

Do  not  allow  a  child  to  lean  against  or
close to the front door even if the child is
seated in a child restraint system.
The  child’s  head  should  also  not  lean
against  or  be  close  to  the  area  where  the
side  airbag  and  curtain  airbag  are  loca-
ted. It is dangerous if the side airbag and
curtain airbag inflate.
Failure  to  follow  all  of  these  instructions
could lead to serious or fatal injury to the
child.

WARNING

We recommend work around and on the
side airbags and curtain airbags system to
be done by a MITSUBISHI MOTORS
Authorized Service Point.

SRS warning lamp

E00407802963

There  is  a  Supplemental  Restraint  System
(“SRS”)  warning  lamp  on  the  instrument
panel.  The  system  checks  itself  every  time
the ignition switch is turned to the “ON” po-
sition  or  the  operation  mode  is  put  in  ON.
The SRS warning lamp will come on for sev-
eral seconds and then go out. This is normal
and means the system is working properly.
If there is a problem involving one or more of
the  SRS  components,  the  warning  lamp  will
come on and stay on.

Supplemental restraint system (SRS)-airbag*

4-34

OKTE18E1

Seat and seat belts

The SRS warning lamp is shared by the SRS
airbag and the seat belt pretensioner system.

WARNING

If  any  of  the  following  conditions  occur,
there may be a problem with the SRS air-
bags  and/or  seat  belt  pretensioners,  and
they may not function properly in a colli-
sion  or  may  suddenly  activate  without  a
collision:

•

Even  when  the  ignition  switch  or  the
operation  mode  is  in  ON,  the  SRS
warning  lamp  does  not  come  on  or  it
remains on.

•

The SRS warning lamp comes on while
driving.

The SRS airbags and seat belt pretension-
ers are designed to help reduce the risk of
serious  injury  or  death  in  certain  colli-
sions. If either of the above conditions oc-
curs,  immediately  have  your  vehicle
checked  by  a  MITSUBISHI  MOTORS
Authorized Service Point.

NOTE

On vehicles equipped with the ERA-GLO-
NASS, if the ERA-GLONASS system oper-
ates, the SRS warning lamp illuminates.

SRS servicing

E00407902746

WARNING

We  recommend  any  maintenance  per-
formed on or near the components of the
SRS  to  be  performed  by  a  MITSUBISHI
MOTORS Authorized Service Point.
Improper  work  on  the  SRS  components
or  wiring  could  result  in  inadvertent  de-
ployment  of  the  airbags,  or  could  render
the  SRS  inoperative;  either  situation
could result in serious injury.

Do  not  modify  your  steering  wheel,  seat
belt  retractor  or  any  other  SRS  compo-
nents.  For  example,  replacement  of  the
steering  wheel,  or  modifications  to  the
front  bumper  or  body  structure  can  ad-
versely  affect  SRS  performance  and  lead
to possible injury.

If your vehicle has sustained any damage,
we recommend you to have the SRS in-
spected to ensure it is in proper working
order.

On vehicles with the side airbags, do not
modify your front seats, centre pillar and
centre console.
It can adversely affect SRS performance
and lead to possible injury.

If you found any tear, scratch, crack or
damage to the portion where the airbag is
stored, you should have the SRS inspected
by a MITSUBISHI MOTORS Authorized
Service Point.

NOTE

If your vehicle has to be scrapped, do this in
line with the local legislation and contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point to safely dismantle the airbag sys-
tem.

Supplemental restraint system (SRS)-airbag*

4-35

OKTE18E1

Seat and seat belts

OKTE18E1

Instruments and controls

OKTE18E1

Instruments

E00500102883

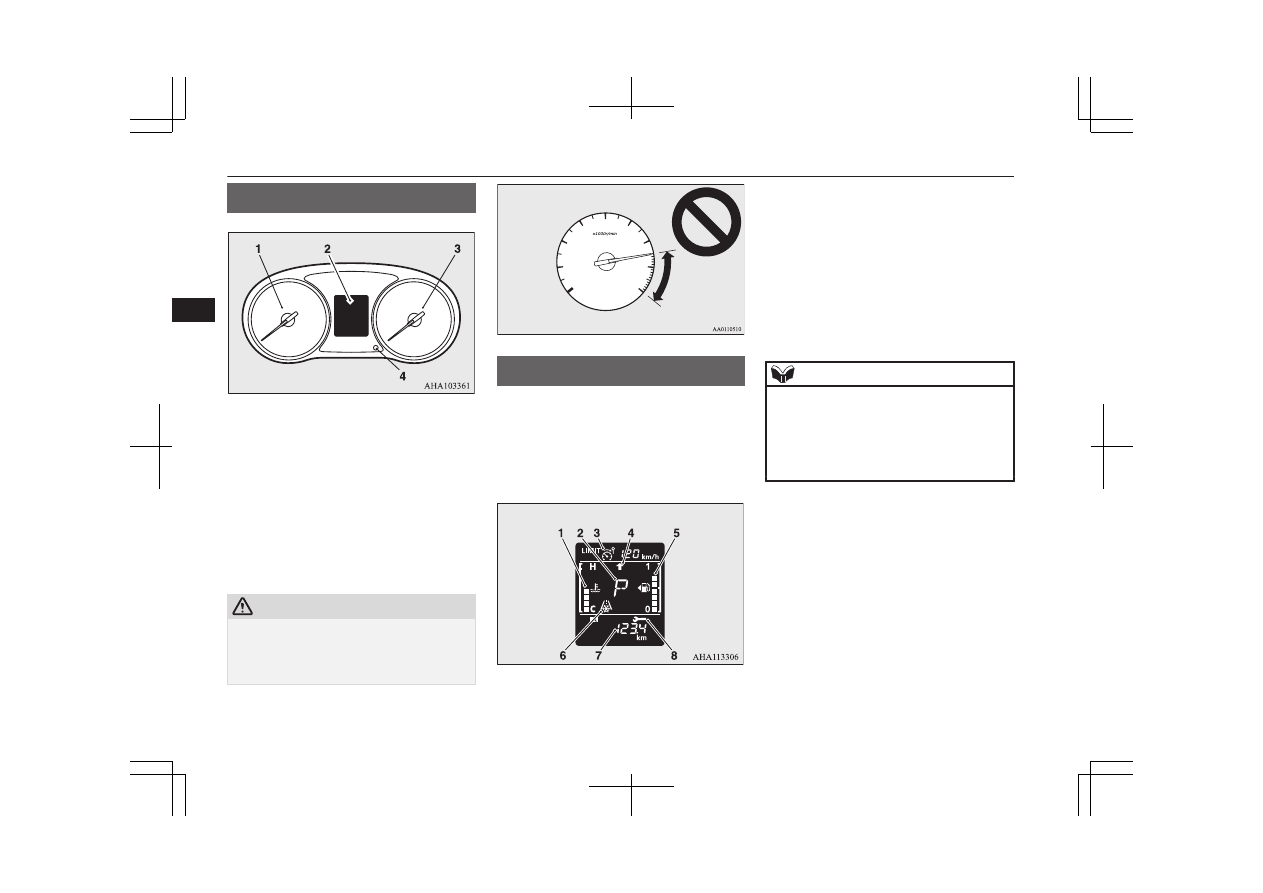

1- Tachometer

The  tachometer  indicates  the  engine
speed (r/min). The tachometer helps you
to  obtain  more  economical  driving  and
also  warns  you  of  excessive  engine
speeds (Red zone).

2- Multi-information display

® p. 5-02

3- Speedometer (km/h or mph + km/h)
4- Multi information display switch

® p. 5-03

CAUTION

When driving, watch the tachometer to make
sure that the engine speed indication does
not rise into the red zone (excessive engine
rpm).

Multi-information display

E00519902630

Always stop the vehicle in a safe place before
operating.
The following information is included on the
multi information display: odometer, tripme-
ter, average fuel consumption etc.

1- Engine coolant temperature display

2- Selector

3- Speed limiter display*

® p. 6-70

4- Gearshift indicator*

® p. 6-27

5- Fuel remaining display

® p. 5-07

6- Frozen road warning*

® p. 5-06

7- Information display

® p. 5-03

8- Service reminder

® p. 5-07

NOTE

When  the  ignition  switch  or  the  operation
mode  is  OFF,  the  speed  limiter  display,
gearshift  indicator,  selector  lever  position
display, fuel remaining display, engine cool-
ant  temperature  display  and  frozen  road
warning are not displayed.

Instruments

5-02

OKTE18E1

Instruments and controls

Information display

E00528201313

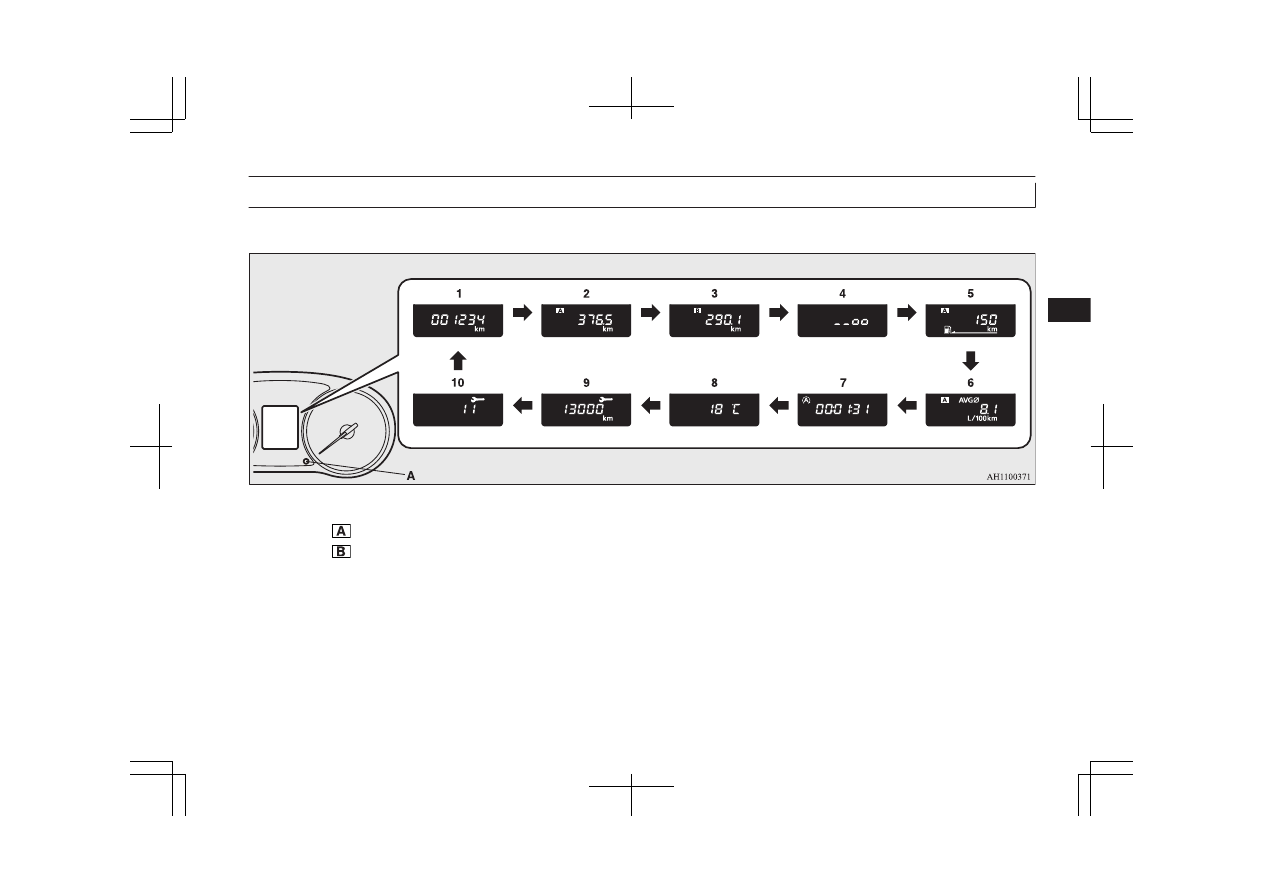

Each time you lightly press the multi information display switch (A), the display switches in the following order.

1- Odometer

® p. 5-04

2- Tripmeter ® p. 5-04
3- Tripmeter ® p. 5-04
4- Meter illumination control

® p. 5-04

5- Driving range display

® p. 5-05

6- Average fuel consumption display

® p. 5-05

7- Auto Stop & Go monitor*

® p. 5-05

8- Outside temperature display*

® p. 5-06

9- Service reminder (distance)

® p. 5-07

10- Service reminder (month)

® p. 5-07

Multi-information display

5-03

OKTE18E1

Instruments and controls

NOTE

When the ignition switch or the operation mode is OFF, the driving range display, average fuel consumption display and outside temperature display are not
displayed.

While driving, the service reminder is not displayed even if you operate the multi information display switch.

Odometer

E00527801123

The odometer indicates the distance travel-
led.

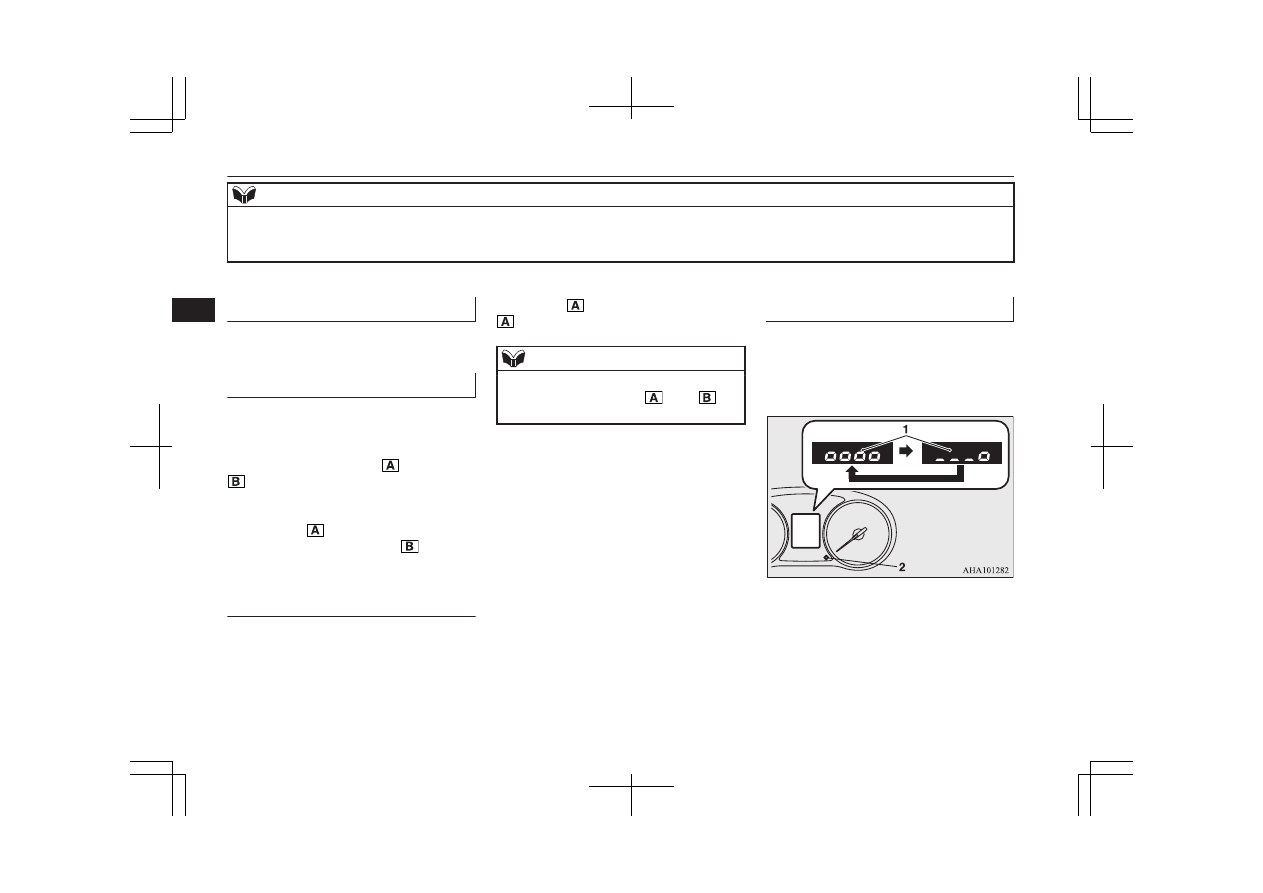

Tripmeter

E00527901094

The tripmeter indicates the distance travelled
between two points.

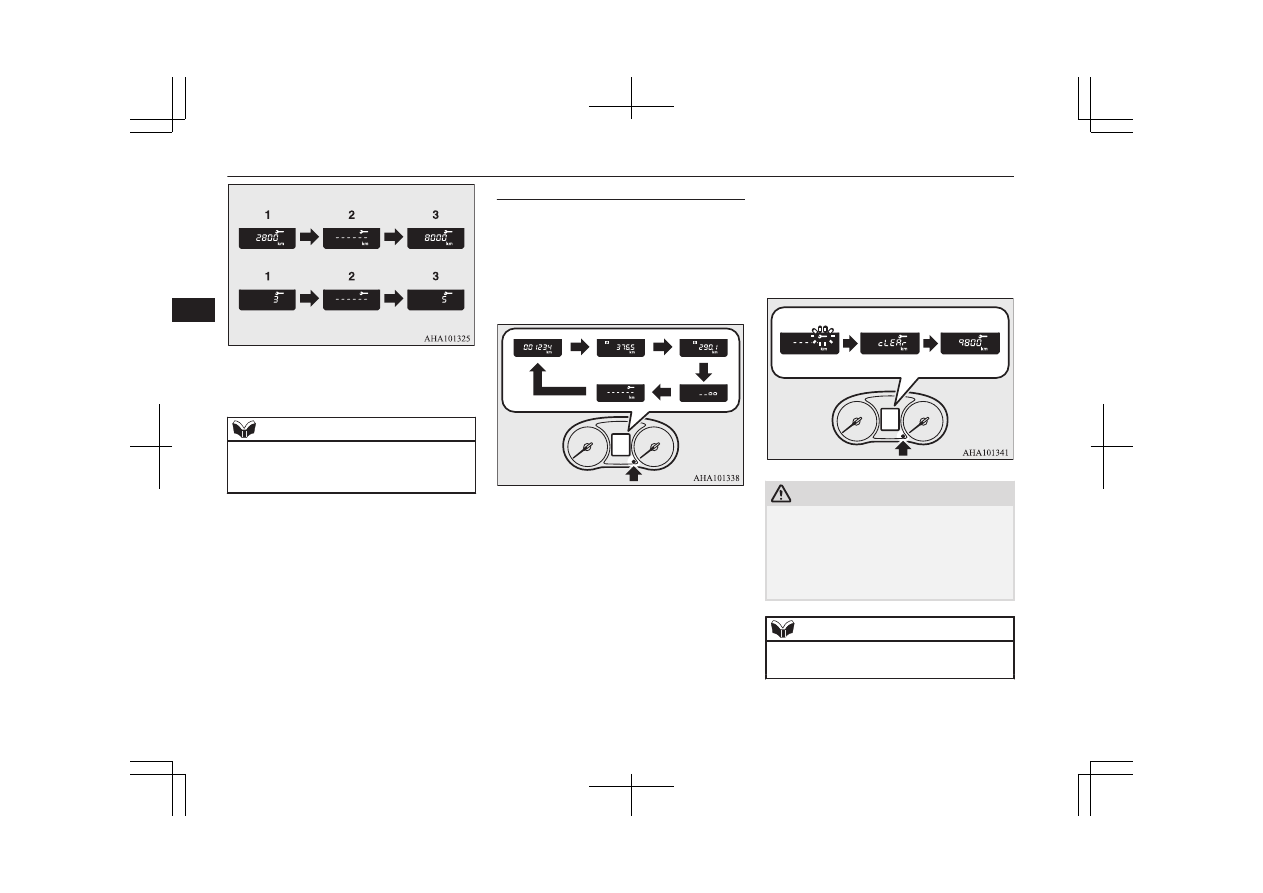

Example usage of tripmeter

and tripmeter

It is possible to measure two currently
travelled distances, from home using
tripmeter

and from a particular point

on the way using tripmeter

To reset the tripmeter

To return the display to 0, hold down the
multi information display switch for about 2
seconds or more. Only the currently dis-
played value will be reset.

Example

If tripmeter

is displayed, only tripmeter

will be reset.

NOTE

When disconnecting the battery terminal, the
memory of tripmeter

and

are

cleared, and the display returns to “0”.

Meter illumination control

E00537901068

Each time you press and hold the multi infor-
mation display switch (2) for about 2 seconds
or more, there is a sound and the brightness
of the instruments changes.

1- Brightness level
2- Multi information display switch

Multi-information display

5-04

OKTE18E1

Instruments and controls

NOTE

You  can  adjust  to  8  different  levels  respec-
tively  for  when  the  position  lamps  are  illu-
minated and when they are not.
Each time you reduce two brightness levels,
the  segment  display  of  the  brightness  level
decreases one by one.

If the vehicle is equipped with the automatic
lamp  control,  when  the  lamp  switch  is  in  a
position  other  than  the  “OFF”  position,  the
meter illumination switches automatically to
the  adjusted  brightness,  depending  on  the
brightness outside the vehicle.

The brightness level of the instruments is
stored when the ignition switch is turned off
or the operation mode is put in OFF.

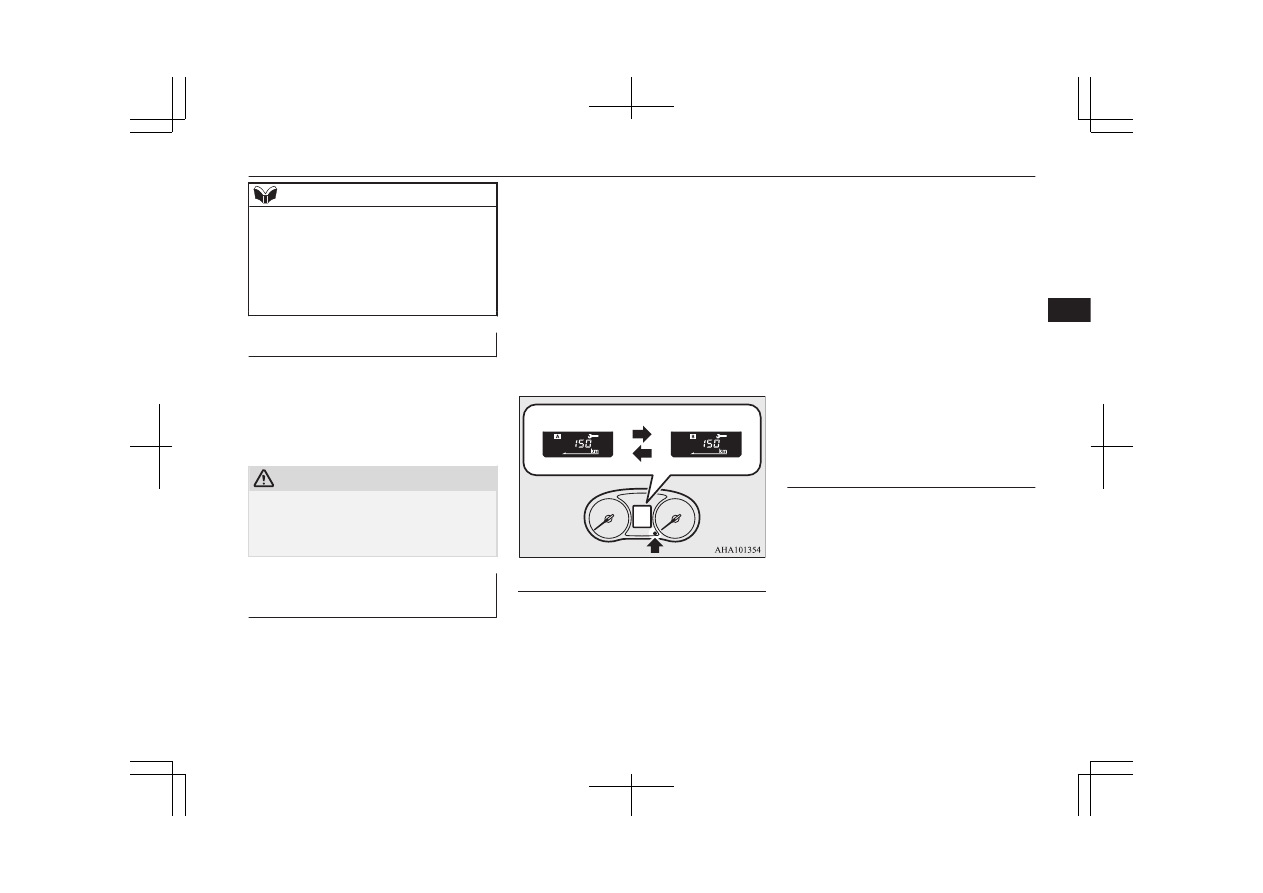

Driving range display

E00538000014

This displays the approximate driving range
(how many more kilometres or miles you can
drive). When the driving range falls below
approximately 50 km (30 miles), “---” is dis-
played.

NOTE

The  driving  range  is  determined  based  on
the  fuel  consumption  data.  This  may  vary
depending  on  the  driving  conditions  and
habits. Treat the distance displayed as just a
rough guideline.

NOTE

When you refuel, the driving range display
is updated.
However, if you only add a small amount of
fuel, the correct value will not be displayed.
Fill with a full tank whenever possible.

On rare occasions, the value displayed for
the driving range may change if you are
parked on an extremely steep incline. This is
due to the movement of fuel in the tank and
does not indicate a malfunction.

The display setting can be changed to the
preferred units (km or miles).
Refer to “Changing the function settings” on
page 5-09.

Average fuel consumption dis-

play

E00531200033

This  displays  the  average  fuel  consumption
from the last reset to the present time.
The  reset  mode  conditions  for  the  average
fuel consumption display can be switched be-
tween “Auto reset” and “Manual reset”.
For  information  on  how  to  change  the  aver-
age fuel consumption display setting, refer to
“Changing  the  function  settings”  on  page
5-09.

NOTE

The average fuel consumption display can
be reset separately for the auto reset mode
and for the manual reset mode.

“---” is displayed when the average fuel con-
sumption cannot be measured.

The initial (default) setting is “Auto reset
mode”.

The  average  fuel  consumption  depends  on
the  driving  condition  (road  condition,  driv-
ing  behavior,  etc.).  The  displayed  fuel  con-
sumption may vary from the actual fuel con-
sumption.  Treat  the  fuel  consumption  dis-
played as just a rough guideline.

The memory of the auto reset mode or man-
ual reset mode for the average fuel con-
sumption display is erased if the battery is
disconnected.

The display setting can be changed to the
preferred units {km/L, L/100 km, mpg}.
Refer to “Changing the function settings” on
page 5-09.

Auto Stop & Go monitor*

E00531101039

The accumulated time the engine has been
stopped by Auto Stop & Go (AS&G) system
is displayed.
Refer to “Auto Stop & Go (AS&G) system”
on page 6-23.

Multi-information display

5-05

OKTE18E1

Instruments and controls

NOTE

When the ignition switch or the operation
mode is ON again, the accumulated time
will be reset.

Outside temperature display*

E00533501053

This shows the temperature outside the vehi-
cle.

NOTE

The display setting can be changed to the
preferred units (°C or °F).
Refer to “Changing the function settings” on
page 5-09.

Depending on factors such as the driving
conditions, the displayed temperature may
vary from the actual outside temperature.

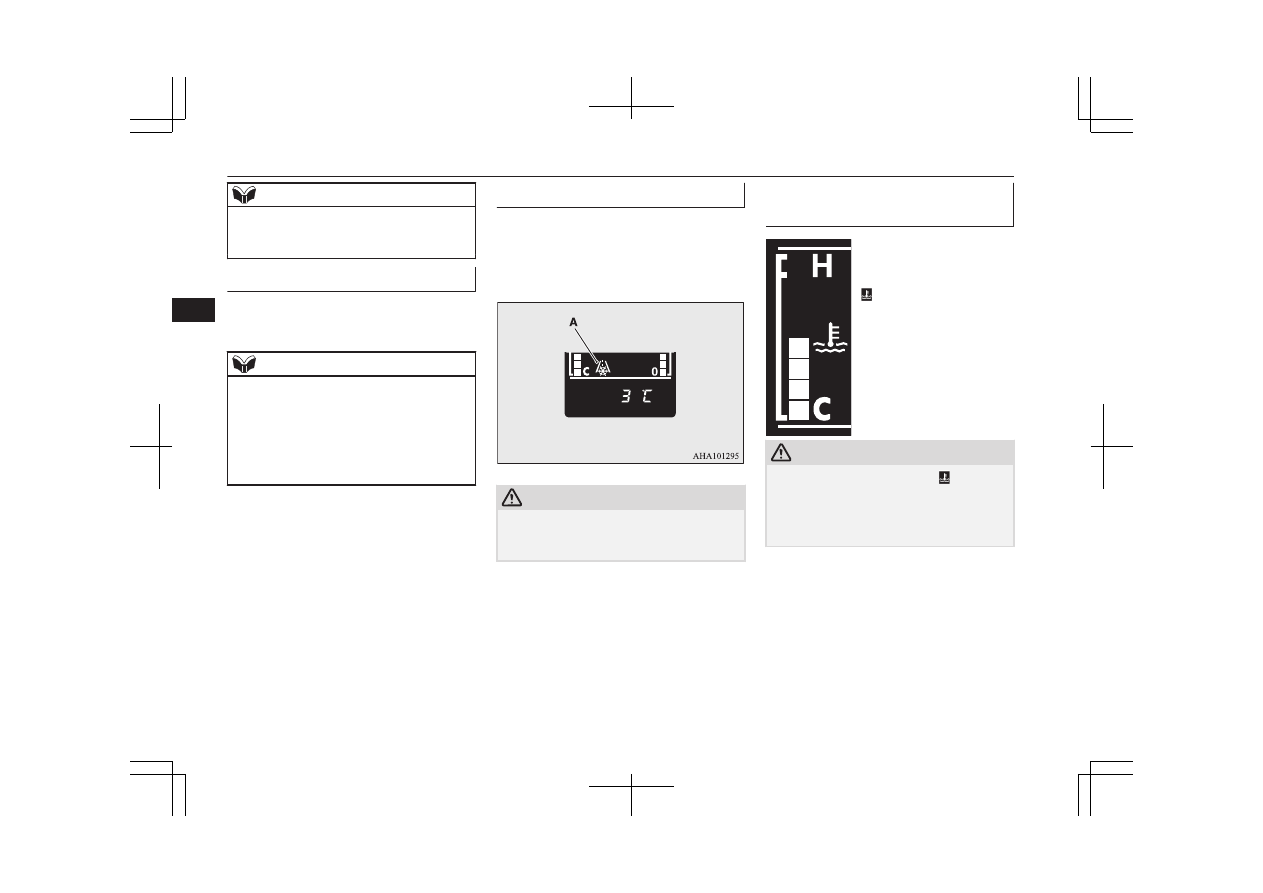

Frozen road warning*

E00533401036

If the outside air temperature drops below ap-
prox. 3 °C (37 °F), the alarm sounds and the
outside air temperature warning symbol (A)
flashes for about 10 seconds.

CAUTION

There is a danger the road might be icy, even
when this symbol is not flashing, so please
take care when driving.

Engine coolant temperature

display

E00533801072

This  indicates  the  engine
coolant temperature.
If  the  coolant  becomes  hot,
“ ” will blink.
Pay  careful  attention  to  the
engine  coolant  temperature
display  while  you  are  driv-
ing.

CAUTION

If the engine is overheating, “ ” will blink.
In this case, the bar graph is in the red zone.
Immediately park the vehicle in a safe place
and take the required measures. Refer to
“Engine overheating” on page 8-09.

Multi-information display

5-06

OKTE18E1

Instruments and controls

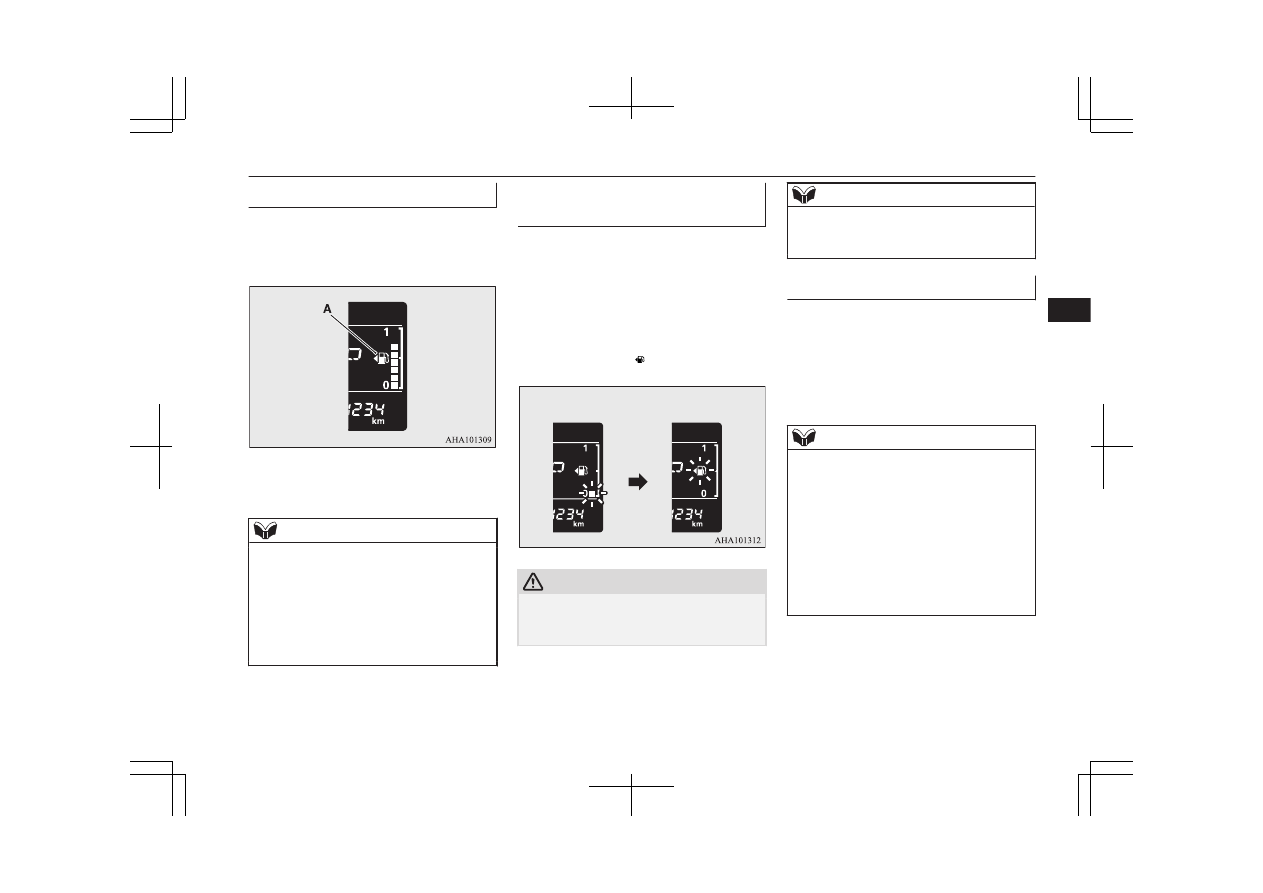

Fuel remaining display

E00522201757

The fuel remaining display indicates the fuel
level in the fuel tank when the ignition switch
or the operation mode is ON.

1- Full
0- Empty

NOTE

It may take several seconds to stabilise the
display after refilling the tank.

If fuel is added with the ignition switch or
the operation mode is ON, the fuel gauge
may incorrectly indicate the fuel level.

The fuel lid mark (A) indicates that the fuel
tank filler door is located on the left side of
the vehicle.

Fuel remaining warning dis-

play

E00522401906

If  the  remaining  fuel  level  is  approximately
10  litres  or  less  (one  segment  displayed)
when  the  ignition  switch  is  turned  to  the
“ON”  position  or  the  operation  mode  is
changed  to  ON,  the  last  segment  of  the  fuel
gauge  flashes.  If  the  remaining  fuel  level  is
reduced  further,  the  last  segment  of  the  fuel
gauge goes out and “  ” flash.

CAUTION

Do not drive with an extremely low fuel lev-
el; running out of fuel could cause damage
to the fuel system.

NOTE

On inclines or curves, the display may be in-
correct due to the movement of fuel in the
tank.

Service reminder

E00522502119

Displays the approximate time until the next
periodic  inspection  that  MITSUBISHI
MOTORS  recommends.“---”  is  displayed
when the inspection time has arrived.
The  spanner  mark  indicates  the  periodic  in-
spection.

NOTE

Depending on the vehicle specifications, the
displayed time until the next periodic inspec-
tion may differ from that of MITSUBISHI
MOTORS recommends.
In addition, the display settings for the next
periodic inspection time can be modified.
To modify the display settings, have it adjus-
ted at a MITSUBISHI MOTORS Authorized
Service Point.
For more details, contact a MITSUBISHI
MOTORS Authorized Service Point.

Multi-information display

5-07

OKTE18E1

Instruments and controls

Distance

Month

1. Displays the time until the next periodic

inspection.

NOTE

The distance is shown in units of 100 km
(100 miles). The time is shown in units of
months.

2. This informs you that a periodic inspec-

tion is due. Please consult a
MITSUBISHI MOTORS Authorized
Service Point.

3. After your vehicle is inspected at a

MITSUBISHI MOTORS Authorized
Service Point, it displays the time until
the next periodic inspection.

To reset

The “---” display can be reset while the igni-
tion switch or the operation mode is in OFF.

1. When you lightly press the multi infor-

mation display switch a few times, the
information display switches to the serv-
ice reminder display.

2. Press and hold the multi information dis-

play switch for about 2 seconds or more
to make the spanner mark start flashing.
(If there is no operation for about 10 sec-
onds with flashing, the display will re-
vert to its original indication.)

3. Lightly press the multi information dis-

play switch while the icon is flashing to
change  the  display  from  “---”  to
“cLEAr”.  After  this,  the  time  until  the
next  periodic  inspection  will  be  dis-
played.

CAUTION

The customer is responsible for making sure
that periodic inspection and maintenance are
performed.
Inspections and maintenance must be per-
formed to prevent accidents and malfunc-
tions.

NOTE

“---” display cannot be reset when the igni-
tion switch or the operation mode is in ON.

Multi-information display

5-08

OKTE18E1

Instruments and controls

NOTE

When “---” is displayed, after a certain dis-
tance and a certain period of time, the dis-
play is reset and the time until the next peri-
odic inspection is displayed.

If you accidentally reset the display, consult
a MITSUBISHI MOTORS Authorized Serv-
ice Point.

Changing the function settings

E00522700595

The “Average fuel consumption reset mode”,
“Fuel  consumption  unit”  and  “Temperature
unit”  setting  can  be  modified  as  desired,
when  the  ignition  switch  or  the  operation
mode is ON.

CAUTION

The driver should not operate the display
while the vehicle is in motion.

When operating the system, stop the vehicle
in a safe area.

Changing the reset mode for

average fuel consumption

E00522902100

The mode conditions for the average fuel
consumption display can be switched be-
tween “Auto reset” and “Manual reset”.

1. When you lightly press the multi infor-

mation display switch a few times, the
information display switches to the driv-
ing range display.
Refer to “Information display” on page
5-03.

2. Each time you press the multi informa-

tion display switch for 2 seconds or
more on driving range display, you can
switch reset mode for average fuel con-
sumption. (A: Auto reset mode, B: Man-
ual reset mode)

Auto reset mode

Manual reset mode

Manual reset mode

When  the  average  fuel  consumption  is
being  displayed,  if  you  hold  down  the
multi-information  meter  switch,  the
average  fuel  consumption  displayed  at
that time is reset.

When  the  following  operation  is  per-
formed, the mode setting is automatical-
ly switched from manual to auto.
[Except for vehicles equipped with key-
less operation system]
Turn  the  ignition  switch  from  the
“ACC” or “LOCK” position to the “ON”
position.
[For vehicles equipped with keyless op-
eration system]
Change  the  operation  mode  from  ACC
or OFF to ON.

Switching  to  auto  occurs  automatically.
If  switching  to  manual  mode  is  done,
however,  the  data  from  the  last  reset  is
displayed.

Auto reset mode

When  the  average  fuel  consumption  is
being  displayed,  if  you  hold  down  the
multi  information  display  switch,  the
average  fuel  consumption  displayed  at
that time are reset.

Multi-information display

5-09

OKTE18E1

Instruments and controls

Content .. 4 5 6 7 ..
