Refer to “Steering wheel height and reach
adjustment” on page 6-07.

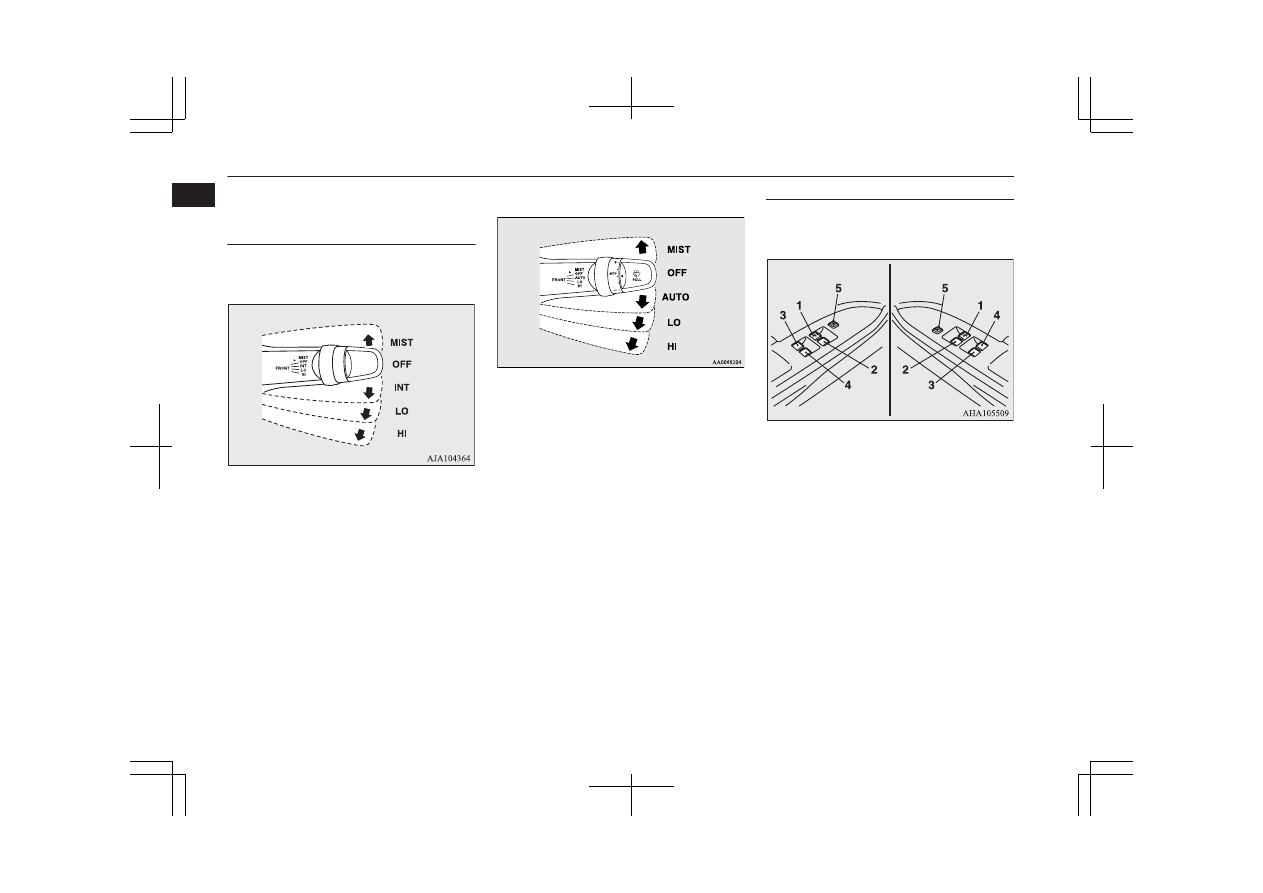

5-Wiper and washer switch

Except for vehicles equipped with rain
sensor

MIST- Misting function

The wipers will operate
once.

OFF- Off

INT- Intermittent (Speed sensi-

tive)

LO- Slow

HI- Fast

Vehicles with rain sensor

MIST- Misting function

The wipers will operate
once.

OFF- Off

AUTO- Auto-wiper control

Rain sensor
The wipers will automati-
cally operate depending on
the degree of wetness on
the windscreen.

LO- Slow

HI- Fast

The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.

Refer to “Wiper and washer switch” on
page 5-23.

6-Electric window control*

Press the switch down for opening the win-
dow, and pull the switch for closing.

Driver’s switch
LHD

Driver’s switch
RHD

1. Driver’s door window
2. Front passenger’s door window
3. Rear left door window (Double cab)
4. Rear right door window (Double cab)
5. Lock switch

Lock switch
If you press the switch (5), the passenger’s
switches cannot be operated. To cancel, press
it once again.

Refer to “Electric window control*” on
page 3-21.

Quick guide

1-18

OKTE18E1

Overview/Quick guide

7-Fuel tank filler door release

lever*

Open the fuel tank filler door.
The fuel tank filler is located on the rear left
side of your vehicle.

Type 1

Type 2

Refer to “Filling the fuel tank” on page
2-03.

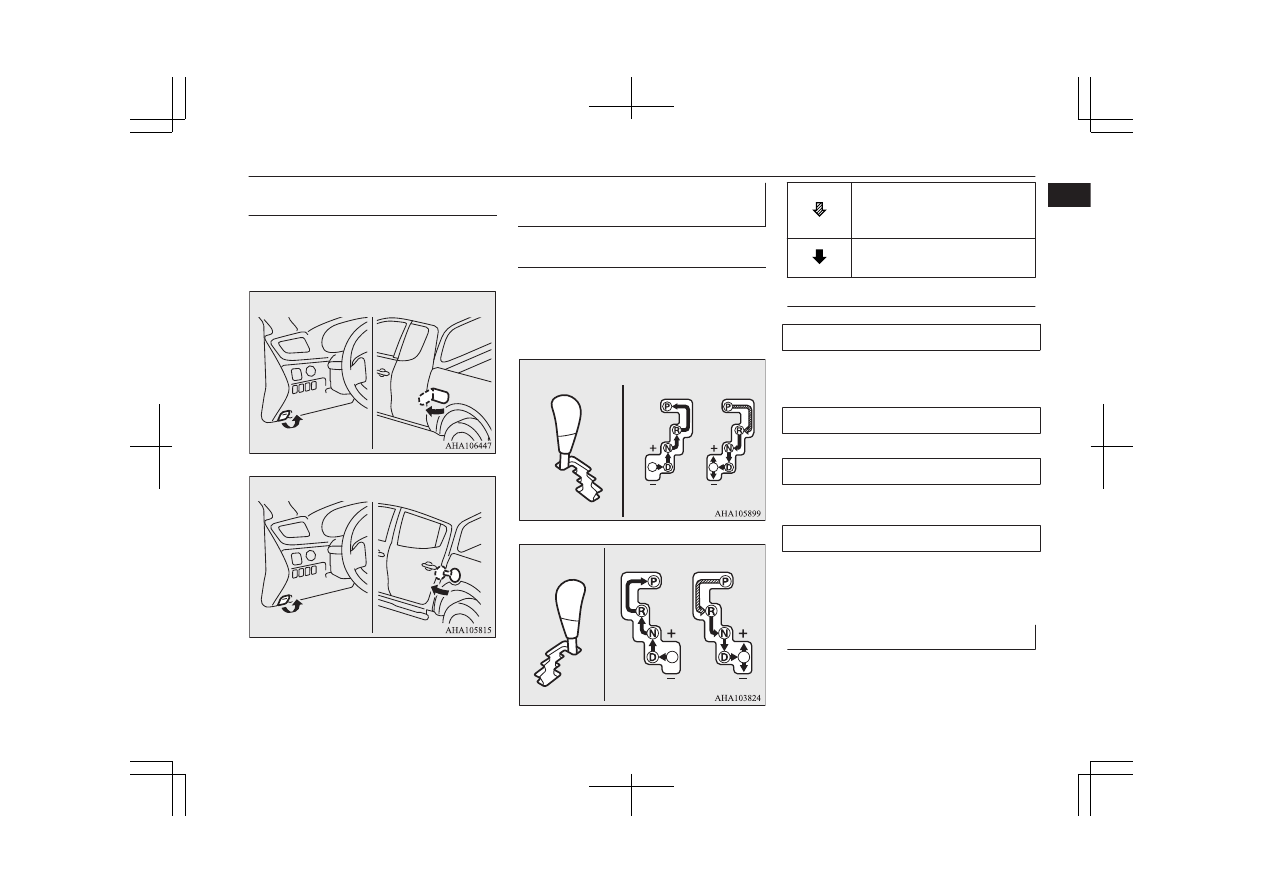

Automatic transmission Sports

Mode 5A/T

E08501001325

Selector lever operation

The transmission selects an optimum gear ra-
tio automatically, depending on the speed of
the vehicle and the position of the accelerator
pedal.

LHD

RHD

While depressing the brake ped-
al, move the selector lever
through the gate.

Move the selector lever through
the gate.

Selector lever positions

“P” PARK
This position locks the transmission to pre-
vent the vehicle from moving. The engine
can be started in this position.

“R” REVERSE
This position is to back up.

“N” NEUTRAL
At this position the transmission is disengag-
ed.

“D” DRIVE
This position is for normal driving.

Refer to “Automatic transmission Sports
Mode 5A/T” on page 6-29.

Multi information display

E08501201226

Always stop the vehicle in a safe place before
operating.

Quick guide

1-19

OKTE18E1

Overview/Quick guide

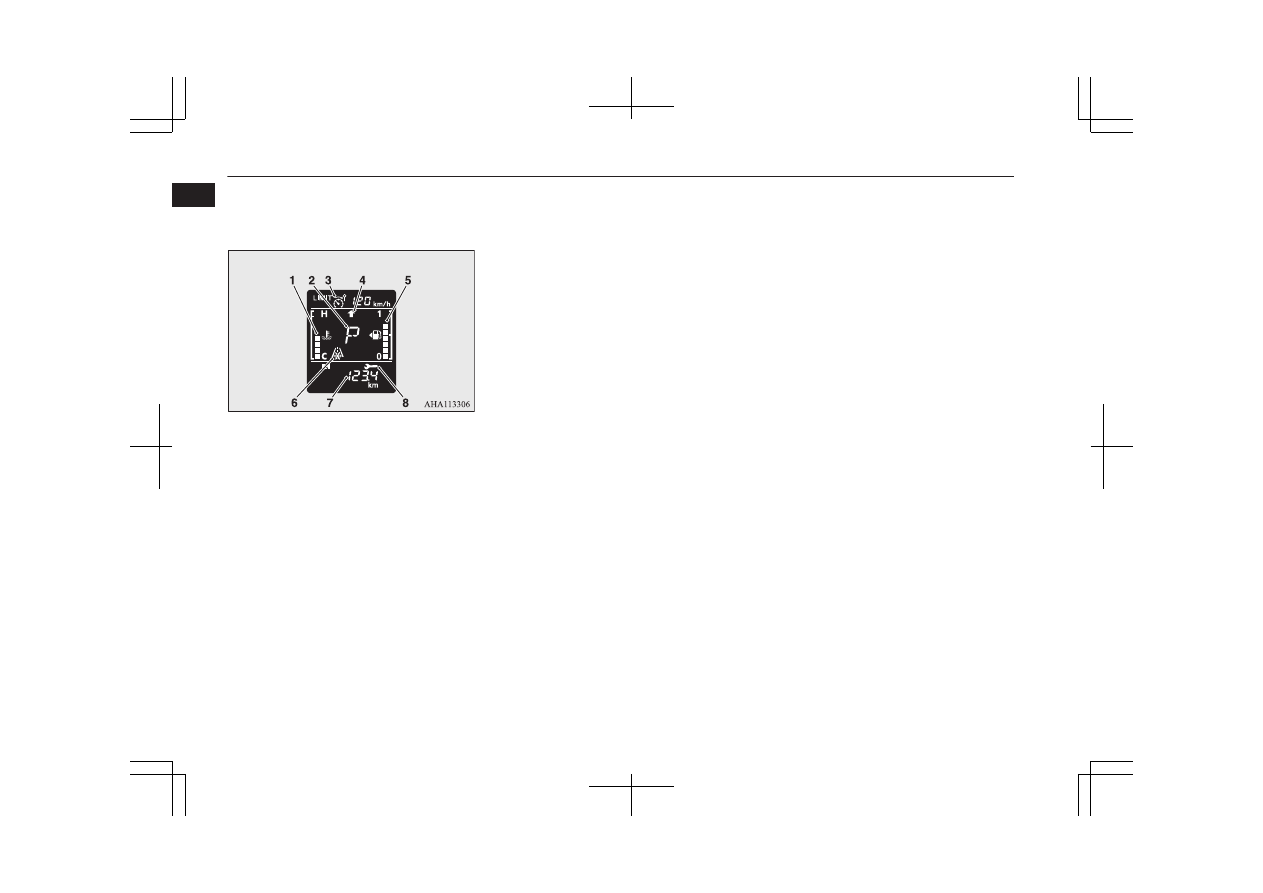

The following information is included on the
multi information display: odometer, tripme-
ter, average fuel consumption etc.

1- Engine coolant temperature display

2- Selector

3- Speed limiter display*

® p. 6-70

4- Gearshift indicator*

® p. 6-27

5- Fuel remaining display

® p. 5-07

6- Frozen road warning*

® p. 5-06

7- Information display

® p. 5-03

8- Service reminder

® p. 5-07

Refer to “Multi-information display” on
page 5-02.

Quick guide

1-20

OKTE18E1

Overview/Quick guide

General information

OKTE18E1

Fuel selection

E00200105096

Recommended fuel

Cetane number (EN
590)

51 or higher

CAUTION

Your vehicle is designed to use only diesel
fuel that meets the EN590 standard.
Use of any other type of diesel fuel (bio die-
sel, methylester, etc.) would adversely affect
the engine’s performance and durability.

If proper “winter” fuel is not used in winter,
the diesel preheat indication lamp may blink
and the engine speed may not rise above the
idling speed because of fuel freezing. In this
case, keep the engine idling for approxi-
mately 10 minutes, then turn off the ignition
switch or put the operation mode in OFF and
immediately turn it on or put in ON again to
confirm that the diesel preheat indication
lamp is off. (Refer to “Diesel preheat indica-
tion lamp” on page 5-14)

NOTE

For diesel fuel, due to the separation of par-
affin, the fluidity of the fuel decreases con-
siderably as the temperature falls.
Because of this fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use.
Select either of the two kinds of fuel in ac-
cordance with ambient temperature.

Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel

When travelling abroad, find out in advance
about the fuels served in local service sta-
tions.

Poor-quality diesel fuel can cause deposits to
form in the injector, resulting in black smoke
and rough idling.
If  these  problems  occur,  you  are  advised  to
add  a  cleaning  additive  to  the  diesel  fuel
when you refuel the vehicle.
The  additive  will  break  up  and  remove  the
deposits,  thereby  returning  the  engine  to  a
normal condition.
Be  sure  to  use  a  MITSUBISHI  MOTORS
GENUINE  DIESEL  FUEL  SYSTEM
CLEANER.  Using  an  unsuitable  additive
could make the engine malfunction. For de-
tails,  please  contact  your  MITSUBISHI
MOTORS Authorized Service Point.

Graphical expression for con-

sumer information

B7: Diesel fuel containing up to 7.0 % (V/V)
Fatty Acid Methyl Esters - Eg. EN 590 com-
pliant diesel
The diesel engine are compatible with B7
type diesel (containing 7 % fatty acid methyl
esters) conforming to European standards
EN590.

CAUTION

Do not use more than 7 % concentration of
fatty  acid  methyl  esters  (bio  diesel)  by  vol-
ume.
Use  of  more  than  7  %  concentration  would
adversely  affect  the  engine’s  performance
and durability.

Fuel selection

2-02

OKTE18E1

General information

Filling the fuel tank

E00200204322

WARNING

When handling fuel, comply with the safe-
ty regulations displayed by garages and
filling stations.

Fuel  is  highly  flammable  and  explosive.
You could be burned or seriously injured
when  handling  it.  When  refueling  your
vehicle,  always  turn  the  engine  off  and
keep away from flames, sparks and smok-
ing materials. Always handle fuel in well-
ventilated outdoor areas.

Before  removing  the  fuel  cap,  be  sure  to
get rid of your body’s static electricity by
touching  a  metal  part  of  the  vehicle  or
fuel  pump.  Any  static  electricity  on  your
body could create a spark that ignites fuel
vapour.

Perform  the  whole  refueling  process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not
let  any  other  person  come  near  the  fuel
tank filler. If you allowed a person to help
you  and  that  person  was  carrying  static
electricity, fuel vapour could be ignited.

Do not move away from the fuel tank fill-
er until refueling is finished. If you moved
away and did something else (for exam-
ple, sitting on a seat) part-way through
the refueling process, you could pick up a
fresh charge of static electricity.

Be careful not to inhale fuel vapour. Fuel
contains toxic substances.

WARNING

Keep the doors and windows closed while
refueling the vehicle. If they were open,
fuel vapour could get into the cabin.

If the fuel cap must be replaced, use only
a MITSUBISHI MOTORS genuine part.

Fuel tank capacity

75 litres

Refueling

1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear

left side of your vehicle.
Open  the  fuel  tank  filler  door  with  the
release  lever  located  below  the  instru-
ment  panel.  (Only  vehicles  for  Type  1,
2)

Type 1

Type 2

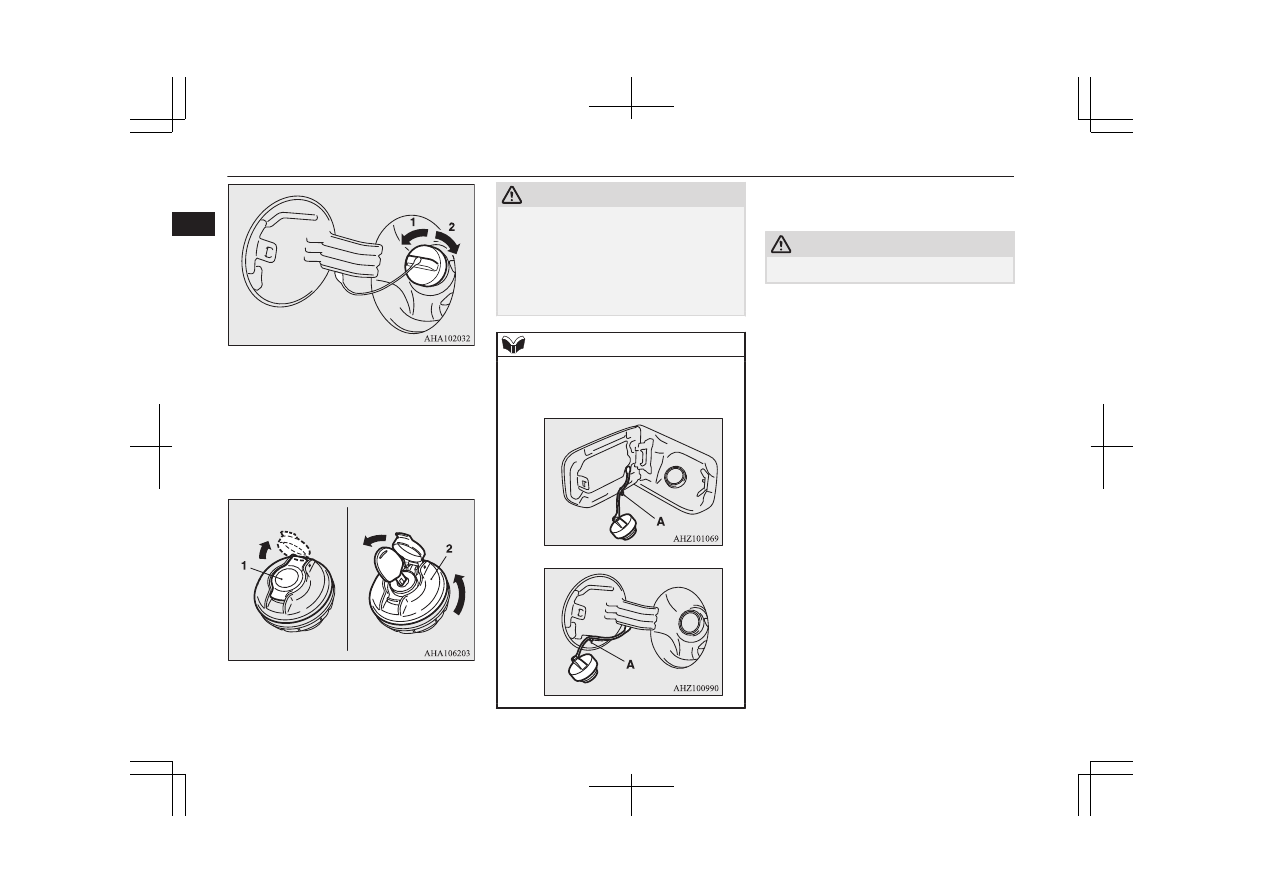

3. [Vehicles for Type 1, 2]

Open the fuel tank filler tube by slowly
turning the fuel cap anticlockwise.

Type 1

Filling the fuel tank

2-03

OKTE18E1

General information

Type 2

1- Remove
2- Close

[Vehicles for Type 3]
Open the cover (1). Insert the key in the
fuel cap (2) and unlock it.
Turn the fuel cap and remove it.

Type 3

CAUTION

Since the fuel system may be under pressure,
remove  the  fuel  cap  slowly.  This  relieves
any  pressure  or  vacuum  that  might  have
built up in the fuel tank. If you hear a hissing
sound,  wait  until  it  stops  before  removing
the fuel cap. Otherwise, fuel may spray out,
injuring you or others.

NOTE

While filling with fuel, hang the fuel cap on
the hook (A) located on the inside of the fuel
tank filler door.

Type 1

Type 2

4. Insert the gun in the tank port as far as it

goes.

CAUTION

Do not tilt the gun.

5. When the gun stops automatically, do

not fill with fuel any more.

6. [Vehicles for Type 1, 2]

To close, turn the fuel cap slowly clock-
wise until you hear clicking sounds, then
gently push the fuel tank filler door
closed.
[Vehicles for Type 3]
To close, turn the fuel cap slowly clock-
wise until you hear clicking sounds, then
turn the key clockwise to lock the fuel
cap.

Filling the fuel tank

2-04

OKTE18E1

General information

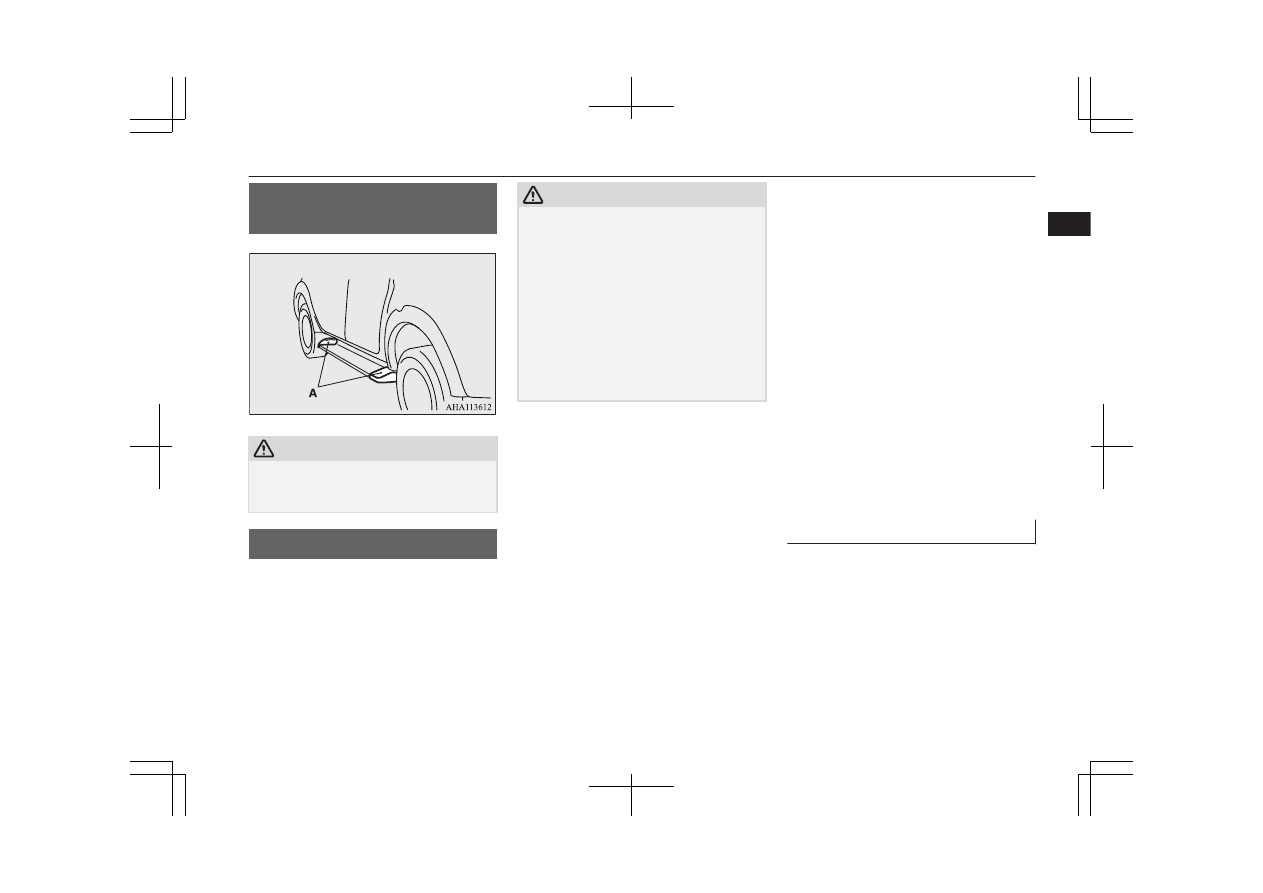

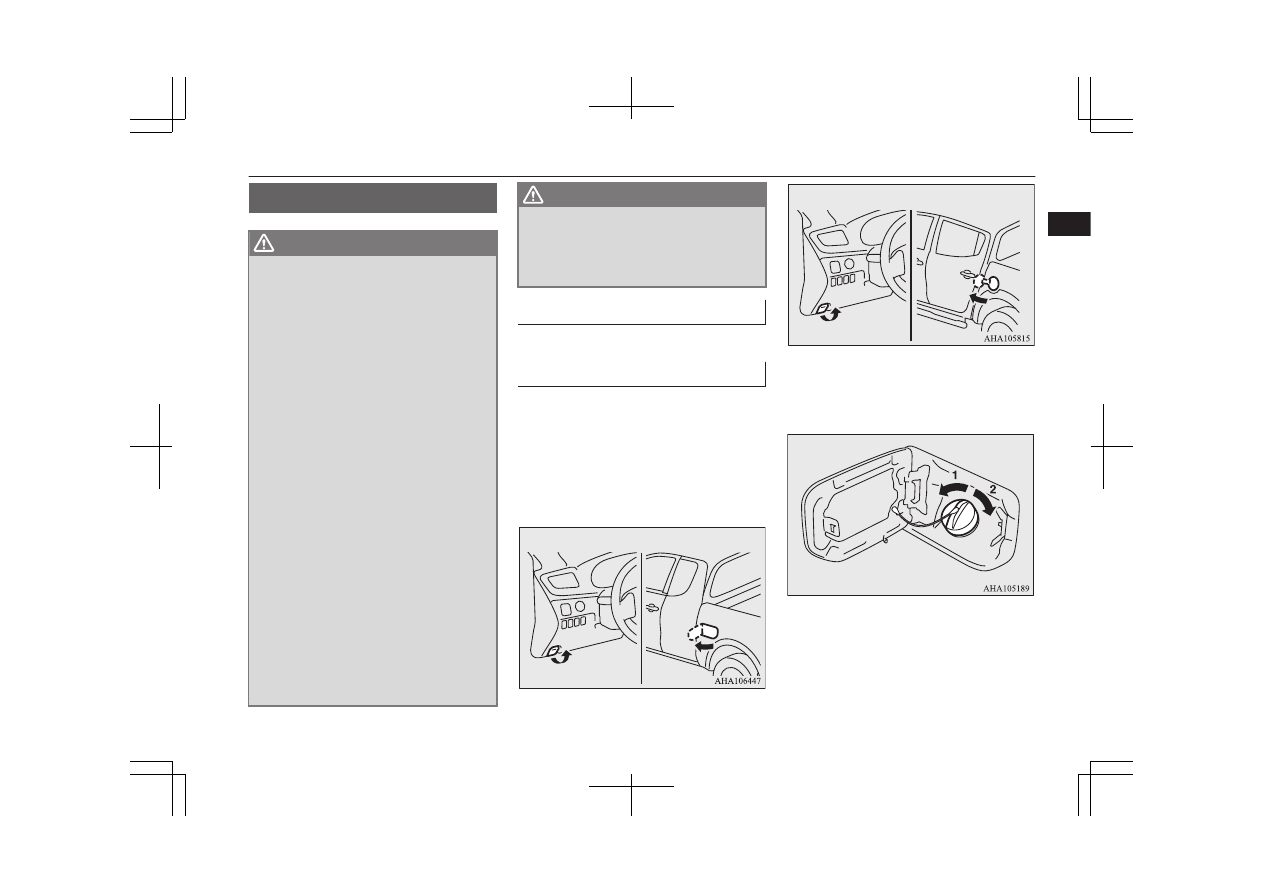

Entering or leaving the
vehicle

E00205800022

CAUTION

To avoid slipping and damaging the painted
surface, do not step on the cover of the side
step (A).

Installation of accessories

E00200302606

We recommend you to consult your
MITSUBISHI MOTORS Authorized Service
Point.

CAUTION

Your  vehicle  is  equipped  with  a  diagnosis
connector  for  checking  and  servicing  the
electronic control system.
Do not connect a device other than a diagno-
sis  tool  for  inspections  and  service  to  this
connector.
Otherwise,  the  battery  could  be  discharged,
the  electronic  devices  of  the  vehicle  could
malfunction,  or  other  unexpected  problems
could result.
In addition, malfunctions caused by connect-
ing a device other than a diagnosis tool may
not be covered under warranty.

The  installation  of  accessories,  optional
parts,  etc.,  should  only  be  carried  out
within  the  limits  prescribed  by  law  in
your country, and in accordance with the
guidelines and warnings contained with-
in the documents accompanying this ve-
hicle.

Improper installation of electrical parts
could cause fire, please refer to the Mod-
ification/ alteration to the electrical or
fuel systems section within this owner’s
manual.

When  installing  the  radio,  for  the  re-
quired information (frequency, transmis-
sion  output,  installing  procedure),  con-
sult  a  MITSUBISHI  MOTORS  Author-
ized Service Point.
If the frequency, transmission output and
installing  condition  are  not  appropriate,
it can adversely affect the electronic de-
vices  and  could  lead  to  unsafe  vehicle
operation.

Using a cellular phone or radio set inside
the vehicle without an external antenna
may cause electrical system interference,
which could lead to unsafe vehicle oper-
ation.

Tyres and wheels which do not meet
specifications must not be used.
Refer to the “Specifications” section for
information regarding wheel and tyre
sizes.

Important points!

Due to a large number of accessories and re-
placement  parts  of  different  manufactures
available in the market, it is not possible, not
only  for  MITSUBISHI  MOTORS,  but  also
for  a  MITSUBISHI  MOTORS  Authorized
Service  Point,  to  check  whether  the  attach-
ment  or  installation  of  such  parts  affects  the
overall safety of your vehicle.

Entering or leaving the vehicle

2-05

OKTE18E1

General information

Even  when  such  parts  are  officially  Author-
ized,  for  example  by  a  “general  operators
permit” (an appraisal for the part) or through
the  execution  of  the  part  in  an  officially  ap-
proved  manner  of  construction,  or  when  a
single operation permit following the attach-
ment or installation of such parts, it cannot be
deduced  from  that  alone,  that  the  driving
safety of your vehicles has not been affected.

Consider also that there basically exists no li-
ability on the part of the appraiser or the offi-
cial.  Maximum  safety  can  only  be  ensured
with  parts  recommended,  sold  and  fitted  or
installed  by  a  MITSUBISHI  MOTORS  Au-
thorized  Service  Point  (MITSUBISHI
MOTORS  GENUINE  replacement  parts  and
MITSUBISHI  MOTORS  accessories).  The
same  also  pertains  to  modifications  of  vehi-
cles with respect to the production specifica-
tions. For safety reasons, do not attempt any
modifications other than those that follow the
recommendations

MITSUBISHI

MOTORS Authorized Service Point.

Modification/alterations to
the electrical or fuel systems

E00200401525

MITSUBISHI  MOTORS  has  always  manu-
factured  safe,  high  quality  vehicles.  In  order
to  maintain  this  safety  and  quality,  it  is  im-
portant that any accessory that is to be fitted,
or  any  modifications  carried  out  which  in-
volve the electrical or fuel systems, should be
carried out in accordance with MITSUBISHI
MOTORS guidelines.

CAUTION

If the wires interferes with the vehicle body
or improper installation methods are used
(protective fuses not included, etc.), elec-
tronic devices may be adversely affected, re-
sulting in a fire or other accident.

Genuine parts

E00200501715

MITSUBISHI MOTORS has gone to great
lengths to bring you a superbly crafted vehi-
cle offering the highest quality and dependa-
bility.

Use  MITSUBISHI  MOTORS  GENUINE
Parts, designed and manufactured to maintain
your MITSUBISHI MOTORS vehicle at top
performance. MITSUBISHI MOTORS GEN-
UINE  Parts  are  identified  by  this  mark  and
are  available  at  all  MITSUBISHI  MOTORS
Authorized Service Points.

Safety and disposal
information for used engine
oil

E00200601426

WARNING

Prolonged and repeated contact may
cause serious skin disorders, including
dermatitis and cancer.

Avoid contact with the skin as far as pos-
sible and wash thoroughly after any con-
tact.

Keep used engine oils out of reach of chil-
dren.

Modification/alterations to the electrical or fuel systems

2-06

OKTE18E1

General information

Protect the environment

It is illegal to pollute drains, water courses
and soil. Use authorized waste collection fa-
cilities, including civic amenity sites and ga-
rages providing facilities for disposal of used
oil and used oil filters. If in doubt, contact
your local authority for advice on disposal.

Disposal information for
used batteries

E00201301084

Your vehicle contains batter-
ies and/or accumulators.
Do  not  mix  with  general
household waste.
For  proper  treatment,  recov-
ery and recycling of used bat-
teries, please take them to ap-
plicable  collection  points,  in
accordance with your nation-
al  legislation  and  the  Direc-
tives 2006/66/EC.
By disposing of these batter-
ies correctly, you will help to
save  valuable  resources  and
prevent  any  potential  nega-
tive  effects  on  human  health
and  the  environment  which
could  otherwise  arise  from
inappropriate waste handling.

Disposal information for used batteries

2-07

OKTE18E1

General information

OKTE18E1

Locking and unlocking

OKTE18E1

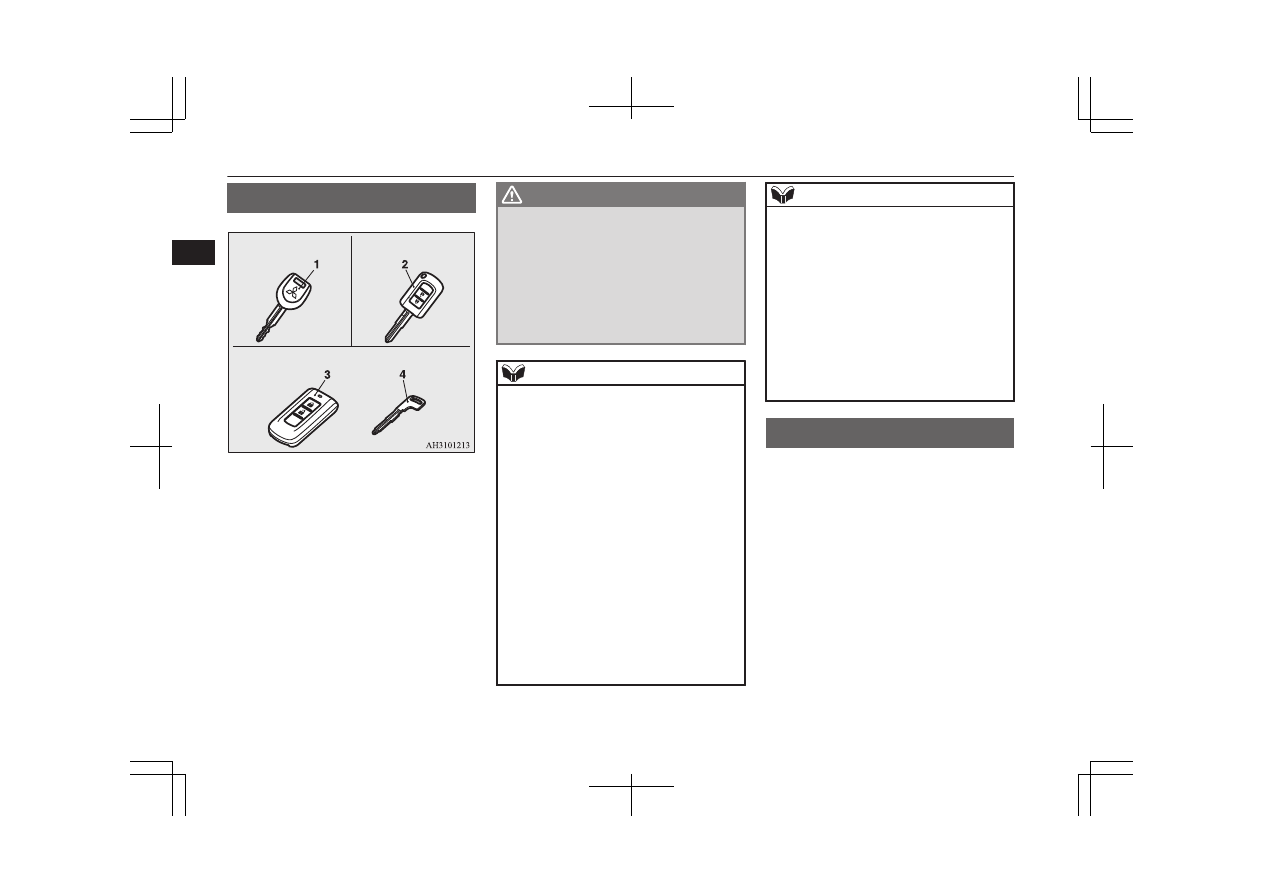

Keys

E00300104319

Key

Keyless operation key

Keyless entry key

1. Master key
2. Keyless entry key
3. Keyless operation key
4. Emergency key

WARNING

When taking a key on flights, do not press
any  switches  on  the  key  while  on  the
plane. If a switch is pressed on the plane,
the  key  emits  electromagnetic  waves,
which  could  adversely  affect  the  plane’s
flight operation.
When carrying a key in a bag, be careful
that  no  switches  on  the  key  can  be  easily
pressed by mistake.

NOTE

The key is a precision electronic device with
a built-in signal transmitter. Please observe
the following in order to prevent a malfunc-
tion.

•

Do not leave in a place that is exposed to
direct sunlight, for example on the dash-
board.

•

Do not disassemble or modify.

•

Do not excessively bend the key or sub-
ject it to strong impacts.

•

Do not expose to water.

•

Keep away from magnetic key rings.

•

Keep away from audio systems, personal
computers, TVs, and other equipment that
generates a magnetic field.

•

Keep away from devices that emit strong
electromagnetic waves, such as cellular
phones, wireless devices and high fre-
quency equipment (including medical de-
vices).

NOTE

•

Do not clean with ultrasonic cleaners or
similar equipment.

•

Do not leave the key where it may be ex-
posed to high temperature or high humidi-
ty.

The  engine  is  designed  so  that  it  will  not
start  if  the  ID  code  registered  in  the  immo-
bilizer  computer  and  the  key’s  ID  code  do
not match. Refer to the “Electronic immobil-
izer” section for details and key usage.

If you lose one of them, contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible to prevent theft.

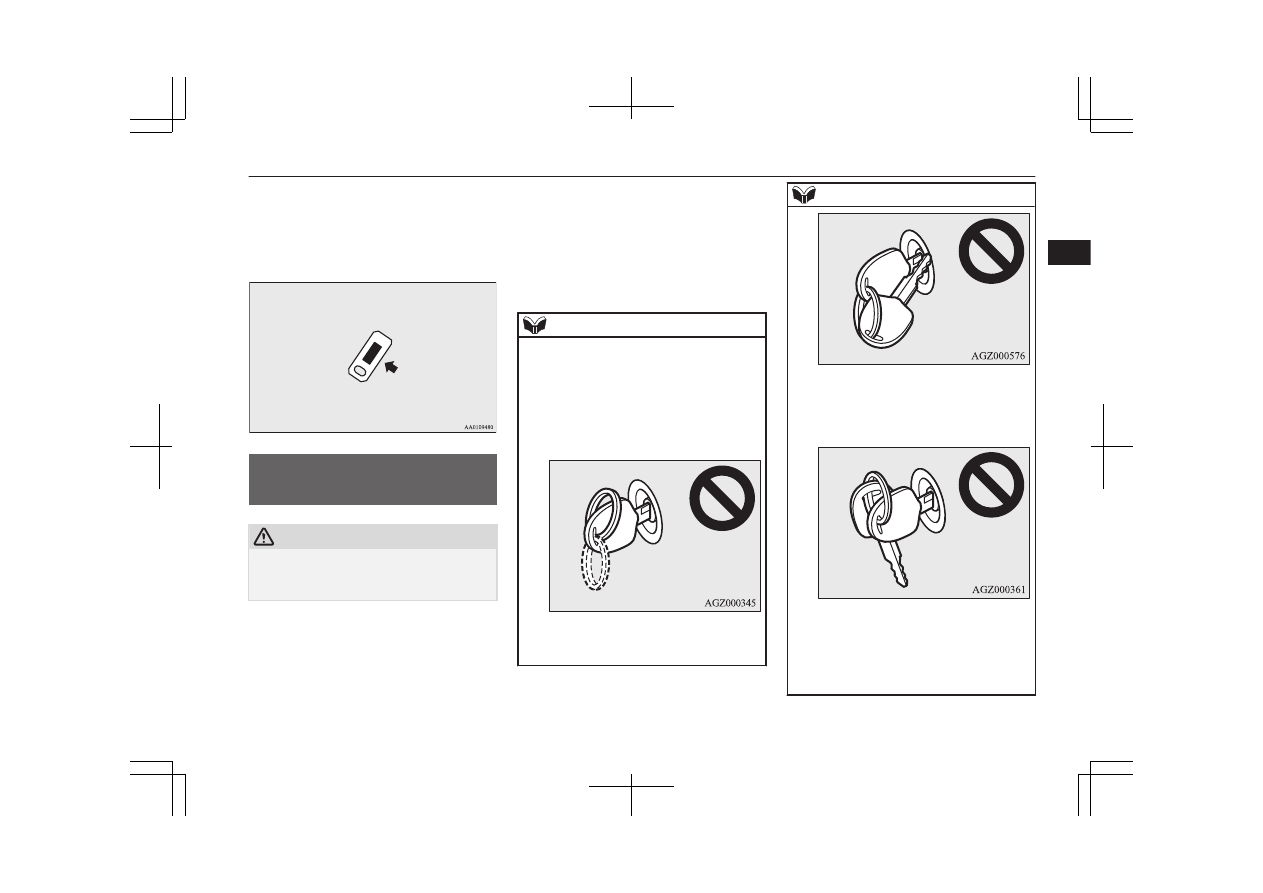

Key number tag

E00312701092

The key number is stamped on the tag as in-
dicated in the illustration.

Keys

3-02

OKTE18E1

Locking and unlocking

Make  a  record  of  the  key  number  and  store
the  key  and  key  number  tag  in  separate  pla-
ces,  so  that  you  can  order  a  key  from  your
MITSUBISHI MOTORS Authorized Service
Point in the event the original keys are lost.

Electronic immobilizer
(Anti-theft starting system)

E00300203762

CAUTION

Don’t make any alterations or additions to
the immobilizer system; alterations or addi-
tions could cause failure of the immobilizer.

The  electronic  immobilizer  has  been  de-
signed  to  significantly  reduce  the  possibility
of vehicle theft. The purpose of the system is
to immobilize the vehicle if an invalid start is
attempted.  A  valid  start  attempt  can  only  be
achieved  by  using  a  key  “registered”  to  the
immobilizer system.

NOTE

[Vehicles without keyless operation system]
In the following cases, the vehicle may not
be able to receive the registered ID code
from the registered key and engine may not
start.

•

When the key contacts a key ring or other
metallic or magnetic object

•

When the key grip contacts metal of an-
other key

NOTE

•

When the key contacts or is close to other
immobilizing keys (including keys of oth-
er vehicles)

In cases like these, remove the object or
additional key from the vehicle key. Then
try again to start the engine. If the engine
does not start, we recommend you to con-

Electronic immobilizer (Anti-theft starting system)

3-03

OKTE18E1

Locking and unlocking

NOTE

tact a MITSUBISHI MOTORS Author-
ized Service Point.

[Vehicles  equipped  with  keyless  operation
system]
If  the  engine  does  not  start,  we  recommend
you  to  contact  a  MITSUBISHI  MOTORS
Authorized Service Point.

If you lose one of the master keys, the key-
less entry keys or the keyless operation keys,
contact  a  MITSUBISHI  MOTORS  Author-
ized Service Point as soon as possible. Refer
to “Keys” on page 3-02.
To obtain a key, take your vehicle and all re-
maining  keys  to  a  MITSUBISHI  MOTORS
Authorized Service Point.
If you need an extra spare key, take your ve-
hicle  and  all  the  keys  to  a  MITSUBISHI
MOTORS Authorized Service Point. All the
keys have to be re-registered in the immobil-
izer computer unit.
For  further  information,  please  contact  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.

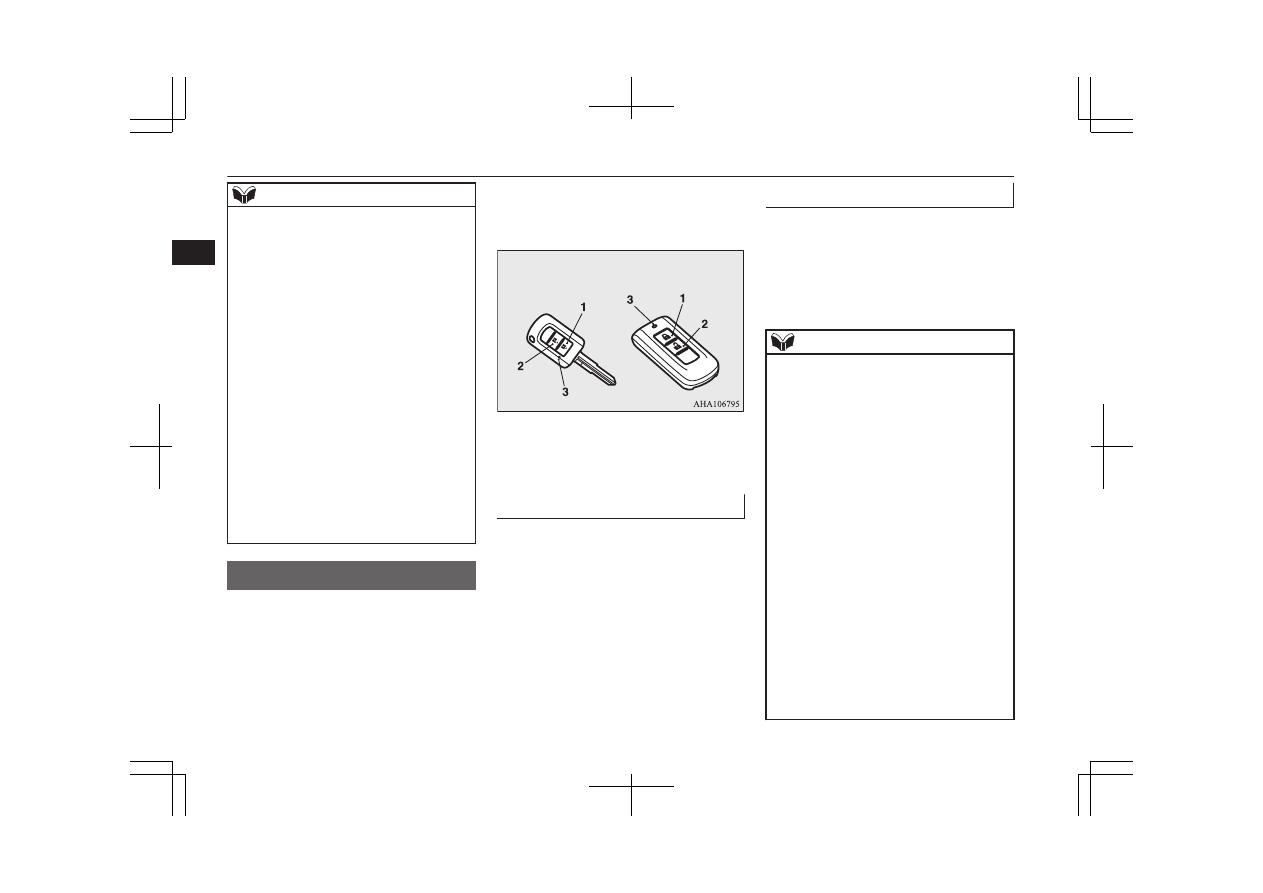

Keyless entry system*

E00300304669

Press the key switch to lock or unlock the
doors.

It is also possible to operate the outside rear-
view mirrors. (Vehicles equipped with the
mirror retractor switch)

Keyless entry key

Keyless operation key

1. LOCK switch
2. UNLOCK switch
3. Indication lamp

To lock

Press the LOCK switch (1). All the doors will
be  locked.  The  turn-signal  lamps  will  blink
once.  When  they  are  locked  with  the  room
lamp  switch  in  the  middle  (•)  position,  the
room lamp also blinks once.

To unlock

Press the UNLOCK switch (2). All the doors
will be unlocked. If the room lamp switch is
in  the  middle  (•)  position  at  this  time,  the
room  lamp  will  come  on  for  approximately
15  seconds  and  the  turn-signal  lamps  will
blink twice.

NOTE

For vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically  retract  or  extend  when  all  the
doors  are  locked  or  unlocked  using  the  key
switches  of  the  keyless  entry  system.  Refer
to  “Starting  and  driving:  Outside  rear-view
mirrors” on page 6-09.

If the UNLOCK switch (2) is pressed and no
door is opened within approximately 30 sec-
onds, relocking will automatically occur.

It is possible to modify functions as follows:
For further information, please contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.

•

The time from pressing the UNLOCK
switch (2) to the moment of automatic
locking can be changed.

•

Activating  the  operation  confirmation
function  (blinking  of  the  turn-signal
lamps)  only  during  locking,  or  only  dur-
ing unlocking.

•

The confirmation function (this indicates
locking or unlocking of the doors with the
blink of the turn-signal lamps) can be de-
activated.

Keyless entry system*

3-04

OKTE18E1

Locking and unlocking

NOTE

•

The number of times the turn-signal
lamps are flashed by the confirmation
function can be changed.

Operation of the Dead Lock

System*

With a vehicle that has a Dead Lock System,
it is possible to set the Dead Lock System by
pressing the LOCK switch (1) two times.
Refer to “Dead Lock System*” on page
3-18 for details.

Operation of the outside rear-

view mirrors (Vehicles equip-

ped with mirror retractor

switch)

E00310801507

To fold

Locking the doors using the LOCK switch
(1), the outside rear-view mirrors are folded
automatically.

To extend

Unlocking the doors using the UNLOCK
switch (2), the outside rear-view mirrors are
extended automatically.

NOTE

Functions can be modified as stated below.
Please consult a MITSUBISHI MOTORS
Authorized Service Point.

•

Automatically  extend  when  the  driver’s
door is closed, and then the following op-
eration is performed.
[Except  vehicles  equipped  with  keyless
operation system]
Turn  the  ignition  switch  to  the  “ON”  or
“ACC” position.
[Vehicles equipped with keyless operation
system]
Put the operation mode in ON or ACC.

•

Automatically retract when the ignition
switch is turned to the “LOCK” position
or the operation mode is put in OFF, and
the driver’s door is then opened.

•

Automatically extend when the vehicle
speed reaches 30 km/h.

NOTE

•

Deactivate  the  automatic  extension  func-
tion.

The outside rear-view mirrors can be fol-
ded  or  extended  by  the  following  opera-
tions,  even  if  changing  to  any  of  the
above.
After pressing the “LOCK” switch to lock
the doors, if the “LOCK” switch is press-
ed  again  twice  in  a  row  within  about  30
seconds,  the  outside  rear-view  mirrors
will retract.
After  pressing  the  “UNLOCK”  switch  to
unlock  the  doors,  if  the  “UNLOCK”
switch  is  pressed  again  twice  in  a  row
within about 30 seconds, the outside rear-
view mirrors will extend again.

The keyless entry system does not operate in
the following conditions:

•

The key is left in the ignition switch. (ex-
cept for vehicles with keyless operation
system)

•

The operation mode is not in OFF. (vehi-
cles with keyless operation system)

•

The door is open.

The key switch will operate within approxi-
mately  4  m  from  the  vehicle.  However,  the
operating  range  of  the  key  switch  may
change  if  the  vehicle  is  located  near  a  TV
transmitting  tower,  power  station,  or  radio
broadcasting station.

If either of the following problems occurs,
the battery may be exhausted.

Keyless entry system*

3-05

OKTE18E1

Locking and unlocking

Content .. 1 2 3 ..
