If there is a malfunction to the right turn-signal light
bulb, the blown right bulb counter counts once when
the illumination of hazard or turn-signal light (right
side) is attempted.

If the blown right bulb counter reaches "3," the DTC
B16A4 is set.

TROUBLESHOOTING HINTS

Malfunction of turn-signal light bulb (right side)

Malfunction of the ETACS-ECU

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Bulb check.
Check  whether  the  bulb  of  turn-signal  light  which  does  not
illuminate is normal.

Q:Is the check result normal?

YES:

 Go to Step 2.

NO:

 Replace the bulb of turn-signal light which does not

illuminate.

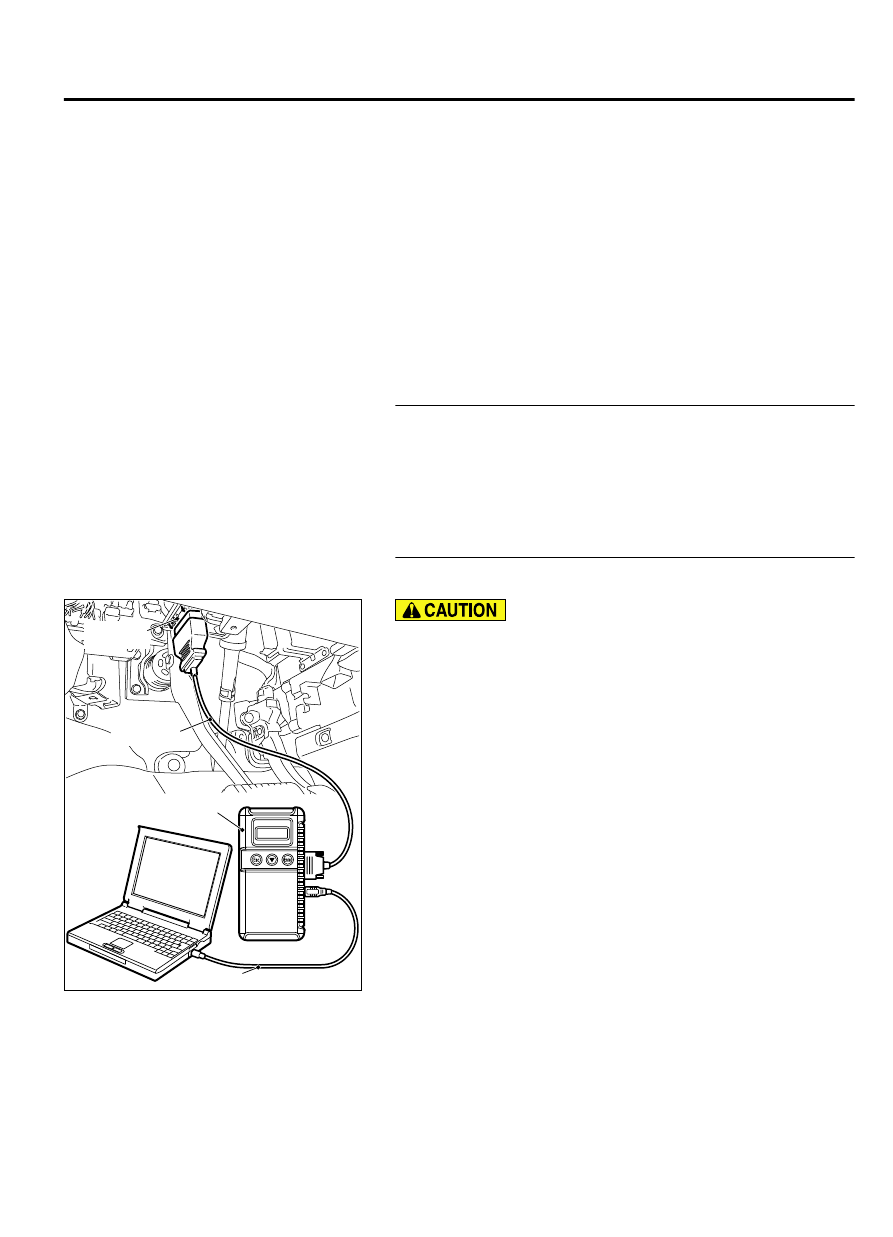

STEP 2. Using scan tool MB991958, Check whether the
diagnostic trouble code is reset.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect scan
tool P.54Ac-11."

(2)

Turn the ignition switch to the "ON" position.

(3)

Erase the DTC.

(4)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(5)

Check if DTC is set.

Q:Is the DTC set?

YES:

 Replace the ETACS-ECU.

NO:

 The procedure is complete.

LIGHTING

54Ac-21

DIAGNOSIS

DTC B16A5: Turn-signal light (RH) short circuit

M15410900089USA0000010000

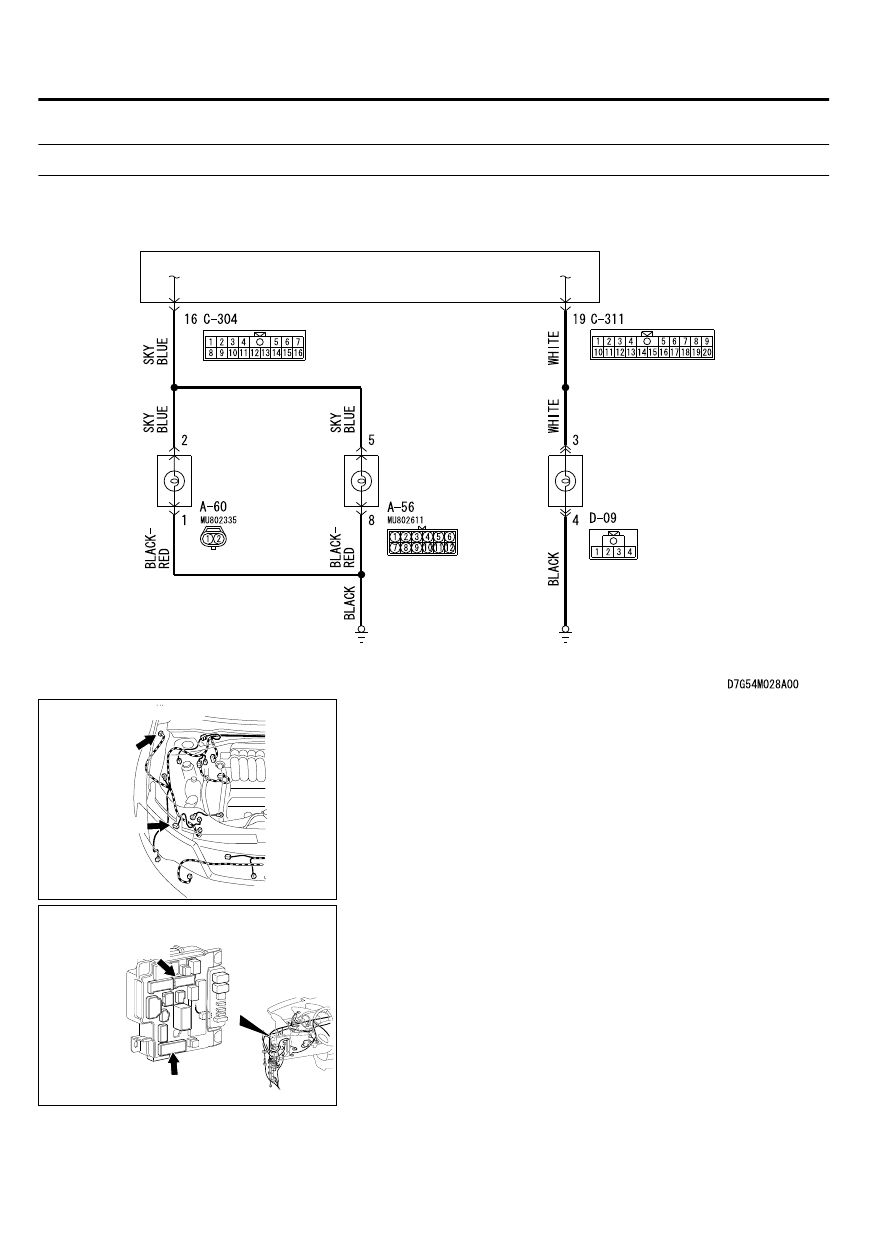

Turn-Signal Lights Circuit (RH)

ETACS-
ECU

REAR
COMBINATION
LIGHT
(RH)

HEADLIGHT
ASSEMBLY
(RH)

SIDE TURN-
SIGNAL LIGHT
(RH)

ZC6008710006

Connector: A-60, A-56

A-60 (B)

A-56 (B)

ZC6008780026

Connector: C-304, C-311

C-304

C-311

54Ac-22

LIGHTING

DIAGNOSIS

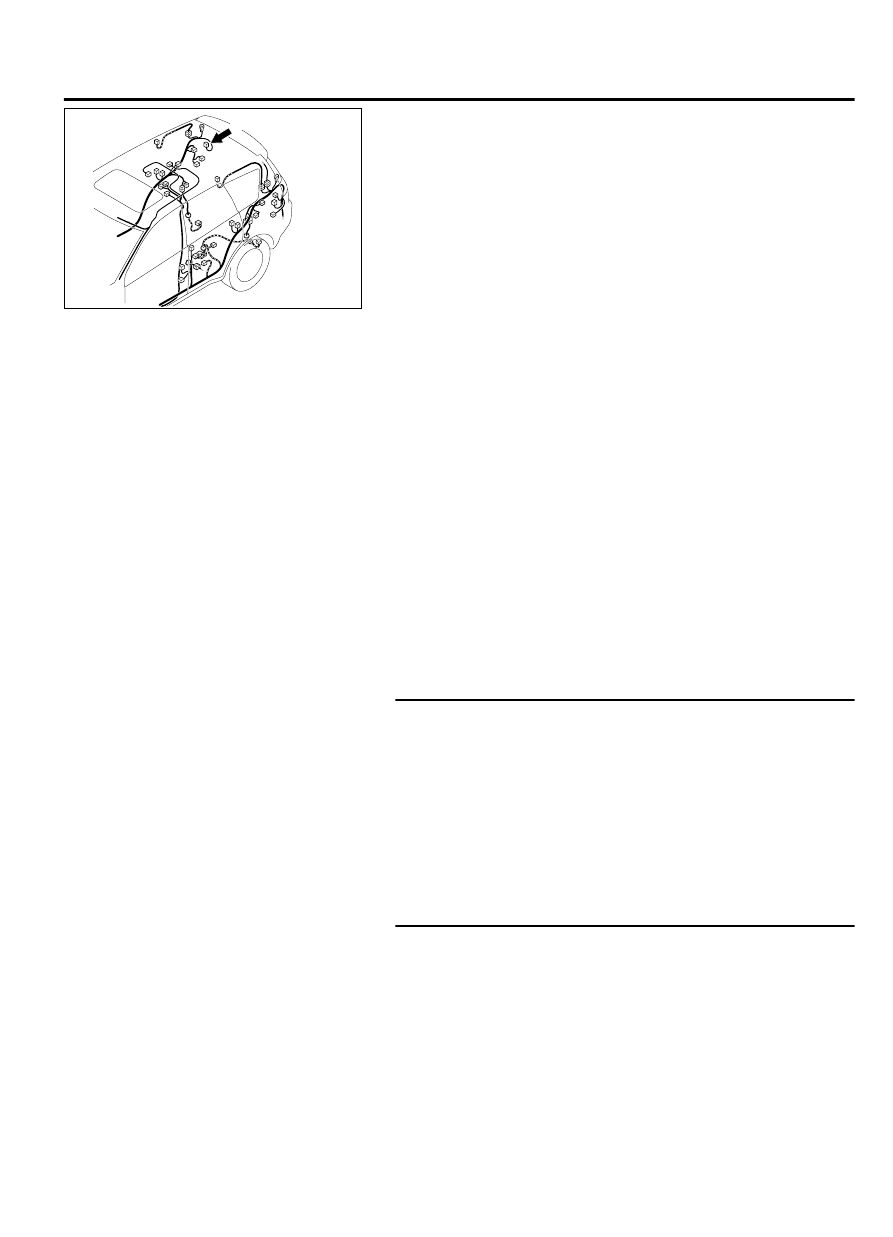

ZC6008800018

Connector: D-09

D-09

TROUBLE JUDGMENT
When  the  right  wiring  harness  of  turn-signal  light  is
short circuited, the ETACS-ECU sets DTC B16A5.

TECHNICAL DESCRIPTION (COMMENT)
When  the  short  circuit  is  detected  three  times
consecutively, the ETACS-ECU sets the DTC B16A5.

TROUBLESHOOTING HINTS

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

Malfunction of the ETACS-ECU

DIAGNOSIS

Required Special Tools:

MB992006: Extra fine probe

MB991223: Harness set

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Check headlight assembly (RH) connector A-56
<front>, side turn-signal light (LH) connector A-60 <side>,
rear combination light (LH) connector D-09 <rear> for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Are  headlight  assembly  (RH)  connector  A-56  <front>,

side  turn-signal  light  (RH)  connector  A-60  <side>,  rear

combination  light  (LH)  connector  D-09  <rear>  in  good

condition?

YES:

 Go to Step 2.

NO:

 Repair the damaged parts.

STEP 2. Resistance measurement at headlight assembly
(RH) connector A-56 <front>, side turn-signal light (RH)
connector A-60 <side>, and rear combination light (RH)
connector D-09 <rear>.

(1)

Disconnect the connector, and measure at the wiring harness
side.

LIGHTING

54Ac-23

DIAGNOSIS

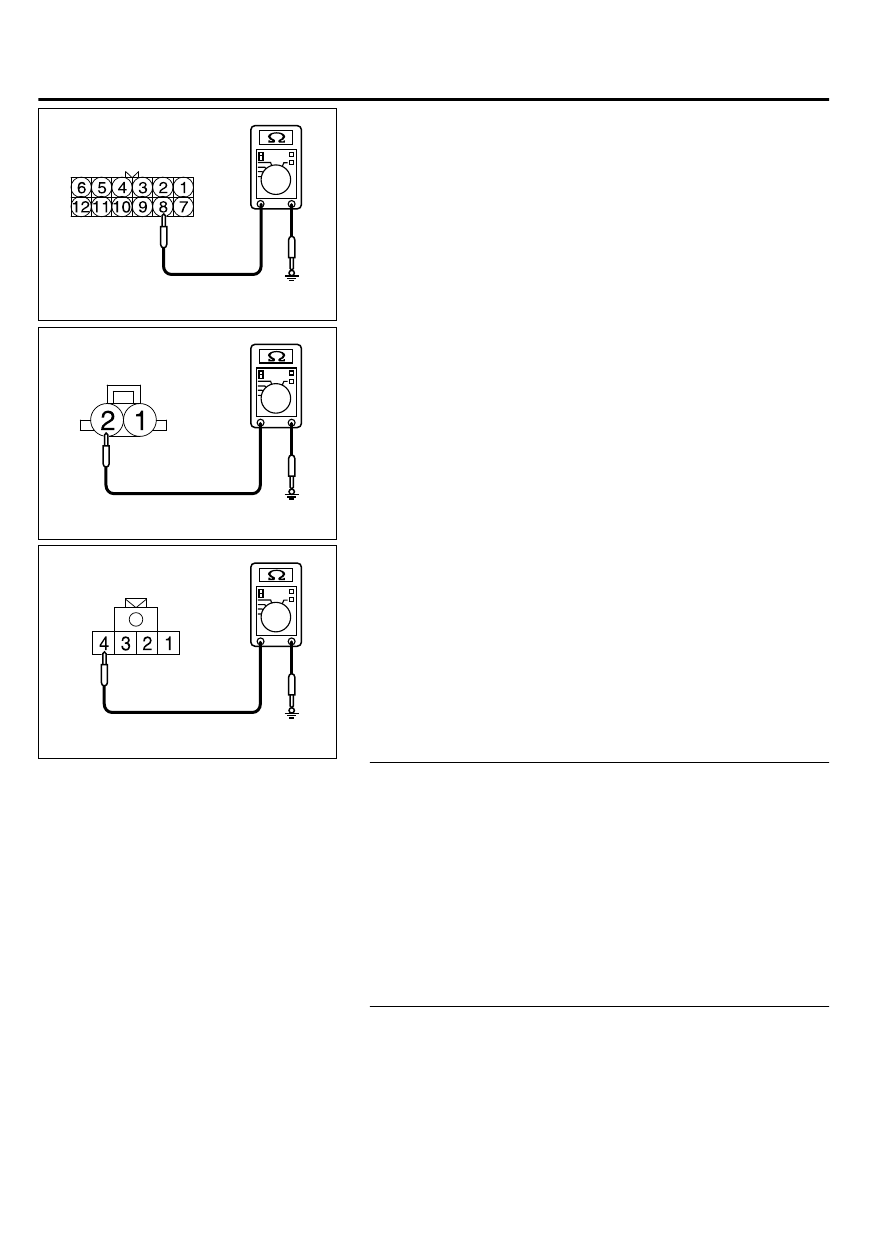

ZC5015310001

Connector A-56
(Harness side)

ZC5015310000

Connector A-60
(Harness side)

ZC5015310002

Connector D-09
(Harness side)

(2)

Measure the resistance between the connector terminal of
light which does not illuminate and body ground.

Measure the resistance between the headlight assembly
(RH)  connector  A-56  (terminal  No.  8)  and  body  ground.
<Front>

Measure the resistance between the side turn-signal light
(RH)  connector  A-60  (terminal  No.  1)  and  body  ground.
<side>

Measure the resistance between the rear combination light
(RH)  connector  D-09  (terminal  No.  4)  and  body  ground.
<Rear>

The measured value should be continuity exists (2
Ω or less).

Q:Does the measured resistance value correspond with this

range?

YES:

 Go to Step 4.

NO:

 Go to Step 3.

STEP 3. Check the wiring harness between headlight
assembly (RH) connector A-56 (terminal No. 8) <front>, side
turn-signal light (RH) connector A-60 (terminal No. 1)
<side>, rear combination light (LH) connector D-09
(terminal No. 4) <rear> and ground.

Q:Are the wiring harness between headlight assembly (RH)

connector A-56 (terminal No. 8) <front>, side turn-signal

light  (RH)  connector  A-60  (terminal  No.  1)  <side>,  rear

combination  light  (RH)  connector  D-09  (terminal  No.  4)

<rear> and ground in good condition?

YES:

 Go to Step 6.

NO:

 Repair the wiring harness.

STEP 4. Check ETACS-ECU connectors C-304 and C-310 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Are  ETACS-ECU  connectors  C-304  and  C-310  in  good

condition?

54Ac-24

LIGHTING

DIAGNOSIS
