GENERAL INFORMATION

M15410900001USA0000010006

｠

For exterior lights, the headlight assemblies, front
fog  lights  <vehicles  without  discharge  headlight>
and daytime running light*have been installed to the
front of the vehicle, the side turn-signal lights to the
sides of the vehicle (to the fender panel), and the
rear  combination  light  assemblies,  tail  light
assemblies,  rear  side  marker  lights,  license  plate
lights, and high-mounted stop lights to the rear of
the vehicle.

｠

The  headlight  assembly  bracket  can  be  replaced
separately.

｠

For interior lights, the front dome light, rear dome
light,  luggage  compartment  light,  glove  box  light,
center console down light, foot light, and ignition key
cylinder illumination lights have been installed.

NOTE:

 *: Vehicles for halogen headlight:

Headlight low-beam decrease in lights. Vehicles
without discharge headlight: Light only for
daytime running light.

CONSTRUCTION DIAGRAM

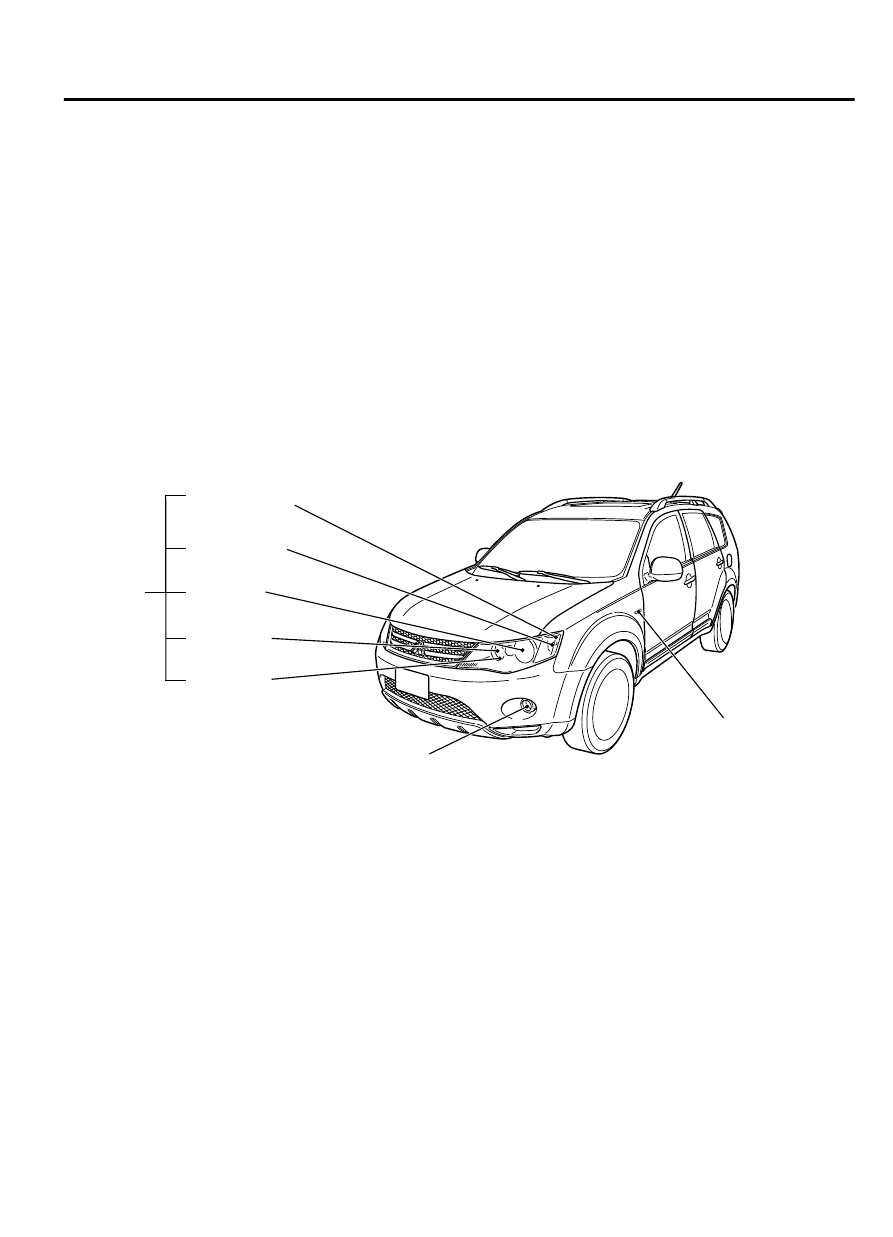

Exterior lights

ZC501806

Headlight
(low-beam)*

Front turn-signal
light

Front side-marker
light

Position light

Side turn-signal light

Headlight
assembly

0000

Headlight
(high-beam)

Front fog light
<vehicles without discharge headlight>
Daytime running light
<vehicles with discharge headlight>

NOTE: *:
<Vehicles for halogen headlight>
Headlight (low-beam) + daytime running light
<Vehicles for discharge headlight>
Headlight (low-beam)

LIGHTING

54Ac-5

GENERAL INFORMATION

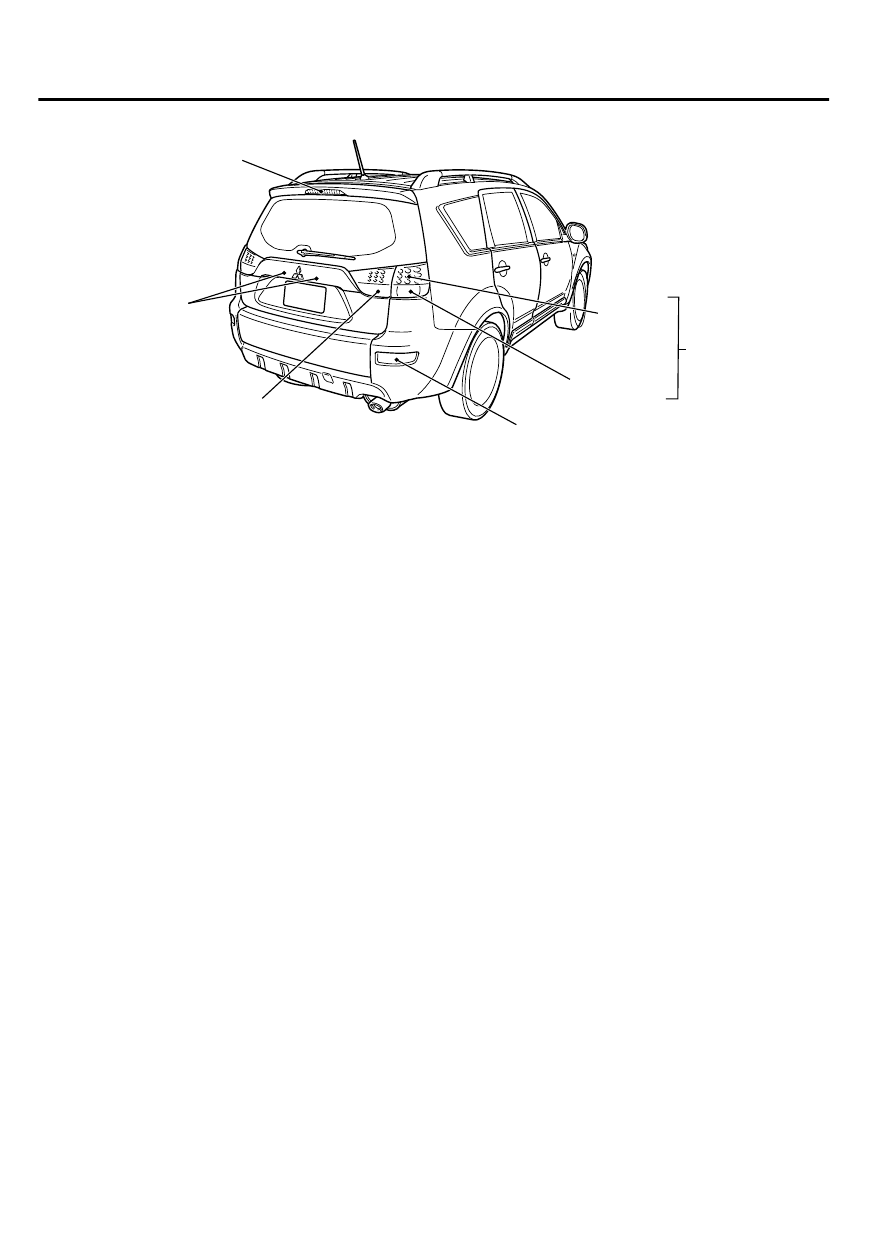

ZC501807

Tail / stop
light

Rear turn-signal
light

Tail light assembly
(back-up light)

License plate light

High-mounted stop light

Rear
combination light
assembly

0000

Rear side-marker light

54Ac-6

LIGHTING

GENERAL INFORMATION

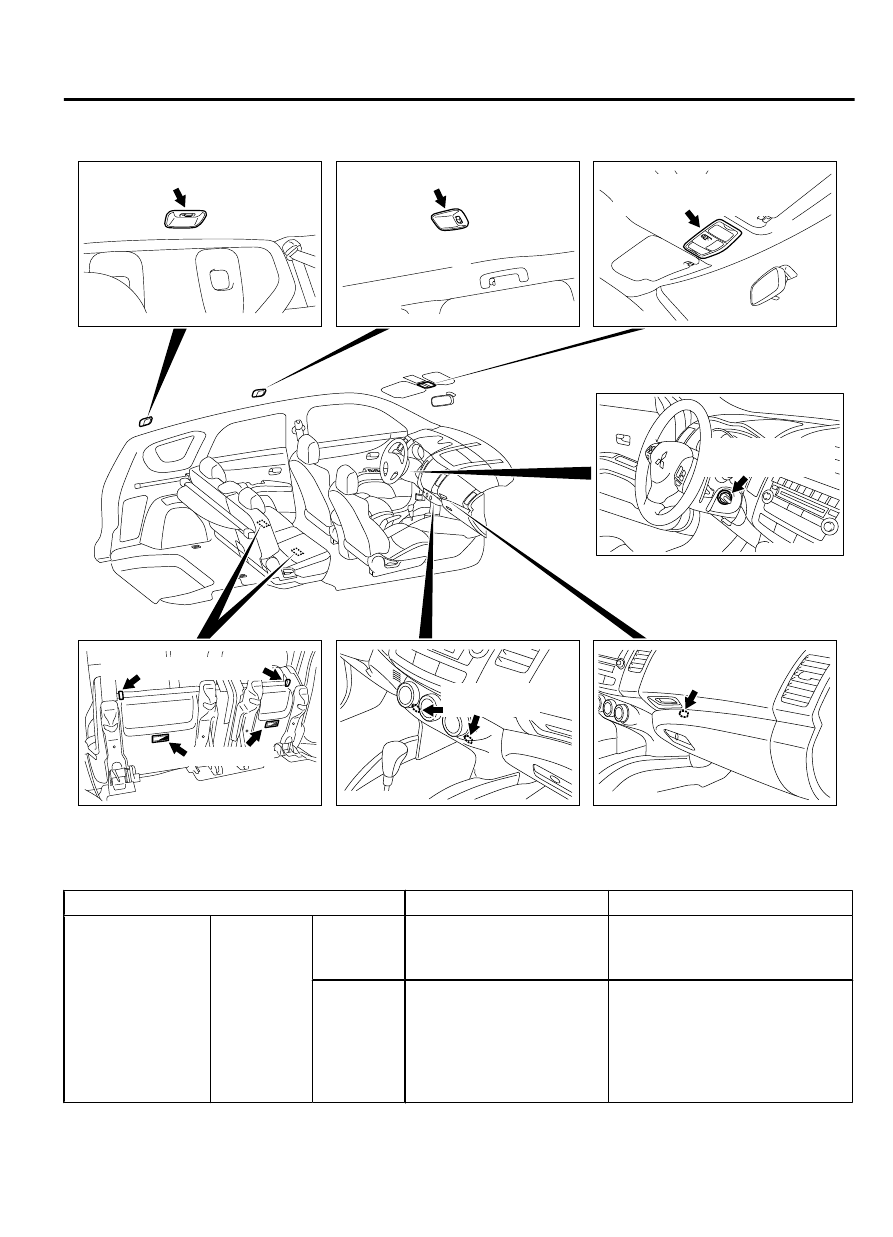

Interior lights

ZC5018590001

Tumble unlocking lever

Front dome light
(map and room light)

Rear dome light

Luggage compartment light

Foot light

Center console
down light

Glove box light

Ignition key cylinder
illumination light

SERVICE SPECIFICATIONS

M15410900002USA0000010000

Item

Standard value

Limit

Headlight  aiming
[at 7.62 m (25.0 ft)]

Low-beam

Vertical
direction

Horizontal  line  (H)  ±  50.5
mm (± 2.0 inches) (± 0.38
degrees angle)

-

Horizontal
direction

± 126.4 mm (± 5.0 inches)
(±  0.95  degrees  angle)
from  the  axis,  which  is
266.1 mm (10.5 inches) (2
degrees  angle)  rightward
from the vertical line (V)

-

LIGHTING

54Ac-7

SERVICE SPECIFICATIONS

Item

Standard value

Limit

Headlight intensity cd (at high-beam)

-

40,000 or more {when a screen
is set 18.3m(60 ft) ahead of the
vehicles}

Fog light aiming (cutoff line direction) [at 7.62
m (25.0 ft)]

The  horizontal  line  153.0
mm  (6.02  inches)  (1.15
degrees  angle)  below  the
horizontal line (H)

-

Fog light aiming (vertical direction) [at 7.62 m
(25.0 ft)]

-

Area from 53.2 mm (2.09 inches)
(0.4  degrees  angle)  above  the
cutoff  line  to  99.8  mm  (3.93
inches)  (0.75  degrees  angle)
below the cutoff line

Fog light aiming (horizontal direction) [at 7.62
m (25.0 ft)]

-

Vertical  line  (V)  ±  599.7  mm  (±
23.6  inches)  (±  4.5  degrees
angle).

PRECAUTIONS ON HOW TO USE THE HEADLIGHT ASSEMBLY

Be careful with the following items as resin lenses are
used in the headlight assembly.

｠

Don't illuminate the headlight for three minutes or
more  when  the  headlight  is  covered  with  scratch
protector.

｠

Don't tape the outer lens.

｠

Don't  scratch  the  outer  lens  surface  with  a  sharp
edged special tool.

｠

Use the specified wax remover and rinse the wax
off cleanly.

｠

Use the specified genuine bulb.

SPECIAL TOOLS

M15410900003USA0000010000

Tool

Tool  number  and
name

Supersession

Application

MB990784

MB990784
Ornament remover

General service tool

Removal of front fog light bezel

54Ac-8

LIGHTING

SPECIAL TOOLS
