YES<Set to the A/T.>:

 Troubleshoot the A/T. Refer to

GROUP 23A, Diagnosis P.23A-22.

YES<Set to the AWD.>:

 Troubleshoot the AWD. Refer to

GROUP 27C, Diagnosis P.27C-9.

YES<Set to the ABS.>:

 Troubleshoot the ABS. Refer to

GROUP 35B, Diagnosis P.35B-9.

YES<Set to the ASC.>:

 Troubleshoot the ASC. Refer to

GROUP 35C, Diagnosis P.35C-11.

YES<Set to the WCM.>:

 Troubleshoot the WCM. Refer to

GROUP 42C, diagnosis P.42C-11.

YES<Set to the KOS.>:

 Troubleshoot the KOS. Refer to

GROUP 42B, Diagnosis P.42B-18.

YES<Set to the SRS.>:

 Troubleshoot the SRS. Refer to

GROUP 52B, Diagnosis P.52B-33.

YES<Set to the ETACS.>:

 Troubleshoot the ETACS. Refer

to GROUP 54Ad, Diagnosis P.54Ad-8.

YES<Set to the A/C.>:

 Troubleshoot the A/C. Refer to

GROUP 55A, Manual A/C Diagnosis P.55A-8or GROUP 55B,
Automatic A/C Diagnosis P.55B-7.

NO<The diagnosis code is not set.>:

 Go to Step 4.

STEP 4. Using scan tool MB991958, check actuator test.

(1)

Turn the ignition switch to the "ON" position.

(2)

Conduct the actuator test of the combination meter.

｠

Item 7: Indicator1

｠

Item 8: Indicator2

｠

Item 9: Indicator3

｠

Item 10: Indicator4

｠

Item 11: Shift indicator

｠

Perform the actuator test, and check that display lights
or  warning  lights  are  illuminated  normally,  or  multi
information display is displayed normally.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the check result normal?

YES:

 Go to Step 5.

NO:

 Replace the combination meter.

STEP 5. Retest the system.
Check  that  display  lights  or  warning  lights  are  illuminated
normally, or multi information display is displayed normally.

Q:Is the check result normal?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00 - How to use Troubleshooting/
inspection Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the combination meter.

COMBINATION METER

54Ab-53

DIAGNOSIS

Inspection Procedure 6: The multi information display screen cannot be changed with
the operation of the meter information switch.

M15410100080USA0000010000

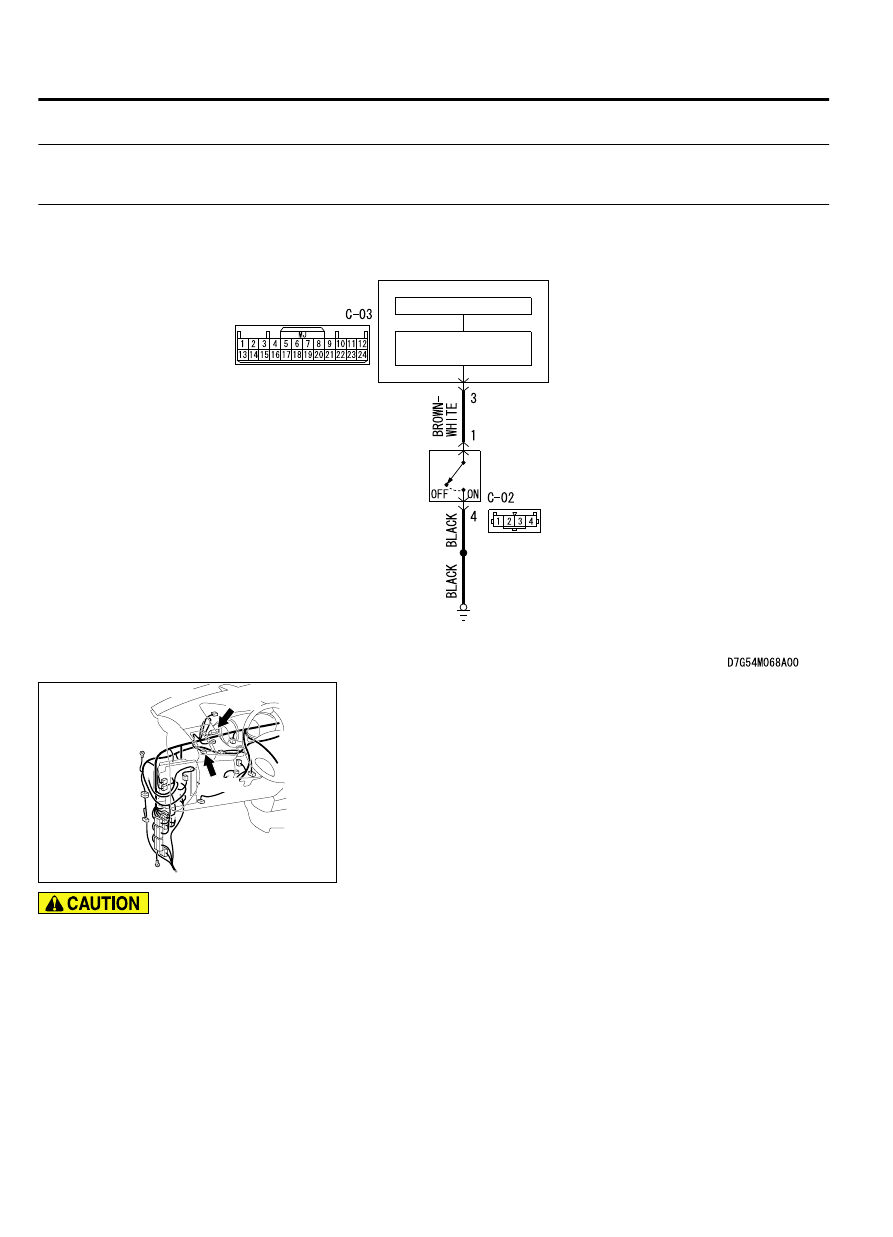

Meter Information Switch Circuit

INTERFACE
CIRCUIT

COMBINATION
METER

CPU

METER
INFOMATION
SWITCH

ZC6008750037

Connectors: C-02, C-03

C-03

C-02

Before replacing the combination meter, be sure
to  check  that  the  power  supply  circuit,  earth
circuit, and communication circuit are normal.

TECHNICAL DESCRIPTION (COMMENT)
When the signal from the meter information switch is
received,  the  combination  meter  switches  the  multi
information  display  screen.  If  the  multi  information
display  screen  does  not  switch  normally,  the  meter
information  switch,  wiring  harness,  connector(s),  or
combination meter may have a problem.

TROUBLESHOOTING HINTS

｠

The meter information switch may be defective

｠

The combination meter may be defective

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

54Ab-54

COMBINATION METER

DIAGNOSIS

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.

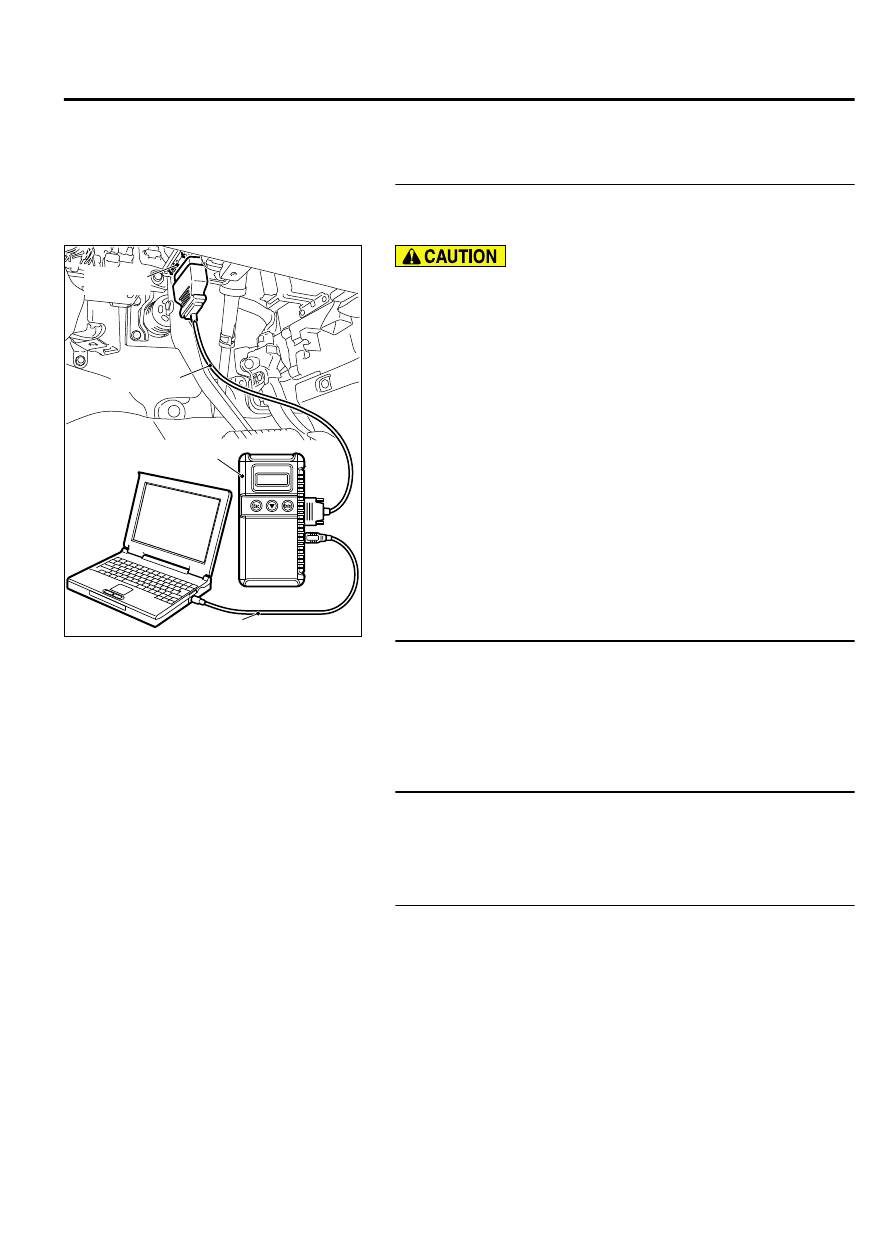

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ab-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(4)

Check if DTC is set.

Q:Is the DTC set?

YES:

 Refer to P.54Ab-7.

NO:

 Go to Step 2.

STEP 2. Check meter information switch connector C-02 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  meter  information  switch  connector  C-02  in  good

condition?

YES:

 Go to Step 3.

NO:

 Repair the defective connector.

STEP 3. Check the meter information switch.
Check the meter information switch. Refer to P.54Ab-69.

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Replace the meter information switch.

STEP 4. Check the wiring harness between meter
information switch connector C-02 (terminal 4) and ground.

Q:Is  the  wiring  harness  between  fuel  meter  information

switch connector C-02 (terminal 4) and ground in good

condition?

YES:

 Go to Step 5.

NO:

 Repair the wiring harness.

COMBINATION METER

54Ab-55

DIAGNOSIS

STEP 5. Check combination meter connector C-03 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is combination meter connector C-03 in good condition?

YES:

 Go to Step 6.

NO:

 Repair the defective connector.

STEP 6. Check the wiring harness between meter
information switch connector C-02 (terminal 1) and
combination meter connector C-03 (terminal 3).

Q:Are the wiring harness between meter information switch

connector  C-02  (terminal  1)  and  combination  meter

connector C-03 (terminal 3) in good condition?

YES:

 Go to Step 7.

NO:

 Repair the wiring harness.

STEP 7. Retest the system.
Check  that  the  multi  information  display  screen  switches
normally when the meter information switch is operated.

Q:Is the check result normal?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00 - How to use Troubleshooting/
inspection Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the combination meter.

SERVICE DATA

M15410100034USA0000010000

NOTE:

Some items are not displayed on M.U.T.-III

according to the information in the ECU.

Item No. Scan tool MB991958 display

Condition

01

Illumination

ON or OFF

02

Outside temperature

°C or °F

03

Frost warning indicator

ON or OFF

04

Engine coolant temp. lamp(HOT)

ON or OFF

05

Immobilizer indicator

ON or OFF

06

Oil level indicator

ON or OFF

07

4WD failure indicator

ON or OFF

08

Hood indicator

ON or OFF

09

Washer fluid level warning

ON or OFF

23

A/T failure indicator(Symbol)

ON or OFF

24

Air purifier indicator

ON or OFF

25

ASC/TCL failure indicator

ON or OFF

26

Key reminder indicator

ON or OFF

27

Head lamp reminder indicator

ON or OFF

28

Brake reminder indicator

ON or OFF

54Ab-56
