Sould read engine speed.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Does it read engine speed?

YES:

 Go to Step 5.

NO:

 Troubleshoot the MFI. Refer to GROUP 13Ab -

Troubleshooting P.13Ab-49. Complete the engine
troubleshooting, and then go to Step 6.

STEP 5. Using scan tool MB991958, check actuator test.

(1)

Turn the ignition switch to the "ON" position.

(2)

Conduct the actuator test of the combination meter.

｠

Item 2: Tachometer

｠

The tachometer operates up to the set position.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the check result normally?

YES:

 Go to Step 6.

NO:

 Replace the combination meter.

STEP 6. Retest the system
Check that the tachometer works normally.

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Go to Step 1.

Inspection Procedure 4: Tone alarm does not sound normally.

M15410100084USA0000010000

Before replacing the combination meter, be sure
to  check  that  the  power  supply  circuit,  earth
circuit, and communication circuit are normal.

TECHNICAL DESCRIPTION (COMMENT)
When the following signals are received via the CAN
communication,  the  combination  meter  sounds  the
incorporated  tone  alarm  according  to  the  each
pattern.

Seat belt reminder function

｠

Ignition switch ON signal

｠

Vehicle speed signal

｠

Driver's seat belt switch signal

｠

Front passenger's seat belt switch signal

Keyless operation key reminder tone alarm function
(vehicles with KOS)

｠

Ignition switch OFF signal

｠

IG knob push switch ON signal

｠

Driver's door switch ON signal

Ignition key reminder tone alarm function
(vehicles without KOS)

｠

Ignition switch OFF signal

｠

Key reminder switch OFF signal

｠

Driver's door switch ON signal

Light reminder tone alarm function

｠

Ignition switch OFF signal

｠

Lighting switch ON signal

｠

Driver's door switch ON signal

Door-ajar warning tone alarm function

｠

Ignition switch ON signal

｠

Any door switch or liftgate switch ON signal

｠

Vehicle speed signal

Freeze warning tone alarm

｠

Ignition switch ON signal

｠

Ambient temperature signal

Parking brake reminder tone alarm function

｠

Ignition switch ON signal

｠

Parking brake switch ON signal

｠

Vehicle speed signal

｠

Engine speed

COMBINATION METER

54Ab-49

DIAGNOSIS

Multi information display interrupt display tone
alarm

｠

Display condition signal of information display from
each  warning  (When  there  is  a  fixed  tone  alarm
sounding pattern for each warning, that pattern has
the priority.)

Meter information switch operation tone alarm

｠

ON signal for combination meter information switch

Turn-signal light tone alarm function

｠

Turn-signal light switch ON signal

Paddle shift cancel tone alarm, Theft-alarm
function, ETACS-ECU function customise tone

alarm, A/C operation tone alarm, audio operation
tone alarm

｠

Sounding request signal from the ETACS-ECU

If  the  tone  alarm  does  not  sound  normally,  the
connector(s) and wiring harness in the CAN bus lines,
or each ECU or the combination meter may have a
problem.

TROUBLESHOOTING HINTS

｠

The combination meter may be defective

｠

The each ECU may be defective

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

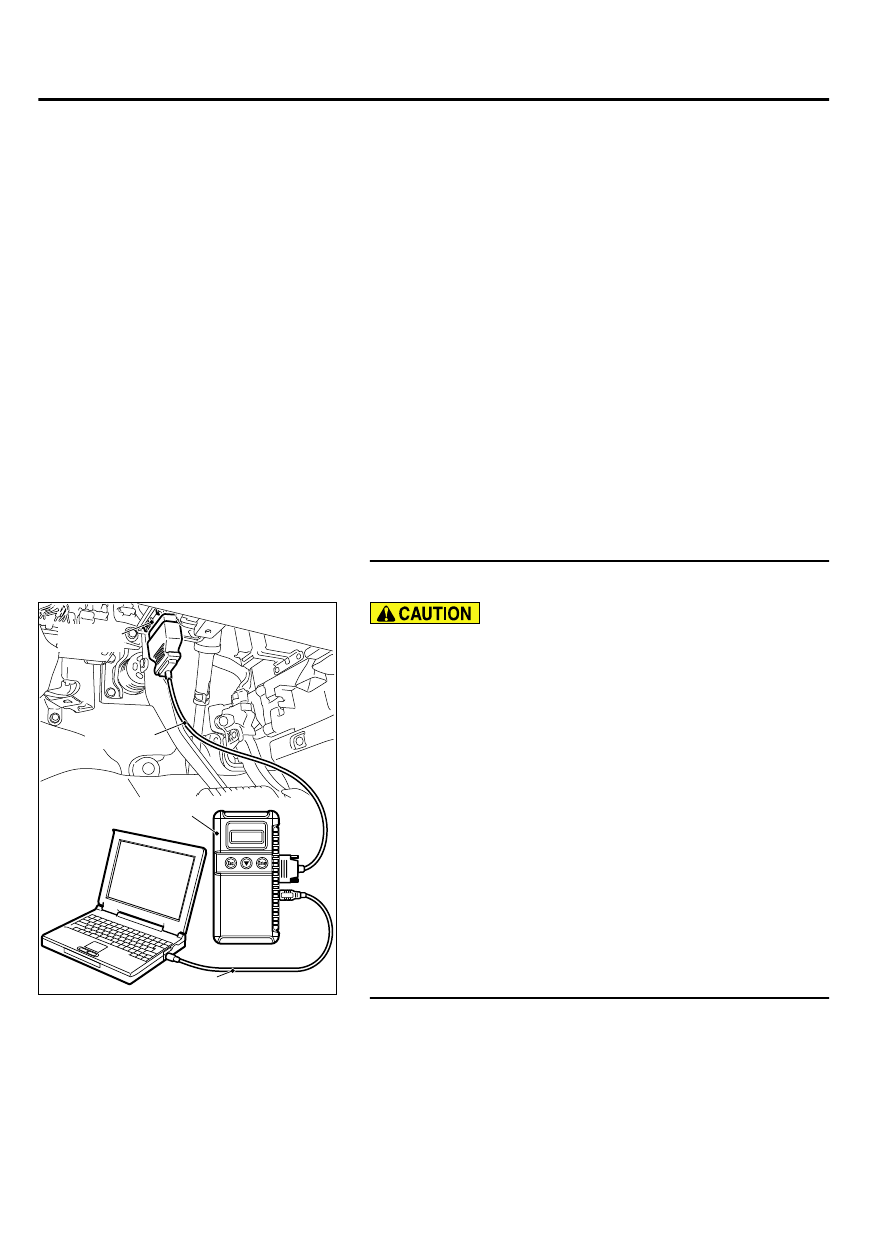

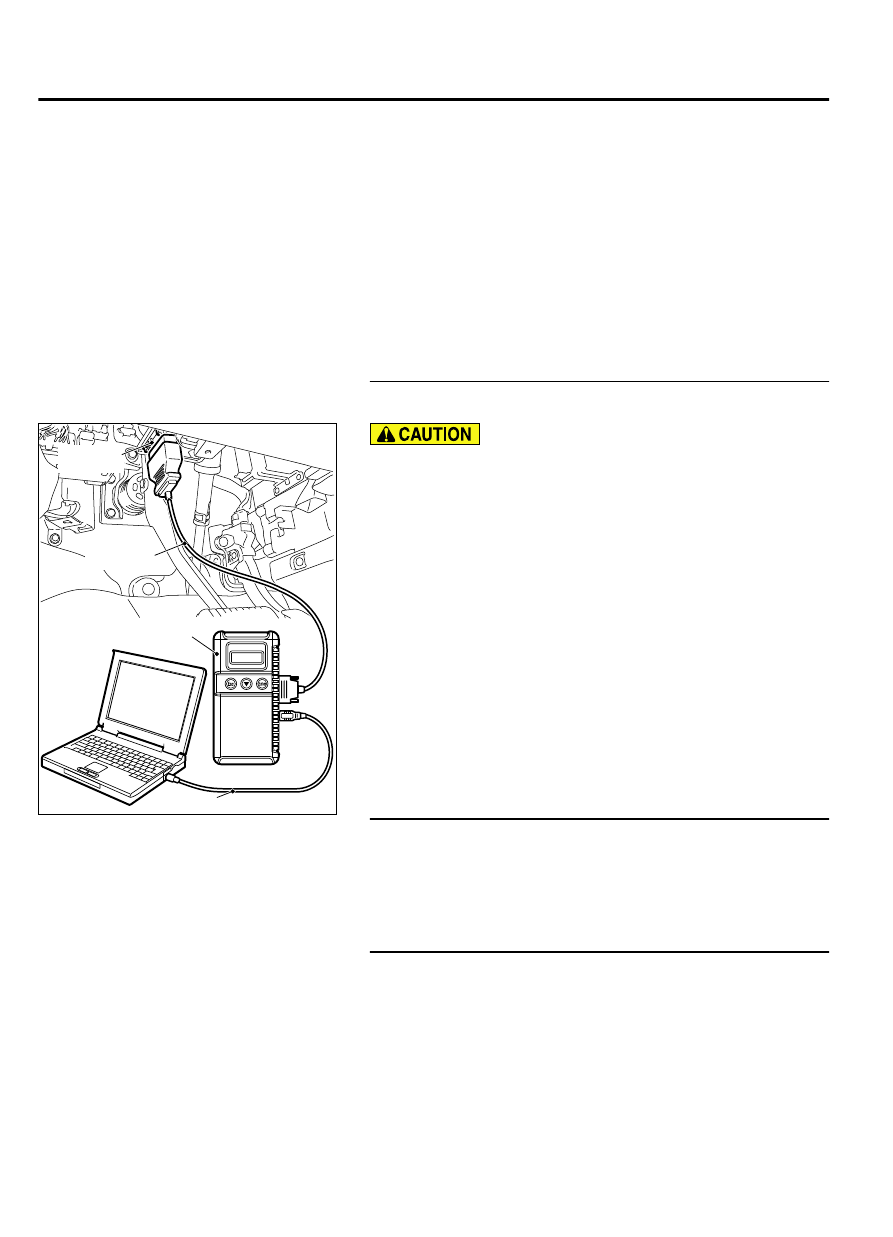

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ab-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.

Q:Is the DTC set?

YES:

 Refer to P.54Ab-79.

54Ab-50

COMBINATION METER

DIAGNOSIS

NO:

 Go to Step 3.

STEP 3. Using scan tool MB991958, read for any diagnostic
trouble code.
Check if diagnosis code is set to the A/T, ETACS-ECU, WCM,
KOS-ECU, AUDIO and A/C-ECU.

Q:Is the DTC set to the any of the above?

YES<Set to the A/T.>:

 Troubleshoot the A/T. Refer to

GROUP 23A, Diagnosis P.23A-22.

YES<Set to the ETACS.>:

 Troubleshoot the ETACS. Refer

to GROUP 54Ad, Diagnosis P.54Ad-8.

YES<Set to the WCM.>:

 Troubleshoot the WCM. Refer to

GROUP 42C, diagnosis P.42C-11.

YES<Set to the KOS.>:

 Troubleshoot the KOS. Refer to

GROUP 42B, Diagnosis P.42B-18.

YES<Set to the AUDIO.>:

 Troubleshoot the AUDIO. Refer to

GROUP 54B, Diagnosis P.54B-7.

YES<Set to the A/C.>:

 Troubleshoot the A/C. Refer to

GROUP 55A, Manual A/C Diagnosis P.55A-8or GROUP 55B,
Automatic A/C Diagnosis P.55B-7.

NO<The diagnosis code is not set.>:

 Go to Step 4.

STEP 4. Using scan tool MB991958, check actuator test.

(1)

Turn the ignition switch to the "ON" position.

(2)

Conduct the actuator test of the combination meter.

｠

Item 12: Buzzer

｠

The tone alarms sound normally.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the check result normal?

YES:

 Go to Step 5.

NO:

 Replace the combination meter.

STEP 5. Retest the system
Check that the tone alarm normally.

Q:Is the check result normal?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00 - How to use Troubleshooting/
inspection Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the combination meter.

Inspection Procedure 5: The combination meter light does not illuminate normally or
the multi information display is not displayed normally.

M15410100085USA0000010000

Before replacing the combination meter, be sure
to  check  that  the  power  supply  circuit,  earth
circuit, and communication circuit are normal.

TECHNICAL DESCRIPTION (COMMENT)
When the signal from each ECU is received via the
CAN  communication,  the  combination  meter
illuminates the corresponding display light or warning
light,  or  has  the  multi  information  display  to  display
corresponding information.

COMBINATION METER

54Ab-51

DIAGNOSIS

If the lights do not illuminate or the multi information
display does not display normally, the wiring harness
and connector(s) in the CAN bus lines, or the each
ECU or the combination meter may have a problem.

TROUBLESHOOTING HINTS

｠

The combination meter may be defective

｠

The each ECU may be defective

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ab-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check again if the DTC is set to the combination meter.

Q:Is the DTC set?

YES:

 Refer to P.54Ab-7.

NO:

 Go to Step 3.

STEP 3. Using scan tool MB991958, read for any diagnostic
trouble code.
Check again if the DTC is set to the MFI, A/T, AWD, WCM, KOS,
ABS, ASC, SRS, ETACS and A/C.

Q:Is the DTC set to the any of the above?

YES<Set to the MFI.>:

 Troubleshoot the MFI. Refer to

GROUP 13Ab, Diagnosis P.13Ab-44.
