Mitsubishi Outlander XL. Manual - part 917





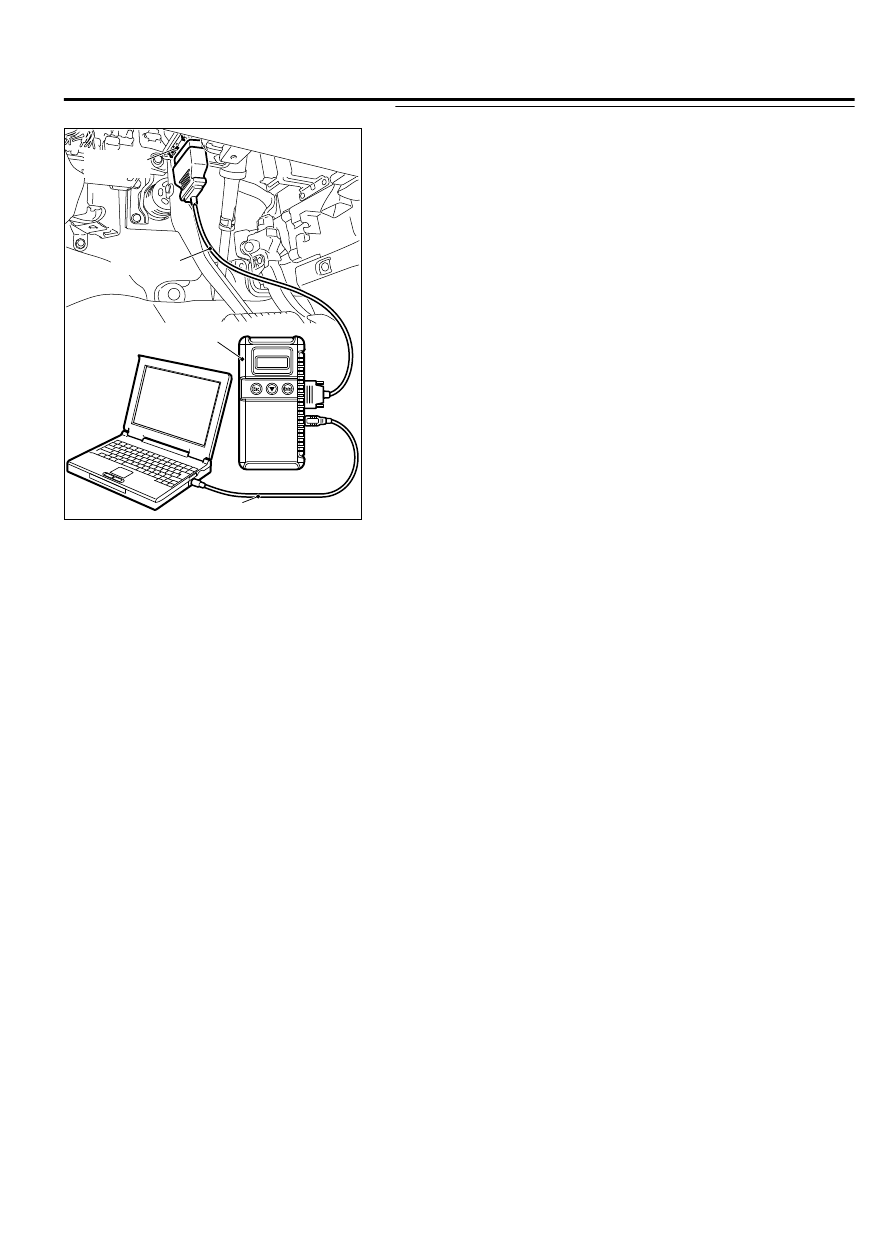

STEP 6. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC B1C33 set?

YES:

 Return to Step 1.

NO:

 The procedure is complete.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-199

SRS AIR BAG DIAGNOSIS

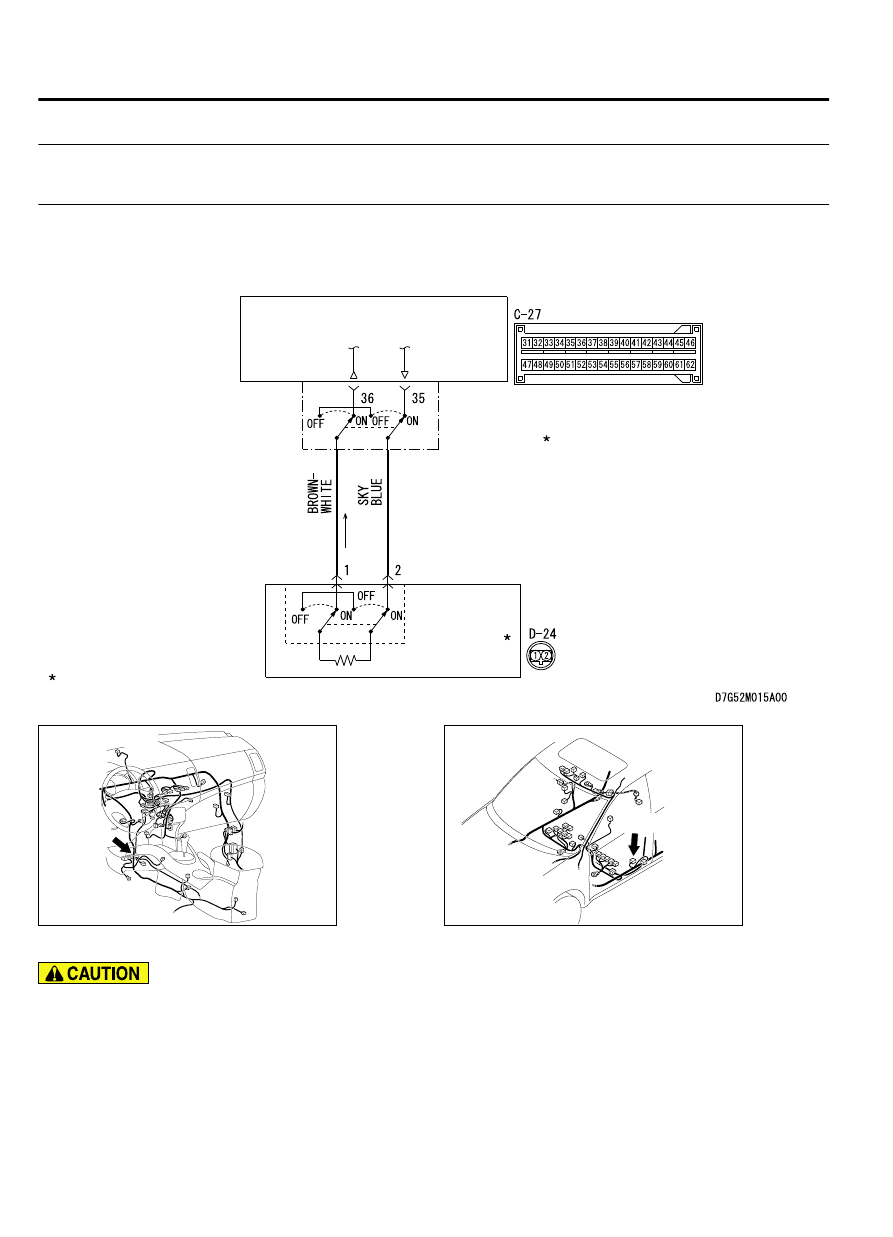

DTC B1C34: Driver’s Lap Pre-tensioner (Squib) System (Shorted to Squib Circuit Power
Supply)

M15204000947USA0000010000

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

LAP
PRE-TENSIONER
(SQUIB)

Lap Pre-Tensioner (LH) (Squib) Circuit

SRS-ECU

: CONNECTOR COUPLED : ON
  CONNECTOR UNCOUPLED : OFF

NOTE

ZC600876

Connector: C-27

C-27 (Y)

0025

ZC600879

Connector: D-24

D-24 (B)

0014



If  DTC  B1C34  is  set  in  the  SRS-ECU,  always
diagnose the CAN main bus line.

CIRCUIT OPERATION
The  SRS-ECU  judges  how  severe  a  collision  is  by
detecting signals from the front impact sensors and
the front air bag analog G-sensor. If the impact is over

a  predetermined  level,  the  SRS-ECU  sends  an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the lap pre-tensioner will deploy.

52B-200

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS

DTC SET CONDITIONS
This  DTC  is  set  if  there  is  abnormal  resistance
between the input terminals of the lap pre-tensioner
(squib).

TROUBLESHOOTING HITS

Damaged wiring harnesses or connectors

Short  to  power  supply  in  the  lap  pre-tensioner
(squib) harness

Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN Communication System)

MB991865: Dummy resistor

MB991884: Resister harness

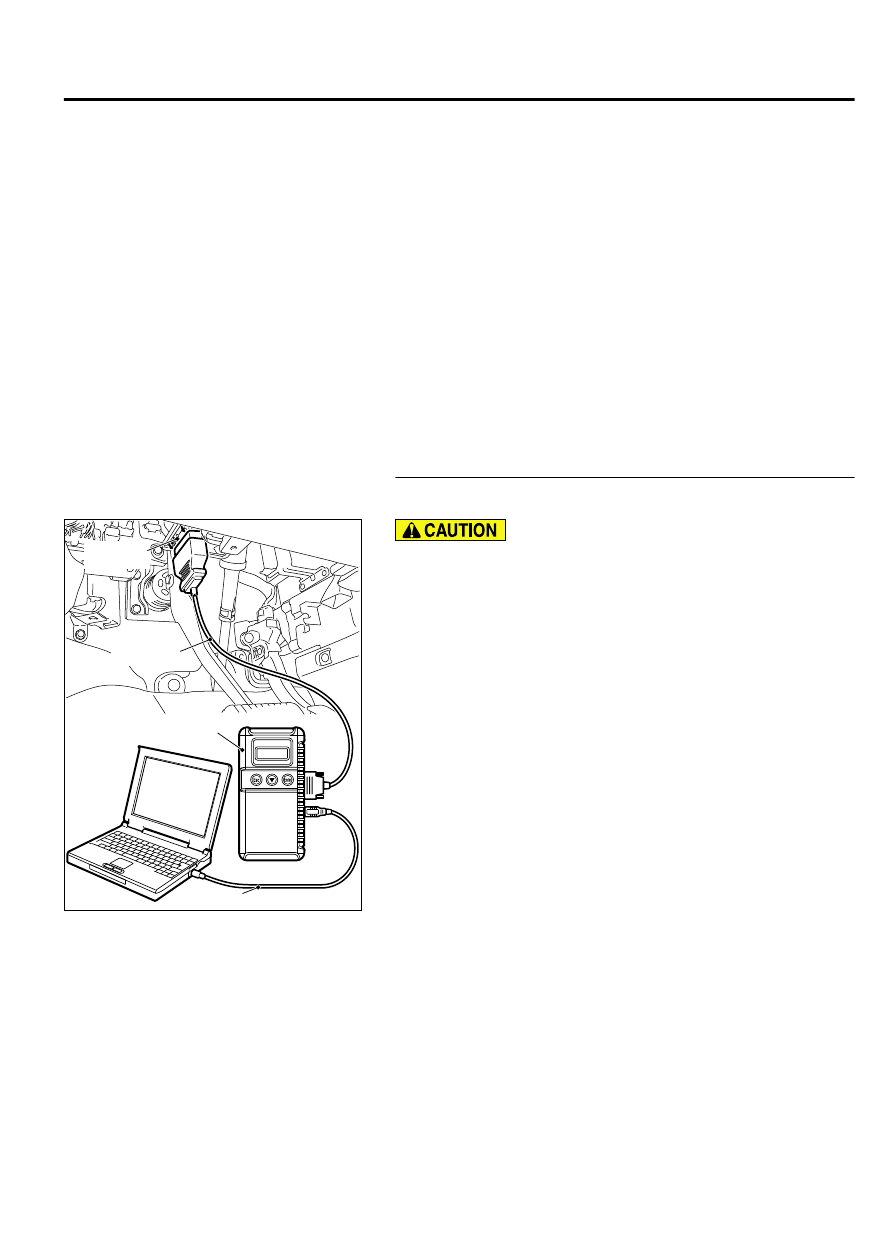

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line (Refer to GROUP 54D,

Diagnosis P.54D-17).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-201

SRS AIR BAG DIAGNOSIS

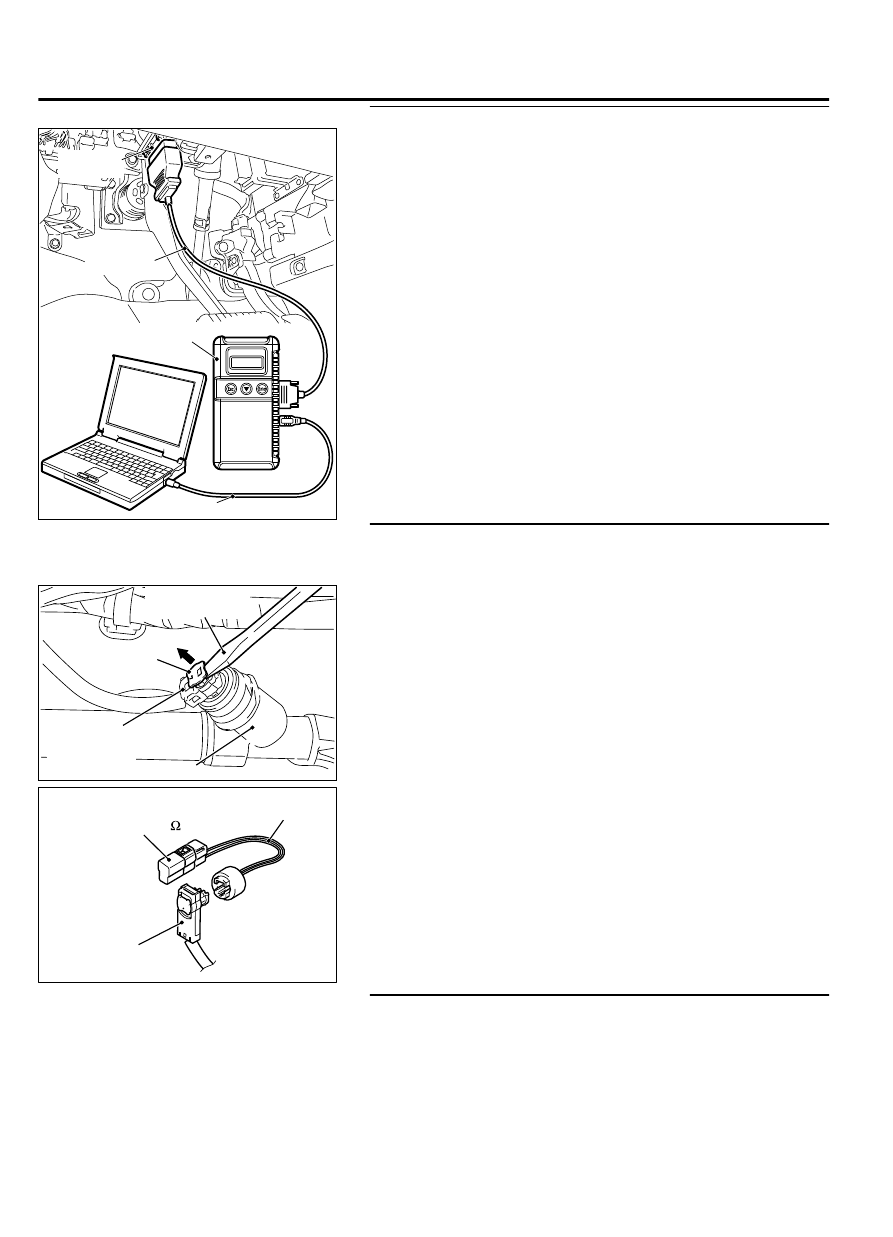

STEP 2. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Go to Step 3.

NO:

 Go to Step 6.

STEP 3. Check the lap pre-tensioner. (Using scan tool
MB991958, read the diagnostic trouble code.)

(1)

Disconnect the negative battery terminal.

ZC6018320001

Harness side
connector

Locking button

Flat-tipped
screwdriver

Lap pre-tensioner

(2)

Disconnect  lap  pre-tensioner  connector  D-24.  Use  a  flat-
tipped screwdriver to unlock the locking button at the harness
side connector by withdrawing it toward you in two stages,
and then disconnect the connector.

ZC600214

Harness side
connector

MB991865
(Dummy resistor: 3



)

MB991884
(Resistor harness)

0000

(3)

Connect special tool MB991865 to special tool MB991884.

(4)

Connect  special  tool  MB991884  to  the  D-24  harness  side
connector.

(5)

Connect the negative battery terminal.

(6)

Erase  diagnostic  trouble  code  memory,  and  check  the
diagnostic trouble code.

Q:Is DTC B1C34 set?

YES:

 Go to Step 4.

NO:

 Replace the driver's seat belt with pre-tensioner.

(Refer to P.52B-345). Then go to Step 6.

STEP 4. Check the lap pre-tensioner circuit. Measure the
voltage at the SRS-ECU connector C-27.

(1)

Disconnect SRS-ECU connector C-27.

52B-202

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS
