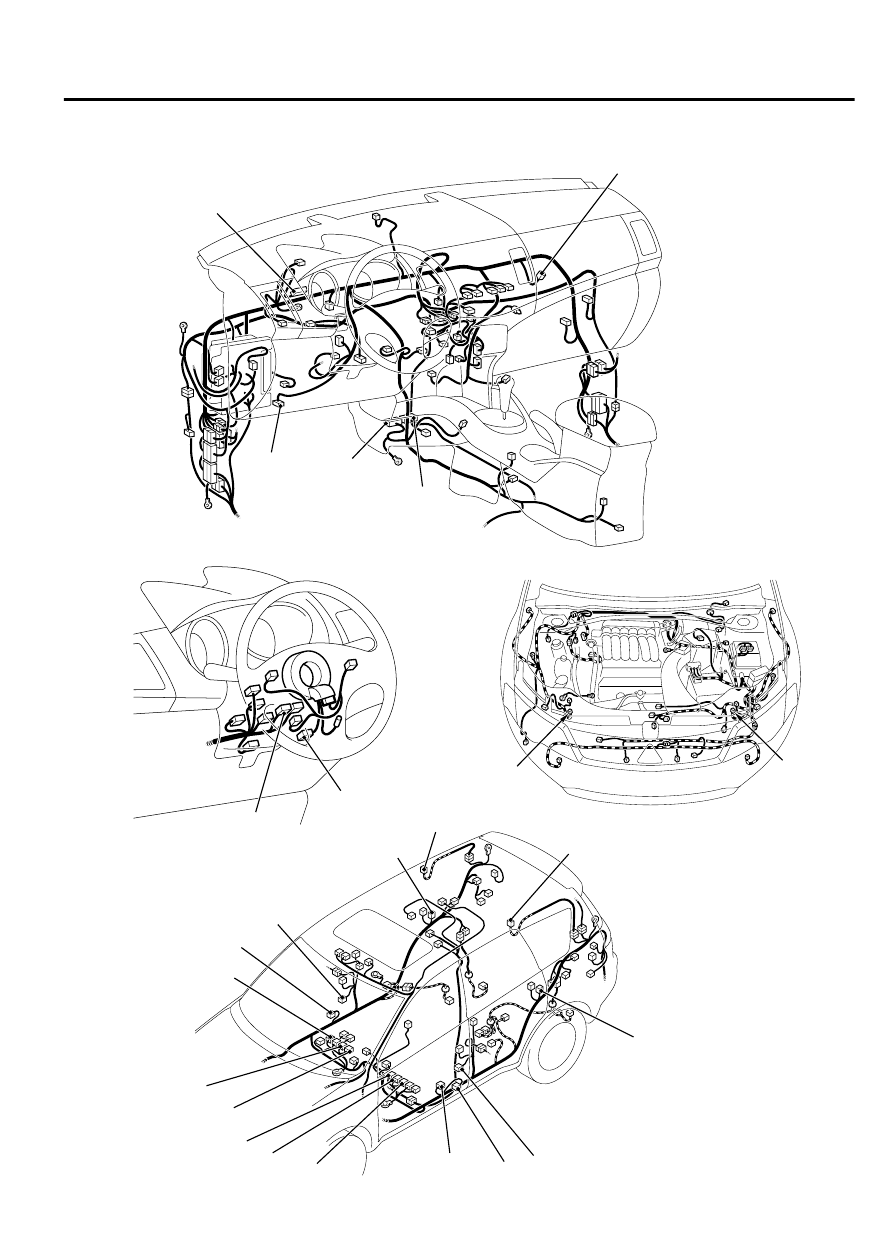

CONFIGURATION DIAGRAMS

ZC601330

A-39

A-53

C-207

C-205

C-11

C-03

C-27

C-28

C-125

D-24

D-27

D-28

D-29

D-31

D-32

D-34

D-104

D-109

D-115

D-122

D-121

D-129

D-130

D-132

0000

DASH PANEL

STEERING COLUMN

ENGINE ROOM

FLOOR AND ROOF

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-15

GENERAL INFORMATION

A-39 (Y)

Front impact sensor (LH)

A-53 (Y)

Front impact sensor (RH)

C-03

Combination meter

C-11 (Y)

Passenger’s (Front) air bag module

C-27 (Y)

SRS-ECU

C-28 (Y)

SRS-ECU

C-125 (B)

Date link connector

C-205 (Y)

Driver’s air bag module

C-207 (Y)

Clock spring

D-24 (B)

Lap pre-tensioner

D-27 (GR)

Seat slide sensor

D-28 (B)

Seat belt switch (Driver’s side)

D-29 (Y)

Side-airbag module (LH)

D-31 (Y)

Side-airbag module (RH)

D-32 (B)

Seat belt switch (Passeger’s side)

D-34

Occupant classification-ECU

D-104 (B)

Curtain air bag module (RH)

D-109 (B)

Curtain air bag module (LH)

D-115 (Y)

Side impact sensor (Rear: LH)

D-121 (B)

Seat belt pre-tensioner (LH)

D-122 (Y)

Side impact sensor (Front: LH)

D-129 (Y)

Side impact sensor (Front: RH)

D-130 (B)

Seat belt pre-tensioner (RH)

D-132 (Y)

Side impact sensor (Rear: RH)

CIRCUIT DIAGRAM

｠

Do not repair, splice, or modify the SRS wiring
(except  for  specific  repairs  to  the  instrument
panel  wiring  harness  and  the  floor  wiring
harness  shown  on  P.52B-28):  replace  the
wiring if necessary, after reading and following
all precautions and procedures in this manual.

｠

Do  not  use  an  analog  ohmmeter  to  check  the
SRS wiring or components; use only the special

tools  (refer  to  P.52B-313)  and  a  digital  multi-
meter (refer to P.52B-315).

Improper  services  cause  the  system  to  be
inoperative.  Do  not  disassemble  or  tamper  with
the  SRS  components  to  prevent  the  serious
injury.

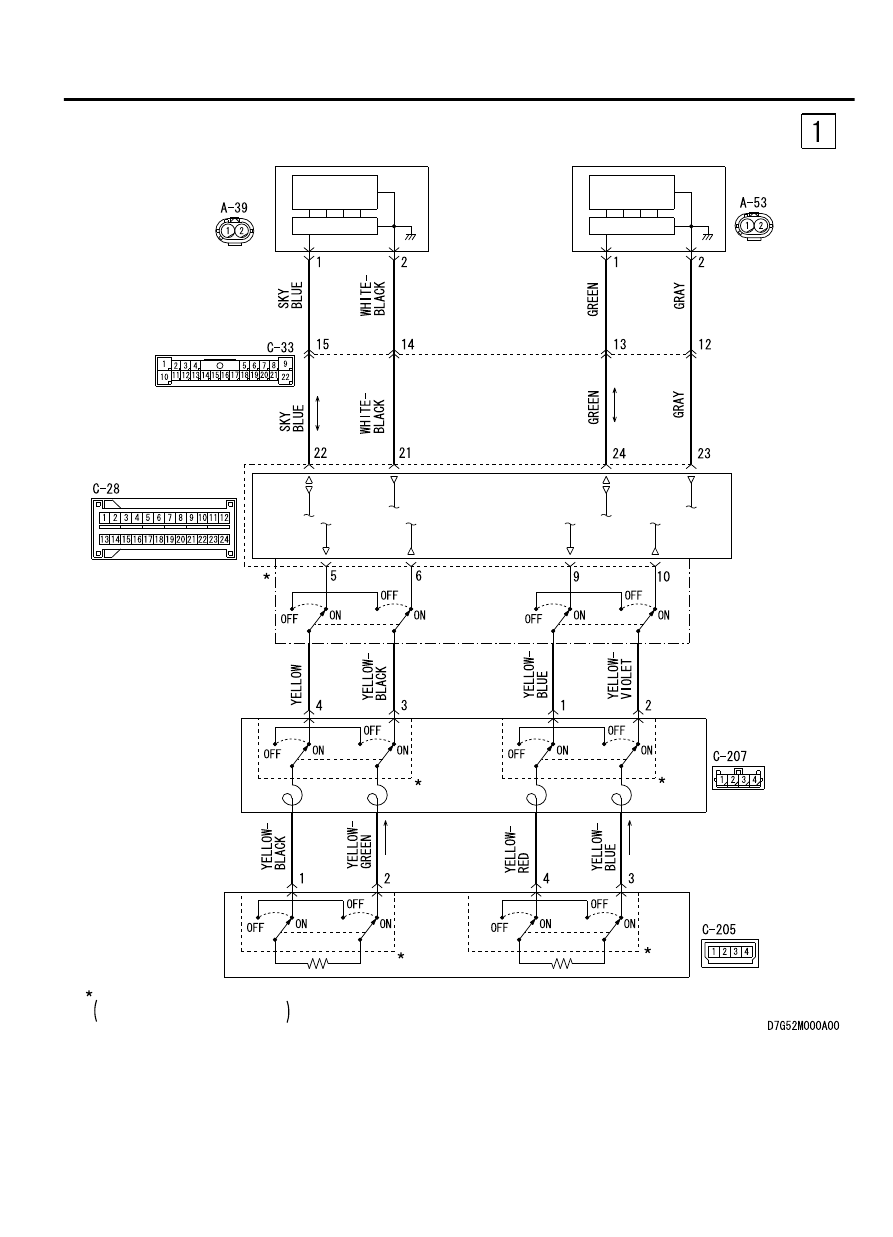

52B-16

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

GENERAL INFORMATION

ACCELERO
METER

ACCELERO
METER

FRONT IMPACT
SENSOR (LH)

SRS-ECU

CLOCK
SPRING

DRIVER'S AIR BAG
MODULE (SQUIB)

FRONT IMPACT
SENSOR (RH)

NOTE

: CONNECTOR LOCK SWITCH

  CONNECTOR CONNECTED: ON
  CONNECTOR DISCONNECTED: OFF

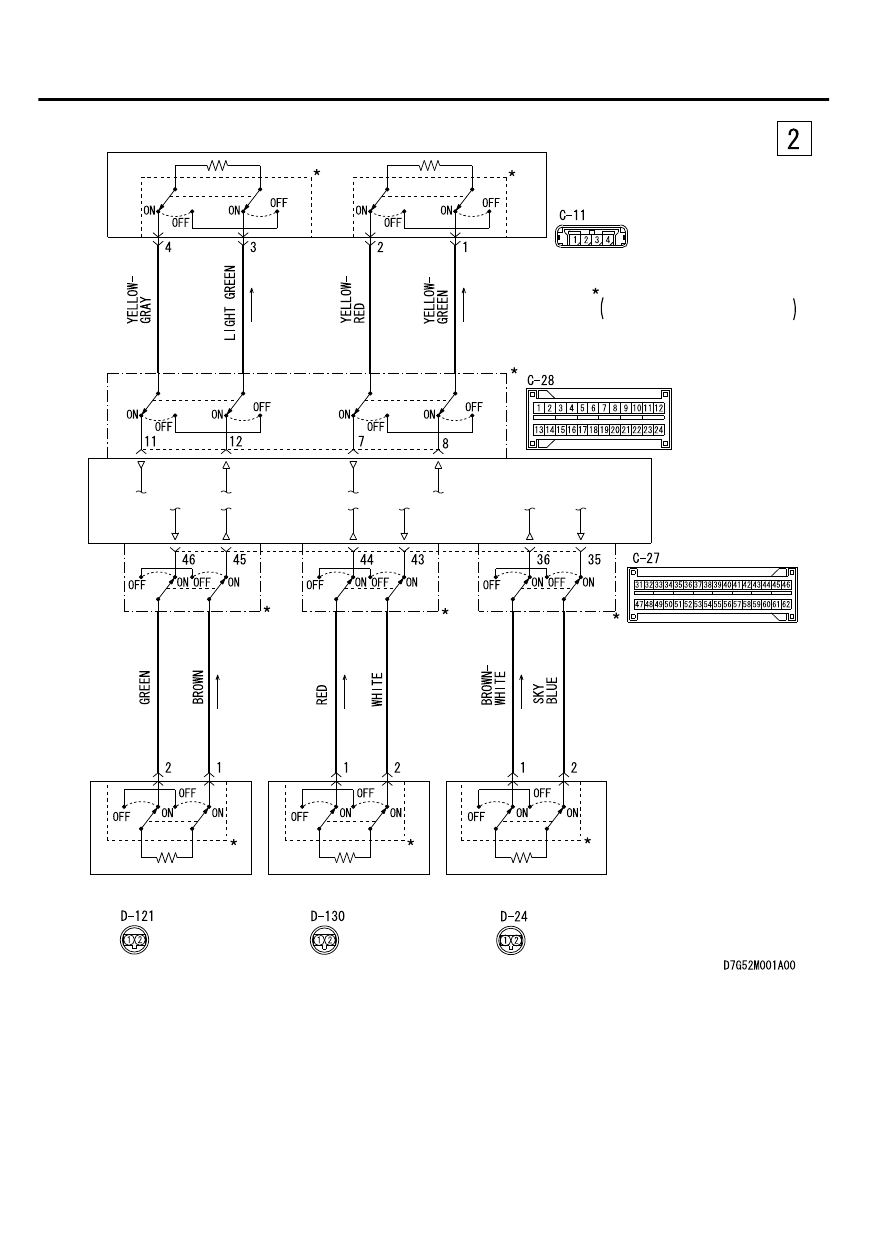

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-17

GENERAL INFORMATION

SEAT BELT
PRE-TENSIONER (LH)

SEAT BELT
PRE-TENSIONER (RH)

LAP
PRE-TENSIONER

PASSENGER'S
(FRONT)
AIR BAG MODULE
(SQUIB)

SRS-ECU

NOTE

: CONNECTOR LOCK SWITCH

  CONNECTOR CONNECTED: ON
  CONNECTOR DISCONNECTED: OFF

52B-18

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

GENERAL INFORMATION
