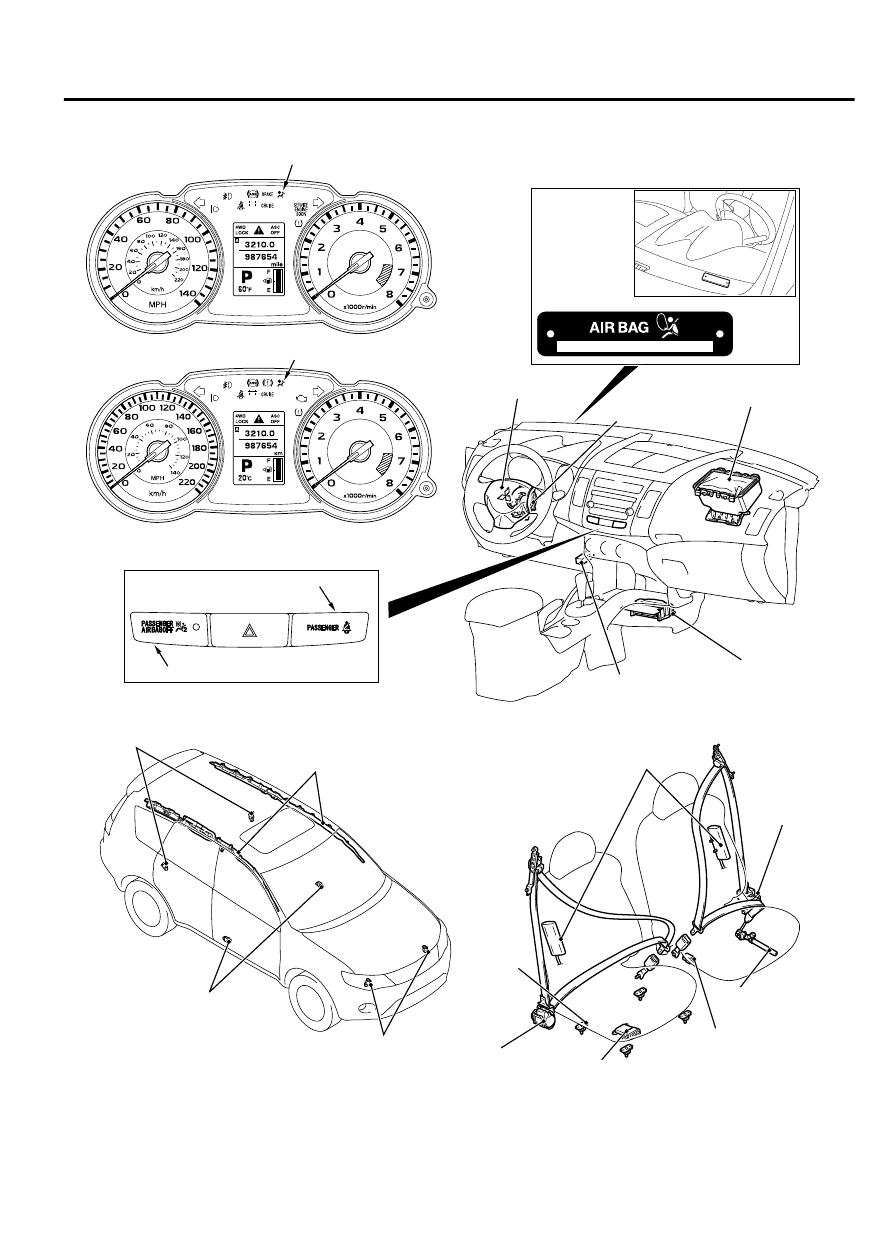

CONSTRUCTION DIAGRAM

ZC501889

ZC600985

J A 4 M S 3 1 X 1 7 U 0 0 0 0 0 1

SRS warning lamp

SRS-ECU

Driver’s air bag module

Clock spring

Passenger’s (front)
air bag module

Diagnosis connector

Side impact sensor (front)

Front impact sensor

Side impact sensor (rear)

Curtain air bag module

Side-airbag module

Seat belt
pre-tensioner

Seat belt
pre-tensioner

Lap
pre-tensioner (LH)

Occupant classification-ECU

Seat slide sensor

Weight
sensor

<Vehicles for USA>

<Vehicles for CANADA>

SRS warning lamp

Vehicle
identification
code chart plate

Passenger’s seat belt warning light

Passenger’s air bag OFF indicator light

0001

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-7

GENERAL INFORMATION

NOTE:

This construction diagram shows the general

view of the SRS components. For details, refer to
"Schematic( P.52B-12), "Configuration Diagrams

( P.52B-15), " and "Circuit Diagram( P.
52B-16)".

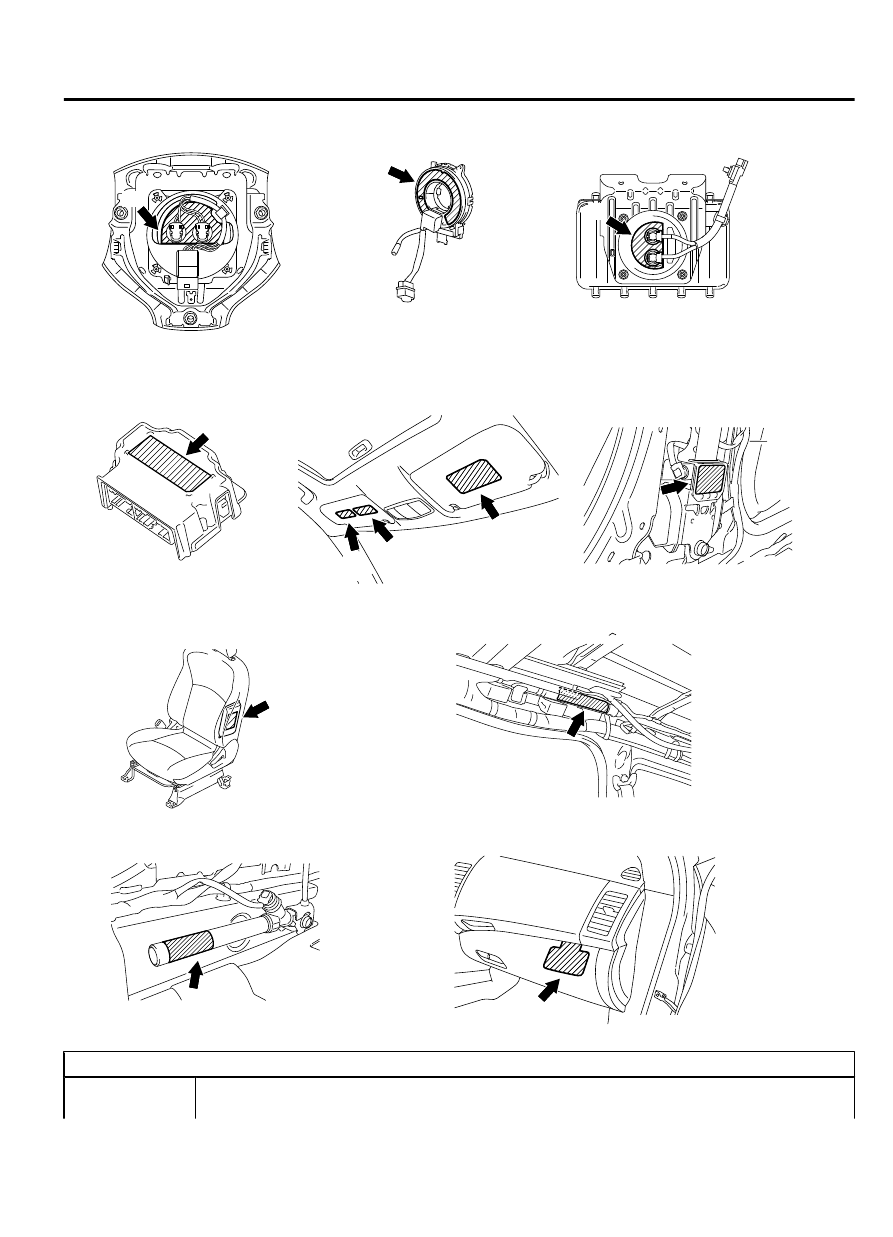

WARNING/CAUTION LABELS

A  number  of  caution  labels  related  to  the  SRS  are
found  in  the  vehicle,  as  shown  in  the  following
illustrations. Follow label instructions when servicing

SRS.  The  label  I  is  not  to  be  removed  except  by
owner.  If  the  other  labels  are  dirty  or  damaged,
replace them.

52B-8

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

GENERAL INFORMATION

ZC501894

AC506231

AC506232

AC506239

ZC601274

ZC601275

Driver's air bag module

Clock spring

Sunvisor

Seat belt with pre-tensioner
(driver's and passenger's seat)

SRS-ECU

Passenger's (front)
air bag module

0001

B

D

F

E

G

A

C

E

AC506241

AC506233

AC506710

ZC601276

Curtain air bag module
(right and left)

Lap pre-tensioner (LH)

H

I

J

K

Glove box

Side-airbag module
(driver's and passenger's seat)

Label contents
A

DANGER
FLAMMABLE EXPLOSIVE

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-9

GENERAL INFORMATION

Label contents

DO NOT
DISASSEMBLE; HEAT; INCINERATE; APPLY ELECTRICITY;
OR STORE AT HIGH TEMPERATURE (93°C or HIGHER).
REFER TO WORKSHOP MANUAL FOR DETAILS.

B

CAUTION: SRS CLOCK SPRING
PLEASE DO NOT TURN EXCEPT WHEN REQUIRED.
THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE, PLEASE REPLACE ENTIRE UNIT
ACCORDING  TO  THE  SERVICE  MANUAL  INSTRUCTIONS.  ALIGNMENT  OF
MODULES IS NECESSARILY WHEN THEY ARE ADJUSTED AND/OR INSTALLED FOR
THE ALIGNMENT PROCEDURES, FOLLOW THE SERVICE MANUAL INSTRUCTIONS.

C

WARNING FLAMMABLE/EXPLOSIVE
SRS AIR BAG MODULE
TO AVOID SERIOUS INJURY:

｠

DO NOT REPAIR. DISASSEMBLE OR TAMPER.

｠

AVOID CONTACT WITH FLAME OR ELECTRICITY.

｠

DO NO DIAGNOSIS/USE NO TEST EQPT OR PROBES.

｠

STORE BELOW 200°F (93°C).

｠

BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL FOR
IMPORTANT FURTHER DATA.

D

CAUTION:
DO NOT DISASSEMBLE OR DROP. IF DEFECT REFER TO SERVICE MANUAL.

E

 <EXCEPT

CANADA>

ZC5019150001

WARNING
EVEN WITH ADVANCED AIR BAGS

｠

Children can be killed or seriously injured by the air bag

｠

The back seat is the safest place for children

｠

Never put a rear-facing child seat in the front

｠

Always use seat belts and child restraints

｠

See owner’s manual for more information about air bags

E <CANADA>

ZC5019180001

WARNING
DEATH or SERIOUS INJURY can occur

｠

Children 12 and under can be killed by the air bag.

｠

The BACK SEAT is the SAFEST place for children.

｠

NEVER put a rear-facing child seat in the front.

｠

Sit as far back as possible from the air bag.

｠

ALWAYS use SEAT BELTS and CHILD RESTRAINS.

F

ZC6008530001

WARNING: HIGHER ROLLOVER RISK
Avoid Abrupt Maneuvers and Excessive Speed.
Always Buckle up.
See Owner’s Manual For Further Information.

52B-10

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

GENERAL INFORMATION
