Mitsubishi Outlander XL. Manual - part 846

STEP 7. Check ETACS-ECU connector C-304 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-304 in good condition?

YES:

 Go to Step 8.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that the windshield wiper works normally.

STEP 8. Measure the voltage at ETACS-ECU connector
C-304.

(1)

Disconnect ETACS-ECU connector C-304 and measure the
resistance  available  at  the  wiring  harness  side  of  the
connector.

ZC6033620000

Harness side: C-304

(2)

Measure the voltage between terminal 1 and ground.

｠

The  voltage  should  measure  approximately  12  volts
(battery positive voltage).

Q:Is the measured voltage approximately 12 volts (battery

positive voltage)?

YES:

 Go to Step 10.

NO:

 Go to Step 9.

STEP 9. Check the wiring harness between ETACS-ECU
connector C-309 (terminal 1) and the fusible link (34).

｠

Check the power supply line for open circuits.

Q:Is  the  wiring  harness  between  ETACS-ECU  connector

C-309  (terminal  1)  and  the  fusible  link  (34)  in  good

condition?

YES:

 Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction P.00-15.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Cables and wire check P.00E-13.

STEP 10. Check the wiring harness between ETACS-ECU
connector C-304 (terminals 5, 6) and windshield wiper
motor connector A-308 (terminals 1, 4).

｠

Check the input and output lines for open or short ciruit.

Q:Is  the  wiring  harness  between  ETACS-ECU  connector

C-304  (terminals  5,  6)  and  windshield  wiper  motor

connector A-308 (terminals 1, 4) in good condition?

YES:

 Go to Step 11.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Cables and wire check P.00E-13.

STEP 11. Retest the system.
Check that the windshield wipers work normally.

Q:Is the check result normal?

YES:

 Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction P.00-15.

WIPER AND WASHER

51B-17

DIAGNOSIS

NO:

 Replace the ETACS-ECU.

INSPECTION PROCEDURE 2: The windshield wipers do not work when the wiper switch
is at the "INT", "Washer" or "Mist" position. However, the wipers work at low speed
when the switch is at the "Lo" and "Hi" position.

M15102100009USA0000010001

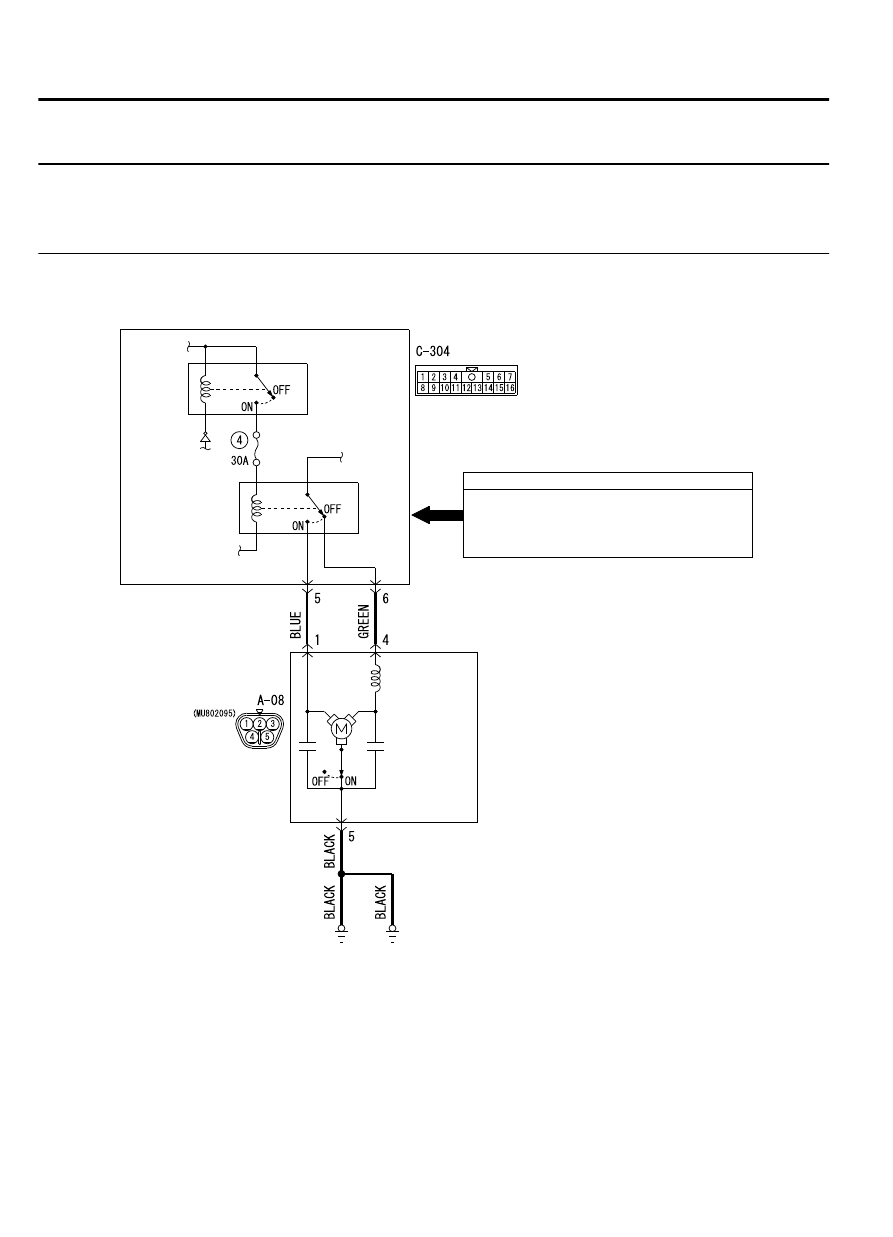

Windshield Wiper Motor Circuit

WINDSHIELD
WIPER
MOTOR

ACC
RELAY3

CIRCUIT
BRAKER

D7G51M002000

WINDSHIELD
WIPER SPEED
SWITCHING
RELAY

ETACS-ECU

· WINDSHIELD WIPER HI SPEED SWITCH
· WINDSHIELD WIPER INTERMIT SWITCH
· WINDSHIELD WIPER LO SPEED SWITCH
· WINDSHIELD WIPER MIST SWITCH

INPUT SIGNAL

TECHNICAL DESCRIPTION (COMMENT)
This  system  may  be  at  fail-safe  mode  if  the  LIN
communication line is defective.
If  the  system  cannot  receive  any  signal  from  the
column switch (windshield wiper and washer switch)

due to a open circuit in the LIN communication line or
other reasons, the system will enter the fail-safe mode
when the ignition switch is at the "ACC" position.

51B-18

WIPER AND WASHER

DIAGNOSIS

TROUBLESHOOTING HINTS

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

｠

The column switch may be defective

｠

The ETACS-ECU may be defective

｠

The LIN bus line may be defective

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

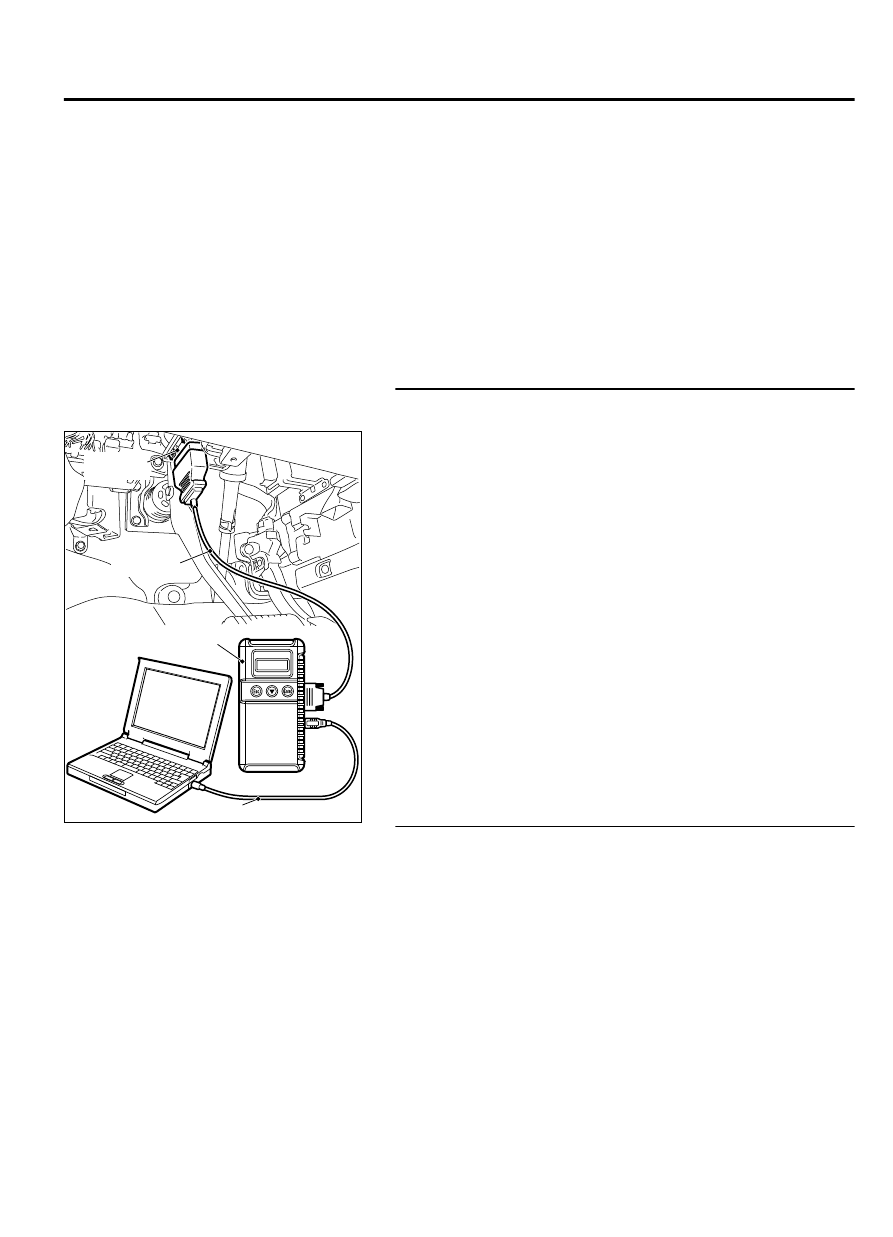

STEP 1. Use the scan tool MB991958 to check if an ETACS-
related diagnostic trouble code is set.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Connect  the  scan  tool.  Refer  to  GROUP  54Ad  ETACS,
"Diagnostic function P.54Ad-5."

Q:Is the diagnostic trouble code set?

YES:

 Diagnose the ETACS-ECU. Refer to GROUP 54Ad ETACS,

"Diagnostic trouble code chart P.54Ad-8."

NO:

 Go to Step 2.

STEP 2. Retest the system.
Check that the windshield wipers work normally.

Q:Is the check result normal?

YES:

 Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction P.00-15.

NO:

 Replace the ETACS-ECU.

WIPER AND WASHER

51B-19

DIAGNOSIS

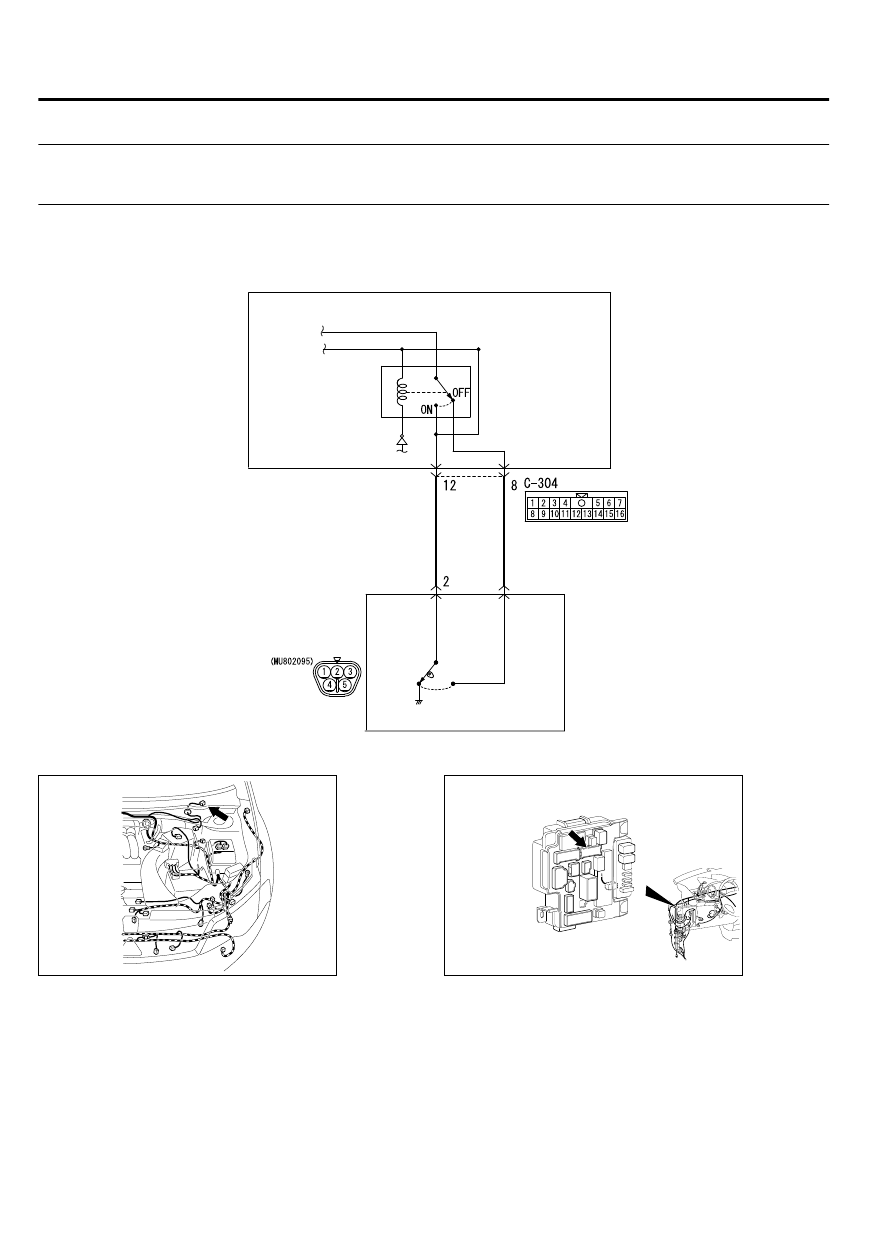

INSPECTION PROCEDURE 3: Windshield wipers do not stop at the specified park
position.

M15102100010USA0000010001

WINDSHIELD
WIPER
MOTOR

WINDSHIELD
WIPER
AUTOMATIC
STOP RELAY

ETACS-ECU

A-08

3

YELLO

W

WHITE

Windshield Wiper Automatic Stop Relay Circuit

ZC6033070000

ZC6008720003

Connector: A-08

ZC6008780022

Connector: C-304




51B-20

WIPER AND WASHER

DIAGNOSIS
