STEP 9. Check the wiring harness between KOS-ECU
connector C-102 (terminal No. 11, 12, 32) and receiver
antenna module connector C-30 (terminal No. 2, 1, 8).

Q:Is the wiring harness between KOS-ECU connector C-102

(terminal No. 11, 12, 32) and receiver antenna module

connector C-30 (terminal No. 2, 1, 8) in good condition?

YES:

Go to Step 10.

NO:

The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Verify that the high-beam
headlights illuminate normally.

STEP 10. Check the power supply circuit to the reciever
antenna module. Measure the voltage at reciever antenna
module connector C-30.

(1)

Disconnect reciever antenna module connector C-30 and
measure the voltage available at the harness side of the
connector.

ZC501040056

Harness side: C-30

(2)

Measure the voltage between terminal No. 3 and ground.

｠

The voltage should measure 5 volt.

Q:Is the measured voltage 5 volt?

YES:

Go to Step 11.

NO:

Replace KOS-ECU and register the ID codes. (Refer

to P.42B-12.)

STEP 11. Using the oscilloscope, check the waveform at
receiver antenna module connector C-30 and ground by
backprobing.

(1)

Do not disconnect the receiver antenna module connector
C-30.

(2)

Connect an oscilloscope to receiver antenna module
connector C-30 terminal No. 3 and ground by backprobing.

ZC604126

5.0V

0000

Normal waveform

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

｠

Check the waveform.

Q:Is the waveform normal?

YES:

Go to Step 12.

NO:

Replace the receiver antenna module.

STEP 12. Check of the troubles.
Check that the IG turns (keyless operation is recognised).

Q:Dose the IG knob will not turn (keyless operation is not

recognized) in good condition?

KEYLESS OPERATION SYSTEM (KOS)

42B-119

DIAGNOSIS

YES:

The procedure is complete.

NO:

Replace KOS-ECU and register the ID codes. (Refer

to P.42B-12.)

Inspection Procedure 5: The engine will not start with KOS (IG knob operates normally).

M14209100108USA0000010000

Before replacing the ECU, ensure that the
communication circuit is normal.

TROUBLESHOOTING HINTS

｠

The CAN bus line is defective.

｠

Malfunction of the MFI system

｠

Function setting error or no setting with
customization

｠

VIN not written or unmatched

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A (Vehicles with
CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

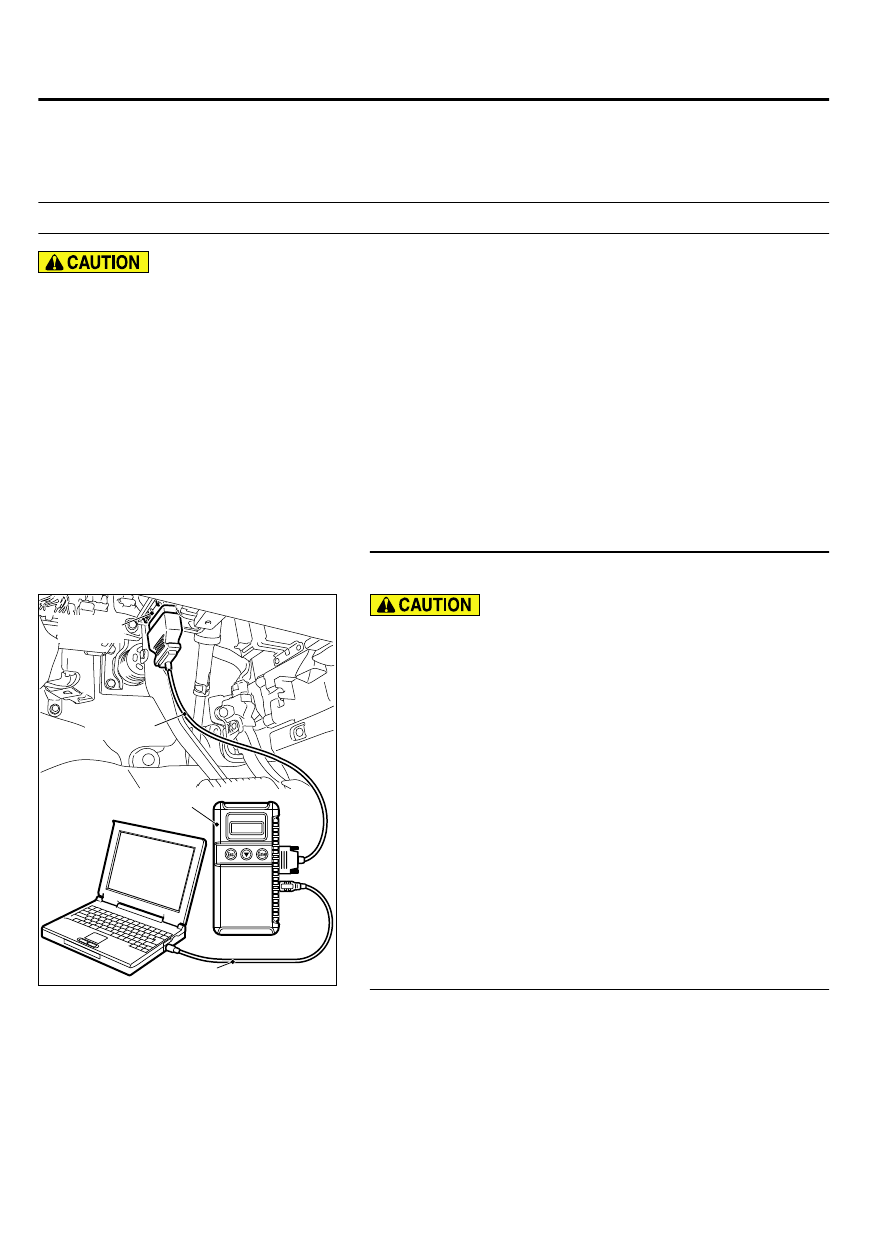

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.42B-10."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

Go to Step 2.

NO:

Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the KOS-ECU
diagnostic trouble code.
Check if DTC is set to the KOS-ECU.

Q:Is the DTC set?

YES:

Troubleshoot the KOS. (Refer to P.42B-18.)

NO:

Go to Step 3.

42B-120

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS

STEP 3. Using scan tool MB991958, Check the configuration
function.
Use the ETACS-ECU configuration function to check that the
"KOS feature" is set to "Both enable" or "ENG strt enable".

(1)

Turn the ignition switch to the "ON" position.

(2)

Use the ETACS-ECU configuration function to check that the
"KOS feature" is set to "Both enable" or "ENG strt enable".

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is it set to "Both enable" or "ENG strt enable"?

YES:

Go to Step 4.

NO:

Use the ETACS-ECU configuration function to set the

"KOS feature" to "Both enable" or "ENG strt enable".
(Refer to P.42B-170.)

STEP 4. Check that the engine starts.

Q:Does the engine start?

YES:

The procedure is complete.

NO:

Refer to GROUP 13Ab - Troubleshooting P.13Ab-44.

INSPECTION PROCEDURE 6: No Door will be Locked or Unlocked by Operating A Lock
Switch On Any Door, or by touching The Unlock Sensor.

M14209100109USA0000010000

Before replacing the ECU, ensure that the power
supply circuit, the ground circuit and the
communication circuit are normal.

ZC603127

KEY
REMINDER
SWITCH

WHEN
REMOVING
KEY: ON

ETACS-ECU

REC- WHITE

BLA

0000

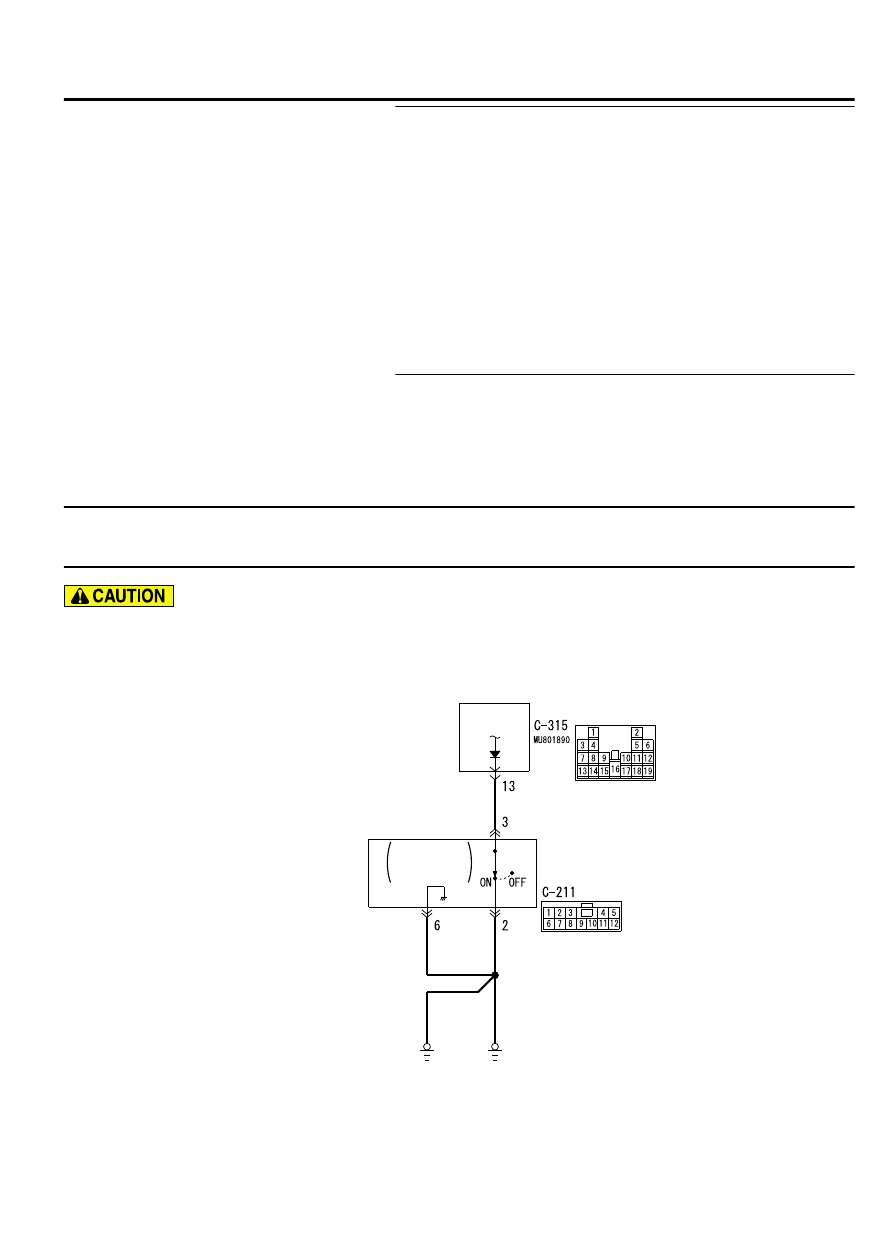

ETACS-ECU and Key Reminder Switch Circuit

KEYLESS OPERATION SYSTEM (KOS)

42B-121

DIAGNOSIS

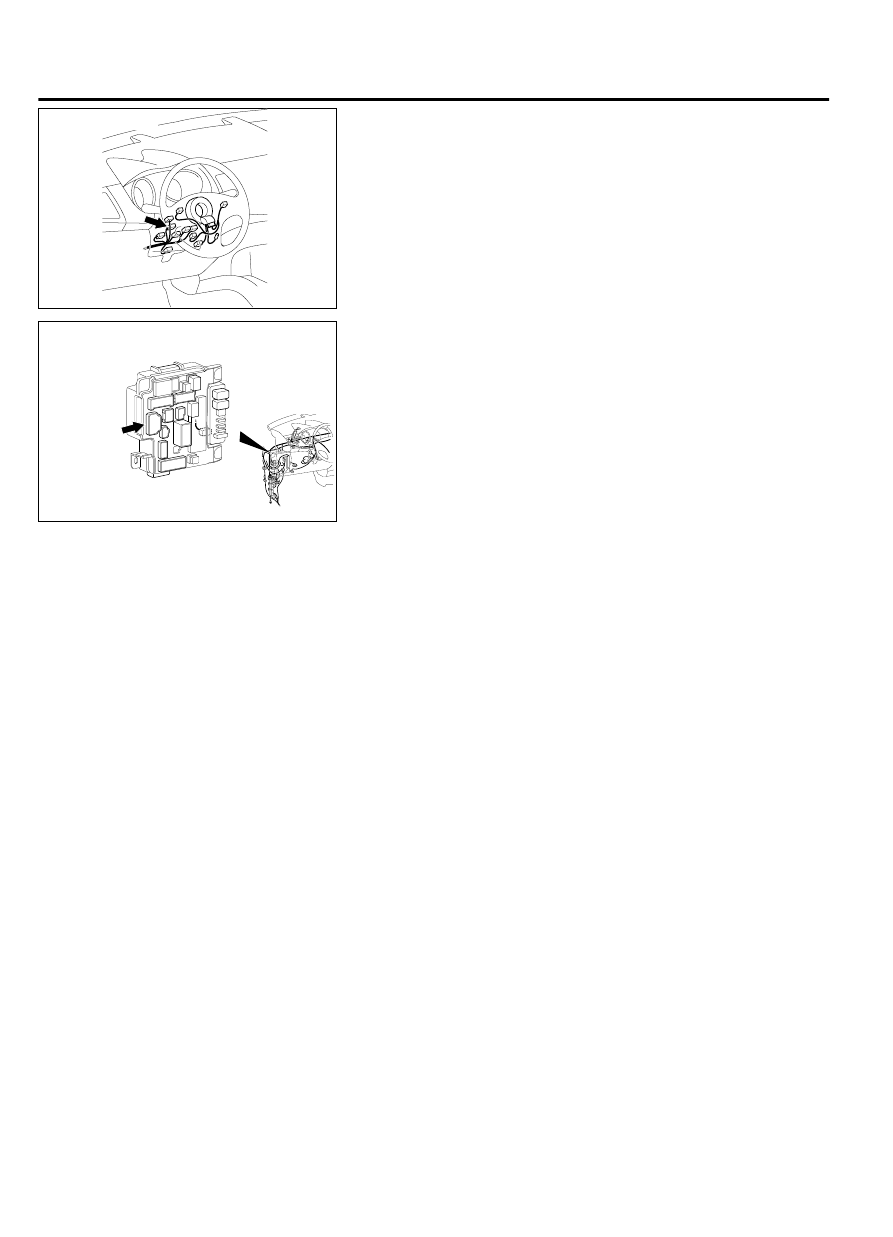

ZC6008770002

Connector: C-211

ZC6008780017

Connector: C-315

PROBABLE CAUSES

｠

Malfunction of the CAN bus lines

｠

Malfunction of the central door locking system

｠

Malfunction of the keyless operation key

｠

Malfunction of the key reminder switch

｠

Damaged wiring harness and connectors

｠

Malfunction of the KOS-ECU

｠

Function setting error or no setting with a
customization

DIAGNOSTIC PROCEDURE

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

42B-122

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS
