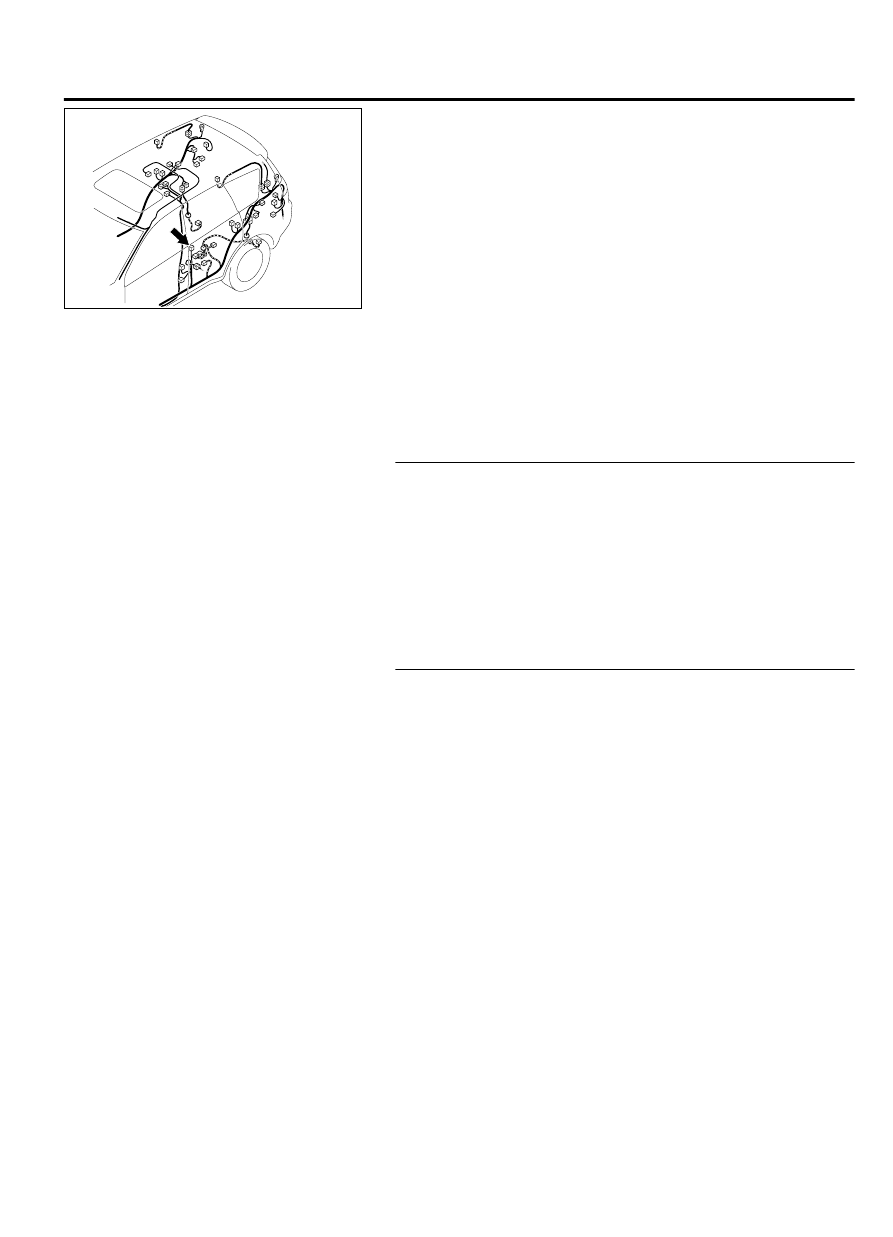

ZC600880

Connector: D-131

0027

DIAGNOSTIC FUNCTION
If an open circuit is detected in the exterior transmitter
antenna (driver's side), the diagnostic trouble code is
set.

JUDGEMENT CRITERIA
When the ignition push switch is pressed, or when the
antenna  open  circuit  detection  request  is  received
from the diagnosis function, the failure is detected.

PROBABLE CAUSES

｠

Malfunction  of  the  exterior  transmitter  antenna
assembly (driver's side)

｠

Malfunction of the KOS-ECU

｠

Damaged wiring harness and connectors

DIAGNOSTIC PROCEDURE

STEP 1. Check KOS-ECU connector C-102 and exterior
transmitter antenna assembly (driver's side) connector
D-131 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

Q:Are KOS-ECU connector C-102 and exterior transmitter

antenna  assembly  (driver's  side)  connector  D-131  in

good condition?

YES:

 Go to Step 2.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 2. Check the wiring harness between KOS-ECU
connector C-102 (terminal Nos. 6, 17 and 40) and exterior
transmitter antenna assembly (driver's side) connector
D-131 (terminal Nos. 3, 2 and 1).

NOTE:

Also check intermediate connectors C-22 and C-32 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connectors C-22 and
C-32 is damaged, repair or replace the damaged component(s)
as described in GROUP 00E, Harness Connector Inspection P.
00E-2.

Q:Is the wiring harness between KOS-ECU connector C-102

(terminal  Nos.  6,  17  and  40)  and  exterior  transmitter

antenna  assembly  (driver's  side)  connector  D-131

(terminal Nos. 3, 2 and 1) in good condition?

YES:

 Go to Step 3.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

KEYLESS OPERATION SYSTEM (KOS)

42B-51

DIAGNOSIS

STEP 3. Keyless operation system communication test
Check  that  the  communication  with  the  exterior  transmitter
antenna  assembly  (driver's  side)  is  normal  (Refer  to  Antenna
Test P.42B-169).

Antennas to be checked

Driver side antenna (exterior)

OK: Normal is displayed.

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Replace the exterior transmitter antenna assembly

(driver's side).

STEP 4. Check whether the diagnostic trouble code is reset.

(1)

Erase the diagnostic trouble code.

(2)

Turn the ignition switch from the LOCK (OFF) position to the
ON position.

(3)

Check if the diagnostic trouble code is set.

Q:Is the diagnostic trouble code set?

YES:

 Replace KOS-ECU and register the ID codes (Refer

to P.42B-163).

NO:

 Intermittent malfunction is suspected (Refer to

GROUP 00, How to Use Troubleshooting/Inspection Service
Points - How to cope with Intermittent Malfunction P.
00-15).

DTC B240B FL antenna(outdoor) open

M14209100025USA0000010000

When  replacing  the  ECU,  always  check  that  the
communication circuit is normal.

42B-52

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS

ZC604137

KOS-ECU

KEYLESS
OPERATION KEY

OUTSIDE TRANSMISSION
ANTENNA ASSEMBLY
(PASSENGER'S SIDE)

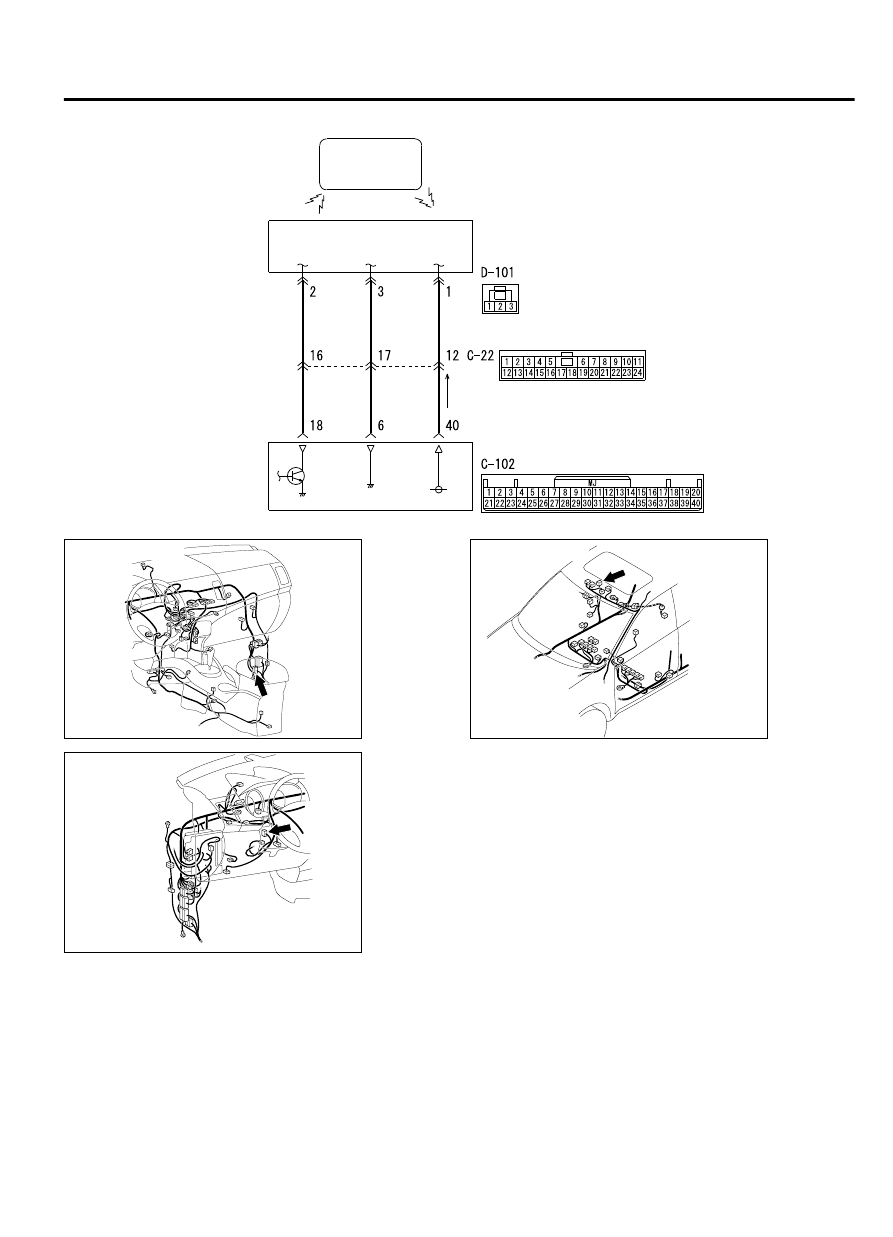

Outside Transmission Antenna Assembly (Passenger's Side) Circuit

0000

SKY  B

ULE

RED- BLA

CK

YELLO

W

SKY  B

ULE

RED- BLA

CK

YELLO

W

ZC600876

Connector: C-22

0032

ZC600875

Connector: C-102

0028

ZC600879

Connector: D-101

0026

DIAGNOSTIC FUNCTION
If an open circuit is detected in the exterior transmitter
antenna  (passenger's  side),  the  diagnostic  trouble
code is set.

JUDGEMENT CRITERIA
When the ignition push switch is pressed, or when the
antenna  open  circuit  detection  request  is  received
from the diagnosis function, the failure is detected.

PROBABLE CAUSES

｠

Malfunction  of  the  exterior  transmitter  antenna
assembly (passenger's side)

｠

Malfunction of the KOS-ECU

｠

Damaged wiring harness and connectors

KEYLESS OPERATION SYSTEM (KOS)

42B-53

DIAGNOSIS

DIAGNOSTIC PROCEDURE

STEP 1. Check KOS-ECU connector C-102 and exterior
transmitter antenna assembly (passenger's side) connector
D-101 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

Q:Are KOS-ECU connector C-102 and exterior transmitter

antenna assembly (passenger's side) connector D-101 in

good condition?

YES:

 Go to Step 2.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 2. Check the wiring harness between KOS-ECU
connector C-102 (terminal Nos. 6, 18 and 40) and exterior
transmitter antenna assembly (passenger's side) connector
D-101 (terminal Nos. 3, 2 and 1).

NOTE:

Also check intermediate connector C-22 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connectors C-22 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.

Q:Is the wiring harness between KOS-ECU connector C-102

(terminal  Nos.  6,  18  and  40)  and  exterior  transmitter

antenna  assembly  (passenger's  side)  connector  D-101

(terminal Nos. 3, 2 and 1) in good condition?

YES:

 Go to Step 3.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 3. Keyless operation system communication test
Check  that  the  communication  with  the  exterior  transmitter
antenna  assembly  (passenger's  side)  is  normal  (Refer  to
Antenna Test P.42B-169).

Antennas to be checked

passenger side antenna (exterior)

OK: Normal is displayed.

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Replace the exterior transmitter antenna assembly

(passenger's side).

STEP 4. Check whether the diagnostic trouble code is reset.

(1)

Erase the diagnostic trouble code.

(2)

Turn the ignition switch from the LOCK (OFF) position to the
ON position.

(3)

Check if the diagnostic trouble code is set.

Q:Is the diagnostic trouble code set?
