Mitsubishi Outlander XL. Manual - part 772





MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Check the ignition key inserted in the key cylinder
for interference.
Check if there are other ignition keys or anything that interferes
with the communication (things that generate radio waves such
as magnets and an air-cleaning device that has a power plug)
near the ignition key inserted in the key cylinder.

Q:Are there other ignition keys or anything that interferes

with the communication?

YES:

 Move away or remove other ignition keys or anything

that interferes with the communication, and go to Step 4.

NO:

 Go to Step 2.

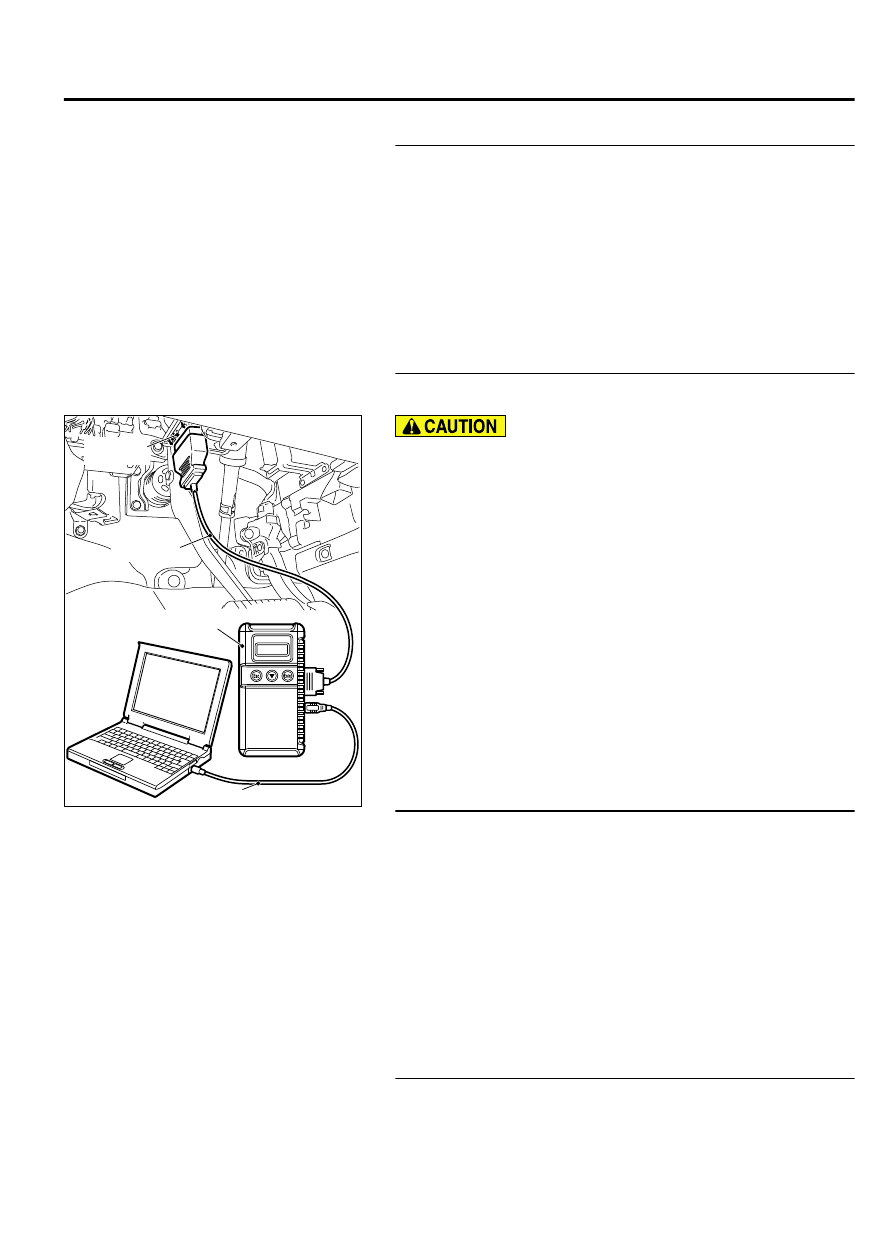

STEP 2. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool (MB991958), always turn
the  ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool (MB991958).

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 3.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the KOS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Go to Step 5.

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the KOS-ECU.

KEYLESS OPERATION SYSTEM (KOS)

42B-31

DIAGNOSIS

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Go to Step 5.

NO:

 The procedure is complete.

STEP 5. Replace the emergency key and recheck the
diagnostic trouble code.
Replace the emergency key for which the DTC is set with a new
one,  register  the  key  ID  and  keyless  operation  key  ID  (refer
to P.42B-12), and check whether the DTC is reset.

(1)

Turn the ignition switch from the "LOCK" (OFF) position to
the "ON" position.

(2)

Check if the DTC is set.

Q:Is the DTC set?

YES:

 Replace KOS-ECU and register the ID codes. (Refer

to P.42B-12.)

NO:

 The procedure is complete.

DTC B2101: IG SW start POS.circuit low
DTC B2102: IG SW start POS.circuit high

M14209100096USA0000010000

If the DTC B2101 or B2102 is set in KOS-ECU,
always diagnose the CAN bus lines.

Before  replacing  the  ECU,  ensure  that  the
communication circuit is normal.

42B-32

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS

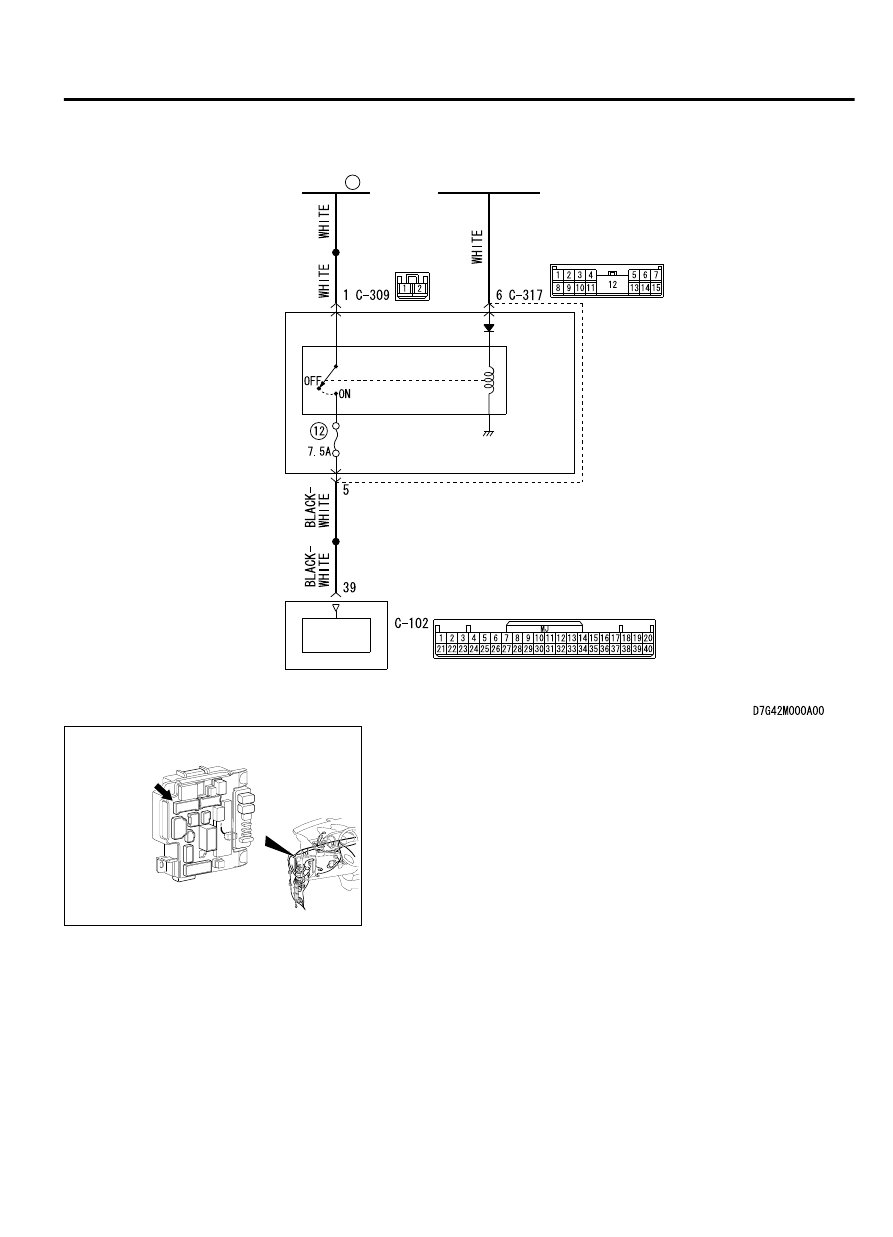

KOS-ECU Communication Circuit

34

FUSIBLE
LINK

IGNITION
SWITCH (IG1)

ETACS-
ECU

IG1
RELAY

KOS-ECU

POWER
SUPPLY

ZC6008780006

Connector: C-317

KEYLESS OPERATION SYSTEM (KOS)

42B-33

DIAGNOSIS

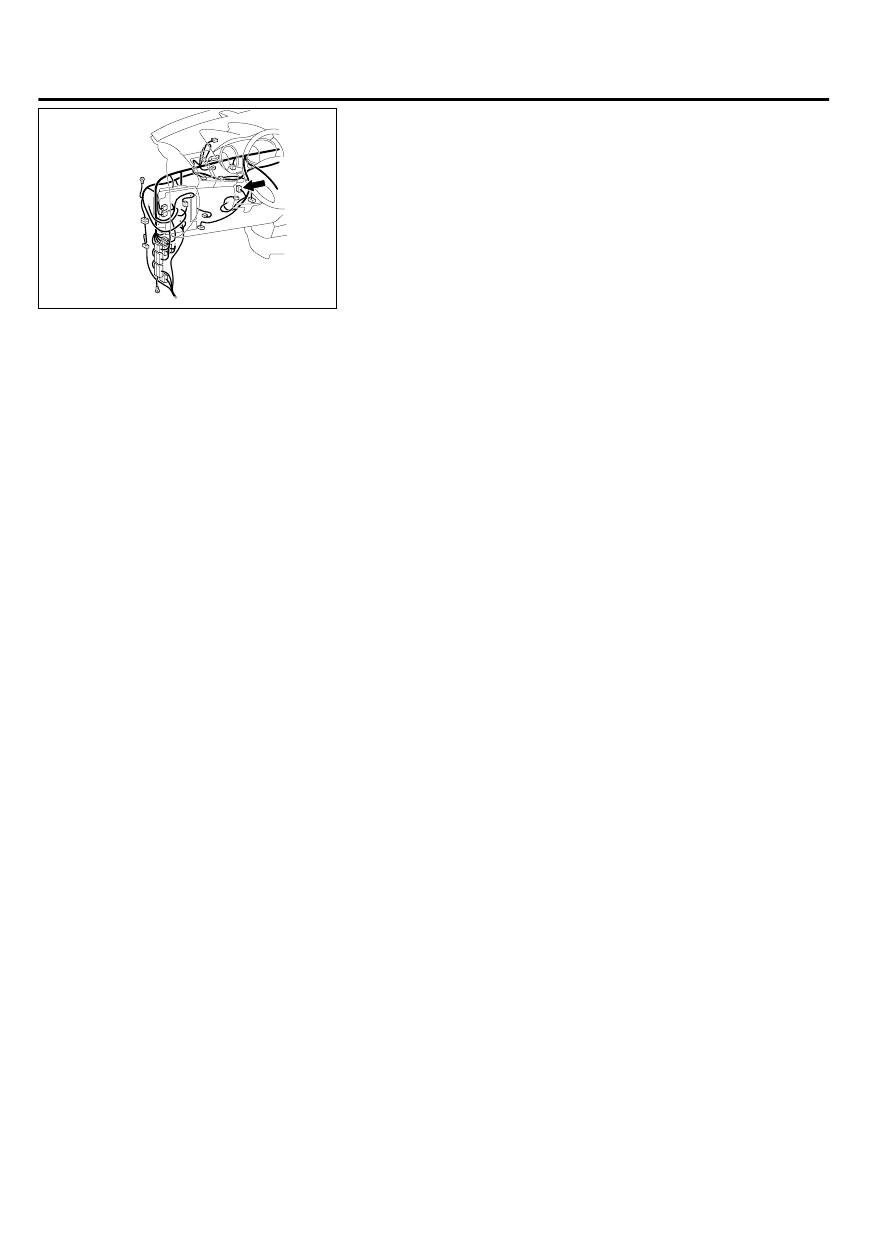

ZC600875

Connector: C-102

0028

DTC SET CONDITION
If the actual ignition switch status is different from the
ignition  switch  status  information  received  from
ETACS-ECU via CAN, KOS-ECU sets the diagnostic
trouble code No. B2101 or B2102.

TECHNICAL DESCRIPTION (COMMENT)
If  the  difference  in  the  ignition  switch  level  shown
below occurs consecutively 10 times with the ignition
switch being the ON position or START position, when
the  CAN  message  (ignition  switch  position
information)

 from

 ETACS-ECU,

 KOS-ECU

determines that there is a problem.

B2101

Status of ignition switch: ON position

Ignition switch position information: OFF

B2102

Status of ignition switch: OFF position

Ignition switch position information: ON

TROUBLESHOOTING HINTS

Malfunction of CAN bus line

Malfunction of the KOS-ECU

Malfunction of the ignition switch

Damaged wiring harness and connectors

Malfunction of ETACS-ECU

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicles Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

42B-34

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS
