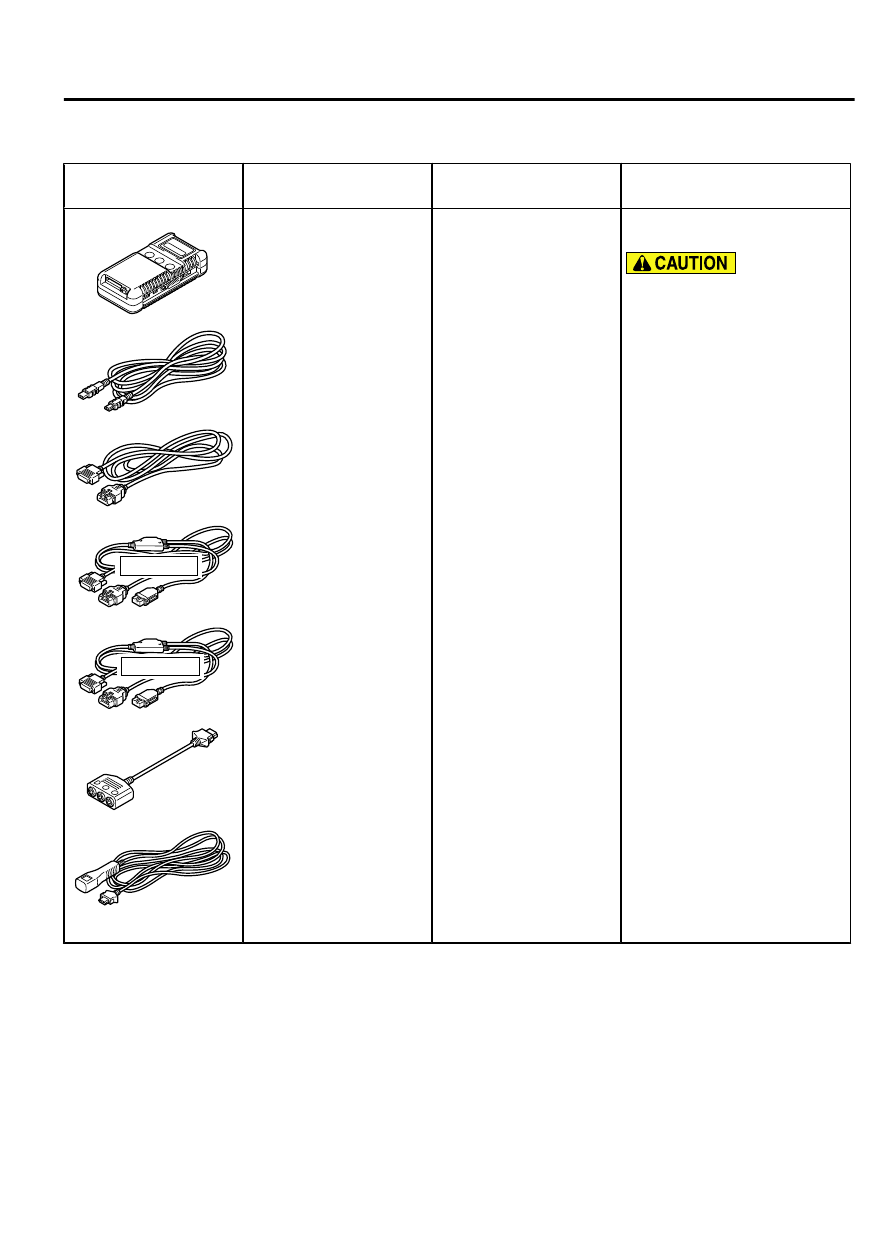

SPECIAL TOOLS

M14206000006USA0000010001

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991910

MB991826

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

YB9919580001

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

Scan tool (M.U.T.-III sub
assembly)

Vehicle

communication
interface (V.C.I.)
B:  M.U.T.-III  USB
cable
C:  M.U.T.-III  main
harness  A  (Vehicles
with

CAN

communication
system)
D: M.U.T.-III main
harness B (Vehicles
without

CAN

communication
system)
E: M.U.T.-III main
harness C (for Daimler
Chrysler models only)
F:

M.U.T.-III

measurement adapter
G: M.U.T.-III trigger
harness

MB991824-KIT

NOTE:

G: MB991826

M.U.T.-III Trigger
Harness is not
necessary when pushing
V.C.I. ENTER key.

Communication line check
(ECU check and service data)

For  vehicles  with  CAN
communication, use M.U.T.-
III  main  harness  A  to  send
simulated  vehicle  speed.  If
you  connect  M.U.T.-III  main
harness B instead, the CAN
communication  does  not
function correctly.

SUNROOF

42Ad-35

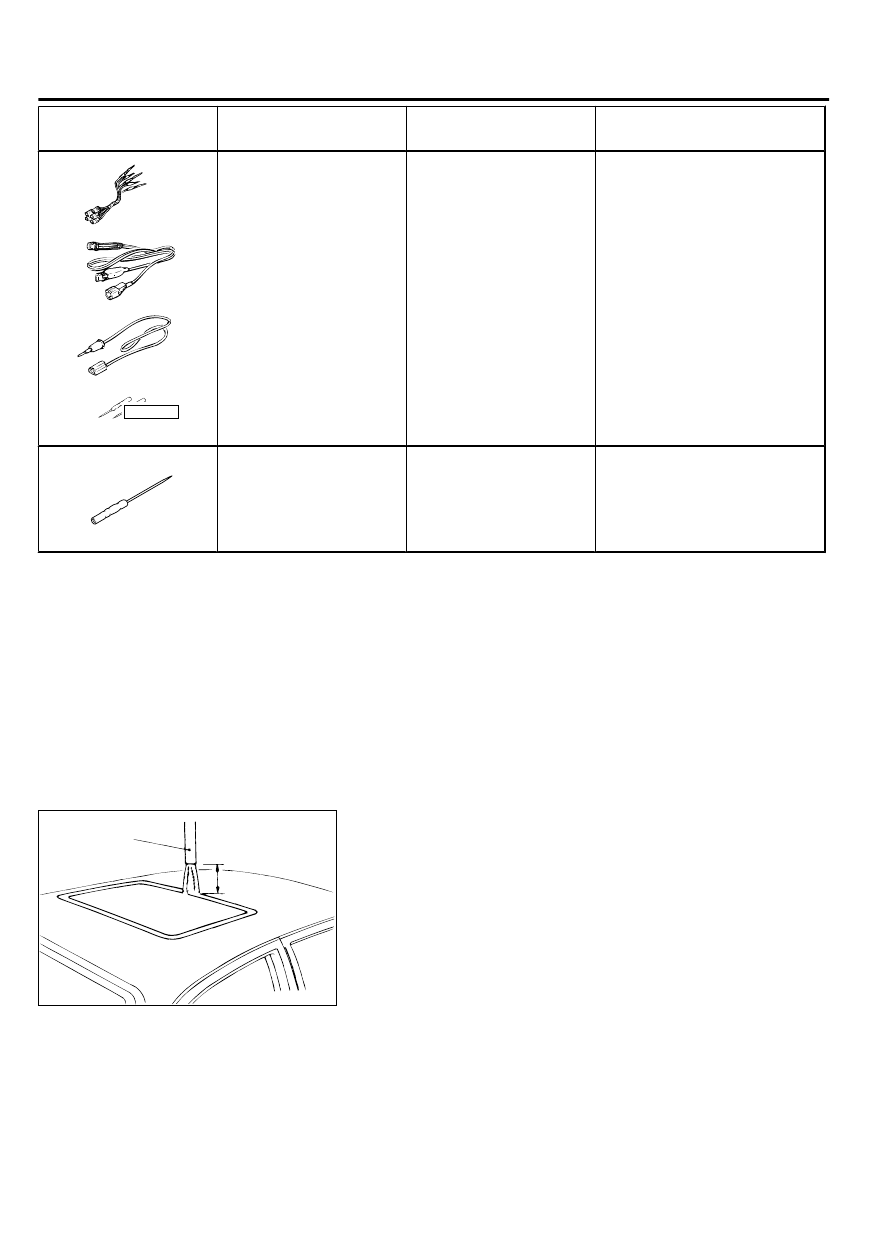

SPECIAL TOOLS

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

YB9912230001

Do not use

MB991223 Harness set

A:  MB991219  Test
harness
B:  MB991220  LED
harness
C:  MB991221  LED
harness adapter
D: MB991222 Probe

General service tools

Making voltage and resistance
measurement

during

troubleshooting

A: Connector pin contact
pressure inspection
B: Power circuit inspection
C: Power circuit inspection
D:

Commercial

tester

connection

MB992006

MB992006
Extra fine probe

Making voltage and resistance
measurement

during

troubleshooting

ON-VEHICLE SERVICE

WATER TEST

M14206000009USA0000010000

Check if there are any leaks in the sunroof by the following
procedure.

Fully close the sunroof lid glass.

Adjust the water pressure so that water comes out of the hose
to a height of approximately 50 cm (19.7 inches) when the
hose is held vertically facing upwards.

ZC6001210000

Hose

Approximately
30 cm (11.8 in)

Hold the end of the hose approximately 30 cm (11.8 inches)
above the roof and let the water run onto the weatherstrip for
5 minutes or more.

Check if any water leaks can be found in the room while
watering. Even though there are any water leaks around the
sunroof lid glass, it can be acceptable as long as water is
caught in the drip area.

SUNROOF FIT ADJUSTMENT

M14206000010USA0000010000

Fully close the sunroof lid glass.

Fully open the sunshade.

42Ad-36

SUNROOF

ON-VEHICLE SERVICE

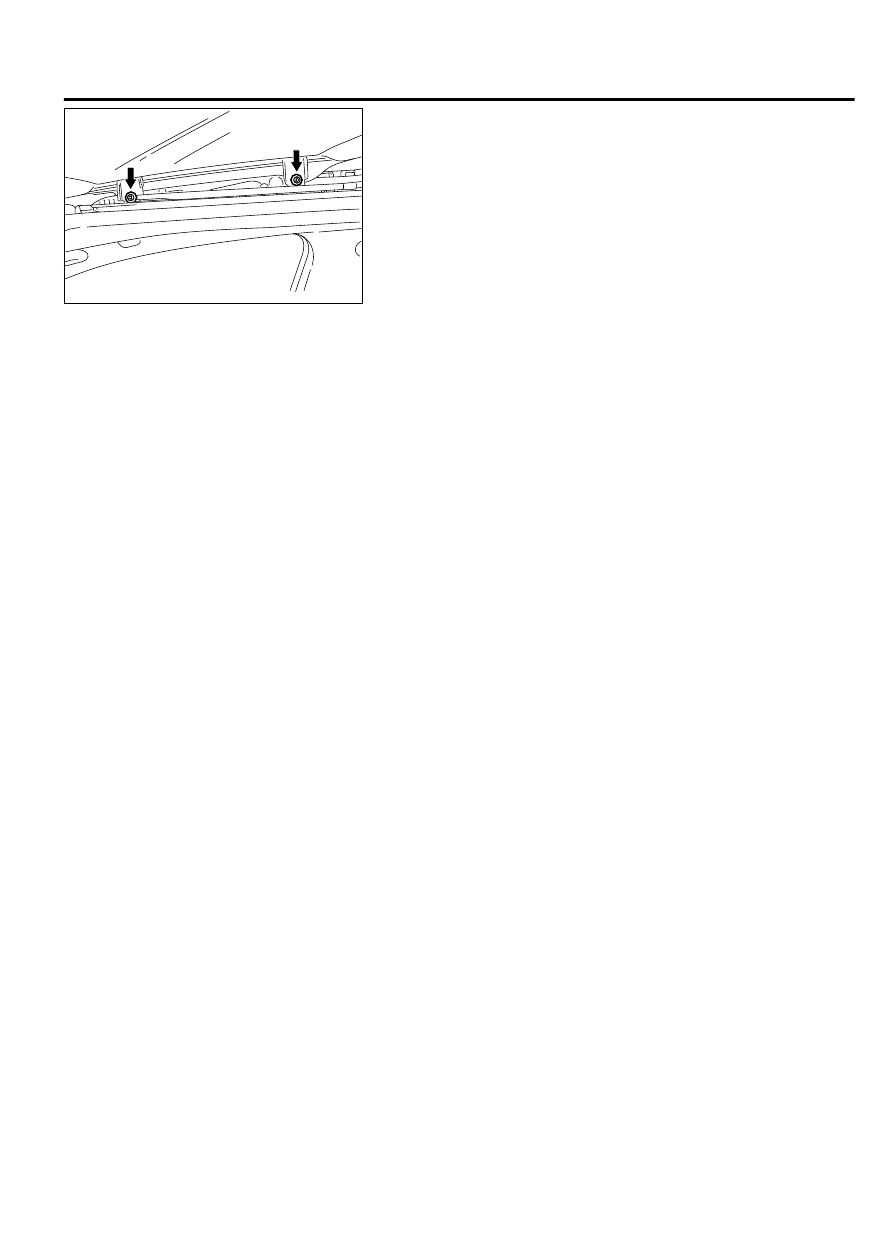

ZC6002980000

Loosen the sunroof lid glass assembly mounting screws.
Adjust the sunroof lid glass height by moving the sunroof lid
glass assembly along the sunroof lid guide oblong hole so that
the clearance between the sunroof lid glass and the vehicle
body is even throughout the circumference.

After adjustment, check that the sunroof operates smoothly.

SUNROOF SAFETY FUNCTION CHECK

M14206000044USA0000010000

Close the sunroof lid glass while placing an approximately 10
mm thick piece of wood at right angles with the sunroof lid
glass.

Check to see if the sunroof motor assembly turns in the
opposite direction and the sunroof lid glass opens when the
sunroof lid glass touches the wood. If any problem occurs,
perform troubleshooting. (Refer to P.42Ad-4.)

SUNROOF CHECK

M14206000047USA0000010001

Check to see that the sunroof operates by pressing the sunroof
switch. If it does not operate, perform troubleshooting. Refer
to P.42Ad-4.

SUNROOF TIMER FUNCTION CHECK

M14206000043USA0000010000

Check the system as described below. If the system does not
work, carry out troubleshooting. Refer to P.42Ad-4.

｠

Close the door and turn the ignition switch to the LOCK (OFF)
position, and then check that the sunroof operates for 30
seconds.

｠

Close the door and turn the ignition switch to the LOCK (OFF)
position. While the timer is on, open the driver's door and front
passenger's door, and check that the sunroof stays during the
operation. (When the driver's door or front passenger's door
is opened while the timer is on, the timer will be turned off.)

SUNROOF

42Ad-37

ON-VEHICLE SERVICE

SUNROOF LID GLASS OPERATION CURRENT

CHECK

M14206000032USA0000010000

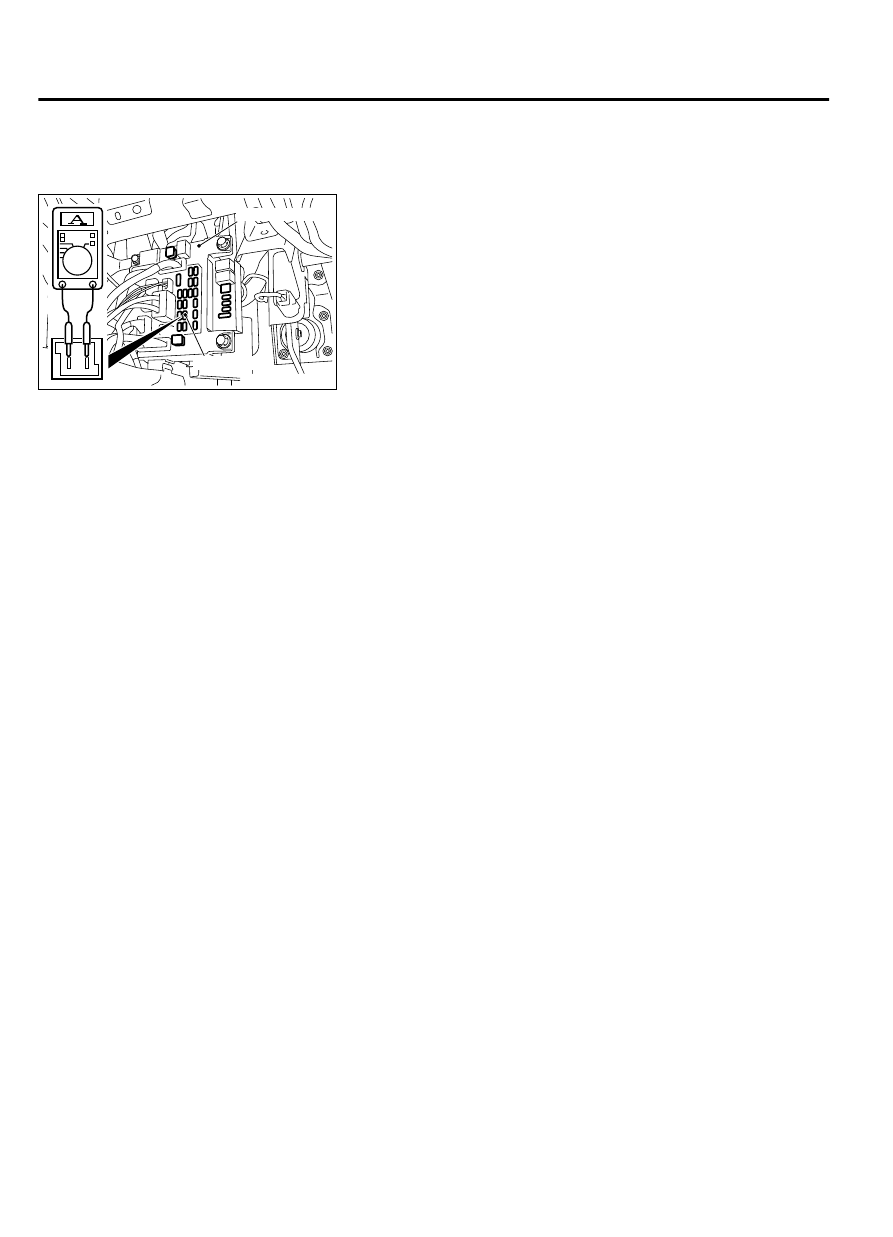

ZC6011500003

Sunroof fuse

ETACS-ECU

Remove the fuse of the sunroof, then connect the circuit tester
as shown in the Figure.

Turn ON the sunroof switch, then measure the operating
current when the sunroof lid glass is halfway opened.

Standard value: 7 A or less [at 20 °C (68 °F)]

Check the following areas if the operating current exceeds the
standard value:

｠

Sunroof installation, deformation and presence of any
foreign substances.

｠

Drive cable installation.

｠

Tilting of sunroof lid glass.

LEARNING PROCEDURES OF THE SUNROOF

FULLY CLOSED POSITION

M14206000046USA0000010000

SHIFTING CONDITIONS FOR THE FULLY CLOSED

POSITION ADJUSTMENT MODE

｠

When shifting to the forced fully closed position adjustment
mode
How to shift to the forced fully closed position adjustment
mode

Turn the ignition switch to the "ON" position.

With the sunroof lid glass stopped (the position of the
sunroof lid glass can be any position between fully
opened and fully closed), press and hold the up switch
for 10 seconds.

｠

When the anti-trap function (safety mechanism) is activated
consecutively five times

｠

When the position information may be incorrect due to
abnormal power supply during the sunroof operation

NOTE:

When installing the sunroof assembly, or installing/

replacing the sunroof motor assembly, operate the forced
fully closed position adjustment mode to adjust the fully
closed position.

HOW TO ADJUST THE FULLY CLOSED POSITION

FORCED FULLY CLOSED POSITION

ADJUSTMENT MODE

With the sunroof lid glass stopped (the position of the sunroof
lid glass can be any position between fully opened and fully
closed), press and hold the up switch.

NOTE:

If operating the up switch moves the sunroof

normally, use the open switch to fully open the sunroof

42Ad-38

SUNROOF

ON-VEHICLE SERVICE
