STEP 2. Check the engagement of the liftgate latch
and liftgate striker.

Q:Are  the  liftgate  latch  and  liftgate  striker

engaged correctly?

YES:

 Then go to Step 3.

NO:

 Align the liftgate latch and liftgate

striker (Refer to P.42Ac-4).

STEP 3. Retest the system.

Q:Does the liftgate lock operate easily?

YES:

 The procedure is complete.

NO:

 Return to Step 1.

INSPECTION PROCEDURE 2: Uneven Body Clearance

M14204000907USA0000010000

DIAGNOSIS

STEP 1. Check the clearance around the liftgate.

Q:Is the liftgate installed correctly?

YES:

 Go to Step 2.

NO:

 Adjust clearance around liftgate (Refer

to P.42Ac-4).

STEP 2. Retest the system.

Q:Is the clearance with the body even?

YES:

 The procedure is complete.

NO:

 Return to Step 1.

INSPECTION PROCEDURE 3: Uneven Height

M14204000908USA0000010000

DIAGNOSIS

STEP 1. Check the liftgate damper height.

Q:Is the liftgate damper height proper?

YES:

 Go to Step 2.

NO:

 Adjust the liftgate damper (Refer to P.

42Ac-6). Then go to Step2.

STEP 2. Retest the system.

Q:Are the liftgate and body height even?

YES:

 The procedure is complete.

NO:

 Return to Step 1.

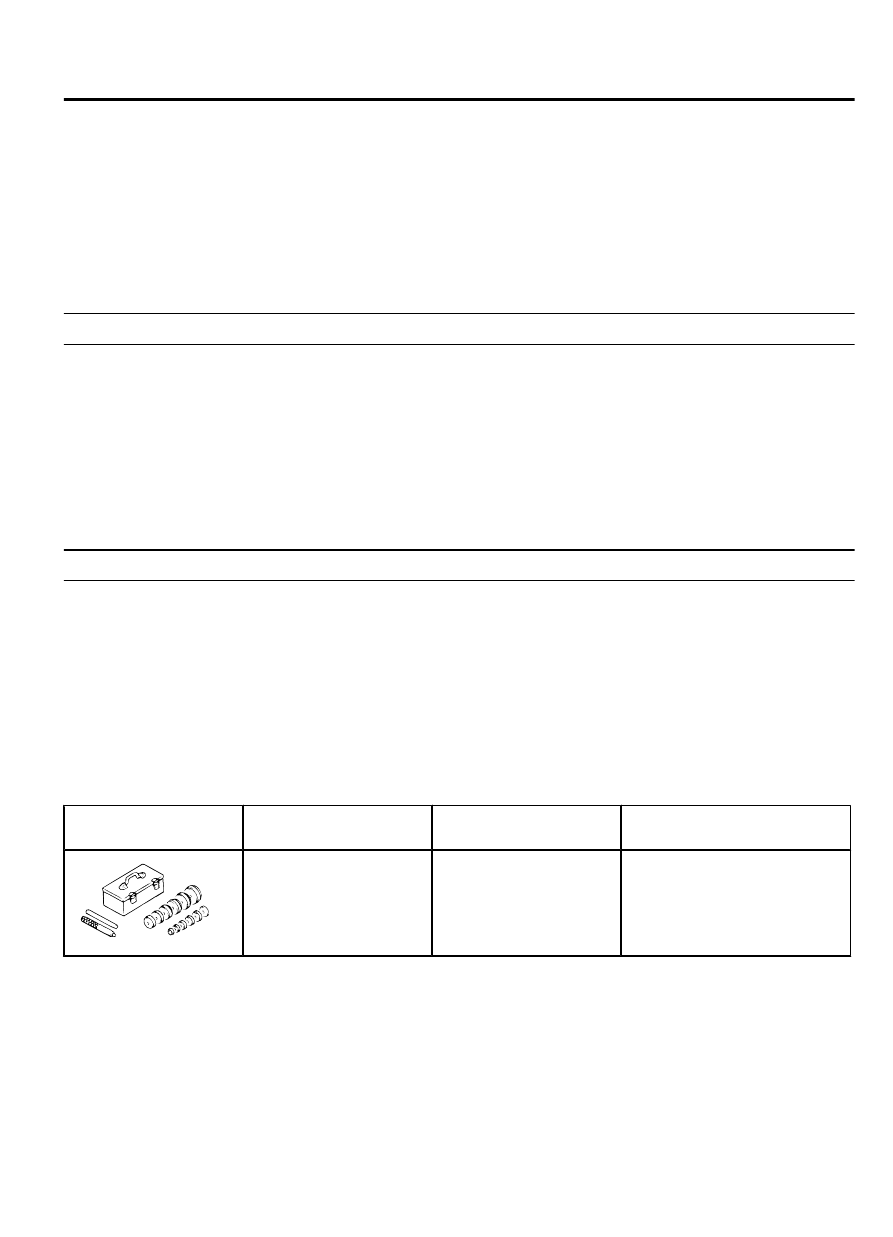

SPECIAL TOOLS

M14204000006USA0000010000

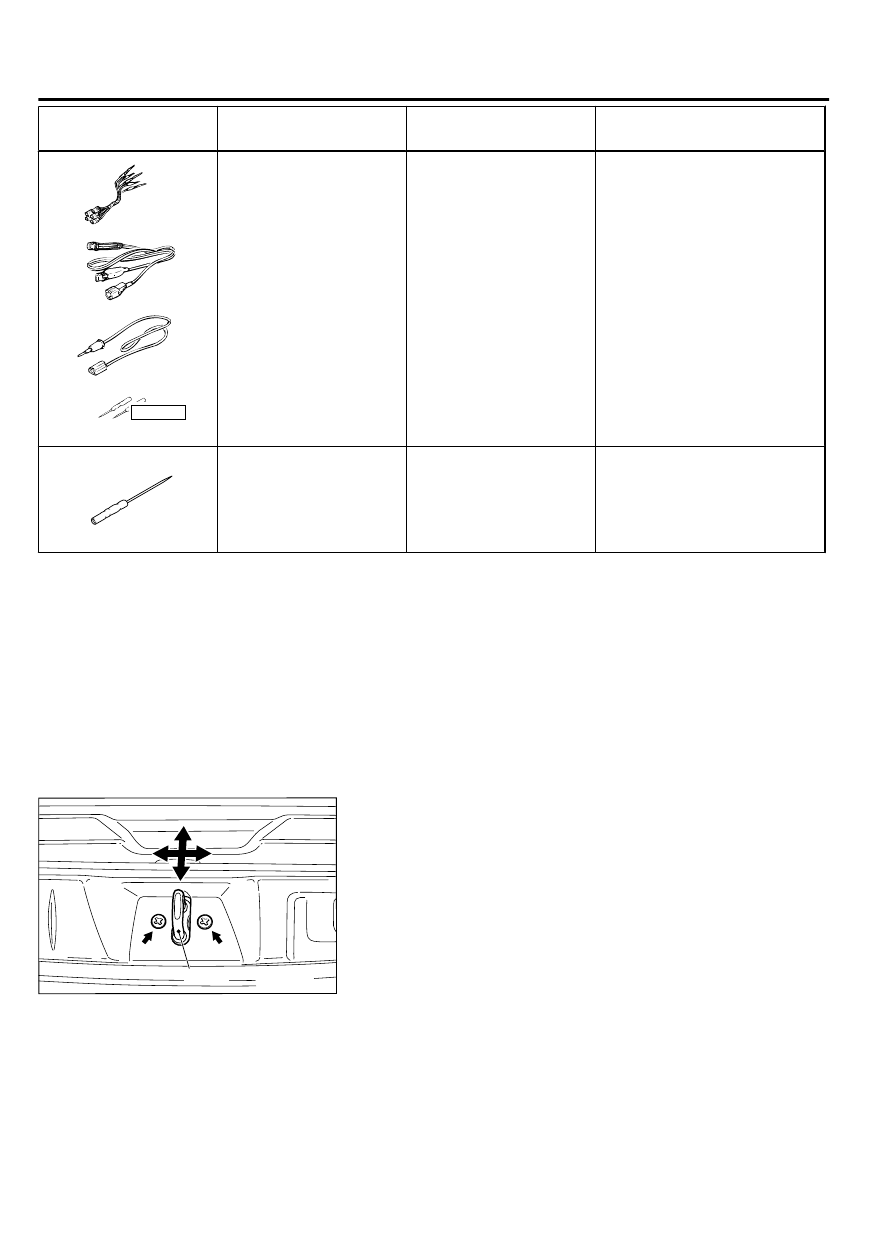

TOOL

TOOL  NUMBER  AND
NAME

SUPERSESSION

APPLICATION

MB990925

MB990925  Bearing  and
oil seal installer set

A:

 MB990939

Remover bar

MB990925-01

 or

General service tool

Adjustment of door striker

LIFTGATE

42Ac-3

LIFTGATE DIAGNOSIS

TOOL

TOOL  NUMBER  AND
NAME

SUPERSESSION

APPLICATION

YB9912230000

Do not use

a

b

c

d

MB991223 Harness set

A:  MB991219  Test
harness
B:  MB991220  LED
harness
C:  MB991221  LED
harness adapter
D: MB991222 Probe

General service tools

Measurement

 of

 terminal

voltage and resistance

A:  Connector  pin  contact
pressure inspection
B: Power circuit inspection
C: Power circuit inspection
D:

 Commercial

 tester

connection

MB992006

MB992006  Extra  fine
probe

-

Measurement

 of

 terminal

voltage and resistance

ON-VEHICLE SERVICE

LIFTGATE ALIGNMENT

M14204000009USA0000010000

Required Special Tool:

｠

MB990939: Brass Bar

LIFTGATE UPPER ALIGNMENT

ZC6001030000

Striker

｠

If the striker is not engaged with the latch properly, adjust by
loosening the striker mounting screws.

｠

If the clearance between the liftgate and the body is uneven,
loosen the liftgate-side liftgate hinge mounting bolts to adjust
it.

42Ac-4

LIFTGATE

ON-VEHICLE SERVICE

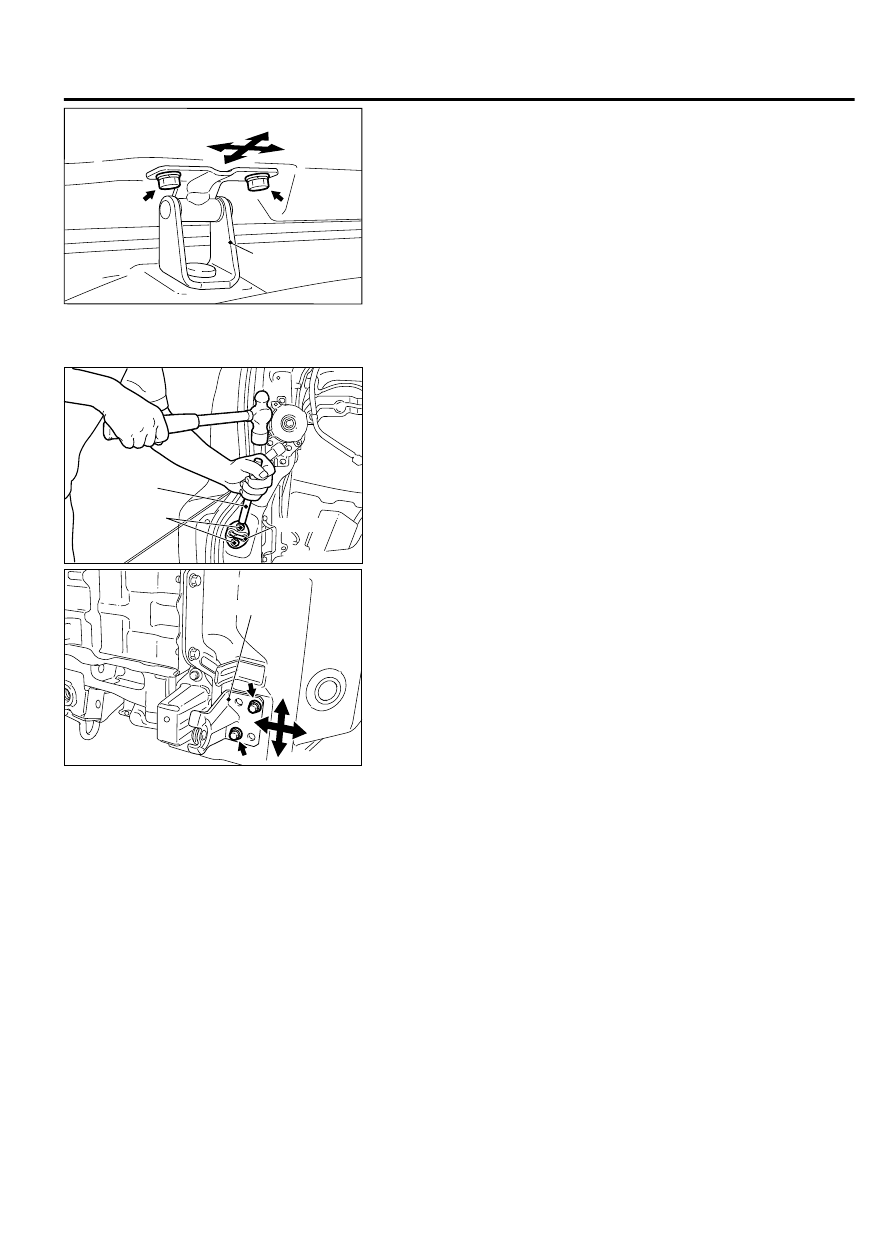

ZC6001040000

Liftgate hinge

LIFTGATE LOWER ALIGNMENT

ZC6001050000

MB990939

Striker

Temporary

bolts

ZC6001060000

Liftgate hinge

｠

If the striker is not engaged with the latch properly, remove the
quarter  trim  lower  (Refer  to  GROUP  52A,  Interior  Trim  P.
52A-10).  Replace  the  striker  mounting  screw  with  an
adequate  bolt,  and  use  the  special  tool  MB990939  and  a
hammer to tap the bolt head in the desired direction to adjust
the striker.

｠

If the clearance between the liftgate and the vehicle body is
uneven, remove the rear bumper assembly (Refer to GROUP
51, Rear Bumper Assembly P.51A-5) and loosen the body-
side liftgate hinge mounting nuts to adjust the liftgate lower so
that  the  clearance  between  the  liftgate  and  body  becomes
even.

LIFTGATE

42Ac-5

ON-VEHICLE SERVICE

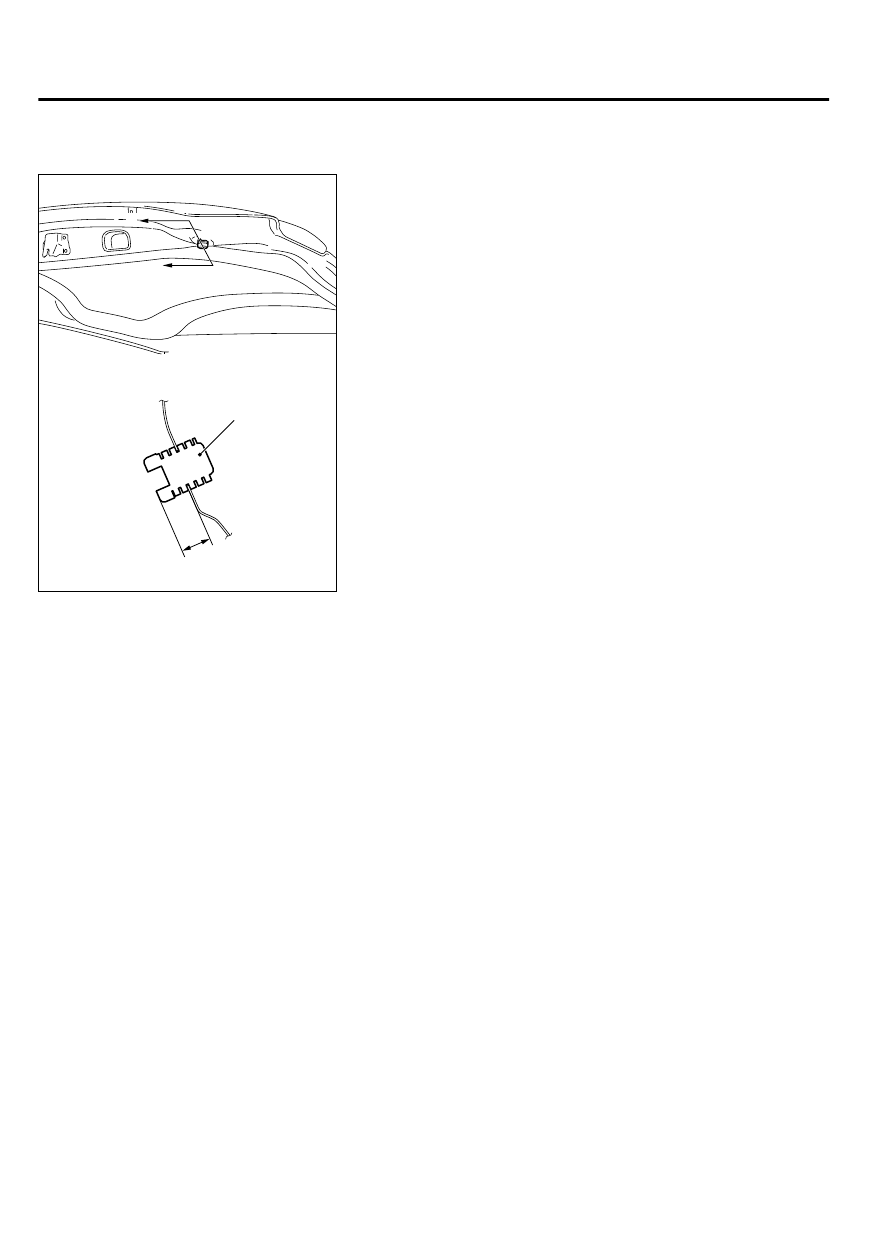

ADJUSTMENT OF LIFTGATE HEIGHT

M14204000035USA0000010000

ZC600107

Section A – A

0000

15 mm
(0.59 in)

A

A

Damper

Rotate the damper by using the arrow mark on the damper as a
guide to adjust the liftgate height. The damper height is altered
by roughly 4 mm (0.16 inch) when the damper is rotated once.

NOTE:

If a rattling noise is heard due to the vibration of

the liftgate when the vehicle is being driven, adjust the
damper height until the damper is seated on the vehicle
body. The damper should be seated on the vehicle body
regardless of a rattling noise.

LIFTGATE

REMOVAL AND INSTALLATION <LIFTGATE UPPER>

M14204000011USA0000010000

Pre-removal operation

｠

Liftgate  spoiler  assembly  removal  (Refer  to  GROUP  51A,

Liftgate Spoiler P.51A-20).

｠

Liftgate  trim  assembly  removal  (Refer  to  GROUP  52A,

Liftgate Trim P.52A-14).

｠

Rear wiper motor removal (Refer to GROUP 51B, Rear Wiper

and Washer P.51B-57).

Post-installation operation

｠

Liftgate alignment (Refer to P.42Ac-4).

｠

Adjustment of liftgate height (Refer to P.42Ac-6).

｠

Rear  wiper  motor  installation  (Refer  to  GROUP  51B,  Rear

Wiper and Washer P.51B-57).

｠

Liftgate  trim  assembly  installation  (Refer  to  GROUP  52A,

Liftgate Trim P.52A-14).

｠

Liftgate  spoiler  assembly  installation  (Refer  to  GROUP  51A,

Liftgate Spoiler P.51A-20).

42Ac-6

LIFTGATE

ON-VEHICLE SERVICE
