Lever position Terminal

number

Normal value

UNLOCK

1 - 3

Continuity  exists
(2 Ω or less)

ACTUATOR SWITCH CHECK <PASSENGER'S SIDE>

Lever position Terminal

number

Normal value

LOCK

1 - 3

Continuity  exists
(2 Ω or less)

UNLOCK

2 - 3

Continuity  exists
(2 Ω or less)

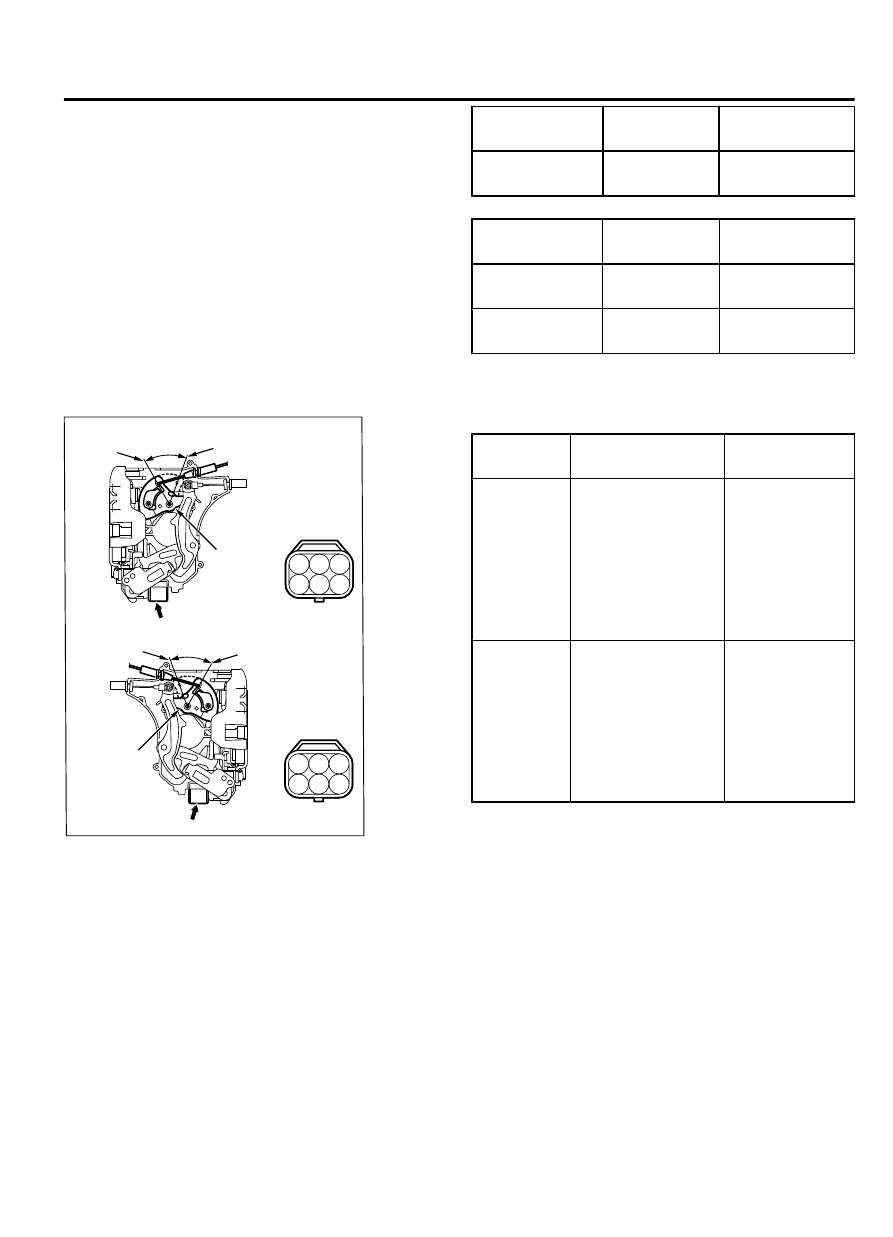

REAR DOOR LOCK ACTUATOR CHECK

4

2
5

3
6

1

ZC600096

4

2
5

3
6

1

B

A

0000

Lever

UNLOCK

LOCK

Lever

UNLOCK

LOCK

<Rear left side>

<Rear right side>

View A

View B

ACTUATOR OPERATION CHECK

Lever
position

Battery
connection

Lever
operation

At

 the

"LOCK"
position

｠

Connect  terminal
No.4

 to

 the

negative  battery
terminal.

｠

Connect  terminal
No.6

 to

 the

positive  battery
terminal.

The lever moves
from the "LOCK"
position  to  the
"UNLOCK"
position.

At

 the

"UNLOCK"
position

｠

Connect  terminal
No.6

 to

 the

negative  battery
terminal.

｠

Connect  terminal
No.4

 to

 the

positive  battery
terminal.

The lever moves
from

 the

"UNLOCK"
position  to  the
"LOCK"
position.

DOOR

42Ab-107

DOOR HANDLE AND LATCH

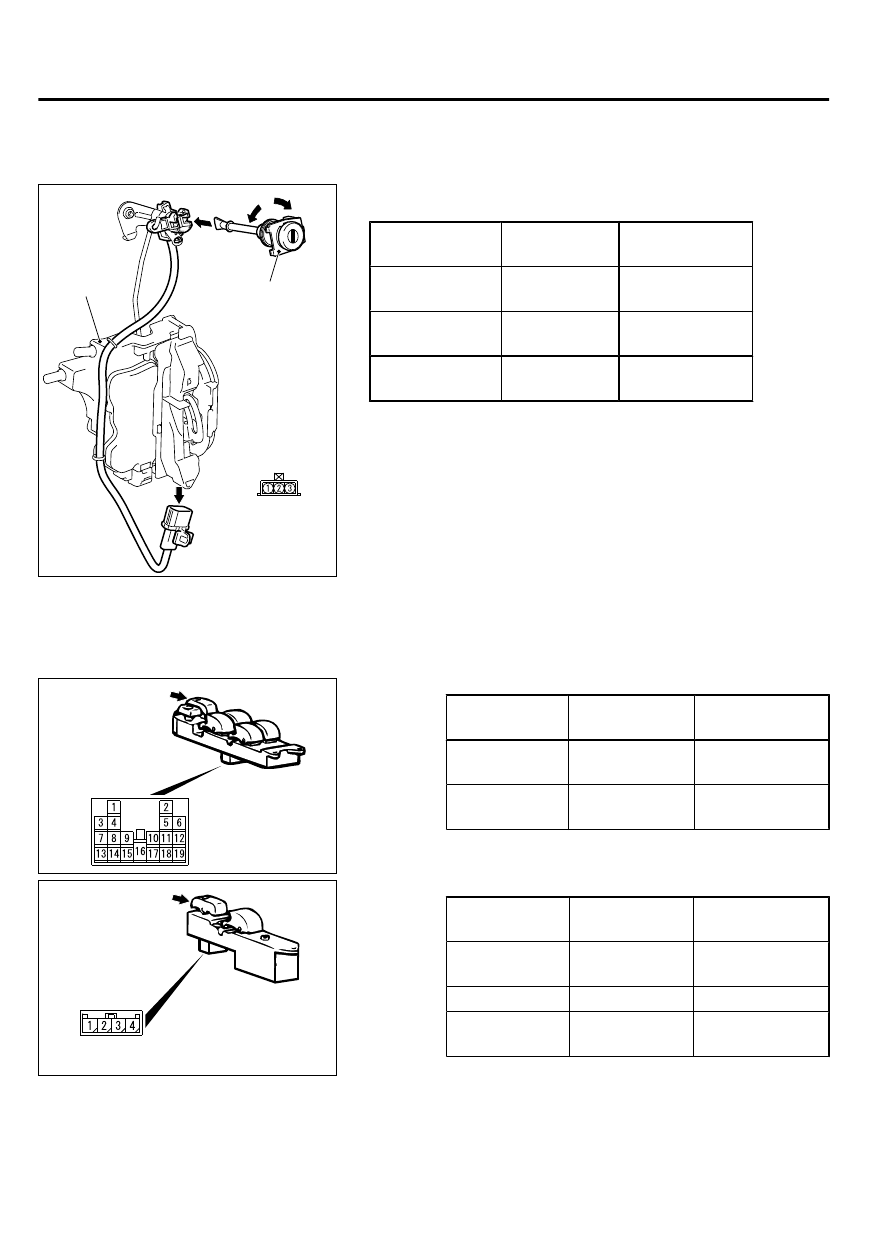

DOOR LOCK KEY CYLINDER SWITCH

CONTINUITY CHECK

AC303028

ZC600612

Lock

Unlock

0000

View A

Door lock

key cylinder

Door latch

assembly

A

Install the door lock key cylinder to the door latch assembly, and
check the door lock key cylinder switch.

Switch position Tester

connection

Specified
condition

LOCK

1 - 3

Continuity  exists
(2 Ω or less)

NEUTRAL
(OFF)

1 - 2, 2 - 3

Open circuit

UNLOCK

2 - 3

Continuity  exists
(2 Ω or less)

CENTRAL DOOR LOCK SWITCH CONTINUITY

CHECK

Remove the power window switch (Refer to P.42Ab-97).

ZC600611

Door lock switch

0000

<DRIVER'S SIDE>

Switch
position

Tester
connection

Specified
condition

LOCK

14 - Ground

Continuity  exists
(2 Ω or less)

UNLOCK

13 - Ground

Continuity  exists
(2 Ω or less)

ZC600610

Door lock switch

0000

<PASSENGER'S SIDE>

Switch
position

Tester
connection

Specified
condition

LOCK

1 - 2

Continuity  exists
(2 Ω or less)

OFF

1 - 2, 2 - 3

Open circuit

UNLOCK

2 - 3

Continuity  exists
(2 Ω or less)

42Ab-108

DOOR

DOOR HANDLE AND LATCH

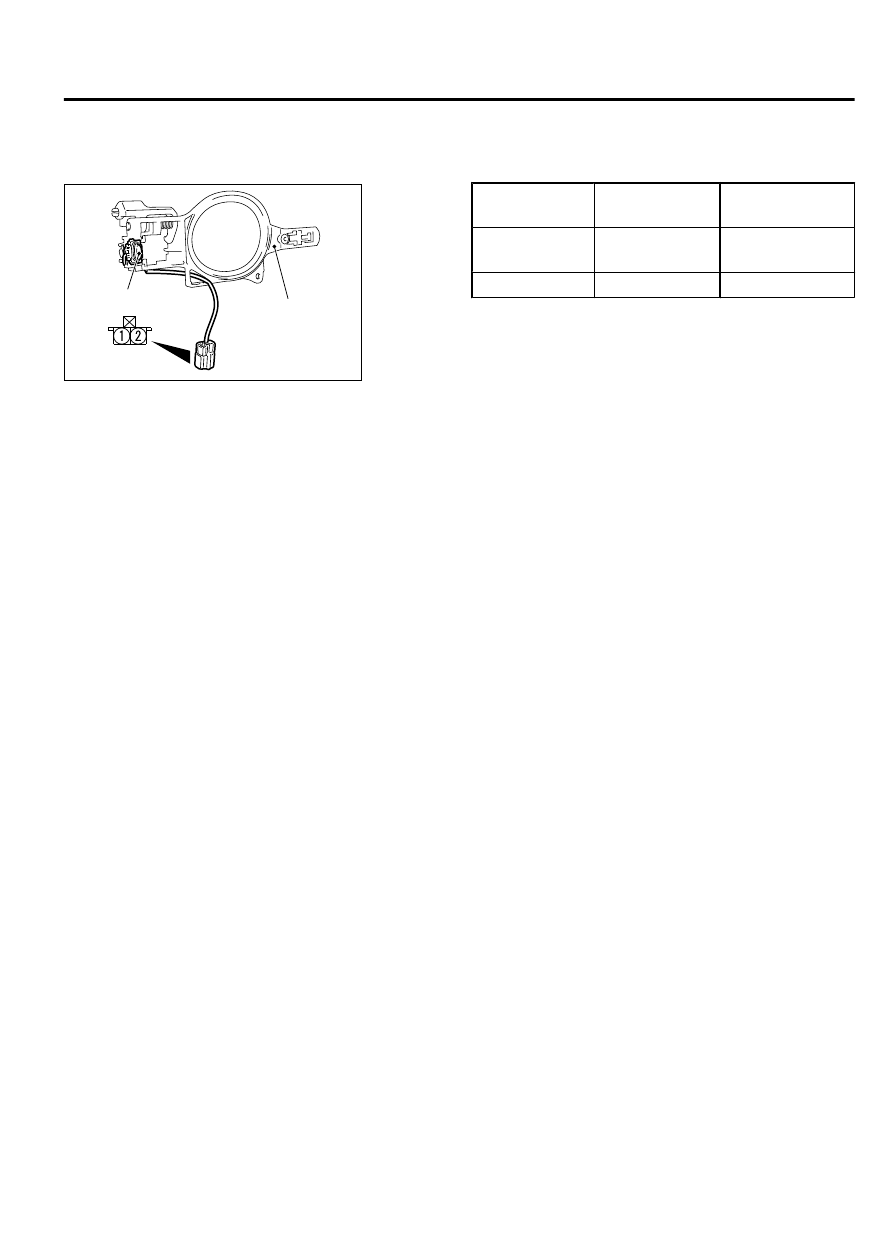

LOCK SWITCH CHECK <Vehicle with keyless

operation system (KOS)>

ZC6000970000

Lock switch

Door outside
handle base

Switch
position

Tester
connection

Specified
condition

ON

1 - 2

Continuity  exists
(2 Ω or less)

OFF

1 - 2

Open circuit

DOOR

42Ab-109

DOOR HANDLE AND LATCH

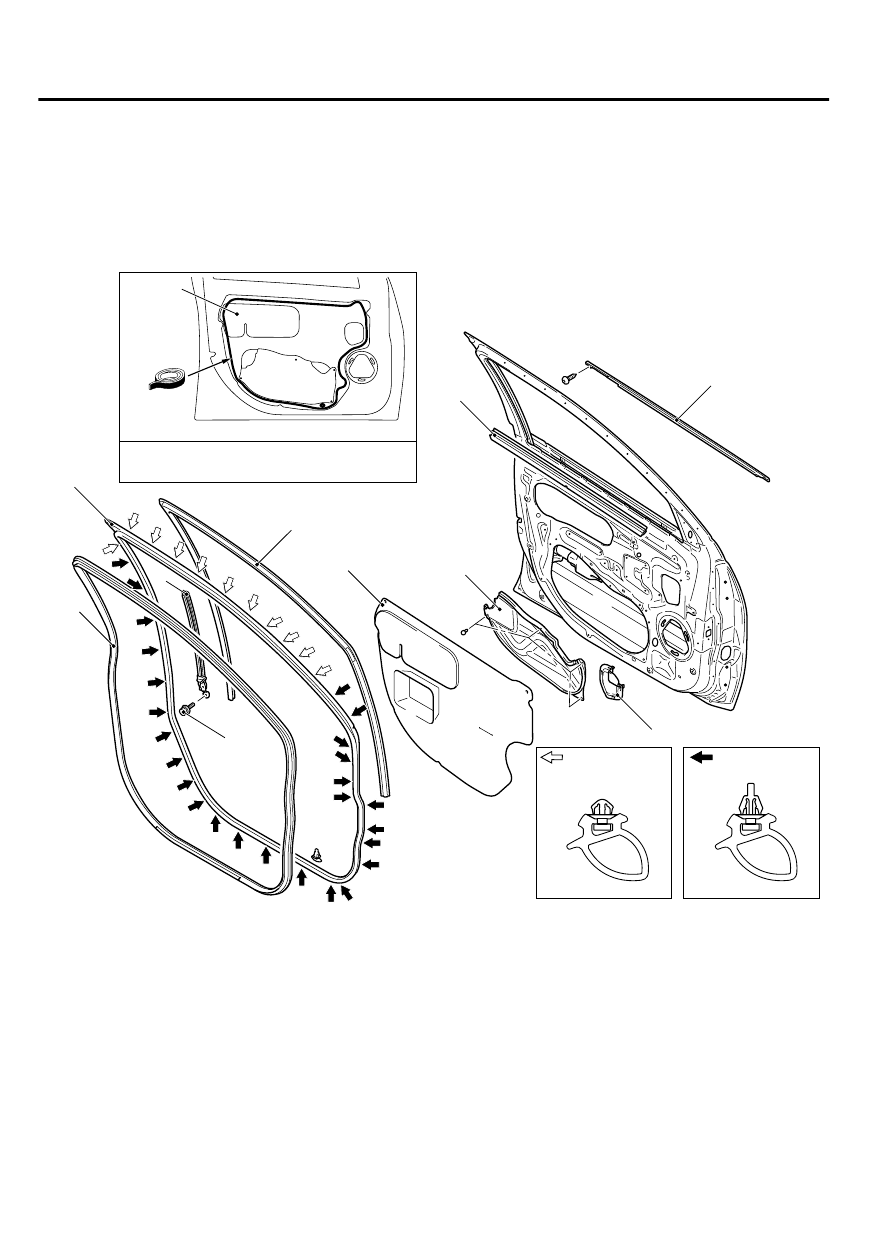

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP

REMOVAL AND INSTALLATION

M14203000031USA0000010000

ZC600098

1

1

6

2

8

9

3

4

0000

5

7

<Front door>

Sealant: 3M™ AAD Part No. 8633
or equivalent

:Sectional view
 of clip position

:Sectional view
 of clip position

5.0 ± 1.0 N·m
44 ± 9 in-lb

Waterproof film removal steps

·

Pull handle bracket (Refer to GROUP
52A, Door Trim P.52A-11.)

>>B<<

1.

Waterproof film
Door  window  glass  run  channel
removal steps

·

Pull handle bracket (Refer to GROUP
52A, Door Trim P.52A-11.)

>>B<<

1.

Waterproof film

Door  window  glass  run  channel
removal steps

2.

Door window glass run channel
Door  beltline  weatherstrip  inner
removal steps

·

Door trim assembly (Refer to GROUP
52A, Door Trim P.52A-11.)

3.

Door beltline weatherstrip inner

42Ab-110

DOOR

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP
