Mitsubishi Outlander XL. Manual - part 694





ACTUATOR TEST REFERENCE TABLE

M13506100098USA0000010000

Using scan tool, the following actuators can be forcibly
operated:

NOTE:

ABS, TCL, and ASC are operated by ASC-ECU.

When  ASC-ECU  is  disabled  due  to  the  fail-safe
function, the actuator test cannot be performed.

The actuator test can be performed only when the
vehicle is stationary.

While  the  actuator  test  is  performed,  the  ABS
warning light flashes at a rate of 2 Hz.

After  the  actuator  test  has  been  performed,  the
brake  warning  light,  ABS  warning  light,  ASC  ON
indicator  light,  and  ASC  OFF  indicator  light
illuminate until the ignition switch is turned to ON
again or the communication between scan tool and
ASC-ECU is terminated.



Actuator test specifications

Item No.

Check item

Driven component

01

FL wheel ABS drive

Solenoid  valve  for  the  corresponding
channel  of  the  hydraulic  unit  and  pump
motor (simplified inspection mode)

02

FR wheel ABS drive

03

RL wheel ABS drive

04

RR wheel ABS drive

05

FL wheel TCL drive

06

FR wheel TCL drive

07

RL wheel TCL drive

08

RR wheel TCL drive

09

Engine TCL drive

Outputs  the  engine  torque  control  signal
(engine torque = 0 N·m) to the engine ECU
for three seconds.

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-183

DIAGNOSIS

Operation pattern of items 01 to 08

ZC600964

1seconds

2 seconds

Approx. 0.05
seconds

Approx. 0.01
seconds

0002

End

M.U.T.-III actuator test
(Item No.05, 06, 07, 08) start

End

Increase in pressure

Steady pressure

Reduction in pressure

Increase in pressure

Steady pressure

Reduction in pressure

Drive

Stop

Solenoid valve
(TCL)

Solenoid valve
(ABS)

Pump motor

M.U.T.-III actuator test
(Item No.01, 02, 03, 04) start

CHECK AT ECU TERMINALS

M13506100099USA0000010000

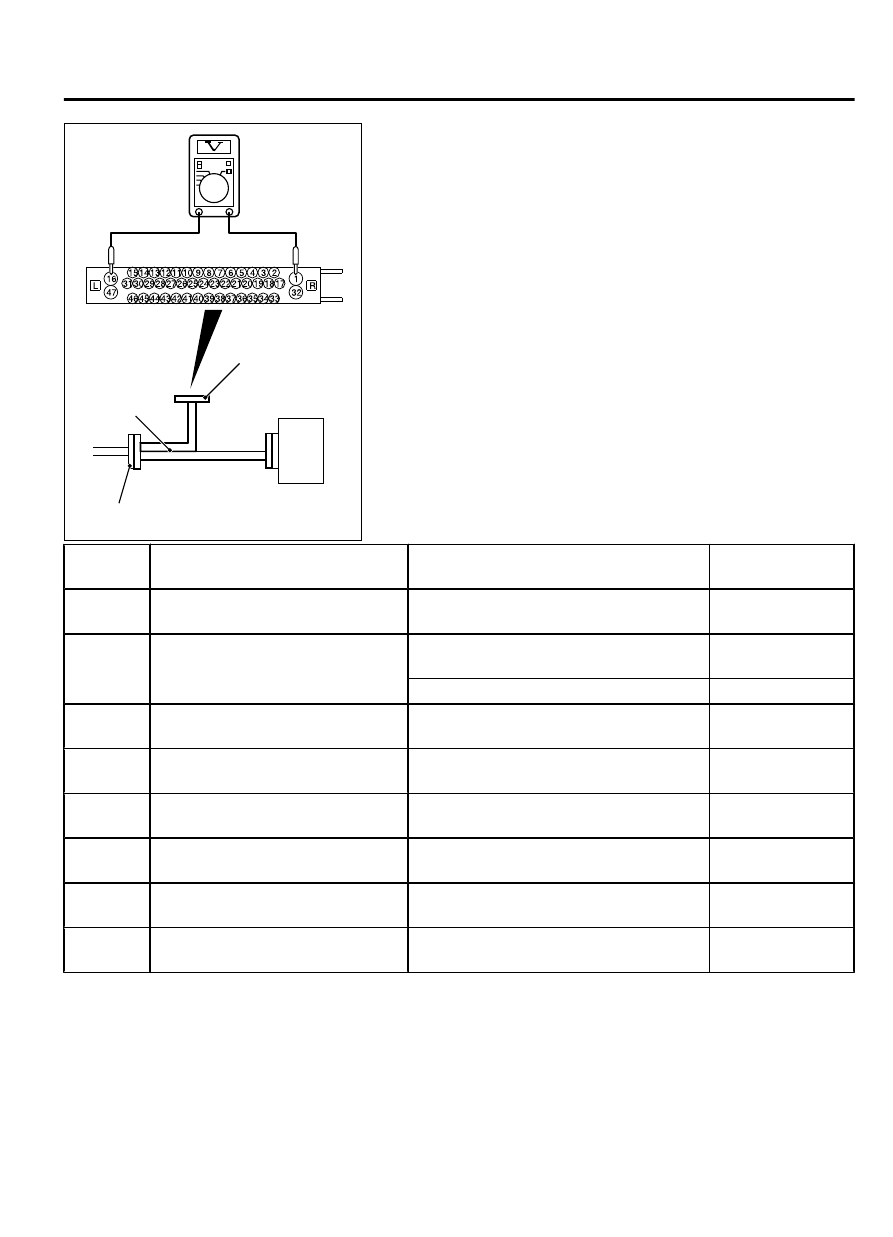

TERMINAL VOLTAGE CHECK

Required Special Tool:

MB991997: ASC Check Harness

35C-184

ACTIVE SKID CONTROL SYSTEM (ASC)

DIAGNOSIS

ZC601292 0000

ASC-ECU

MB991997

Check harness

A-02 ASC-ECU
harness connector

Connect special tool MB991997 to measure the voltage between
each check connector terminal and the ground terminal (No. 16
or 47).



Terminal
No.

Check item

Check conditions

Normal
conditions

1

Motor power supply

Ignition switch: ON (OFF)

Approximately
battery voltage

4

ASC-ECU power supply

Ignition switch: ON

Approximately
battery voltage

Ignition switch: OFF

0V

6

G  and  yaw  rate  sensor  power
supply

Ignition switch: ON

Approximately
battery voltage

32

Solenoid  valve  and  ASC-ECU
power supply

Ignition switch: ON (OFF)

Approximately
battery voltage

34

Wheel  speed  sensor  (FR)  power
supply

Ignition switch: ON

Approximately
battery voltage

36

Wheel  speed  sensor  (RL)  power
supply

Ignition switch: ON

Approximately
battery voltage

43

Wheel  speed  sensor  (RR)  power
supply

Ignition switch: ON

Approximately
battery voltage

45

Wheel  speed  sensor  (FL)  power
supply

Ignition switch: ON

Approximately
battery voltage



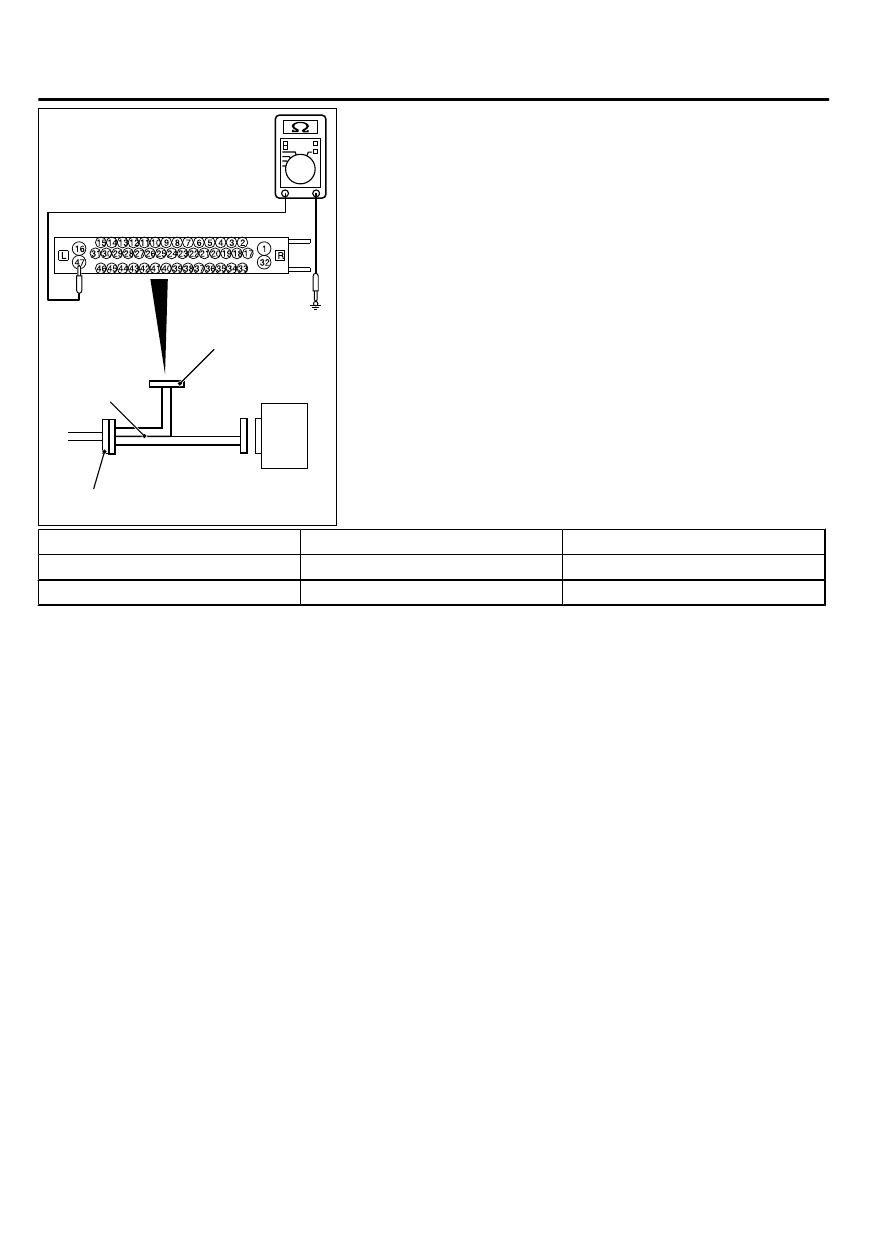

RESISTANCE AND CONTINUITY BETWEEN HARNESS-
SIDE CONNECTOR TERMINALS

Required Special Tool:

MB991997: ASC Check Harness

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-185

DIAGNOSIS

ZC601293 0000

ASC-ECU

MB991997

Check harness

A-02 ASC-ECU
harness connector

1.

When performing the continuity check, turn the ignition switch
to LOCK (OFF) position, connect special tool MB991997 as
shown in the figure, and disconnect the ASC-ECU connector.

2.

Check  for  continuity  between  terminals  shown  in  the  chart
below.

3.

Terminal layout is shown in the figure.



Terminal No.

Signal

Normal conditions

16 - body ground

Ground

2 ohms or less

47 - body ground

Ground

2 ohms or less

35C-186

ACTIVE SKID CONTROL SYSTEM (ASC)

DIAGNOSIS
