Mitsubishi Outlander XL. Manual - part 611





ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

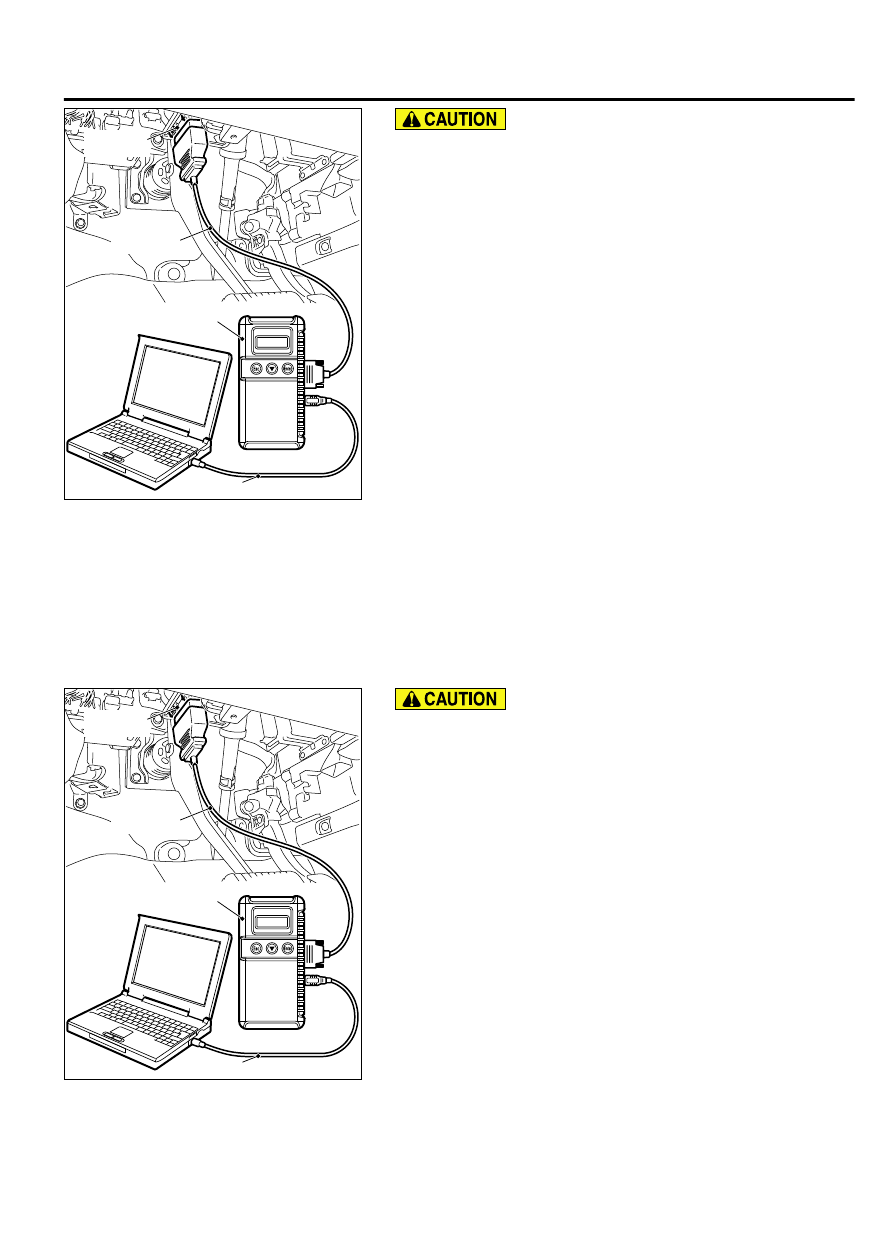

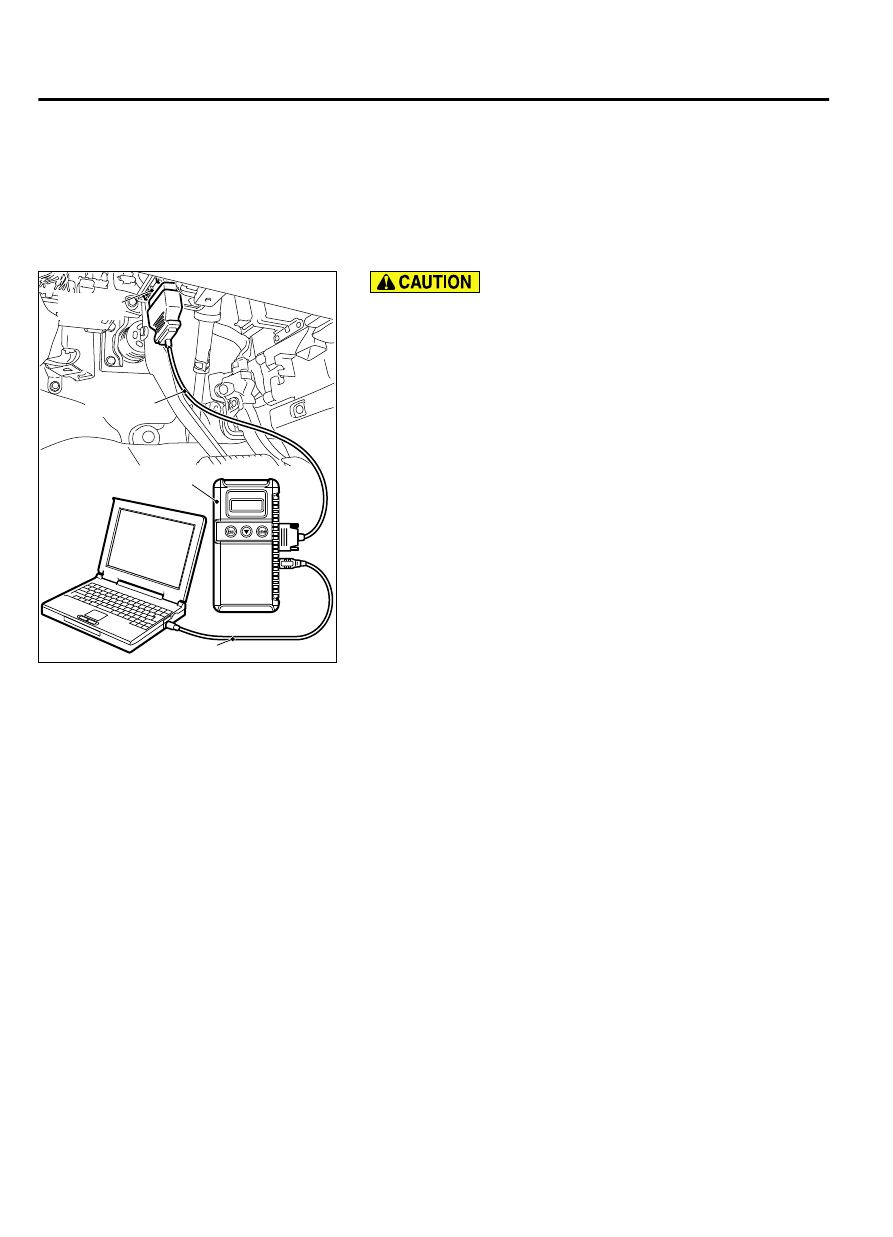

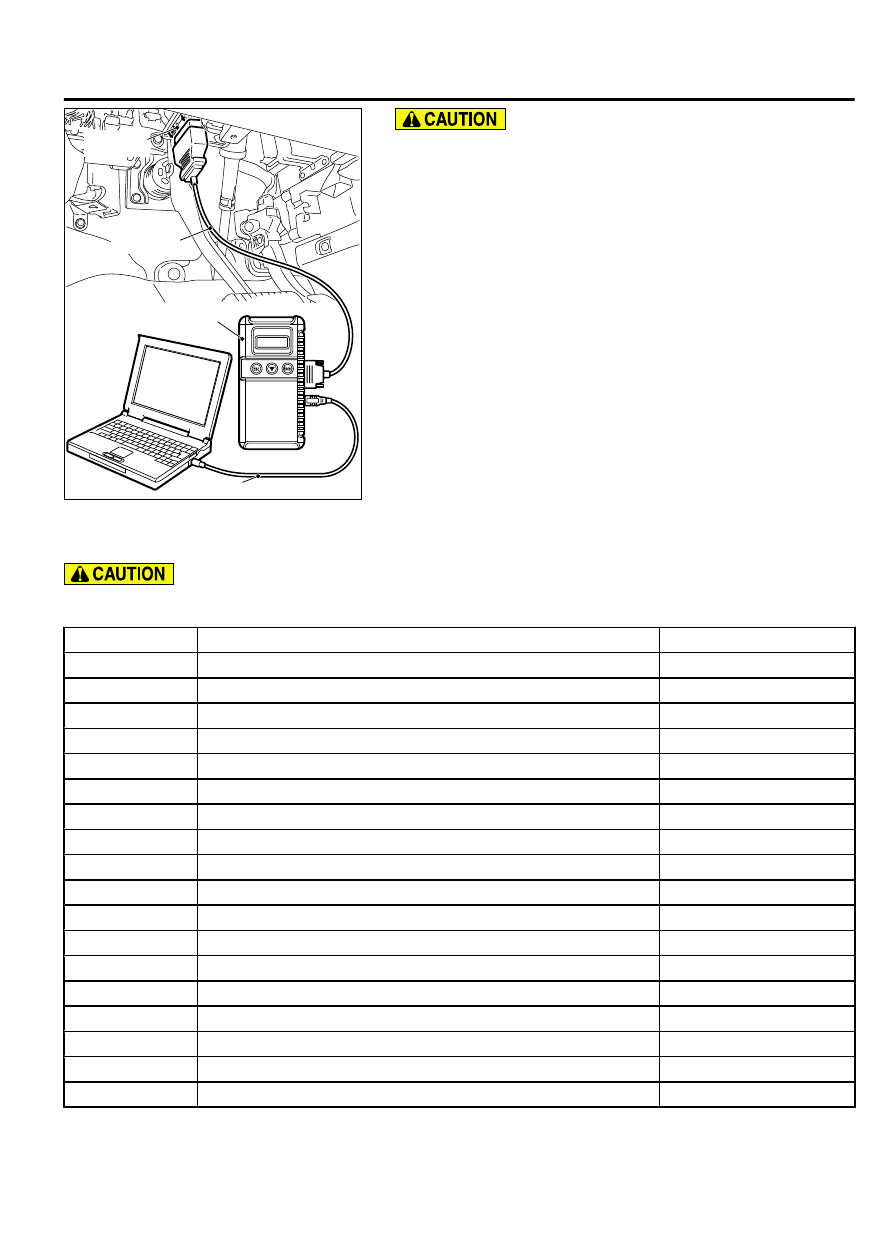

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

1.

Ensure that the ignition switch is at the "LOCK" (OFF) position.

2.

Start up the personal computer.

3.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

4.

Connect special tool MB991910 to the special tool MB991824.

5.

Connect special tool MB991910 to the data link connector.

6.

Turn  the  power  switch  special  tool  MB991824  to  the  "ON"
position.

NOTE:

When the special tool MB991824 is energized, the

special tool MB991824 indicator light will be illuminated
in a green color.

7.

Start the M.U.T.-III system on the personal computer.

NOTE:

Disconnect the scan tool MB991958 in the reverse

order of the connecting sequence, making sure that the
ignition switch is at the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC

TROUBLE CODES

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

NOTE:

If the battery voltage is low, diagnostic trouble

codes will not be set. Check the battery if scan tool
MB991958 does not display.

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select "System Select."

4.

Select "ABS/ASC/ASTC" from the system list, and select the
"OK" button.

5.

Select "Diagnostic Trouble Code."

6.

If a DTC is set, it is shown.

7.

Choose "DTC erase" to erase the DTC.

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-7

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

HOW TO READ DATA LIST

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select "System Select."

4.

Select "ABS/ASC/ASTC" from the system list, and select the
"OK" button.

5.

Select "Data List."

HOW TO PERFORM ACTUATOR TEST

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

35B-8

ANTI-LOCK BRAKING SYSTEM (ABS)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select "System Select."

4.

Select "ABS/ASC/ASTC" from the system list, and select the
"OK" button.

5.

Choose "Actuator Test" from "ABS" screen.

6.

Choose an appropriate item and select the "OK" button.

DIAGNOSTIC TROUBLE CODE CHART

M13502000113USA0000010000

During  diagnosis,  a  DTC  code  associated  with
other systems may be set when the ignition switch

is turned on with connector(s) disconnected. On
completion, confirm all systems for DTCs. If DTC
code(s) are set, erase them all.

DTC

Inspection item

Reference page

C100A

Abnormality in FL wheel speed sensor circuit

 P.35B-11

C1015

Abnormality in FR wheel speed sensor circuit

 P.35B-15

C1020

Abnormality in RL wheel speed sensor circuit

 P.35B-20

C102B

Abnormality in RR wheel speed sensor circuit

 P.35B-25

C1011

Abnormality in FL wheel speed sensor signal

 P.35B-30

C101C

Abnormality in FR wheel speed sensor signal

 P.35B-35

C1027

Abnormality in RL wheel speed sensor signal

 P.35B-40

C1032

Abnormality in RR wheel speed sensor signal

 P.35B-46

C1014

Mutual monitoring of FL wheel speed sensor

 P.35B-52

C101F

Mutual monitoring of FR wheel speed sensor

 P.35B-54

C102A

Mutual monitoring of RL wheel speed sensor

 P.35B-57

C1035

Mutual monitoring of RR wheel speed sensor

 P.35B-60

C1041

Abnormality in periodical signal for FL wheel speed sensor

 P.35B-63

C1042

Abnormality in periodical signal for FR wheel speed sensor

 P.35B-64

C1043

Abnormality in periodical signal for RL wheel speed sensor

 P.35B-66

C1044

Abnormality in periodical signal for RR wheel speed sensor

 P.35B-68

C1046

FL wheel speed sensor control phase time exceeded

 P.35B-71

C1047

FR wheel speed sensor control phase time exceeded

 P.35B-75

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-9

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

DTC

Inspection item

Reference page

C1048

RL wheel speed sensor control phase time exceeded

 P.35B-77

C1049

RR wheel speed sensor control phase time exceeded

 P.35B-79

C104B

Abnormality in FL wheel inlet valve system

 P.35B-81

C104F

Abnormality in FR wheel inlet valve system

C1053

Abnormality in RL wheel inlet valve system

C1057

Abnormality in RR wheel inlet valve system

C105F

Abnormality in FL wheel outlet valve system

C1063

Abnormality in FR wheel outlet valve system

C1067

Abnormality in RL wheel outlet valve system

C105B

Abnormality in RR wheel outlet valve system

C2104

Malfunction of valve power supply circuit

 P.35B-83

C1073

Malfunction of motor drive circuit

 P.35B-87

C2116

Abnormality in pump motor power supply voltage

 P.35B-91

C1000

Abnormality in stoplight switch circuit

 P.35B-95

C2200

Trouble in ASC-ECU

 P.35B-98

C2100

Abnormality in battery voltage
(low voltage)

9.7 ± 0.3 V or less*1

 P.35B-100

8.0 ± 0.5 V or less*1

C2101

Abnormality in battery voltage
(high voltage)

18.0 ± 1.0 V or more

 P.35B-103

C1395

Brake fluid filling not complete

 P.35B-106

C2203

VIN not recorded

 P.35B-107

C1210*2

Defective G sensor

Abnormality in output voltage

 P.35B-108

C1242*2

Defective G sensor

Abnormality in output voltage

 P.35B-109

C2111*2

Sensor power supply circuit/Low input

 P.35B-111

C2112*2

Sensor power supply circuit/High input

C1608

Implausible diagnosis data

 P.35B-113

U0001

Bus off

 P.35B-117

U0100

Engine time-out error

 P.35B-118

U0114*2

AWD-ECU time-out error

U0141

ETACS time-out error

U1415

Variant coding not implemented

 P.35B-119

U1417

Invalid variant coding value (including wrong assembly)

 P.35B-121

NOTE:

｠

*1: This diagnostic trouble code is not set within the
vehicle speed of 20 km/h or less.

｠

*2: Vehicles for AWD.

35B-10

ANTI-LOCK BRAKING SYSTEM (ABS)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS
