Mitsubishi Outlander XL. Manual - part 584





INSTALLATION SERVICE POINTS

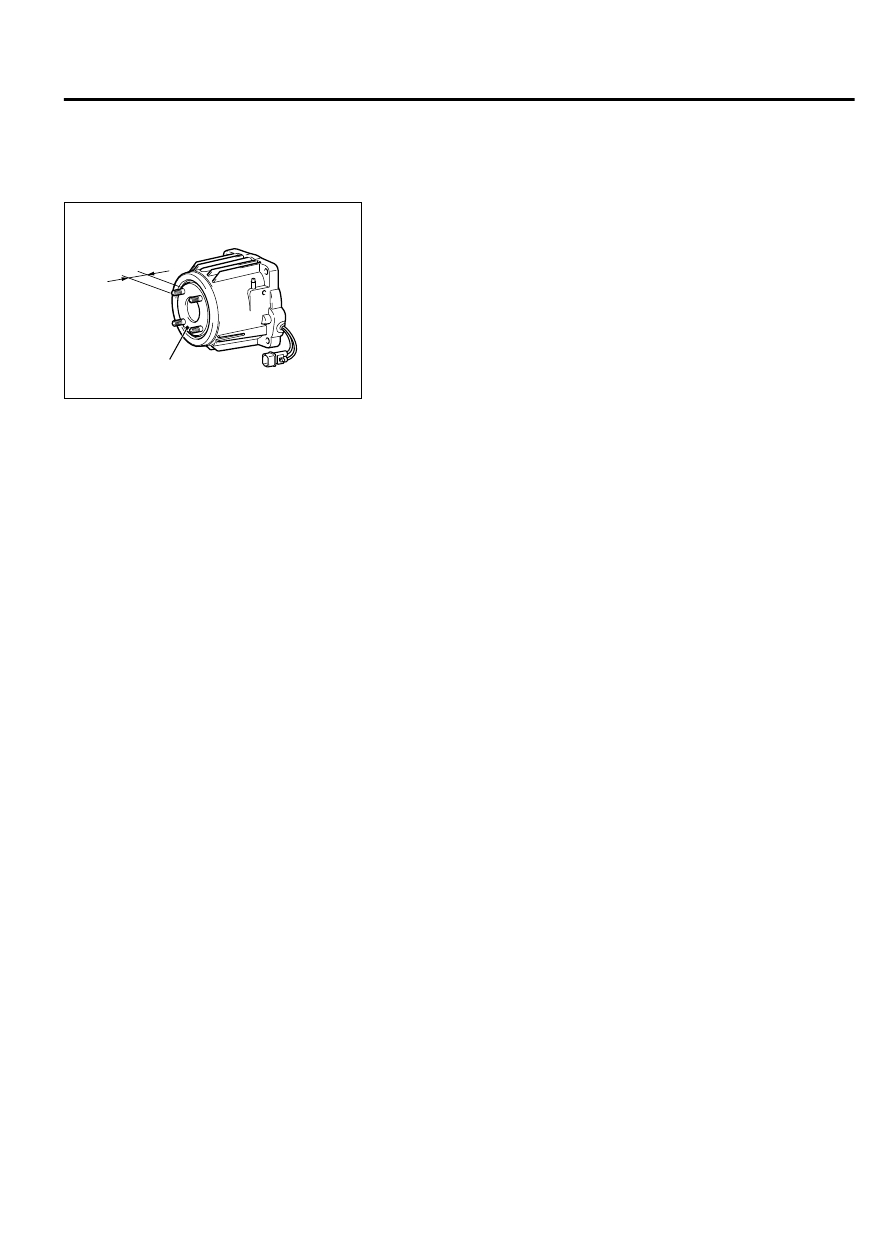

A ELECTRONIC CONTROL COUPLING INSTALLATION

ZC3051960000

A

Electronic control
coupling

1.

Check that the length of the electronic control coupling stud
bolt (A) is within the standard value range.

Standard value: 22.3 - 25.1 mm (0.88 - 0.99 inch)

2.

If  it  exceeds  either  of  the  limits,  clean  the  threads  for  the
electronic control coupling and replace the stud bolt.

Tightening torque: 15 ± 3 N·m (11 ± 2 ft-lb)

ELECTRONIC CONTROL AWD

27C-95

ELECTRONIC CONTROL COUPLING

MEMO

27C-96

ELECTRONIC CONTROL AWD

GROUP 31

WHEEL AND TIRE

CONTENTS

SPECIFICATIONS..................

31-2

SERVICE SPECIFICATIONS..........

31-2

WHEEL AND TIRE DIAGNOSIS........

31-2

DIAGNOSIS.......................

31-2

WHEEL BALANCE ACCURACY..........

31-3

ON-VEHICLE SERVICE..............

31-7

TIRE INFLATION PRESSURE CHECK
................................

31-7

TIRE WEAR CHECK.................

31-7

WHEEL RUNOUT CHECK..............

31-7

WHEEL AND TIRE..................

31-7

INSTALLATION SERVICE POINT......

31-7

31-1

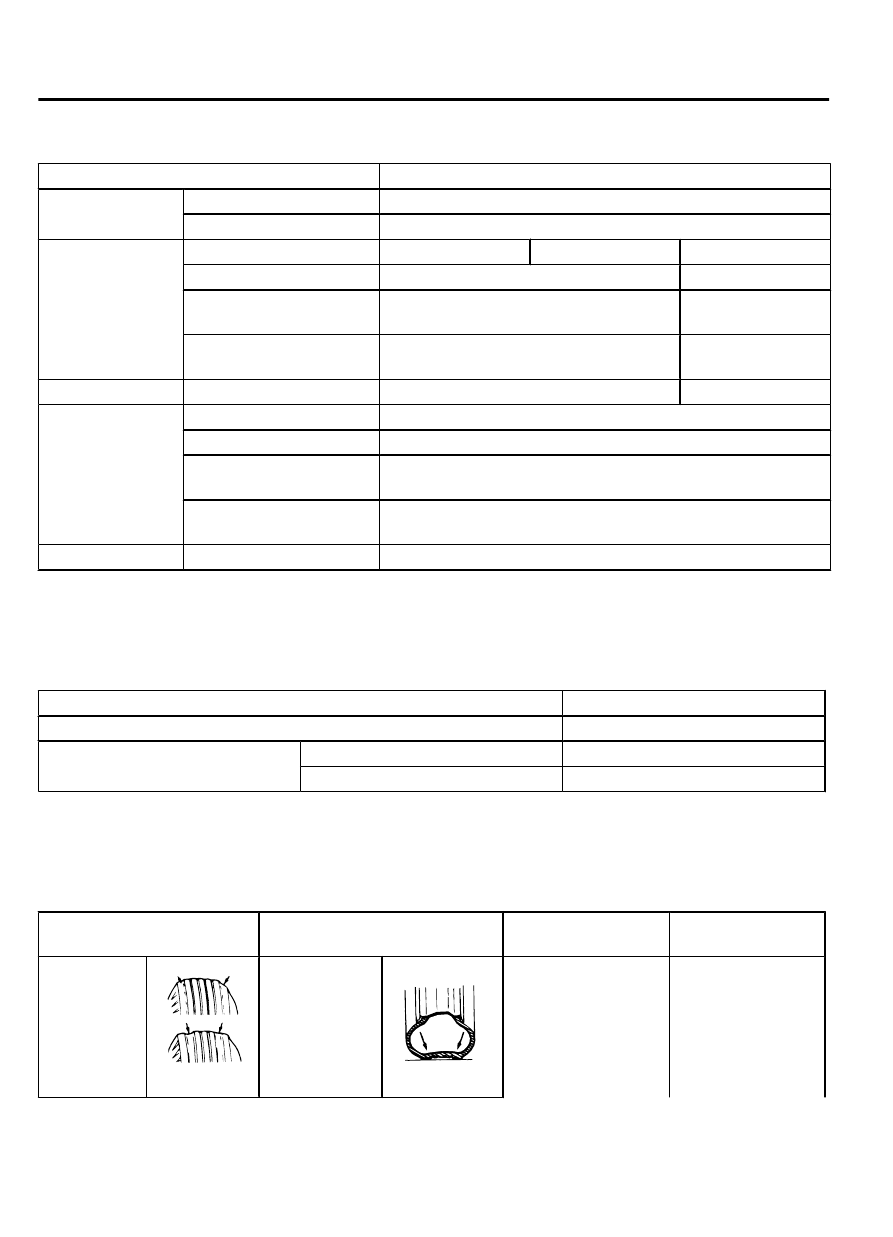

SPECIFICATIONS

M13101000002USA0000010000

Item

Specification

TPMS

 warning

pressure kPa (psi)

Warning ON

174 (25) or less

Warning OFF

190 (28) or more

Wheel

Type

Steel type

Aluminum type

Aluminum type

Size

16 × 6 1/2JJ

18 × 7JJ

Amount  of  wheel  offset
mm (in)

38 (1.5)

38 (1.5)

Pitch

 circle

 diameter

(PCD) mm (in)

114.3 (4.50)

114.3 (4.50)

Tire

Size

P215/70 R16 99H

P225/55 R18 97H

Spare wheel

Type

Steel type

Size

16 × 4T

Amount  of  wheel  offset
mm (in)

40 (1.6)

Pitch

 circle

 diameter

(PCD) mm (in)

114.3 (4.50)

Spare tire

Size

T155/90 D16

NOTE:

PCD (Pitch Circle Diameter) indicates the

pitch circle diameter of the wheel installation
holes.

SERVICE SPECIFICATIONS

M13101000003USA0000010000

ITEM

LIMIT

Tread depth of tire mm (in)

Minimum 1.6 (0.063)

Wheel runout
Aluminum wheel

Radial runout mm (in)

1.0 (0.039) or less

Lateral runout mm (in)

1.0 (0.039) or less

WHEEL AND TIRE DIAGNOSIS

DIAGNOSIS

M13101000007USA0000010000

SYMPTOM

PROBABLE CAUSE

REMEDY

REFERENCE
PAGE

Rapid  wear
at shoulders

ZC6008160000

Under-inflation
or

 lack

 of

rotation

ZC600817 0000

Adjust

 the

 tire

pressure.

For  tire  inflation
pressure,  refer  to
the  label  on  the
driver's  side  center
pillar.

31-2

WHEEL AND TIRE

SPECIFICATIONS
