STEP 6. Wiring harness check
Check  the  wiring  harness  between  the  C-128  AWD-ECU
connector  (terminal  No.  3)  and  the  C-309  ETACS-ECU
connector (terminal No. 1) for damage or other problem.

Q:Is the wiring harness in good condition?

YES:

 Go to Step 7.

NO:

 Repair the wiring harness. Then go to Step 8.

STEP 7. Check whether the DTC is reset.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the LOCK (OFF) position to the
ON position.

(3)

Check  if  the  alternator  is  correctly  operated.  (Refer  to
GROUP  16a  -  On-vehicle  Service,  Generator  Output  Line
Voltage Drop Test P.16a-6.)

(4)

Check if the DTC is set.

Q:Is the DTC No. C211F set?

YES:

 Replace AWD-ECU. (Refer to P.27C-92.) Then go to

Step 8.

NO:

 The trouble can be an intermittent malfunction.

(Refer to GROUP 00 - How to Cope with Intermittent
Malfunction P.00-15.)

STEP 8. Check whether the DTC is reset.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the LOCK (OFF) position to the
ON position.

(3)

Check  if  the  alternator  is  correctly  operated.  (Refer  to
GROUP  16a  -  On-vehicle  Service,  Generator  Output  Line
Voltage Drop Test P.16a-6.)

(4)

Check if the DTC is set.

Q:Is the DTC No. C211F set?

YES:

 Diagnose again from Step 1.

NO:

 This diagnosis is complete.

ELECTRONIC CONTROL AWD

27C-51

DIAGNOSIS

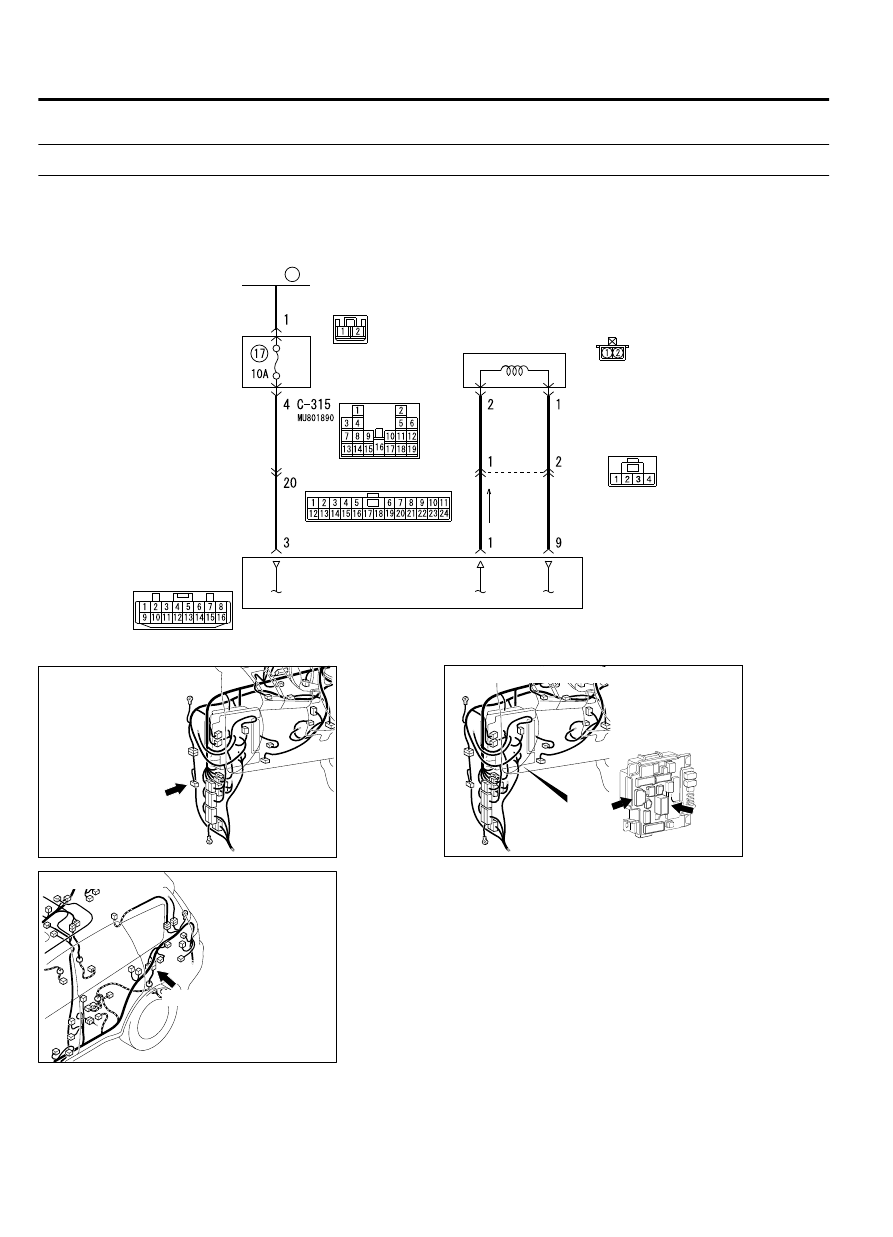

DTC C2208: AWD-ECU internal error

M12704100023USA0000010000

ETACS-
ECU

FUSIBLE
LINK

34

AWD-ECU

ELECTRONIC
CONTROL
COUPLING
SOLENOID

D7G27M000A00

GRA

Y

BLUE

YELLO

W

GRA

Y

WHITE

C-309

C-31

C-128

D-113

D-119

YELLO

W

BLUE

ZC6000240002

Connectors: C-128

C-128

ZC6000250000

Connector: D-113

D-113

ZC6000260000

ETACS-ECU
(front view)

C-315

C-309
(B)

Connectors: C-309, C-315

27C-52

ELECTRONIC CONTROL AWD

DIAGNOSIS



If there is any problem in the CAN bus lines, an
incorrect DTC may be set. Prior to this diagnosis,
always diagnose the CAN bus lines.

OPERATION
AWD-ECU  monitors  the  coupling  solenoid  wiring
harness  abnormality  and  AWD-ECU  internal  error,
and  if  any  abnormality  occurs,  it  deactivates  the
system.

DTC SET CONDITIONS
If the following conditions are met when the system is
activated, AWD-ECU switches the control from AWD
to  FWD,  flashes  the  AWD/LOCK  indicators
alternately, and sets the DTC No. C2208.

｠

Coupling solenoid voltage during primary check: 9V
or more

TROUBLESHOOTING HINTS

Current trouble

｠

AWD-ECU internal error

｠

Damaged wiring harness and connectors

｠

Short to ground between the battery and AWD-
ECU

｠

Short to power supply between AWD-ECU and
the electronic control coupling solenoid

Past trouble

｠

Intermittent wiring harness or connector failure

NOTE:

For diagnosis procedures, refer to "How

to treat past trouble". (Refer to GROUP 00, How
to Treat Past Trouble P.00-17.)

｠

AWD-ECU internal error

DIAGNOSIS

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

STEP 1. Scan tool MB991958 CAN bus diagnostics
Use scan tool MB991958 to diagnose the CAN bus lines.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D - CAN

bus diagnostic chart P.54D-17.) On completion, go to
Step 2.

STEP 2. Check whether the DTC is reset after repairing the
CAN bus line.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the LOCK (OFF) position to the
ON position at least 3 times.

(3)

Use scan tool MB991958 to forcibly activate the electronic
control coupling to 10 N·m (7 ft-lb), 360 N·m (265 ft-lb), and
730  N·m  (538  ft-lb).  (Refer  to  Actuator  Test  Table  P.
27C-89.)

(4)

Check if the DTC is set.

Q:Is the DTC No. C2208 set?

YES:

 Go to Step 3.

NO:

 This diagnosis is complete.

STEP 3. Scan tool MB991958 data list
Check the following service data. (Refer to P.27C-87.)

｠

Item 04: Coupling current command value

ELECTRONIC CONTROL AWD

27C-53

DIAGNOSIS

｠

Item 05: Coupling current monitor value

Q:Is the check result normal?

YES:

 Replace AWD-ECU. (Refer to P.27C-92.)

NO:

 Go to Step 4.

STEP 4. Check the following connector:
Check the connectors below for improper engagement, terminal
damage or terminal drawn in the connector case.

｠

C-128 AWD-ECU connector

｠

D-113 electronic control coupling solenoid connector

Q:Are the connectors and terminals in good condition?

YES:

 Go to Step 5.

NO:

 Repair the connector(s) or terminal(s). Then go to

Step 10.

STEP 5. Wiring harness check
Check  the  wiring  harness  between  the  C-128  AWD-ECU
connector  and  the  D-113  electronic  control  coupling  solenoid
connector for damage or other problem.

Q:Is the wiring harness in good condition?

YES:

 Go to Step 6.

NO:

 Repair damage or other problem in the wiring harness.

Then go to Step 10.

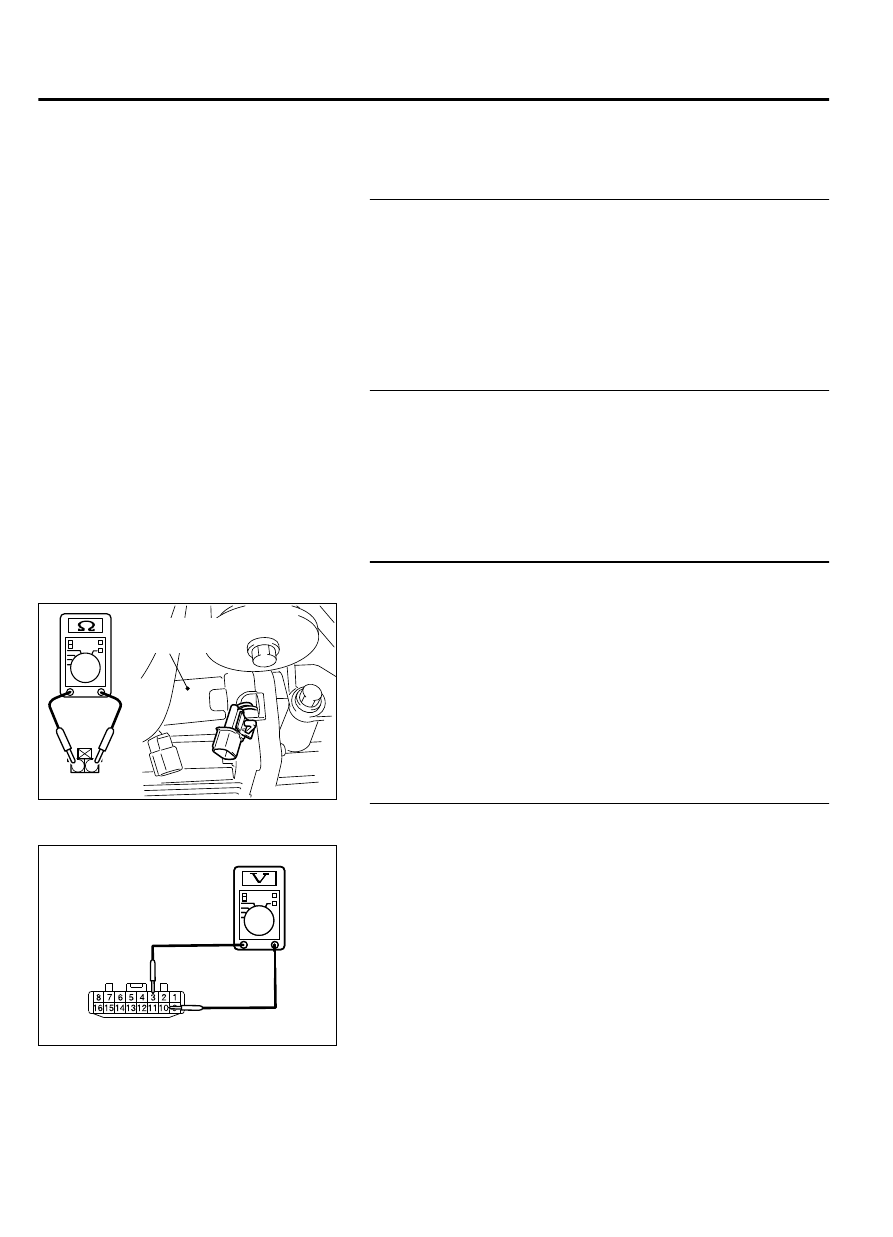

STEP 6. Resistance measurement between electronic
control coupling solenoid connector terminals

1

2

ZC3052000001

D-119

Electronic
control coupling

Disconnect the D-119 connector, and measure the resistance
value between the connector terminals on the electronic control
coupling side.

Standard value: 2.2 - 4.0 ohm

Q:Is  the  measured  resistance  value  within  the  standard

value range?

YES:

 Go to Step 7.

NO:

 Replace the electronic control coupling. (Refer

to P.27C-94.) Then go to Step 10.

STEP 7. Voltage measurement at the AWD-ECU connector

(1)

Disconnect the C-128 AWD-ECU connector.

C-128 harness
connector:
harness side

ZC3047190000

(2)

Measure the voltage between the C-128 wiring harness side
connector terminals No. 3/4 and No. 10.

OK: Battery voltage

Q:Is the check result normal?

YES:

 Go to Step 9.

NO:

 Go to Step 8.

27C-54

ELECTRONIC CONTROL AWD

DIAGNOSIS
