Mitsubishi Outlander XL. Manual - part 560





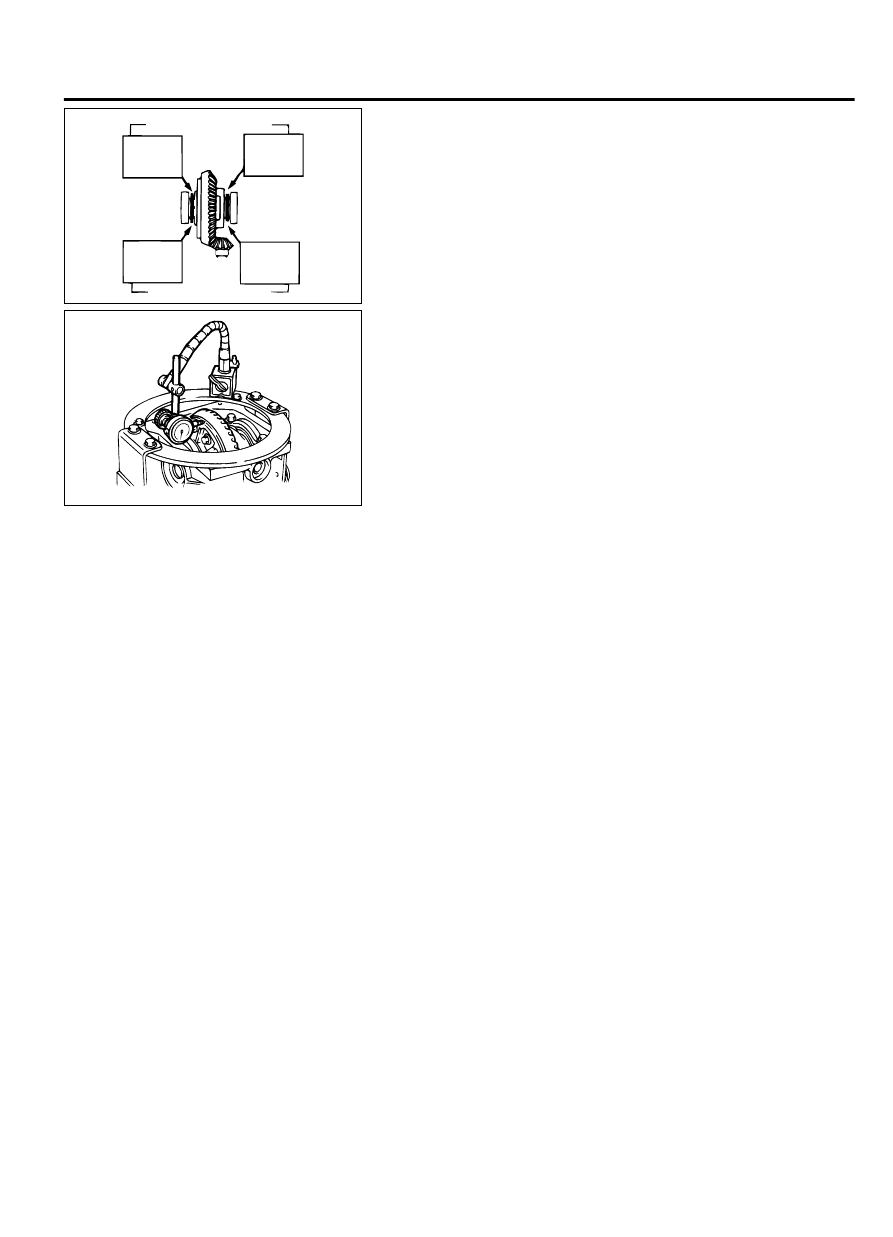

ZC3021080000

When the backlash is small

When the backlash is large

Decreased

Decreased

Increased

Increased

9.

When  the  backlash  is  not  within  the  standard  value  range,
move the side bearing spacers as shown in the figure to adjust
the backlash.

NOTE:

Increase the side bearing spacers by the same

amount as for the decrease.

10.

Check the final drive gear teeth contact, and if not proper,
adjust it.(Refer to P.27B-26.)

ZC3001430000

11.

Measure the drive gear runout on the backside.

Limit: 0.05 mm (0.002 inch)

12.

When the runout exceeds the limit value, change position of
the drive gear and differential case, and measure the runout
again.

13.

If the adjustment is not possible, replace the differential case
or the drive gear and the drive pinion as a set.

REAR AXLE<AWD>

27B-43

DIFFERENTIAL CARRIER ASSEMBLY

MEMO

27B-44

REAR AXLE<AWD>

GROUP 27C

ELECTRONIC CONTROL AWD

CONTENTS

GENERAL INFORMATION............

27C-3

SERVICE PRECAUTIONS............

27C-5

SERVICE SPECIFICATIONS.........

27C-6

SEALANT........................

27C-6

SPECIAL TOOL..................

.27C-7

DIAGNOSIS......................

27C-8

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING................

27C-8

PRECAUTIONS FOR DIAGNOSIS......

27C-8

CHECK OF DRIVE MODE INDICATORS (AWD/
LOCK)..........................

27C-9

DIAGNOSTIC FUNCTION............

27C-9

DIAGNOSIS CODE CHART...........

27C-9

DIAGNOSTIC TROUBLE CODE PROCEDURES
..............................

27C-10

DTC C1078: Tire with incorrect diameter
equipped........................

27C-10

DTC C1456: Wiring harness or coupling
coil overcurrent failure........

27C-13

DTC C145A: Wiring harness and coupling
coil short circuit failure......

27C-17

DTC C145D: Wiring harness and coupling
coil open circuit failure.......

27C-21

DTC C145F: Coupling Overload....

27C-25

DTC C1460: Drive mode selector circuit
failure.........................

27C-27

DTC C2100: Abnormal battery voltage
(Too low).......................

27C-31

DTC C2101: Abnormal battery voltage
(Too high)......................

27C-35

DTC C211C: Abnormal IG1 power supply
low voltage....................

.27C-39

DTC C211D: Abnormal IG1 power supply
high voltage....................

27C-42

DTC C211E: Abnormal power supply
voltage (Too low)...............

27C-45

DTC C211F: Abnormal power supply
voltage (Too high)..............

27C-48

DTC C2208: AWD-ECU internal error
................................

27C-52

DTC U0001: Malfunction of bus-off
................................

27C-56

DTC U0100: Engine CAN time-out
................................

27C-58

DTC U0121: ABS CAN time-out.....

27C-62

DTC U0141: ETACS CAN time-out
................................

27C-64

DTC U0401: Engine CAN data error
...............................

.27C-66

DTC U0415: ABS CAN data error
................................

27C-69

DTC U113C: Wheel speed sensor data
error...........................

27C-72

TROUBLE SYMPTOM CHART.........

27C-74

SYMPTOM PROCEDURES............

27C-75

Inspection Procedure 1: Scan tool
MB991958 cannot Communicate with the
Electronic Control AWD System.
................................

27C-75
