Mitsubishi Outlander XL. Manual - part 550

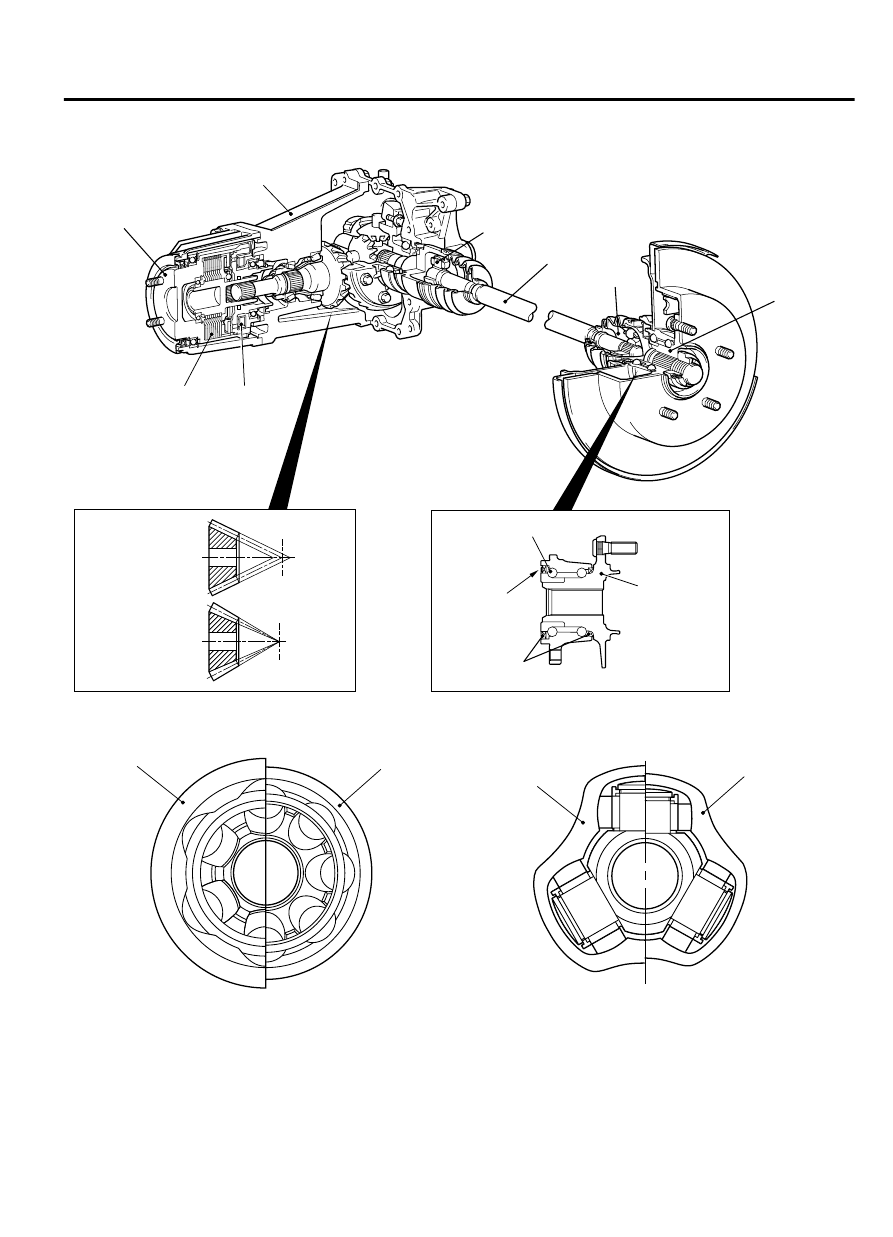

CONSTRUCTION DIAGRAM

ZC5018540000

ETJ

EUJ

Magnetic
encoder

Oil seal

Rear hub

Ball bearing

Equal altitude
toothed gear

Bevel gear

Rear hub

Driveshaft

Differential
carrier

Electronic control
coupling

Clutch

Electro
magnet

ZC5000450000

ETJ

EUJ

EUJ compared with BJ

ETJ compared with TJ

REAR AXLE<AWD>

27B-3

GENERAL INFORMATION

GENERAL SPECIFICATIONS

M12701000002USA0000010000

Item

Specification

Rear axle
Wheel bearing

Type

Unit bearing (double-row angular contact ball
bearing)

Driveshaft Joint

Type

Outer

EUJ

Inner

ETJ

Shaft length* x
Shaft diameter
mm (in)

505.5 × 23 (19.90 × 0.91)

586 × 23 (23.07 × 0.91)

Differential
Reduction gear type

Hypoid gear

Reduction ratio

2.352

Differential gear type (Type ×
number of gears)

Side gear

Straight bevel gear × 2

Pinion gear

Straight bevel gear × 2

Number of teeth

Drive gear

Drive pinion

Side gear

Pinion gear

Bearings (Outside diameter × Inside
diameter) mm (in)

Side

72 × 35 (2.83 × 1.38)

Front

55 × 30 (2.17 × 1.18)

Rear

68 × 40 (2.68 × 1.57)

NOTE:

*: Indicates the distance between the

center of each joint.

SERVICE SPECIFICATIONS

M12701000003USA0000010000

Item

Standard value

Limit

Rear axle total backlash mm (in)

5 (0.2)

Wheel bearing end play mm (in)

0.05 (0.002)

Hub rotation starting torque N·m(ft-lb)

1.4 (1.03)

Electronic control coupling stud bolt length mm (in)

22.3 - 25.1 (0.88 - 0.99) -

Final drive gear backlash mm (in)

0.10 - 0.15 (0.004 -
0.006)

Drive gear runout on backside mm (in)

0.05 (0.002)

Differential gear backlash mm (in)

0 - 0.076 (0 - 0.0030)

0.2 (0.01)

Drive pinion rotation torque N·m (in-lb) When replaced with

new one
(coated with rust
inhibitor oil)

0.7 - 1.0 (6.20 - 8.85)

ETJ boot assembly dimension mm (in)

75 ± 3 (2.95 ± 0.12)

27B-4

REAR AXLE<AWD>

GENERAL SPECIFICATIONS

LUBRICANTS

M12701000004USA0000010000

Item

Specified lubricant

Quantity

Rear differential gear
oil

Hypoid gear oil API classification GL-5, SAE 80W

Approx. 0.5 dm3(0.53 qt)

ETJ joint

Repair kit grease

75 ± 10 g (2.6 ± 0.3 oz)

SEALANT AND ADHESIVE

M12701000005USA0000010000

Item

Specified sealant and adhesive

Vent plug

3M™ AAD Part No.8672, 8679, 8678, 8661, 8663 or
equivalent

Differential cover assembly
Differential carrier and electronic control
coupling mounting part
Drive gear and differential case mounting part 3M™ AAD Part No. 8730, 8731 or equivalent

COMPONENT IDENTIFICATION

M12701000038USA0000010000

DRIVE PINION SPACER

Height of drive pinion spacer mm (in)
24.3 (0.96)
23.6 (0.93)

REAR AXLE DIAGNOSIS

INTRODUCTION

M12701000041USA0000010000

Noise from the driveshaft or differential may be
caused by defects in the components.

TROUBLESHOOTING STRATEGY

M12701000042USA0000010000

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
rear axle fault.

Gather information from the customer.

Verify that the condition described by the customer
exists.

Find the malfunction by following the Symptom
Chart.

Verify malfunction is eliminated.

SYMPTOM CHART

M12701000043USA0000010000

Symptom

Inspection
procedure

Reference page

Driveshaft

Noise during wheel rotation

P.27B-6

Differential

Constant noise

P.27B-7

Gear noise while driving

P.27B-8

REAR AXLE<AWD>

27B-5

LUBRICANTS

Symptom

Inspection
procedure

Reference page

Gear noise while coasting

P.27B-9

Bearing noise while driving or coasting

Noise while turning

Heat

Oil leakage

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Noise during Wheel Rotation <DRIVESHAFT>

M12701000045USA0000010000

DIAGNOSIS

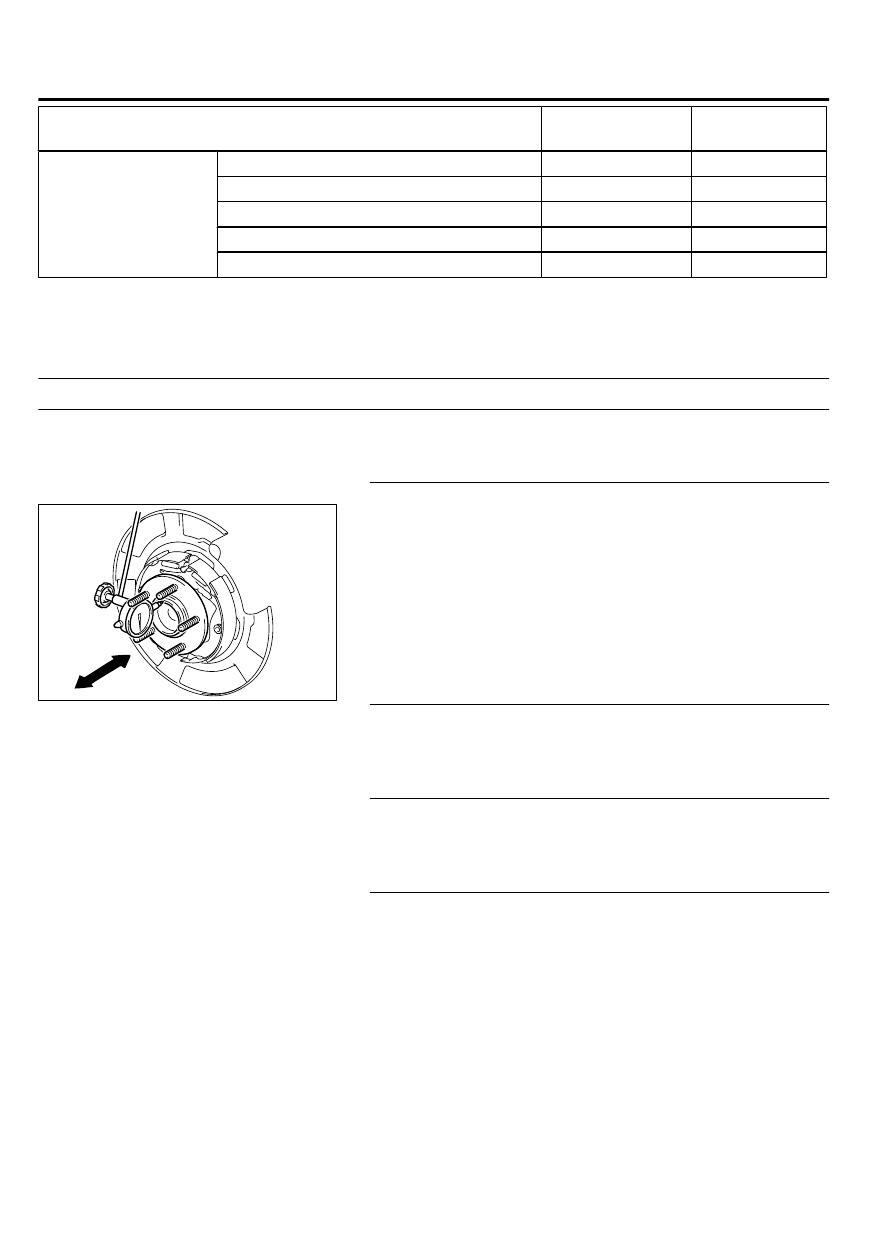

STEP 1. Check the wheel bearing end play.

ZC5018670000

(1)

Remove the caliper assembly, and suspend the caliper
assembly with a wire and remove the brake disc.

(2)

Fit the dial gauge as shown in the diagram and move the hub
in the axial direction to measure the play.

Limit: 0.05 mm (0.002 inch)

Q:Is the wheel bearing end play within the limit?

YES:

Go to step 2.

NO:

Replace the part, then go to Step 4.

STEP 2. Check if the driveshaft is bent.

Q:Is the driveshaft bent?

YES:

Replace the part. Then go to Step 3.

NO:

Go to Step 4.

STEP3. Check the driveshaft assembly for wear or damage.

Q:Is the driveshaft assembly worn or damaged?

YES:

Replace the driveshaft assembly. Then go to Step 4.

NO:

There is no action to be taken.

STEP 4. Retest the system.

Q:Is the abnormal noise eliminated?

YES:

The procedure is complete.

NO:

Start over at Step 1.

27B-6

REAR AXLE<AWD>

REAR AXLE DIAGNOSIS
