Termina
l No.

Inspection item

Inspection requirement

Normal condition

Transmission

 fluid

temperature: 80°C (176°F)

Approx. 0.69 V

40

Line  pressure  linear
solenoid valve

Ignition  switch:
ON

While driving

Approx. 300 Hz*

Other than above

1 V or less

41

Low

 clutch

 linear

solenoid valve

While driving

At low clutch engaged

Approx. 300 Hz*

Other than above

1 V or less

43

Low-reverse

 brake

pressure switch

While driving

At low-reverse brake engaged 1 V or less
Other than above

Battery positive voltage

44

2-6  brake  pressure
switch

While driving

At 2-6 brake engaged

1 V or less

Other than above

Battery positive voltage

45

High  clutch  pressure
switch

While driving

At high clutch engaged

1 V or less

Other than above

Battery positive voltage

46

Shift switch (down)

Ignition  switch:
ON
Transmission
range:

 sport

mode

Transmission

 range:

Downshift and hold the lever.

1 V or less

Transmission  range:  Other
than above

Battery positive voltage

48

Output  shaft  speed
sensor ground

Always

1 V or less

49

Input  shaft  speed
sensor ground

Always

1 V or less

50

Transmission

 fluid

temperature

 sensor

ground

Ignition switch: ON

1 V or less

51

Low-reverse

 brake

shift solenoid valve

While driving

Battery positive voltage

Other than above

1 V or less

52

Lock-up  and  Low-
reverse  brake  liner
solenoid

Ignition  switch:
ON

At lock-up engaged

Approx. 300 Hz*

Other than above

1 V or less

NOTE:

 *The operation is performed at 300 Hz in a

voltage range of 0 to 12 V when measured by an
oscilloscope.

SPECIAL TOOLS

M12301000006USA0000010000

Tool

Tool number and name Supersession

Application

YD998330

MD998330

 (Includes

MD998331)
Oil  pressure  gauge  (3.0
MPa, 427 psi)

MD998330-01

Measurement of hydraulic pressure

AUTOMATIC TRANSAXLE MECHANICAL

23A-147

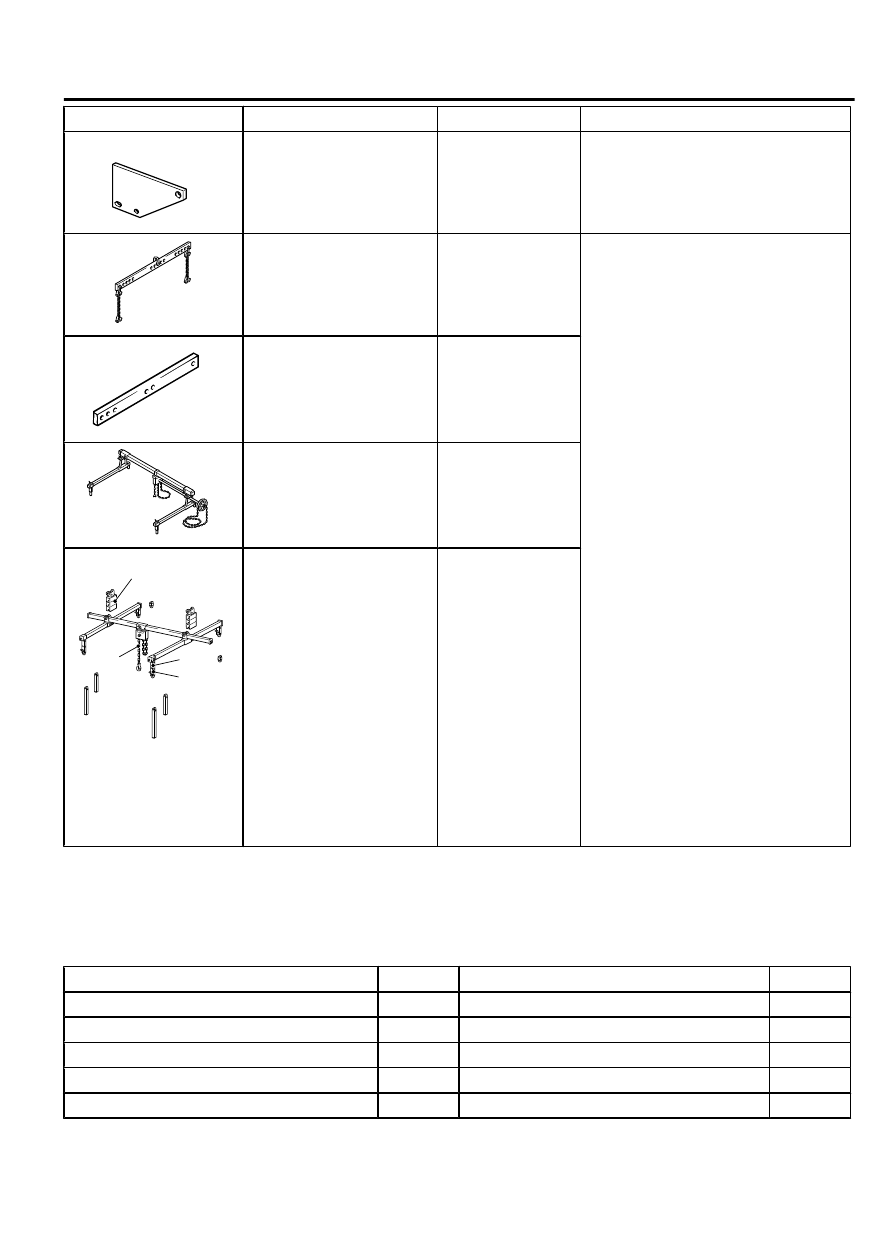

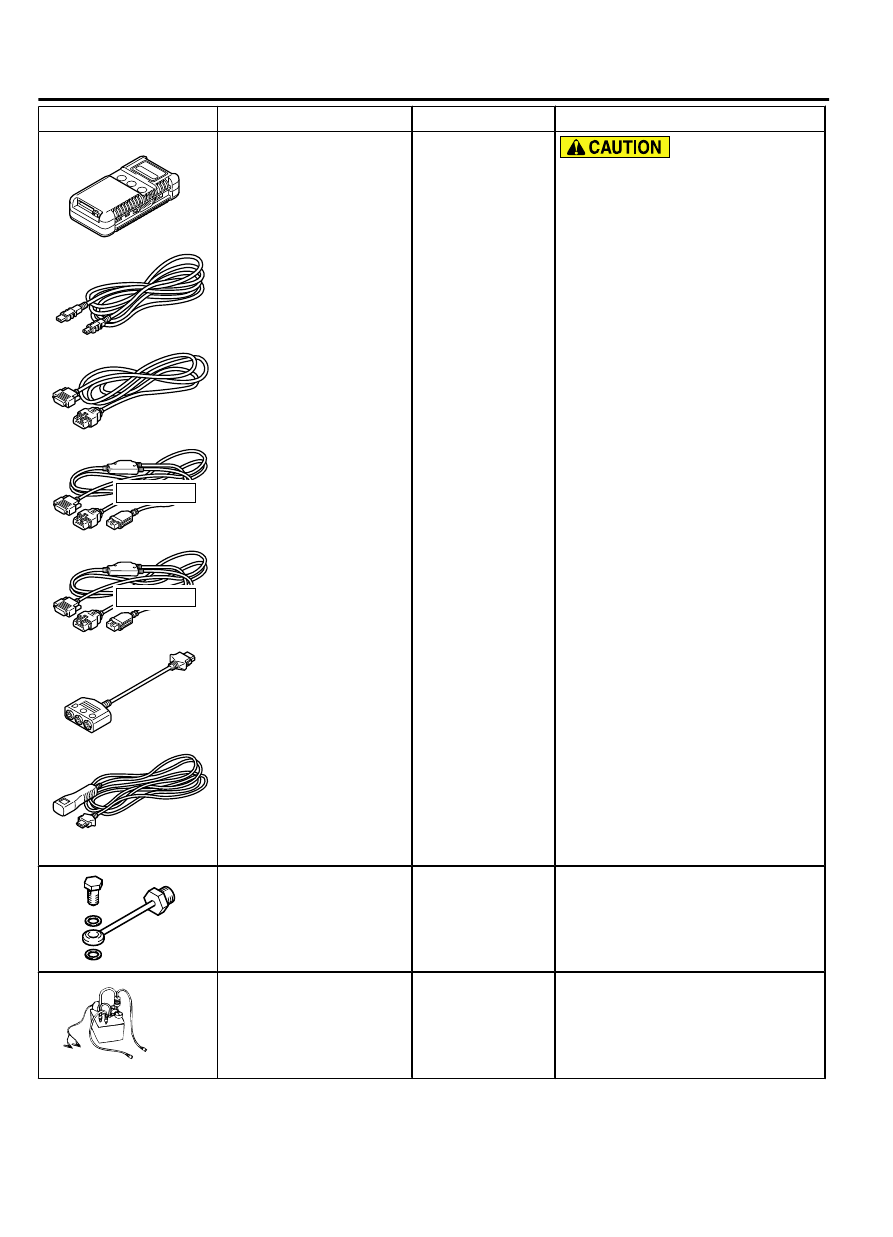

SPECIAL TOOLS

Tool

Tool number and name Supersession

Application

MB991910

MB991826

YB9919580000

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

Do not use

a

b

c

d

e

f

g

MB991958

a.

MB991824

b.

MB991827

c.

MB991910

d.

MB991911

e.

MB991914

f.

MB991825

g.

MB991826

M.U.T.-III sub assembly

a.

Vehicle
communication
interface (V.C.I.)

b.

M.U.T.-III USB cable

c.

M.U.T.-III

 main

harness  A  (Vehicles
with

 CAN

communication
system)

d.

M.U.T.-III

 main

harness  B  (Vehicles
without

 CAN

communication
system)

e.

M.U.T.-III

 main

harness C (for Daimler
Chrysler models only)

f.

M.U.T.-III
measurement adapter

g.

M.U.T.-III

 trigger

harness

MB991824-KIT

NOTE:

G:

MB991826 M.U.T.-
III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

M.U.T.-III

 main

 harness

 A

(MB991910)  should  be  used.
M.U.T.-III  main  harness  B  and  C
should  not  be  used  for  this
vehicle.
Combination

 meter

 check

(Diagnostic  trouble  code,  service
data)

YB992127AA01

MB992127
Adapter

-

Connection for oil pressure gauge

YB995062AA00

MB995062
Flushing tool

MLR-6906B

 or

Equivalent

Flushing cooler and tube

23A-148

AUTOMATIC TRANSAXLE MECHANICAL

SPECIAL TOOLS

Tool

Tool number and name Supersession

Application

YB992208

MB992208
Engine hanger plate A

General  Service
Tool

Supporting  the  engine  assembly
during  removal  and  installation  of
the transaxle assembly

YB991454AA01

MB991454
Engine hanger balancer

MZ203827-01

When  the  engine  hanger  is  used:
Supporting  the  engine  assembly
during  removal  and  installation  of
the transaxle assembly

NOTE:

Special tool MB991454 is a

part of engine hanger attachment
set MB991453.

YB991527AA01

MB991527
Hanger

Tool not available

YB991895

MB991895
Engine hanger

Tool not available

B991928

A

B

C

D

E

F

Slide bracket (HI)

MB991928
Engine hanger

A: MB991929
Joint (50) ×2
B: MB991930
Joint (90) ×2
C: MB991931
Joint (140) ×2
D: MB991932
Foot (standard) ×4
E: MB991933
Foot (short) ×2
F: MB991934
Chain

 and

 hook

assembly

Tool not available

ON-VEHICLE SERVICE

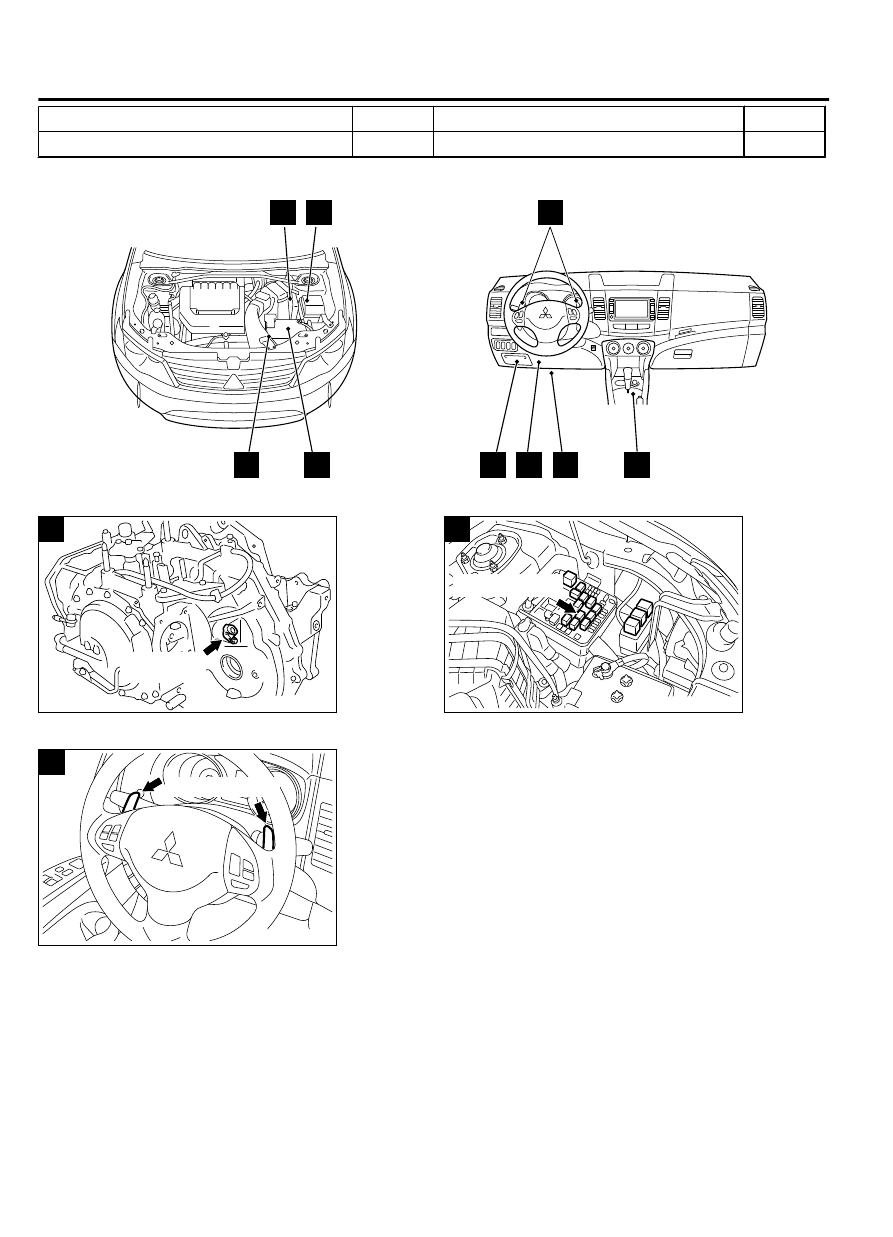

A/T CONTROL COMPONENT LAYOUT

M12301000086USA0000010000

Name

Symbol

Name

Symbol

A/T control relay

B

Shift lock solenoid

I

A/T control solenoid valve assembly

D

Stoplight switch

H

Data link connector

G

Shift switch assembly

I

Input shaft speed sensor

E

Transaxle control module (TCM)

F

Output shaft speed sensor

A

Transmission fluid temperature sensor

D

AUTOMATIC TRANSAXLE MECHANICAL

23A-149

ON-VEHICLE SERVICE

Name

Symbol

Name

Symbol

Paddle shift switch

C

Transmission range switch

D

ZC6028620000

A

B

D

E

F

G

H

I

C

ZC6037960000

A

Output shaft
speed sensor

ZC6028630002

B

A/T control relay



ZC6017740001

Paddle shift switch

C

23A-150

AUTOMATIC TRANSAXLE MECHANICAL

ON-VEHICLE SERVICE
