Mitsubishi Outlander XL. Manual - part 498

Judgement Criteria <Accelerator pedal position
sensor>

｠

Communication status: fail. (3 seconds)

OBD-II DRIVE CYCLE PATTERN
Start the engine, and keep the vehicle stopped in "P"
range for 5 seconds.

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CODE TO BE SET ARE:)

｠

Malfunction of the CAN

｠

Malfunction of the ECM

｠

Damaged harness or connector

｠

Malfunction of the throttle position sensor

｠

Malfunction of the TCM



DIAGNOSIS

STEP 1. Check for CAN communication system
malfunction.

Q:Are the DTC U0001, U0100, U0141, P1705, P1706 set?

YES:

 Check and repair the CAN communication system.

NO:

 Go to Step 2.

STEP 2. Check the throttle position sensor and ECM-side
main unit and connector wiring.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair or replace the failure section.

STEP 3. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Replace the TCM.

DTC 1706: Accelerator Pedal Position Information

M12301000425USA0000010000

DESCRIPTIONS OF MONITOR METHODS

｠

When  approx.  1  second  has  elapsed  after  TCM
started, the throttle pedal position signal seizure is
detected for 3 seconds.

MONITOR EXECUTION

｠

Continuous

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

AUTOMATIC TRANSAXLE MECHANICAL

23A-107

AUTOMATIC TRANSAXLE DIAGNOSIS

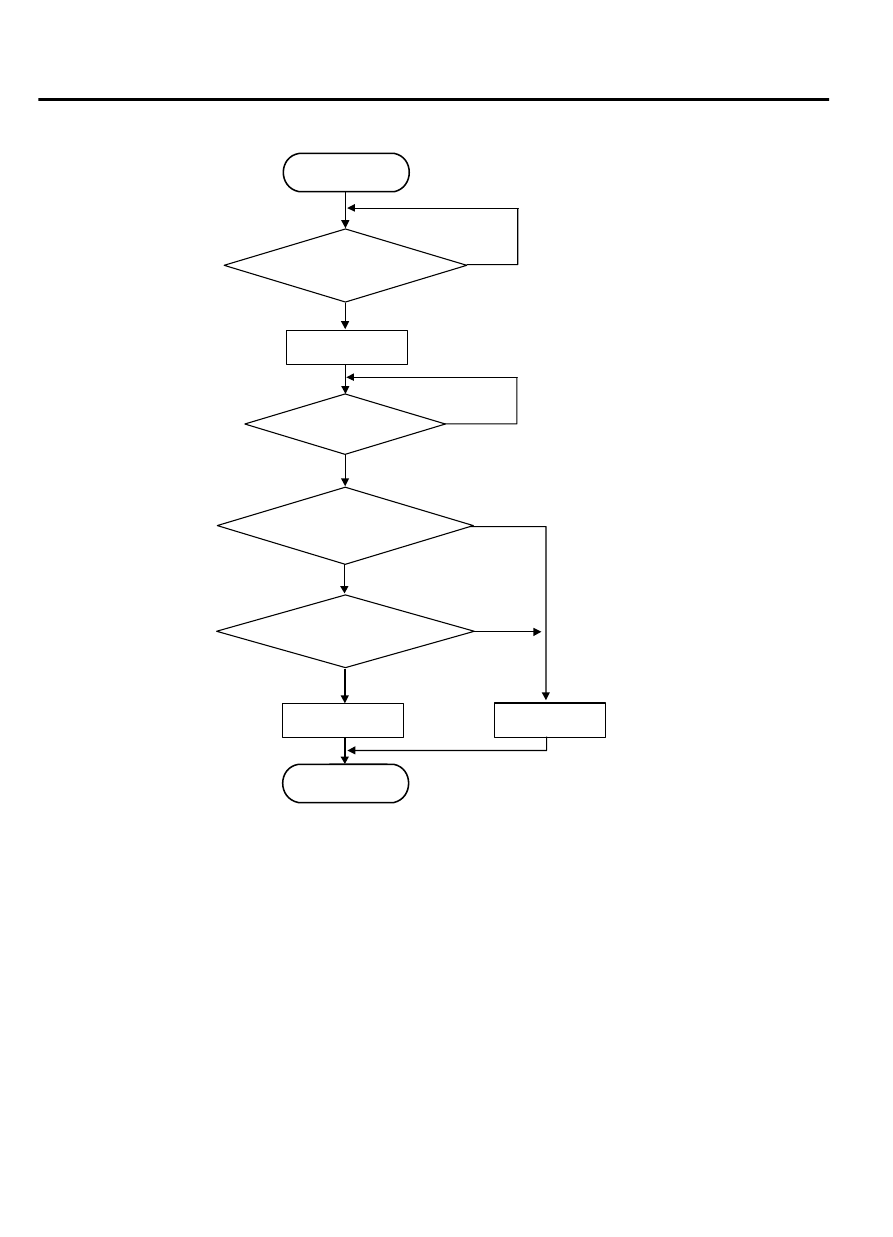

LOGIC FLOW CHARTS (Monitor Sequence)

ZC604083

Good

Malfunction

END

START

TCM is started

Accelerator pedal position

frozen

Continuous failure
      for 3 secs.

Yes

No

No

Yes

No

Timer start

Timer

＞

1.05 secs

.

Yes

Yes

No

0000

DTC SET CONDITIONS

Check Conditions

｠

TCM is started: more than 1.05 seconds.

Judgement Criteria

｠

Communication status: fail. (3 seconds)

OBD-II DRIVE CYCLE PATTERN
Start the engine, and keep the vehicle stopped in "P"
range for 5 seconds.

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CODE TO BE SET ARE:)

｠

Malfunction of the CAN

｠

Malfunction of the ECM

｠

Damaged harness or connector

｠

Malfunction of the throttle position sensor



DIAGNOSIS

23A-108

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS

STEP 1. Is the DTC code for ECM displayed?
Check that the failure related to the engine does not occur.

Q:Is the check result normal?

YES:

 Go to Step 2.

NO:

 Repair or replace the failure section.

STEP 2. Check the throttle position sensor and ECM-side
main unit and connector wiring.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair or replace the failure section.

STEP 3. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Return to START.

DTC P1731: 1st Engine Brake Detection

M12301000426USA0000010000

DESCRIPTIONS OF MONITOR METHODS

｠

With the mode other than SPORT MODE and with
the  accelerator  angle  is  smaller  than  6/8,  the
correlation  between  the  lock-up  and  low-reverse
brake linear solenoid valve control current and the
low-reverse  brake  pressure  switch  ON/OFF  is
abnormal.

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CODE TO BE SET ARE:)

｠

Transaxle assembly powertrain parts failure

｠

Malfunction of the valve assembly (Malfunction of
hydraulic valve and hydraulic switch)

｠

Malfunction of the TCM

｠

Malfunction  of  the  lock-up  and  low-reverse  brake
linear solenoid valve (valve assembly)

｠

Malfunction  of  the  low-reverse  brake  pressure
switch (valve assembly)

｠

Malfunction of the low clutch pressure switch (valve
assembly)

｠

Malfunction of the low clutch linear solenoid valve
(valve assembly)

｠

Malfunction of the low-reverse brake shift solenoid
valve (valve assembly)

｠

Malfunction of the low clutch, low-reverse brake



DIAGNOSIS

STEP 1. Check the DTC.
Check  that  P0841  (Low-clutch  pressure  switch)  and  P0988
(Low-reverse brake pressure switch) are set.

Q:Is the DTC set?

YES:

 Check and repair the relevant DTC system.

NO:

 Go to Step 2.

STEP 2. Check the DTC.
Check  that  the  DTC  other  than  P1731  (1st  engine  brake
detection) is set.

AUTOMATIC TRANSAXLE MECHANICAL

23A-109

AUTOMATIC TRANSAXLE DIAGNOSIS

Q:Is the DTC set?

YES:

 Check and repair the relevant DTC system.

NO:

 Go to Step 3.

STEP 3. Check the transmission fluid properties.
Check  the  status  of  the  transmission  fluid  properties  (smell,
color, fouling).

｠

Black: A/T inside damage, seizure

｠

Milky: Water intrusion

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Remove the A/T from the vehicle, then check and

repair the inside.

STEP 4. Check the transmission fluid level.

Q:Is the check result normal?

YES:

 Go to Step 5.

NO:

 Adjust the transmission fluid level, and then go to

Step 5.

STEP 5. Check the wiring harness, connector, and sensor
signal.

｠

Check  the  wiring  harness  and  connectors  of  the  low-clutch
pressure switch and low-reverse brake pressure switch.

｠

Check  the  signals  of  C-37  TCM  connector  terminal  No.  37
(output  shaft  speed  sensor)  and  the  terminal  No.  38  (input
shaft speed sensor).
Refer to P.23A-145.

Q:Is the check result normal?

YES:

 Go to Step 6.

NO:

 Repair or replace the failure section.

STEP 6. Hydraulic pressure test
Refer to P.23A-145.

Q:Is the check result normal?

YES:

 Go to Step 7.

NO:

 Remove the A/T from the vehicle, then check and

repair the inside.

STEP 7. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Return to START.

DTC P1753: Low Clutch Shift Solenoid Valve System

M12301000427USA0000010000

SOLENOID VALVE SYSTEM CIRCUIT
Refer to P.23A-64.
