DTC P0841: Low Clutch Pressure Switch System

M12301000418USA0000010000

HIGH
CLUTCH
PRESSURE
SWITCH

2-6 BRAKE
PRESSURE
SWITCH

LOW-
REVERS
BRAKE
PRESSURE
SWITCH

3-5 REVERSE
CLUTCH
PRESSURE
SWITCH

LOW CLUTCH
PRESSURE
SWITCH

A/T
CONTROL
SOLENOID
VALVE
ASSEMBLY

TRANSMISSION
CONTROL
MODULE

ZC6023790000

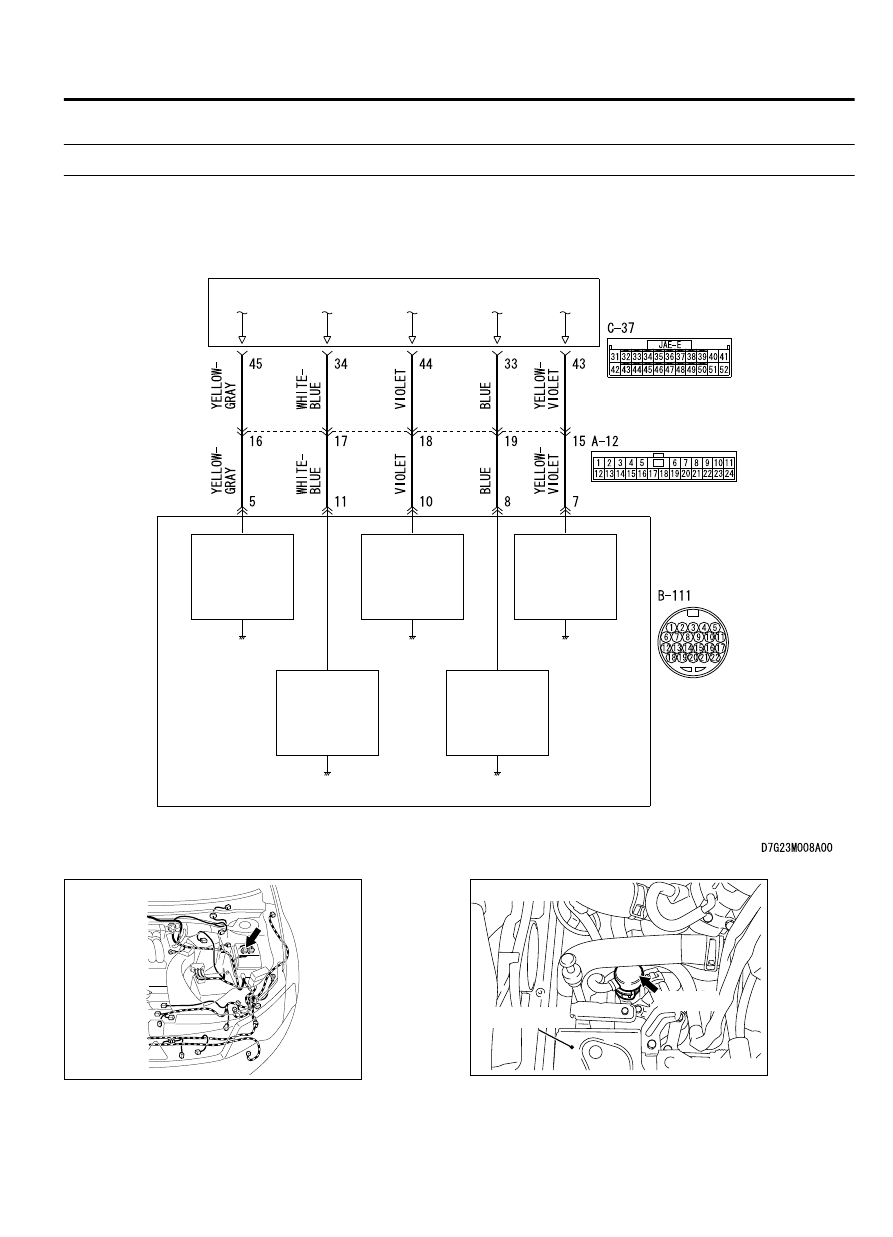

Pressure switch system circuit

ZC6008720002

Connector: A-12

ZC6038490001

B-111 (B)

Connector: B-111

Battery tray



AUTOMATIC TRANSAXLE MECHANICAL

23A-91

AUTOMATIC TRANSAXLE DIAGNOSIS

ZC6035780000

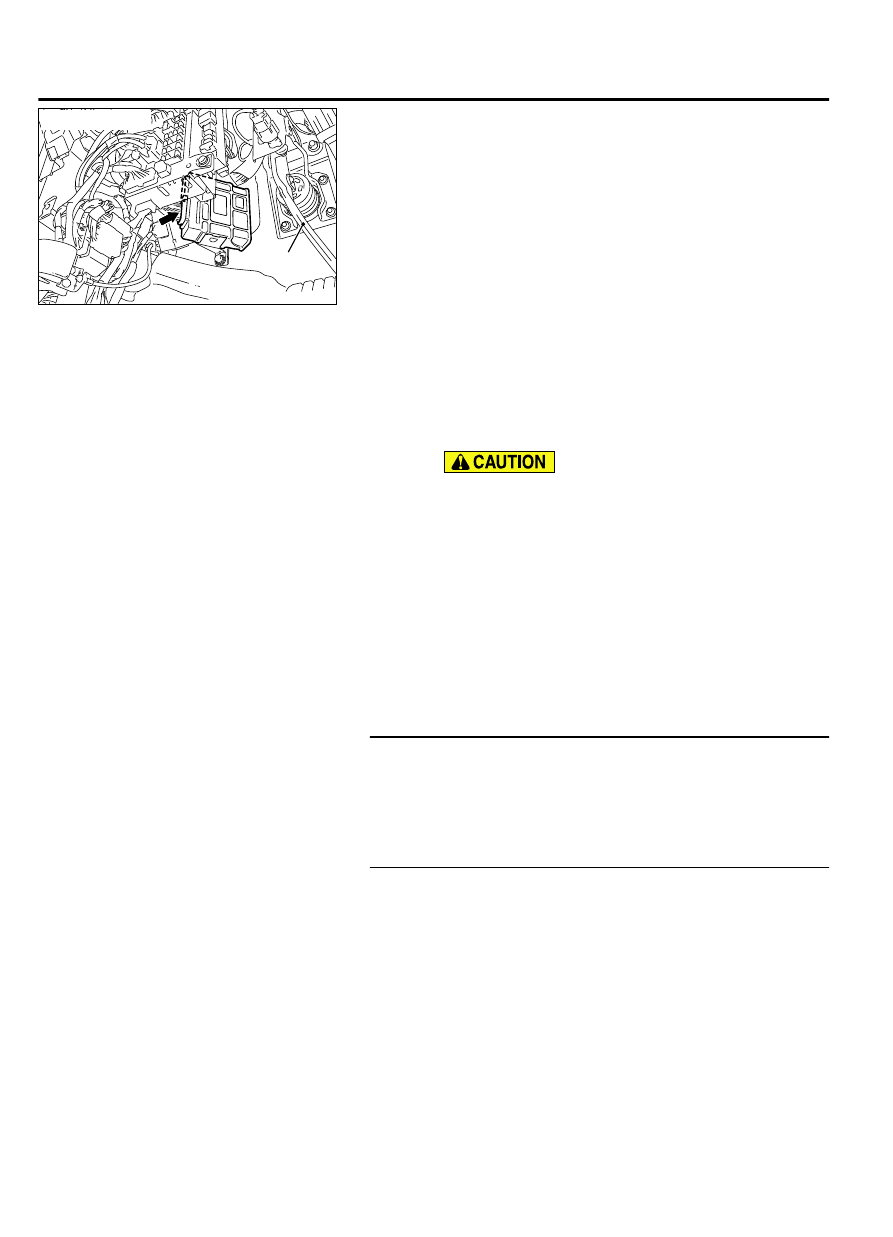

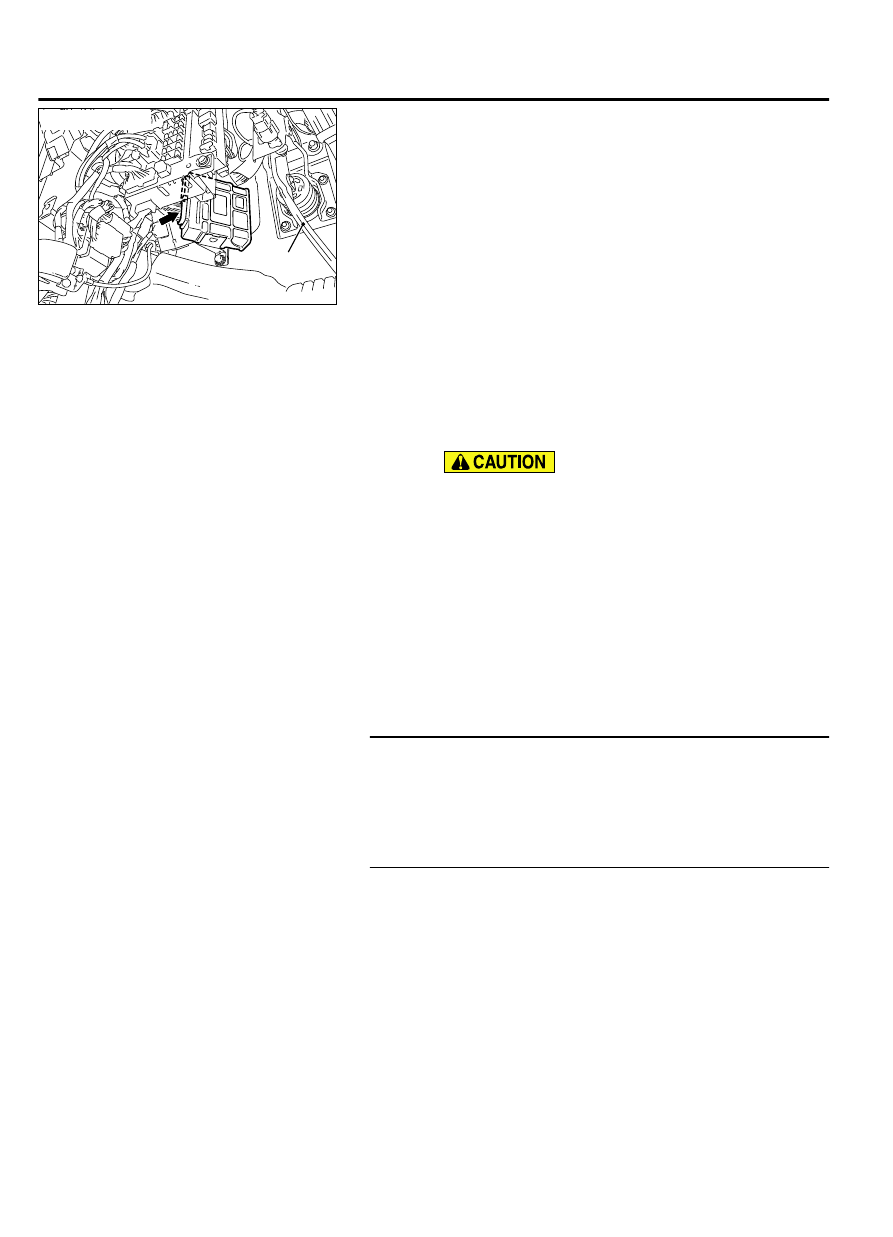

Connector: C-37

Brake pedal



DESCRIPTIONS OF MONITOR METHODS

｠

With the solenoid failure not detected and during 1st
to 4th gear driving, the switch OFF status continues
for  2  seconds.  (The  detection  is  achieved  twice
during  1  driving  cycle*1,  and  it  continues  for  2
driving cycles.)
*1: Indicates the series of driving cycle "ignition key
OFF → ON → drive → OFF." The "1 driving cycle,"
"2  driving  cycle,"  and  so  on  indicates  how  many
cycles are required to detect a failure.

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CODE TO BE SET ARE:)

｠

Malfunction  of  the  low  clutch  pressure  switch
system circuit

｠

Damaged harness or connector

｠

Malfunction of the TCM

｠

Malfunction of the low clutch pressure switch (valve
body assembly)

｠

Malfunction of the valve body assembly, abnormal
hydraulic circuit valve.

For  the  incomplete  gear  shifting  and  slippage,
first refer to the SYMPTOM CHART P.23A-23.



DIAGNOSIS

STEP 1. Check the DTC.

Q:Is  the  DTC  other  than  the  pressure  switch  set?  (Is  the

code other than P0841, P0846, P0871, P0876, and P0988

set?)

YES:

 Check and repair the relevant DTC system.

NO:

 Go to Step 2.

STEP 2. Check the TCM terminal voltage.
[C-37 TCM connector (vehicle side, connected)]
Measure the voltage between C-37 terminal No. 33 and body
ground.

｠

Low-clutch engaged: 0 V

｠

Other than above: Battery positive voltage

Q:Is the check result normal?

YES:

 Go to Step 7.

NO:

 Go to Step 3.

23A-92

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS

STEP 3. Check between the TCM connector and A/T control
solenoid valve assembly.
Check for continuity between C-37 TCM connector and B-111
A/T control solenoid valve assembly connector.

｠

Between  C-37  terminal  No.  33  and  B-111  terminal  No.  8:
Continuity exists.

When the continuity check result is OK, check that the wiring
harness is not shorted to the body and other wiring harness.

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Repair or replace the failure section.

STEP 4. Check the TCM, A/T control solenoid valve
assembly connector pin terminals, and the connection
status.

Q:Is the check result normal?

YES:

 Go to Step 5.

NO:

 Repair or replace the failure section.

STEP 5. Check between the A/T control solenoid valve
assembly connector and low clutch pressure switch
connector.
Check  for  continuity  between  the  B-111  A/T  control  solenoid
valve assembly connector terminals and the low clutch pressure
switch connector terminals.

｠

Between B-111 terminal No. 8 and low clutch pressure switch:
Continuity exists.

When the continuity check result is OK, check that the wiring
harness is not shorted to the body and other wiring harness.

Q:Is the check result normal?

YES:

 Go to Step 6.

NO:

 Repair or replace the failure section.

STEP 6. Check the low clutch pressure switch body ground.
Check  for  continuity  between  the  low  clutch  pressure  switch
body and ground.

｠

Between  the  low  clutch  pressure  switch  body  and  body
ground: Continuity exists.

Q:Is the check result normal?

YES:

 Replace the valve body assembly, and then go to Step

8.

NO:

 Repair or replace the failure section.

STEP 7. Check the TCM, A/T control solenoid valve
assembly connector pin terminals, and the connection
status.

Q:Is the check result normal?

YES:

 Go to Step 9.

NO:

 Repair or replace the failure section.

AUTOMATIC TRANSAXLE MECHANICAL

23A-93

AUTOMATIC TRANSAXLE DIAGNOSIS

STEP 8. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Replace the TCM.

STEP 9. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Return to START.

DTC P0846: 2-6 Brake Pressure Switch System

M12301000419USA0000010000

PRESSURE SWITCH SYSTEM CIRCUIT
Refer to P.23A-91.

DESCRIPTIONS OF MONITOR METHODS

｠

With  the  solenoid  failure  not  detected  and  during
2nd  or  6th  gear  driving,  the  switch  OFF  status
continues for 2 seconds. (The detection is achieved
twice during 1 driving cycle*1, and it continues for 2
driving cycles.)
*1: Indicates the series of driving cycle "ignition key
OFF → ON → drive → OFF." The "1 driving cycle,"
"2  driving  cycle,"  and  so  on  indicates  how  many
cycles are required to detect a failure.

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CODE TO BE SET ARE:)

｠

Malfunction of the 2-6 brake pressure switch system
circuit

｠

Damaged harness or connector

｠

Malfunction of the TCM

｠

Malfunction of the 2-6 brake pressure switch (valve
body assembly)

｠

Malfunction of the valve body assembly, abnormal
hydraulic circuit valve.

For  the  incomplete  gear  shifting  and  slippage,
first refer to the SYMPTOM CHART P.23A-23.



DIAGNOSIS

STEP 1. Check the DTC.

Q:Is  the  DTC  other  than  the  pressure  switch  set?  (Is  the

code other than P0841, P0846, P0871, P0876, and P0988

set?)

YES:

 Check and repair the relevant DTC system.

NO:

 Go to Step 2.

STEP 2. Check the TCM terminal voltage.
[C-37 TCM connector (vehicle side, connected)]
Measure the voltage between C-37 terminal No. 44 and body
ground.

｠

2-6 brake engaged: 0 V

｠

Other than above: Battery positive voltage

Q:Is the check result normal?

23A-94

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS
