ZC6035780000

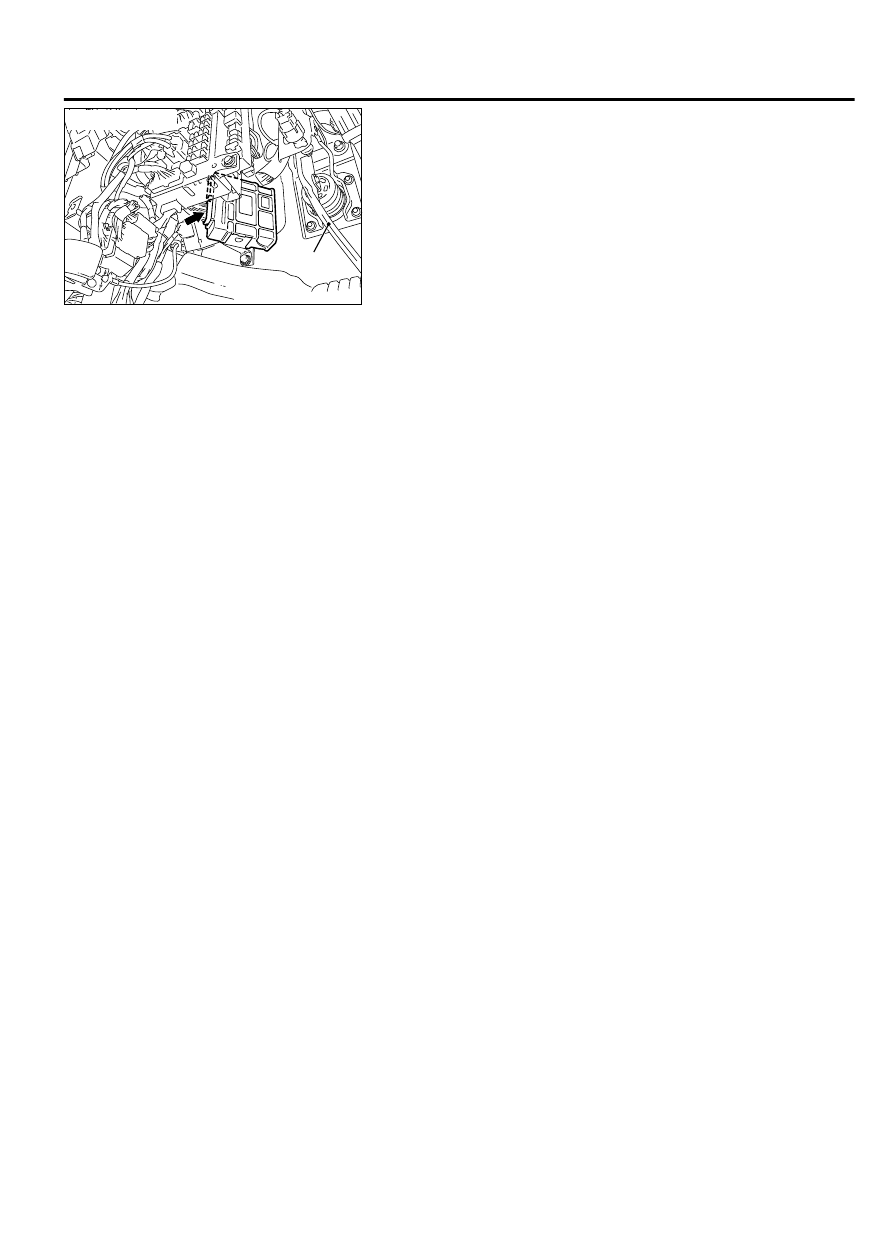

Connector: C-37

Brake pedal



DESCRIPTIONS OF MONITOR METHODS

｠

All  the  following  conditions  are  detected  for  10
minutes continuously: Vehicle speed > 10 km/h (6.2
mph),  "D"  range  and  accelerator  angle  >  1/8,  oil
temperature > 180°C (356°F).

MONITOR EXECUTION

｠

Continuous

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

AUTOMATIC TRANSAXLE MECHANICAL

23A-31

AUTOMATIC TRANSAXLE DIAGNOSIS

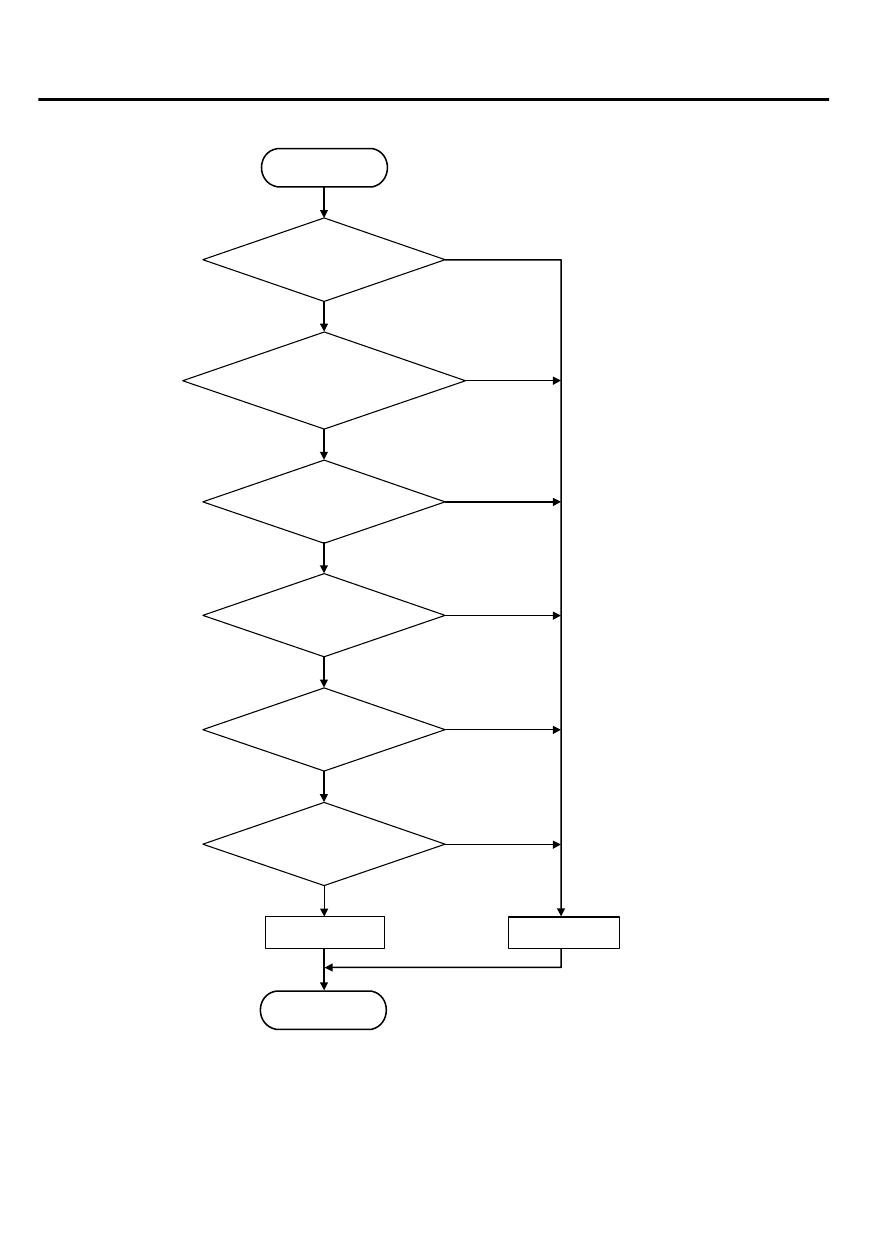

LOGIC FLOW CHARTS (Monitor Sequence)

Good

V

PG-B

 : Calculated Vehicle speed

          by output shaft speed sensor

START

V

PG-B

 > 10 km/h

END

    Transmission range
switch position is in D-range

Yes

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

No

Throttle gate opening
             > 1/8

Engine speed > 305 r/min

Transmission fluid > 180

℃

Continuous failure
      for 10 mins.

Malfunction

ZC6040640000

DTC SET CONDITIONS

Check Conditions

｠

Vehicle speed: more than 10 km/h (6.2 mph).

｠

Transmission range switch position: D.

｠

Throttle opening: more than 1/8.

23A-32

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS

｠

Engine speed: more than 305 r/min.

Judgement Criteria

｠

Value  of  temperature  of  transmission  fluid:  more
than 180°C (356°F). (10 minutes)

OBD-II DRIVE CYCLE PATTERN
Start  the  engine,  keep  the  vehicle  stopped  in  "P"
range for 5 seconds.

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CODE TO BE SET ARE:)

｠

Malfunction  of  the  transmission  fluid  temperature
sensor system (Short circuit) circuit

｠

Malfunction  of  the  transmission  fluid  temperature
sensor

｠

Malfunction of the TCM



DIAGNOSIS

STEP 1. Check the TCM terminal voltage.
[C-38 TCM connector (vehicle side, connected)]
Turn  ON  the  ignition  switch,  and  check  the  voltage  between
terminal No. 39 and No. 50.

｠

Transmission fluid 20°C (68°F): Approx. 2.52 V

｠

Transmission fluid 80°C (176°F): Approx. 0.69 V

Q:Is the check result normal?

YES:

 Go to Step 6.

NO:

 Go to Step 2.

STEP 2. Check the transmission fluid temperature sensor.
Refer to P.23A-161.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Replace the valve body assembly.

STEP 3. Check the wiring harness between the
transmission fluid temperature sensor and TCM.
Check that the wiring harness between the A/T control solenoid
valve assembly connector and TCM is not shorted to the body
and other wiring harness.

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Repair or replace the failure section.

STEP 4. Check the TCM power supply and ground.

Q:Is the check result normal?

YES:

 Go to Step 5.

NO:

 Repair or replace the failure section.

STEP 5. Check the TCM connector pin terminal and the
connection status.

Q:Is there a failure point?

YES:

 Repair or replace the failure section.

NO:

 Replace the TCM.

STEP 6. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.

AUTOMATIC TRANSAXLE MECHANICAL

23A-33

AUTOMATIC TRANSAXLE DIAGNOSIS

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Replace the TCM.

P0713: Transmission Fluid Temperature Sensor System (Open Circuit)

M12301000396USA0000010000

TRANSMISSION FLUID TEMPERATURE SENSOR
SYSTEM CIRCUIT
Refer to P.23A-30.



DESCRIPTIONS OF MONITOR METHODS

｠

The  following  conditions  are  detected:  Vehicle
speed > 10 km/h (6.2 mph), oil temperature > -40°
C (-104°F).

MONITOR EXECUTION

｠

Continuous

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

23A-34

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS
