Mitsubishi Outlander XL. Manual - part 477

DTC No. Diagnosis item

Reference
page

P0736

Reverse gear incorrect ratio

 P.23A-55

P0741

Torque converter clutch system

Stuck off

 P.23A-58

P0742

Stuck on

P0743

Lock-up and Low-reverse brake linear solenoid valve system

 P.23A-64

P0748

Line pressure linear solenoid valve system

 P.23A-68

P0753

Low clutch linear solenoid valve system

 P.23A-71

P0758

2-6 brake linear solenoid valve system

 P.23A-74

P0763

3-5 reverse clutch linear solenoid valve system

 P.23A-77

P0768

High clutch linear solenoid valve system

 P.23A-80

P0815

Puddle shift switch (up) system

 P.23A-83

P0816

Puddle shift switch (down) system

 P.23A-85

P0826

Shift switch assembly system

 P.23A-87

P0841

Low clutch pressure switch system

 P.23A-91

P0846

2-6 brake pressure switch system

 P.23A-94

P0871

3-5 reverse clutch pressure switch system

 P.23A-96

P0876

High clutch pressure switch system

 P.23A-98

P0893

Interlock detection

 P.23A-100

P0988

Low-reverse brake pressure switch system

 P.23A-103

P1705

Throttle position sensor information (engine)

 P.23A-105

P1706

Accelerator pedal position information

 P.23A-107

P1731

1st engine brake detection

 P.23A-109

P1753

Low clutch shift solenoid valve system

 P.23A-110

P1758

Low-reverse brake shift solenoid valve system

 P.23A-114

P1773

ABS information (ASC)

 P.23A-117

P1794

Ground return

 P.23A-119

U0001

CAN bus off

 P.23A-122

U0100

ECM time-out

 P.23A-123

U0121

ASC-ECU time out

 P.23A-124

U0141

ETACS-ECU time out

 P.23A-125

SYMPTOM CHART

M12301000080USA0000010000

During  diagnosis,  a  DTC  code  associated  with
other system may be set when the ignition switch

is turned on with connector(s) disconnected. On
completion, confirm all systems for DTC code(s).
If DTC code(s) are set, erase them all.

Symptom

Inspection
procedure No.

Reference page

The vehicle does not run at any range (including low power).

1

 P.23A-126

The vehicle does not run at the "D" or the "R" range.

2

 P.23A-127

AUTOMATIC TRANSAXLE MECHANICAL

23A-23

AUTOMATIC TRANSAXLE DIAGNOSIS

Symptom

Inspection
procedure No.

Reference page

The acceleration is poor.

3

 P.23A-127

The vehicle moves at the "N" range.

4

 P.23A-129

Gears cannot be shifted at all, or a certain gear shift (1st to 2nd,
2nd to 3rd, etc.) is not made.

5

 P.23A-129

The torque converter is not locked up.

6

 P.23A-131

The clutch slips when the vehicle starts or during gear shift.

7

 P.23A-131

The engine brake is not applied.

8

 P.23A-132

The shift shock is large at a certain gear shift. (1st to 2nd, 2nd to
3rd, etc.)

9

 P.23A-134

The select shock is large when the transmission range is shifted
from "N" to "D", and "N" to "R."

10

 P.23A-135

Abnormal sound occurs during idling.

11

 P.23A-136

Abnormal sound occurs during driving.

12

 P.23A-137

Abnormal sound occurs during gear shift.

13

 P.23A-138

Engine stall

14

 P.23A-139

Oil leaks from the air breather.

15

 P.23A-140

The starter does not rotate at the "P" or "N" range. (The engine does
not start.)

16

 P.23A-141

23A-24

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0705: Transmission Range Switch System

M12301000394USA0000010001

ETACS-ECU

IG1
RELAY

FUSIBLE
LINK

34

TRANSMISSION
RANGE SWITCH

TRANSMISSION
CONTROL MODULE

ZC6023720000

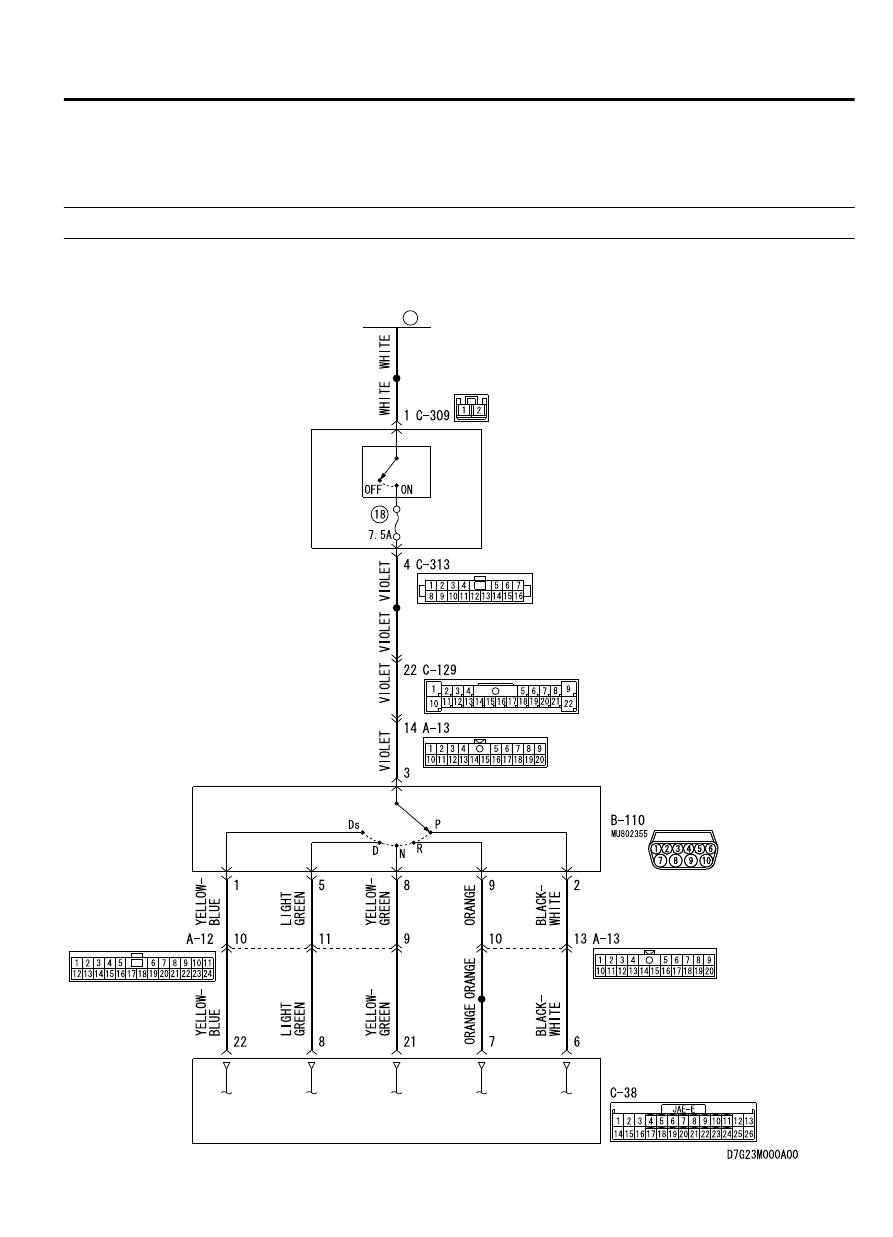

Transmission range switch system circuit

AUTOMATIC TRANSAXLE MECHANICAL

23A-25

AUTOMATIC TRANSAXLE DIAGNOSIS

ZC6008720001

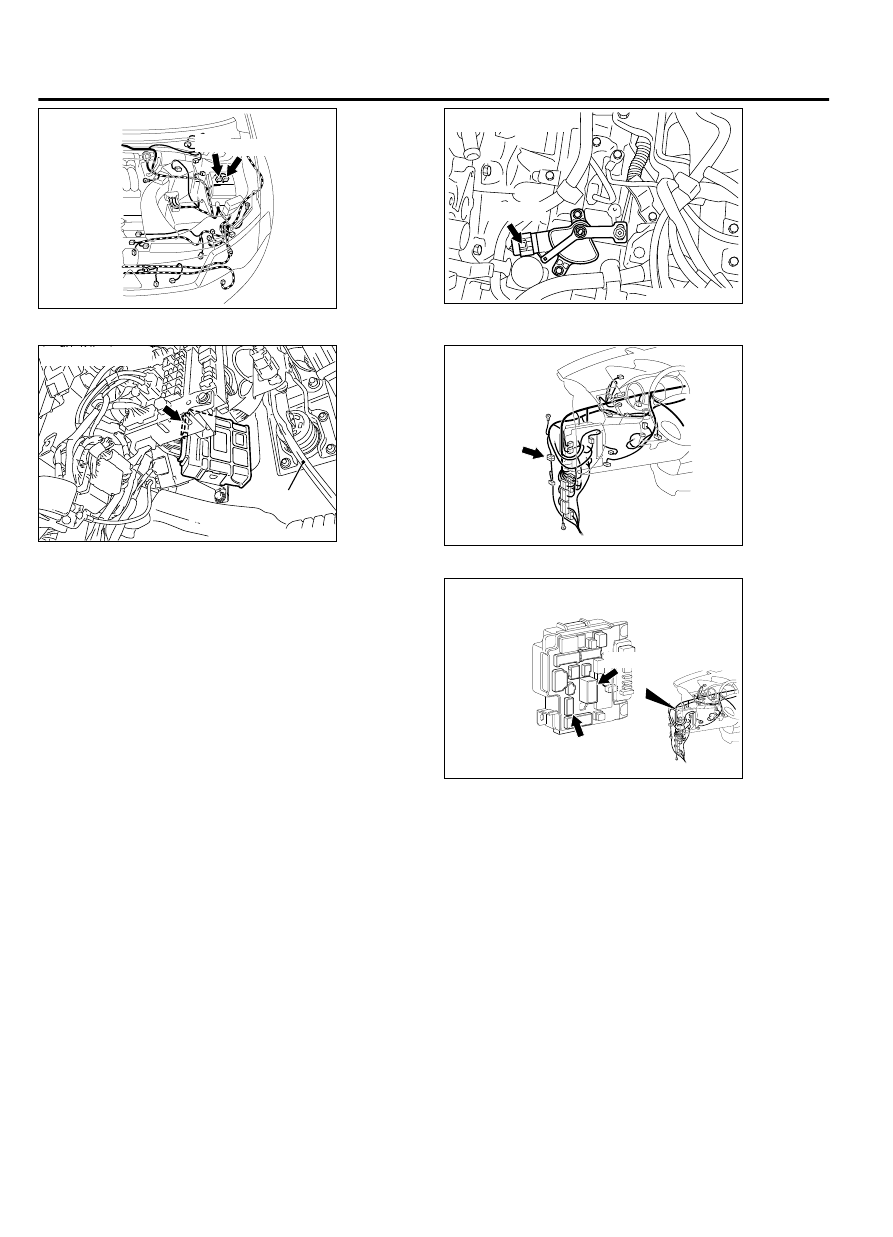

Connectors: A-12, 13

A-12 A-13

ZC601773

Connector: B-110

B-110 (B)

0001



ZC6035780001

Connector: C-38

Brake pedal

ZC6008750019

Connector: C-129



ZC6008780024

Connectors: C-309, C-313

C-313 (BR)

C-309 (B)



DESCRIPTIONS OF MONITOR METHODS

｠

The  TCM  receives  no  input  signal  from  the
transmission range switch.

｠

The  TCM  receives  multiple  input  signals
simultaneously from the transmission range switch.

MONITOR EXECUTION

｠

Continuous

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

23A-26

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS
