ON-VEHICLE SERVICE

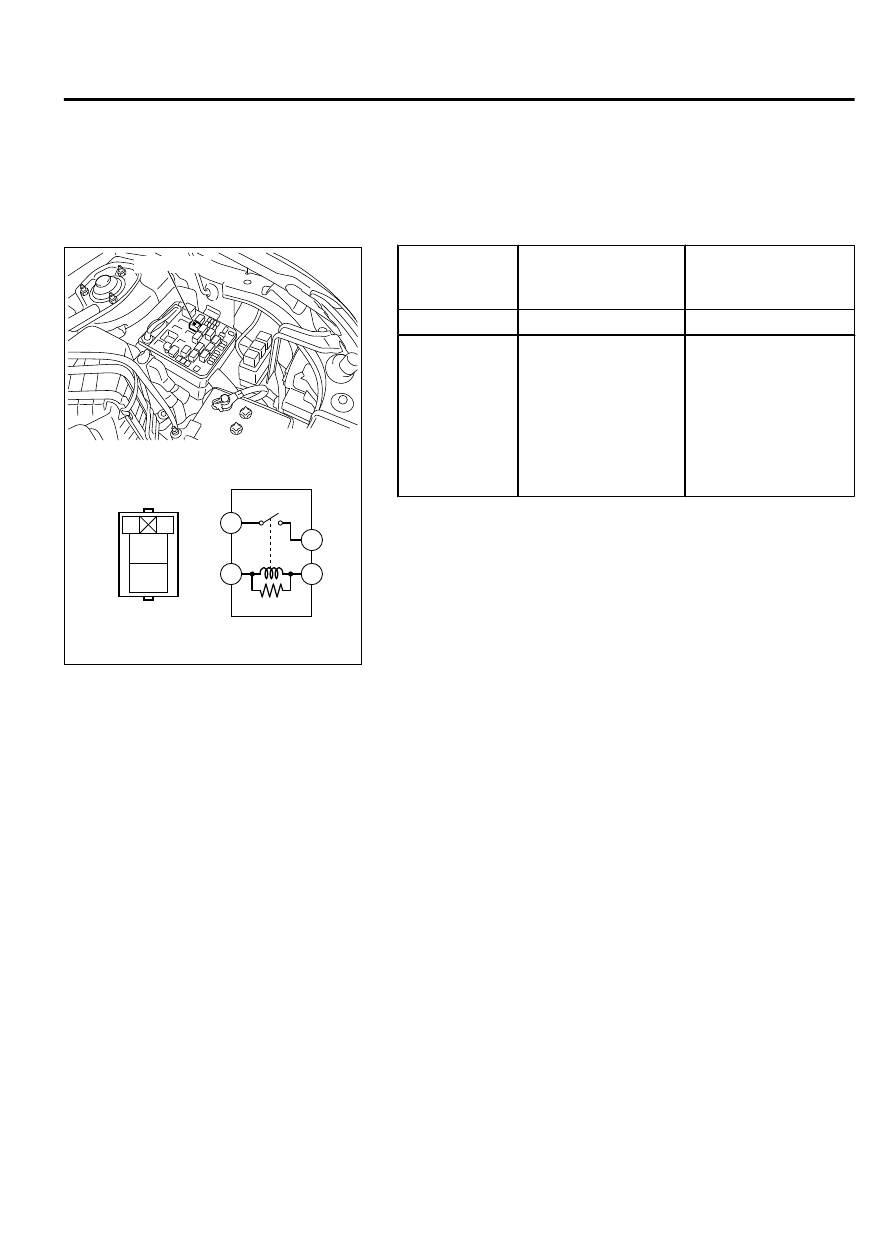

STARTER RELAY CHECK

M11602000014USA0000010000

ZC601035

ZC6028360000

4

2

3

1

1

2

3

4

Starter relay

BATTERY
VOLTAGE

TERMINAL  NO.  TO
BE CONNECTED TO
TESTER

CONTINUITY  TEST
RESULTS

Not applied

4 - 3

Open circuit

Connect
terminal  No.2
to  battery  (+)
terminal.
Connect
terminal  No.1
to  battery  (-)
terminal.

4 - 3

Continuity (less than 2
ohms)

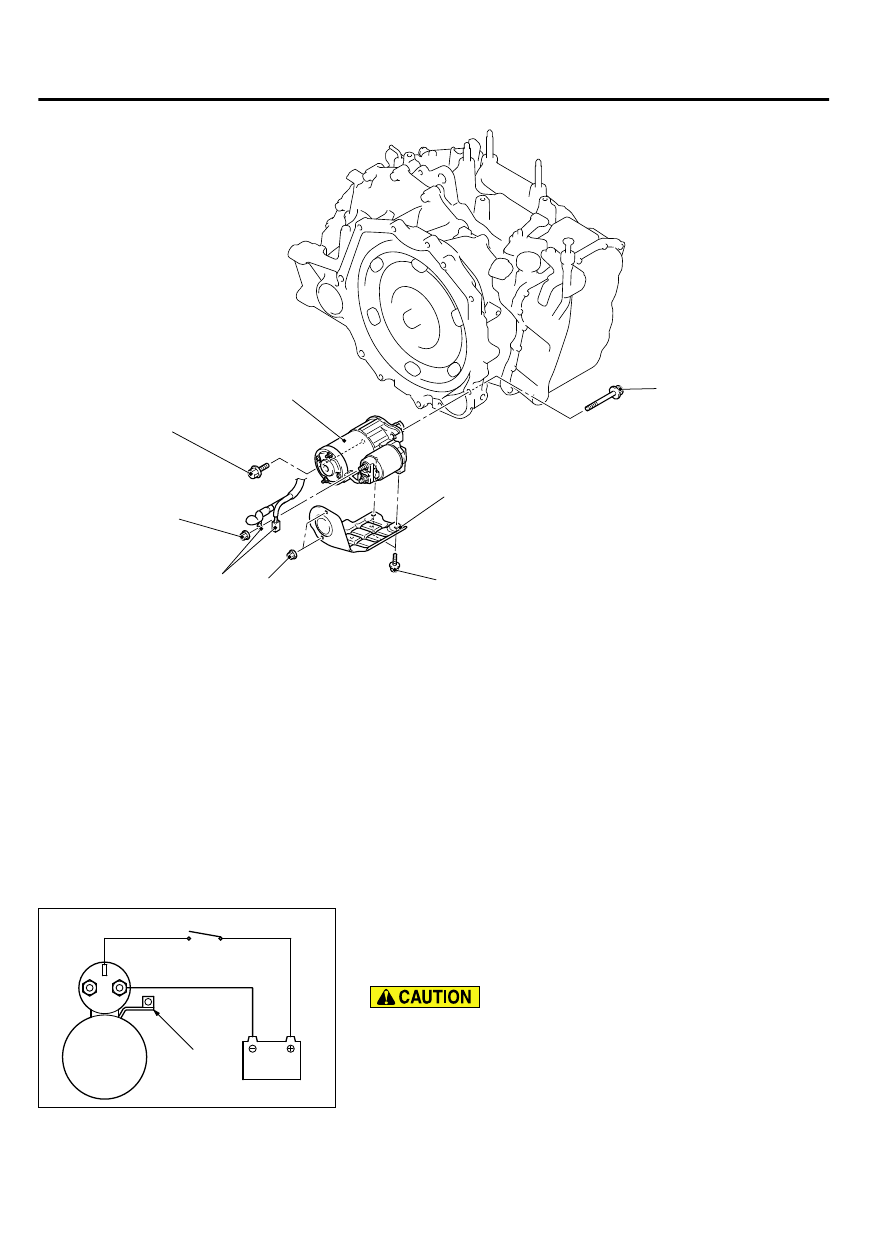

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION

M11602000010USA0000010000

Pre-removal and Post-installation Operation
Under Cover Removal and Installation (Refer to GROUP 51A, Under Cover P.51A-18).

STARTING SYSTEM

16b-5

ON-VEHICLE SERVICE

ZC600535

1

2

3

36 ± 9 N·m
27 ± 6 ft-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

11 ± 1 N·m
93 ± 13 in-lb

AA00

36 ± 9 N·m
27 ± 6 ft-lb

Removal steps

1.

Starter connector and terminal

2.

Starter cover

Removal steps

<<A>>

3.

Starter assembly

REMOVAL SERVICE POINT

<<A>> STARTER ASSEMBLY REMOVAL
Remove the starter assembly from under the vehicle.

INSPECTION

M11602000011USA0000010000

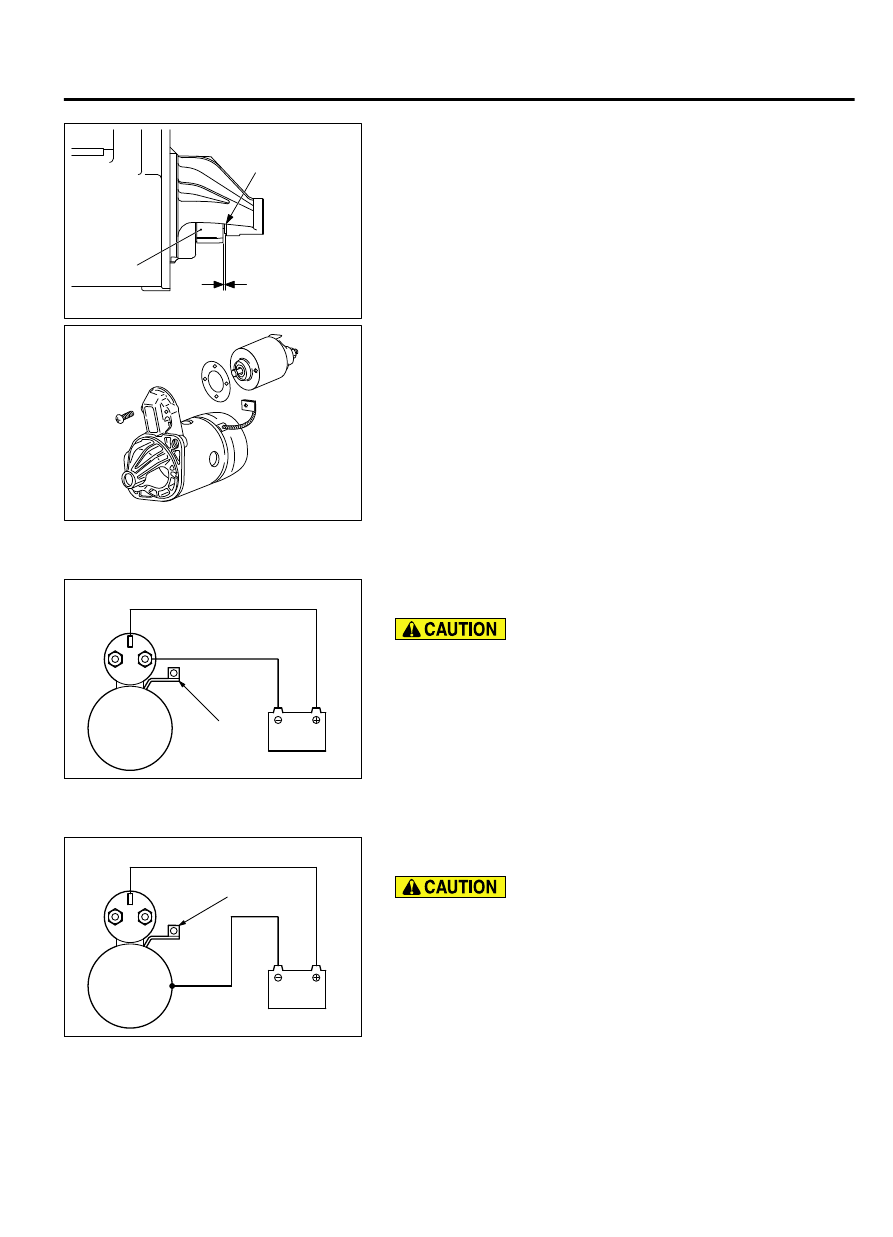

PINION GAP ADJUSTMENT

ZK600358AA00

Switch

S

M

Wire

Battery

Starter
motor

B

1.

Disconnect the lead wire from the M-terminal of the magnetic
switch.

2.

Connect  a  12-volt  battery  between  the  S-terminal  and  M-
terminal.

This  test  must  be  performed  quickly  (in  less  than  10
seconds) to prevent the coil from burning.

3.

Set the switch to "ON", and the pinion will move out.

16b-6

STARTING SYSTEM

STARTER MOTOR ASSEMBLY

ZK600359

Stopper

Pinion gap

Pinion

AA00

4.

Check  the  pinion-to-stopper  clearance  (pinion  gap)  with  a
feeler gauge.

Standard value: 0.5 - 2.0 mm (0.02 - 0.07 inch)

ZK600360AA00

5.

If the pinion gap is out of specification, adjust by adding or
removing  gasket(s)  between  the  magnetic  switch  and  front
bracket.

MAGNETIC SWITCH PULL-IN TEST

ZK600361AA00

S

M

Wire

Battery

Starter
motor

B

1.

Disconnect  the  field  coil  wire  from  the  M-terminal  of  the
magnetic switch.

This  test  must  be  performed  quickly  (in  less  than  10
seconds) to prevent the coil from burning.

2.

Connect  a  12-volt  battery  between  the  S-terminal  and  M-
terminal.

3.

If the pinion moves out, the pull-in coil is good. If it doesn't,
replace the magnetic switch.

MAGNETIC SWITCH HOLD-IN TEST

ZK600362AA00

S

M

Wire

Battery

Starter
motor

B

1.

Disconnect  the  field  coil  wire  from  the  M-terminal  of  the
magnetic switch.

This  test  must  be  performed  quickly  (in  less  than  10
seconds) to prevent the coil from burning.

2.

Connect a 12-volt battery between the S-terminal and body.

3.

Manually  pull  out  the  pinion  as  far  as  the  pinion  stopper
position.

4.

If the pinion remains out, everything is operating properly. If
the pinion moves in, the hold-in circuit is open. Replace the
magnetic switch.

STARTING SYSTEM

16b-7

STARTER MOTOR ASSEMBLY

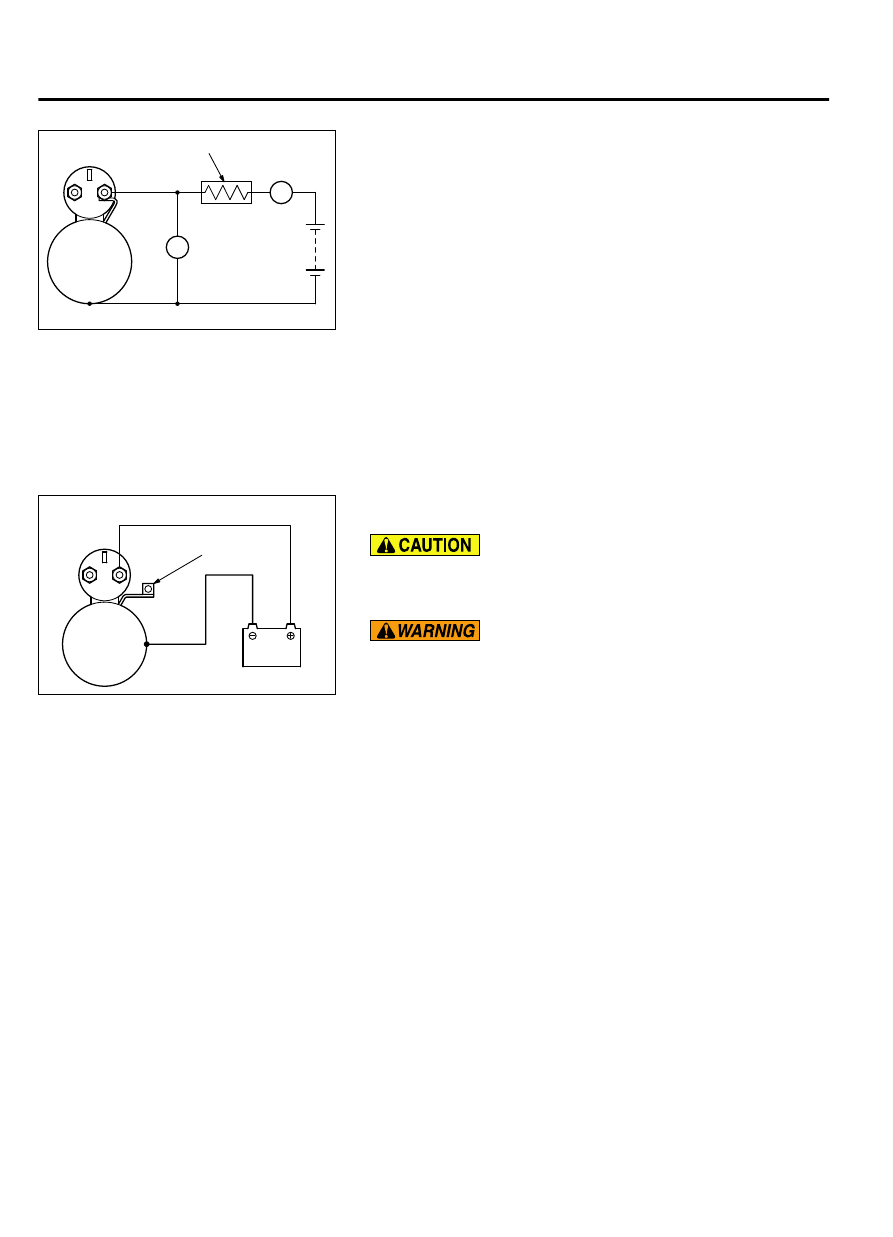

FREE RUNNING TEST

ZK600363AA00

S

A

M

V

B

Carbon-pile rheostat

Battery

Voltmeter

Ammeter

Starter
motor

1.

Place the starter motor in a vise equipped with soft jaws and
connect a fully-charged 12-volt battery to the starter motor as
follows:

2.

Connect a test ammeter (100-ampere scale) and carbon pile
rheostat in series between the positive battery terminal and
starter motor terminal.

3.

Connect a voltmeter (15-volt scale) across the starter motor.

4.

Rotate carbon pile to full-resistance position.

5.

Connect the battery cable from the negative battery terminal
to the starter motor body.

6.

Adjust the rheostat until the battery positive voltage shown by
the voltmeter is 11 V.

7.

Confirm  that  the  maximum  amperage  is  within  the
specifications and that the starter motor turns smoothly and
freely.

Current: maximum 90 Amps

MAGNETIC SWITCH RETURN TEST

ZK600364AA00

S

M

Wire

Battery

Starter
motor

B

1.

Disconnect  the  field  coil  wire  from  the  M-terminal  of  the
magnetic switch.

This  test  must  be  performed  quickly  (in  less  than  10
seconds) to prevent the coil from burning.

2.

Connect a 12-volt battery between the M-terminal and body.

Be careful not to get your fingers caught when pulling out
the pinion.

3.

Pull the pinion out and release. If the pinion quickly returns to
its  original  position,  everything  is  operating  properly.  If  it
doesn't, replace the magnetic switch.

DISASSEMBLY AND ASSEMBLY

M11602000012USA0000010000

16b-8

STARTING SYSTEM

STARTER MOTOR ASSEMBLY
