Mitsubishi Outlander XL. Manual - part 443

ZK600353AA00

ZK600354AA00

ZK600355AA00

ZK600356AA00

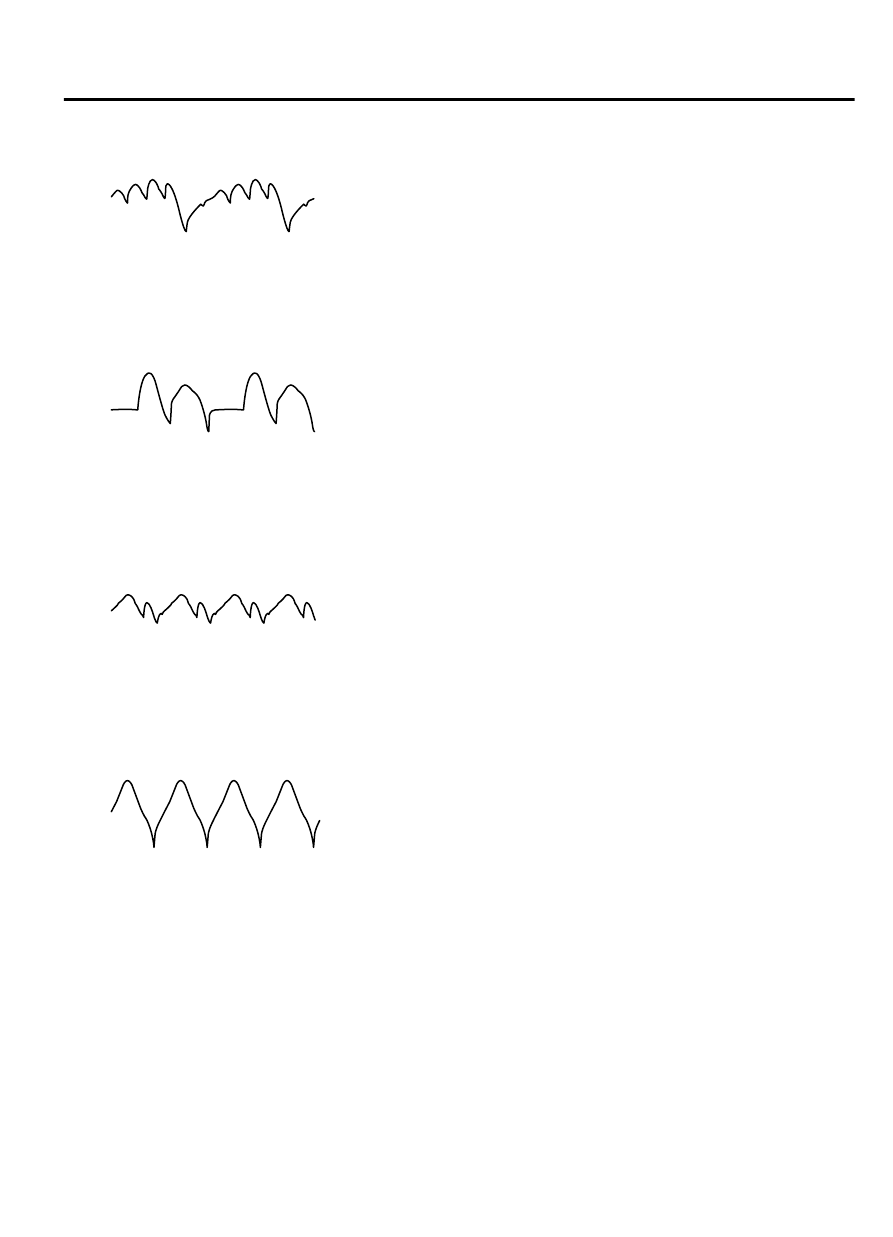

ABNORMAL WAVEFORMS

｠

Example 1
PROBABLE CAUSE: Open circuit in diode

｠

Example 2
PROBABLE CAUSE: Short-circuit in diode

｠

Example 3
PROBABLE CAUSE: Open circuit in stator coil

｠

Example 4
PROBABLE CAUSE: Short-circuit in stator coil

GENERATOR ASSEMBLY

REMOVAL AND INSTALLATION

M11601000014USA0000010000

Pre-removal and Post-installation Operation

｠

Engine Room Under Cover and Engine Room Side Cover Removal and Installation (Refer to GROUP 51A, Under Cover P.

51A-18).

CHARGING SYSTEM

16a-13

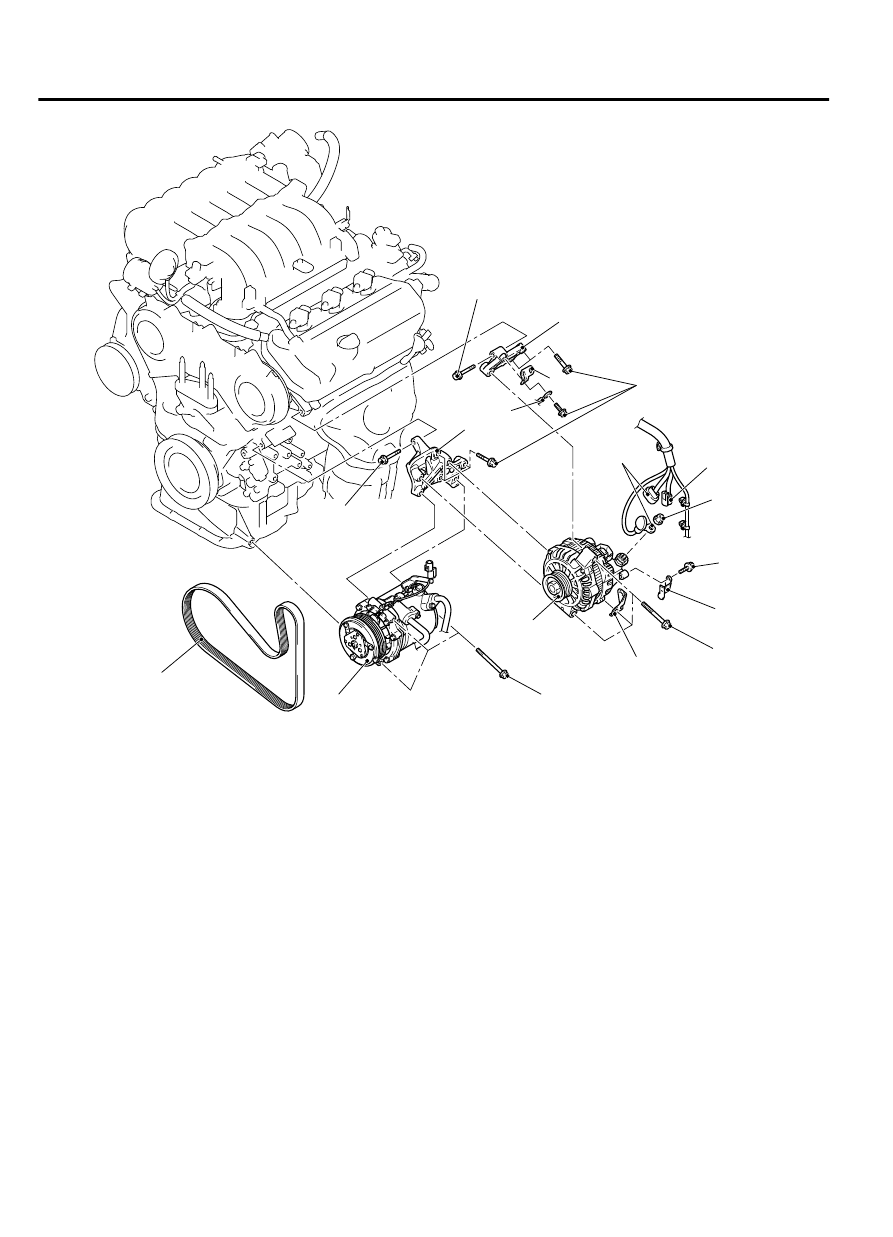

GENERATOR ASSEMBLY

ZC600573

1

2

3

4

6

5

8

9

10

8

23 ± 6 N·m
17 ± 4 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

47 ± 11 N·m
35 ± 8 ft-lb

12 ± 2 N·m
102 ± 22 in-lb

11 ± 1 N·m
98 ± 8 in-lb

23 ± 6 N·m
17 ± 4 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

7

AA00

Removal steps

1.

Generator drive belt

2.

Generator connector and terminal

3.

A/C compressor connector

<<A>>

4.

A/C compressor assembly

5.

Harness bracket

<<B>>

>>A<<

6.

Generator assembly

Removal steps

7.

Ground cable connection

8.

Harness bracket

9.

Generator upper bracket

10. Generator lower bracket

REMOVAL SERVICE POINTS

<<A>> A/C COMPRESSOR ASSEMBLY REMOVAL

1.

Remove  the  A/C  compressor  from  the  A/C  compressor
bracket with the hose still attached.

2.

Place  the  removed  A/C  compressor  where  it  will  not  be  a
hindrance  when  removing  and  installing  the  generator,  and
secure it with a cord or wire.



16a-14

CHARGING SYSTEM

GENERATOR ASSEMBLY

<<B>> GENERATOR ASSEMBLY REMOVAL
Move  the  A/C  compressor  assembly  to  one  side,  and  then
remove the generator assembly from under the vehicle.

INSTALLATION SERVICE POINT

>>A<< GENERATOR ASSEMBLY INSTALLATION

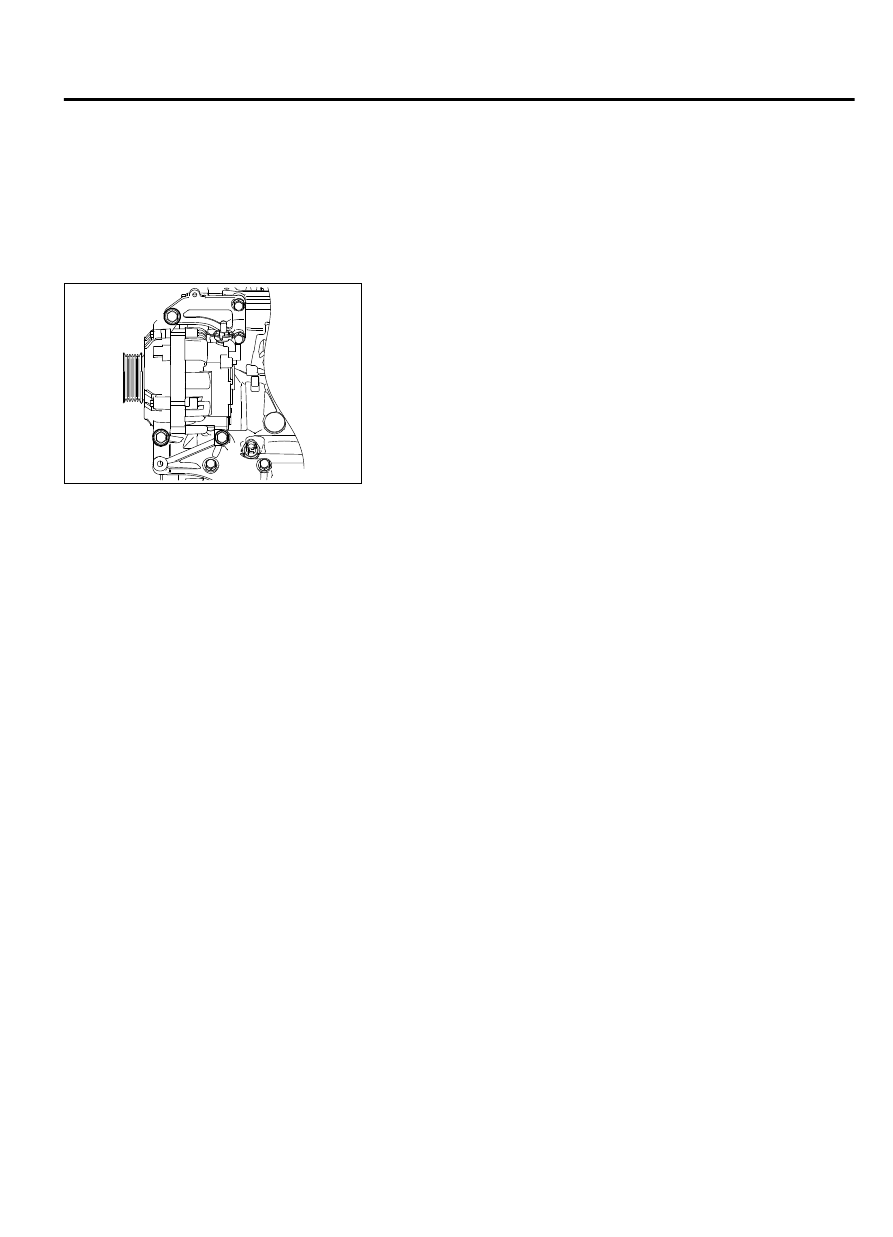

1.

Temporarily tighten the generator to the generator bracket.

ZC602595

1

2

3

AA00

2.

In  accordance  with  the  tightening  order  shown  in  the
illustration,  tighten  the  installation  bolts  for  the  generator
bracket to the specified torque.

Tightening torque: 47 ± 11 N·m (35 ± 8 ft-lb)

CHARGING SYSTEM

16a-15

GENERATOR ASSEMBLY

MEMO

16a-16

CHARGING SYSTEM
