Mitsubishi Outlander XL. Manual - part 429







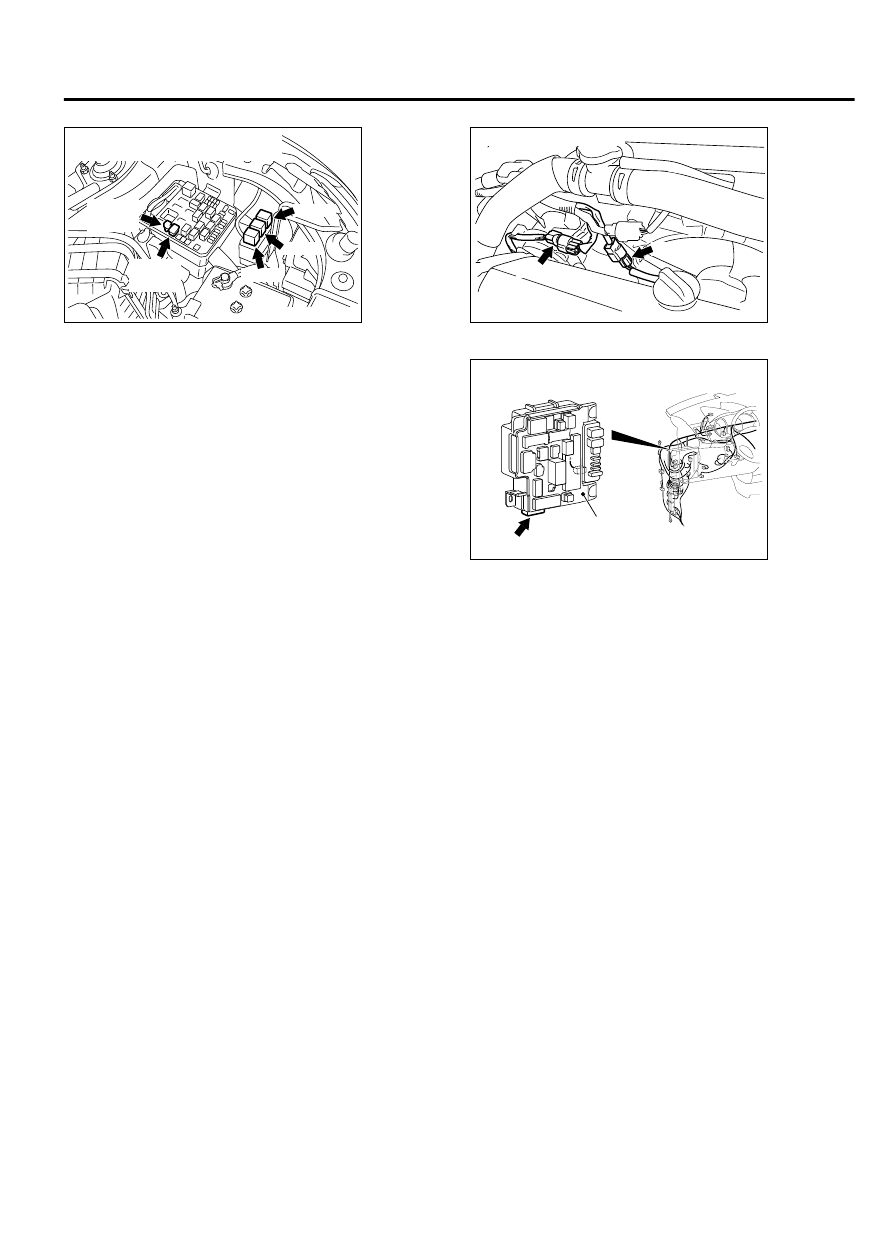

ZC603029

A-34X

A-35X

A-36X

Fusible link (28), (29) and
connectors: A-34X, A-35X, A-36X

Fusible
link (28)

Fusible
link (29)

AA00

ZC603062

A-43

Connectors: A-05, A-43

A-05

AA00



ZC603093

C-312

Connector: C-312

ETACS-ECU

AA00



CIRCUIT OPERATION

The cooling fan motor is energized by the fusible
link number 28 and fusible link number 29.

The ETACS-ECU controls the radiator fan relay, fan
control relay, and condenser fan relay for driving the
cooling  fan  motor  by  using  the  input  signal
transmitted  from  the  A/C  switch,  engine  coolant
temperature sensor, and output shaft speed sensor.

TECHNICAL DESCRIPTION
If the cooling fan does not operate, the following cases
may have occurred.

Malfunction of power supply or ground circuit

Malfunction of cooling fan motor

Malfunction of fan control relay, radiator fan relay or
condenser fan relay

Malfunction of ETACS-ECU

Abnormality of engine coolant temperature sensor
input signal transmitted to ECM

Abnormality  of  output  shaft  speed  sensor  input
signal transmitted to TCM

Abnormality of A/C switch input signal transmitted
to A/C-ECU

TROUBLESHOOTING HINTS

Malfunction of fusible link

Malfunction of fan control relay

Malfunction of radiator fan relay

Malfunction of condenser fan relay

Malfunction of cooling fan motor

Damaged wiring harness or connector

Malfunction of ETACS-ECU

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: V.C.I.

MB991827: M.U.T.-III USB Cable

MB991910: M.U.T.-III Main Harness A

MB991223: Harness Set

ENGINE COOLING

14-7

ENGINE COOLING DIAGNOSIS

MB992006: Extra Fine Probe

STEP 1. M.U.T.-III other system diagnosis codes

Confirm whether the diagnosis codes are output from ETACS-
ECU  (Refer  to  GROUP  54Ad,  Diagnosis  -  Diagnostic
Function P.54Ad-5).

Q:Is the diagnostic trouble code output?

YES:

 Perform the troubleshooting of ETACS-ECU (Refer to

GROUP 54Ad, Diagnosis - Diagnostic Trouble Code Chart P.
54Ad-8).

NO:

 Go to Step 2.

STEP 2. Check the cooling fan relay.
Refer to P.14-17.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Replace the relay.

STEP 3. Check the radiator fan relay connector A-34X,
condenser fan relay connector A-35X and fan control relay
connector A-36X.
Check for the contact with terminals.

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Repair the defective connector.

STEP 4. Check the cooling fan motor.
Refer to P.14-19.

Q:Is the check result normal?

YES:

 Go to Step 5.

NO:

 Replace the cooling fan motor.

STEP 5. Check condenser fan motor connector A-43 and
radiator fan motor connector A-05.
Check for the contact with terminals.

Q:Is the check result normal?

YES:

 Go to Step 6.

NO:

 Repair the defective connector.

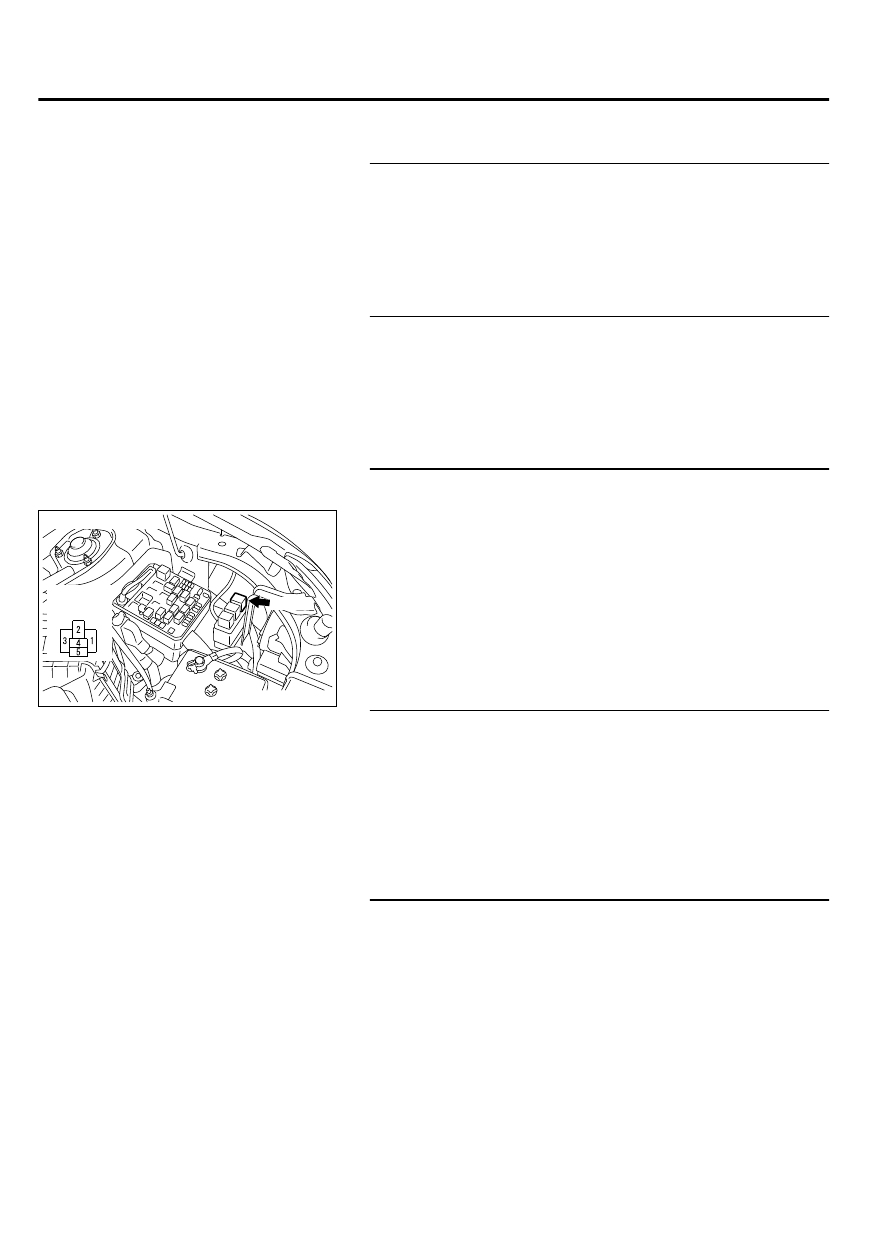

STEP 6. Measure the voltage at radiator fan relay connector
A-34X.

ZC6036400000

Relay box
side

A-34X

Connector: A-34X

(1)

Remove  the  radiator  fan  relay,  and  measure  at  relay  box
side.

(2)

Measure the voltage between terminal number 3 and ground.
Measure the voltage between terminal number 4 and ground.

OK: System voltage

Q:Is the check result normal?

YES:

 Go to Step 8.

NO:

 Go to Step 7.

14-8

ENGINE COOLING

ENGINE COOLING DIAGNOSIS

STEP 7. Check the harness between radiator fan relay
connector A-34X (terminal 3, 4) and fusible link number 29.

Check the power supply line for short or open circuit.

Q:Is the check result normal?

YES:

 An intermittent malfunction is suspected (Refer to

GROUP 00, How to Use Troubleshooting/Inspection Service
Points - How to Cope with Intermittent Malfunctions P.
00-15).

NO:

 Repair the wiring harness.

STEP 8. Measure the voltage at fan control relay connector
A-36X.

ZC6036420000

Relay box
side

A-36X

Connector: A-36X

(1)

Remove the fan control relay, and measure at relay box side.

(2)

Measure the voltage between terminal number 1 and ground.

OK: System voltage

Q:Is the check result normal?

YES:

 Go to Step 10.

NO:

 Go to Step 9.

STEP 9. Check the harness between fan control relay
connector A-36X (terminal 1) and fusible link number 28.

Check the power supply line for short or open circuit.

Q:Is the check result normal?

YES:

 An intermittent malfunction is suspected (Refer to

GROUP 00, How to Use Troubleshooting/Inspection Service
Points - How to Cope with Intermittent Malfunctions P.
00-15).

NO:

 Repair the relay box.

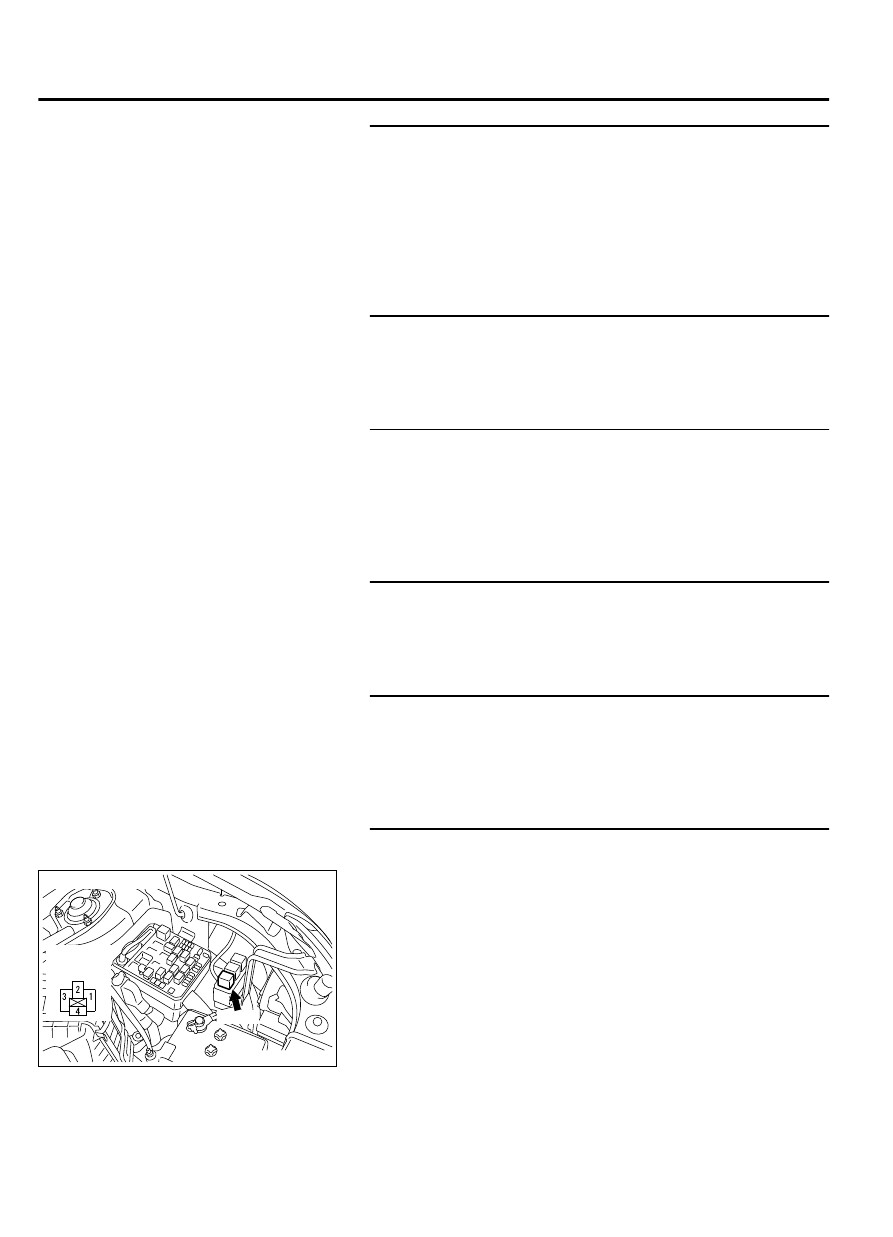

STEP 10. Measure the voltage at condenser fan relay
connector A-35X.

ZC6036410000

Relay box
side

A-35X

Connector: A-35X

(1)

Remove the condenser fan relay, and measure at relay box
side.

(2)

Measure the voltage between terminal number 3 and ground.
Measure the voltage between terminal number 4 and ground.

OK: System voltage

Q:Is the check result normal?

YES:

 Go to Step 12.

NO:

 Go to Step 11.

STEP 11. Check the harness between condenser fan relay
connector A-35X (terminal 3, 4) and fusible link number 28.

Check the power supply line for short or open circuit.

Q:Is the check result normal?

YES:

 An intermittent malfunction is suspected (Refer to

GROUP 00, How to Use Troubleshooting/Inspection Service

ENGINE COOLING

14-9

ENGINE COOLING DIAGNOSIS

Points - How to Cope with Intermittent Malfunctions P.
00-15).

NO:

 Repair the relay box.

STEP 12. Check the harness between radiator fan relay
connector A-34X (terminal 2) and radiator fan motor
connector A-05 (terminal 1).

Check the output line for short or open circuit.

Q:Is the check result normal?

YES:

 Go to Step 13.

NO:

 Repair the wiring harness.

STEP 13. Check the harness between fan control relay
connector A-36X (terminal 2) and radiator fan motor
connector A-05 (terminal 2).

Check the output line for short or open circuit.

Q:Is the check result normal?

YES:

 Go to Step 14.

NO:

 Repair the wiring harness.

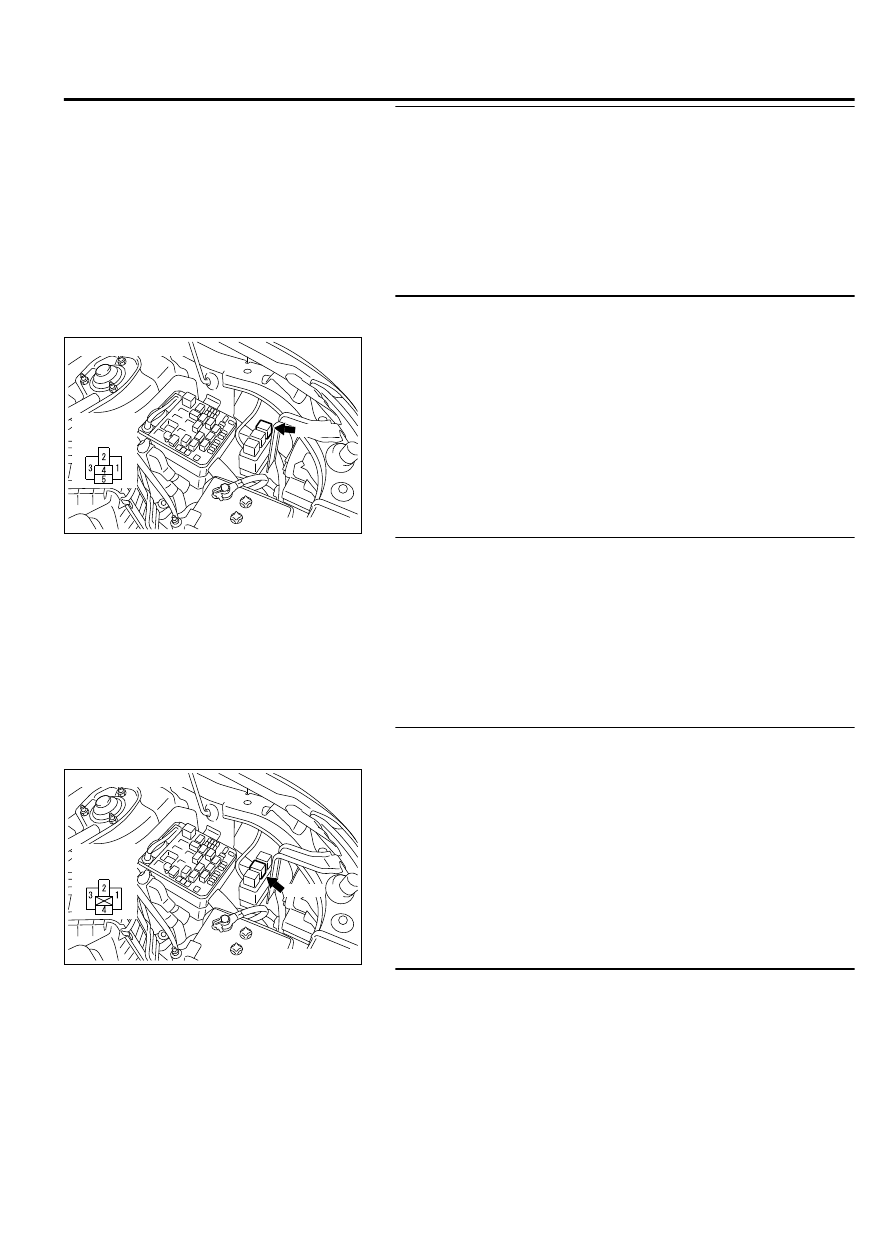

STEP 14. Check for continuity at fan control relay connector
A-36X.

ZC6036420000

Relay box
side

A-36X

Connector: A-36X

(1)

Remove the fan control relay, and measure at relay box side.

(2)

Check that there is continuity between terminal number 5 and
body ground.

OK: Continuity (less than 2 ohms)

Q:Is the check result normal?

YES:

 Go to Step 16.

NO:

 Go to Step 15.

STEP 15. Check the harness between fan control relay
connector A-36X (terminal 5) and ground.

Check the ground line for open circuit.

Q:Is the check result normal?

YES:

 An intermittent malfunction is suspected (Refer to

GROUP 00, How to Use Troubleshooting/Inspection Service
Points - How to Cope with Intermittent Malfunctions P.
00-15).

NO:

 Repair the wiring harness.

STEP 16. Check the harness between fan control relay
connector A-36X (terminal 4) and condenser fan relay
connector A-35X (terminal 2).

Check the output line for short or open circuit.

Q:Is the check result normal?

YES:

 Go to Step 17.

NO:

 Repair the wiring harness.

14-10

ENGINE COOLING

ENGINE COOLING DIAGNOSIS
