STEP 3. Check harness connector B-105 at the manifold
absolute pressure sensor and harness connector B-10 at
ECM for damage.

ZK603174

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

1

2

3

B-105 harness connector:
component side

B-10 harness connector:
component side

AA00

(1)

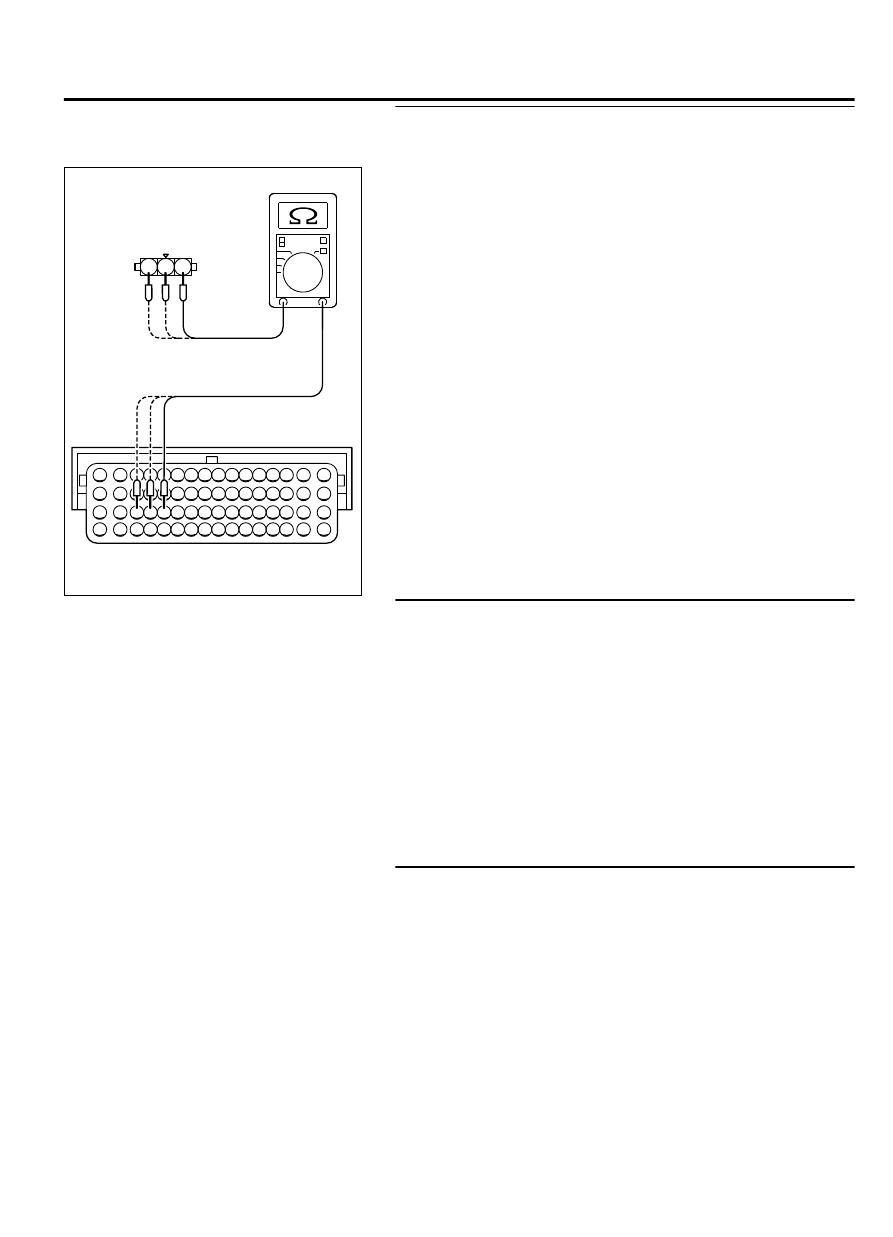

Disconnect the manifold absolute pressure sensor connector
B-105 between the ECM connector B-10.

a
.

Measure  the  resistance  between  the  manifold  absolute
pressure sensor connector B-105 (terminal No. 3) and the
ECM connector B-10 (terminal No. 44).

b
.

Measure  the  resistance  between  the  manifold  absolute
pressure sensor connector B-105 (terminal No. 1) and the
ECM connector B-10 (terminal No. 45).

c
.

Measure  the  resistance  between  the  manifold  absolute
pressure sensor connector B-105 (terminal No. 2) and the
ECM connector B-10 (terminal No. 46).

｠

Should be less than 2 ohms.

Q:Is the harness wire in good condition?

YES:

 Go to step 4.

NO:

 Repair it. Then go to Step 6.

STEP 4. Replace the manifold absolute pressure sensor.

(1)

Replace the manifold absolute pressure sensor.

(2)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  7  P.
13Ab-8.

(3)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0106 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 5.

NO:

 The inspection is complete.

STEP 5. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  7  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0106 set?

YES:

 IRetry the troubleshooting.

NO:

 The inspection is complete.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-131

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0107: Manifold Absolute Pressure Circuit Low Input

M11310100174USA0000010000

ZK602834

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

3

2

1

AA00

ENGINE
CONTROL
MODULE

5 V

MANIFOLD ABSOLUTE
PRESSURE SENSOR

LIGHT GREEN-RED

YELLO

W

-BLA

CK

BLUE

3

1

2

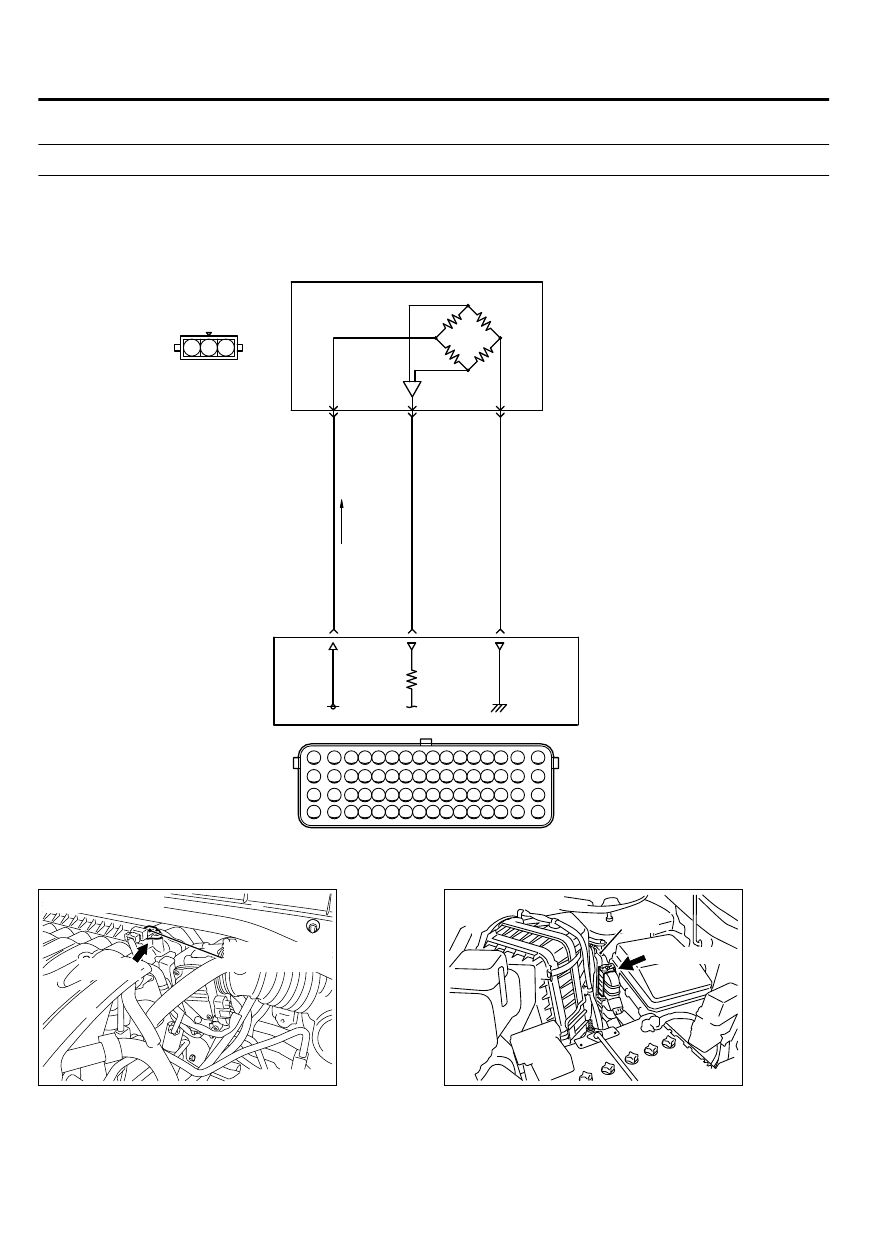

MANIFOLD ABSOLUTE PRESSURE SENSOR CIRCUIT

44

46

45

B-10

B-105

(MU802723)

ZK603597

Manifold absolute
pressure sensor

AA00

B-105 (B)

Connector: B-105

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00



13Ab-132

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

CIRCUIT OPERATION

｠

A 5-volt voltage is supplied to the manifold absolute
pressure  sensor  power  terminal  (terminal  No.  3)
from  the  ECM  (terminal  No.  44).  The  ground
terminal  (terminal  No.  2)  is  grounded  with  ECM
(terminal No. 46).

｠

A voltage that is proportional to the intake manifold
pressure is sent to the ECM (terminal No. 45) from
the  manifold  absolute  pressure  sensor  output
terminal (terminal No. 1).

TECHNICAL DESCRIPTION

｠

The  manifold  absolute  pressure  sensor  outputs  a
voltage  which  corresponds  to  the  intake  manifold
pressure.

｠

The  ECM  checks  whether  this  voltage  is  within  a
specified range.

DESCRIPTIONS OF MONITOR METHODS

Manifold absolute pressure sensor output voltage is
out of specified range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Engine coolant temperature sensor

｠

Throttle position sensor

｠

Mass airflow sensor

｠

Intake air temperature sensor

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-133

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITIONS

Logic Flow Chart

Yes

Yes

Yes

No

No

No

Monitoring

conditions

|Baromet ric pressure

－

mani fold pressure| > 9k Pa

Continuous

failure for 2secs

Malfunction

End

Good

Start

ZK603685 AA00

Check Conditions

｠

8 minutes or more have passed since the engine
starting sequence was completed, when the engine
coolant temperature at engine start is 0°C (32°F) or
lower.

｠

Volumetric efficiency is higher than 20 percent.

Judgement Criterion

｠

Manifold absolute pressure is 5 kPa (1.5 in.Hg) or
lower for 2 seconds.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle -
Pattern 7 P.13Ab-8.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

｠

Manifold absolute pressure sensor failed.

｠

Connector damage

｠

Harness damage

｠

ECM failed.
