Mitsubishi Outlander XL. Manual - part 161

ZC600514

1

2

3

4

N

N

90 ± 10 N·m
67 ± 7 ft-lb

AA00

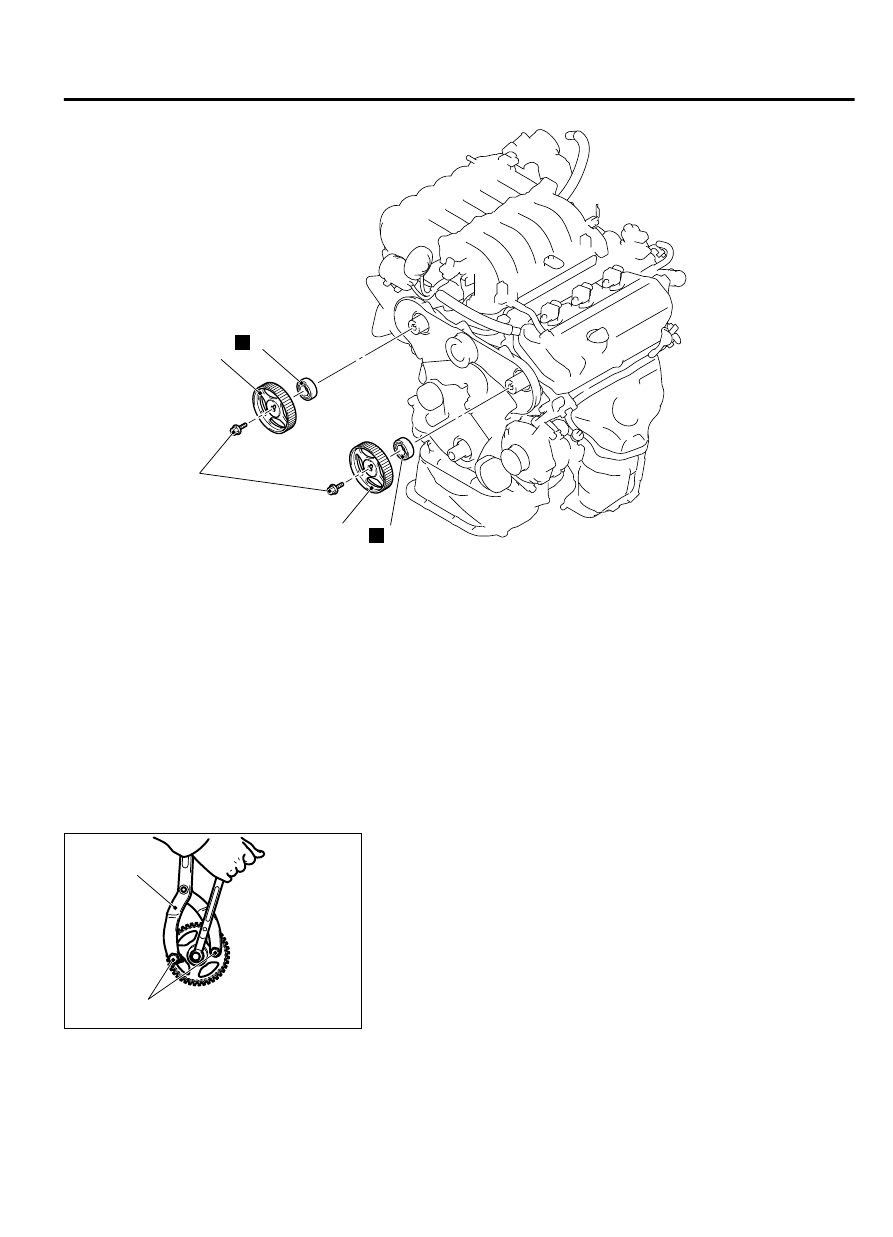

Removal steps

<<A>>

>>B<<

1.

Left bank camshaft sprocket

<<B>>

>>A<<

2.

Camshaft oil seal

<<A>>

>>B<<

3.

Right bank camshaft sprocket

Removal steps

<<B>>

>>A<<

4.

Camshaft oil seal



Required Special Tools:

｠

MB990767: End Yoke Holder

｠

MD998713: Camshaft Oil Seal Installer

｠

MD998719: Pin

｠

MD998777: Camshaft Oil Seal Installer Adapter

REMOVAL SERVICE POINTS

<<A>> CAMSHAFT SPROCKET REMOVAL

ZC6006010000

MB990767

MD998719

Use  special  tools  MB990767  and  MD998719  to  remove  the
camshaft sprocket.



ENGINE MECHANICAL

11A-25

CAMSHAFT OIL SEAL

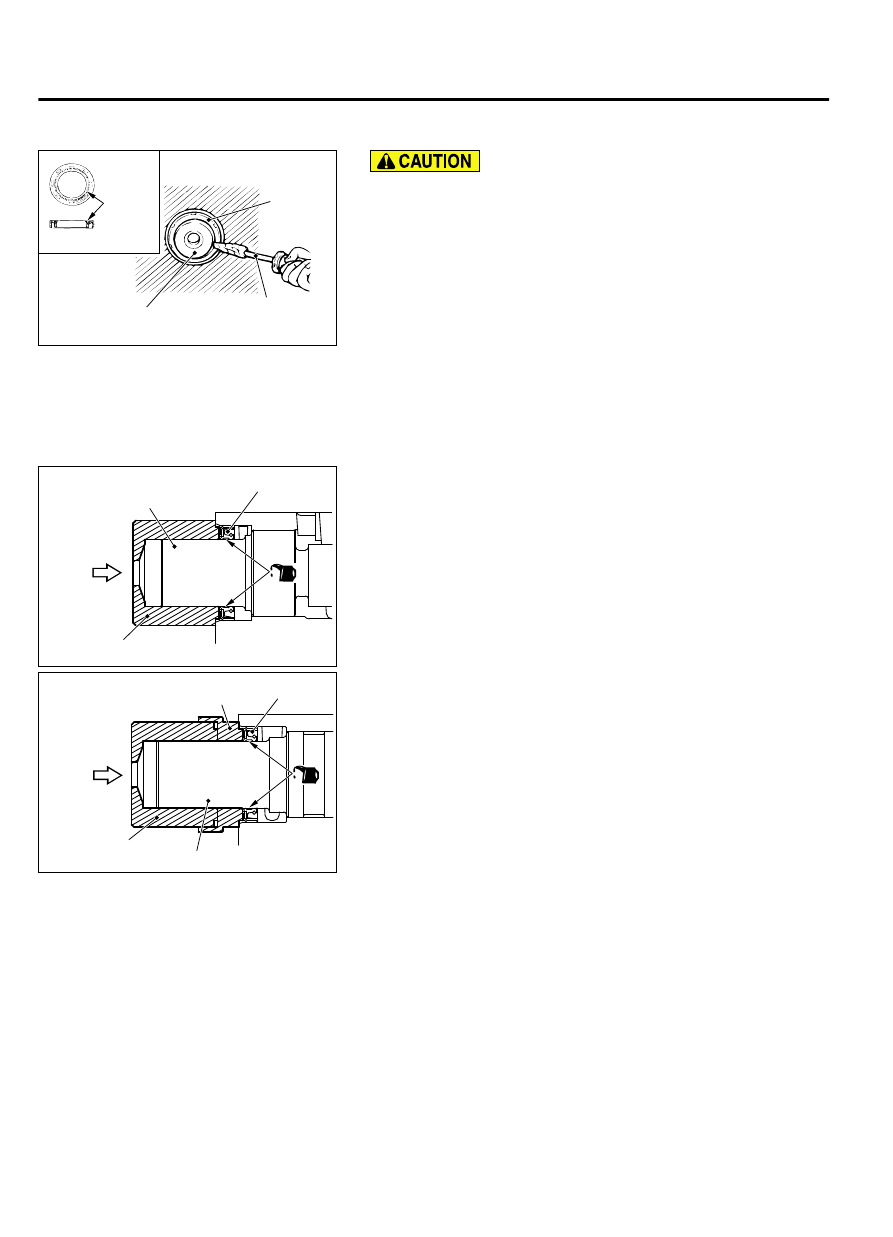

<<B>> CAMSHAFT OIL SEAL REMOVAL

1.

Make a notch in the oil seal lip section with a knife, etc.

ZC6006020000

Lip
section

Oil seal

Camshaft

Flat-tipped
screwdriver

Be  careful  not  to  damage  the  camshaft  and  the  cylinder
head.

2.

Cover the end of a flat-tipped screwdriver with a shop towel
and insert into the notched section of the oil seal, and pry out
the oil seal to remove it.

INSTALLATION SERVICE POINTS

>>A<< CAMSHAFT OIL SEAL INSTALLATION

1.

Apply engine oil to the camshaft oil seal lip.

ZC6025770000

<Right bank>

MD998713

Oil seal

Camshaft

ZC6025760000

MD998713

MD998777

Camshaft

Oil seal

<Left bank>

2.

Use special tools MD998713 and MD998777 to press-fit the
camshaft oil seal.



11A-26

ENGINE MECHANICAL

CAMSHAFT OIL SEAL

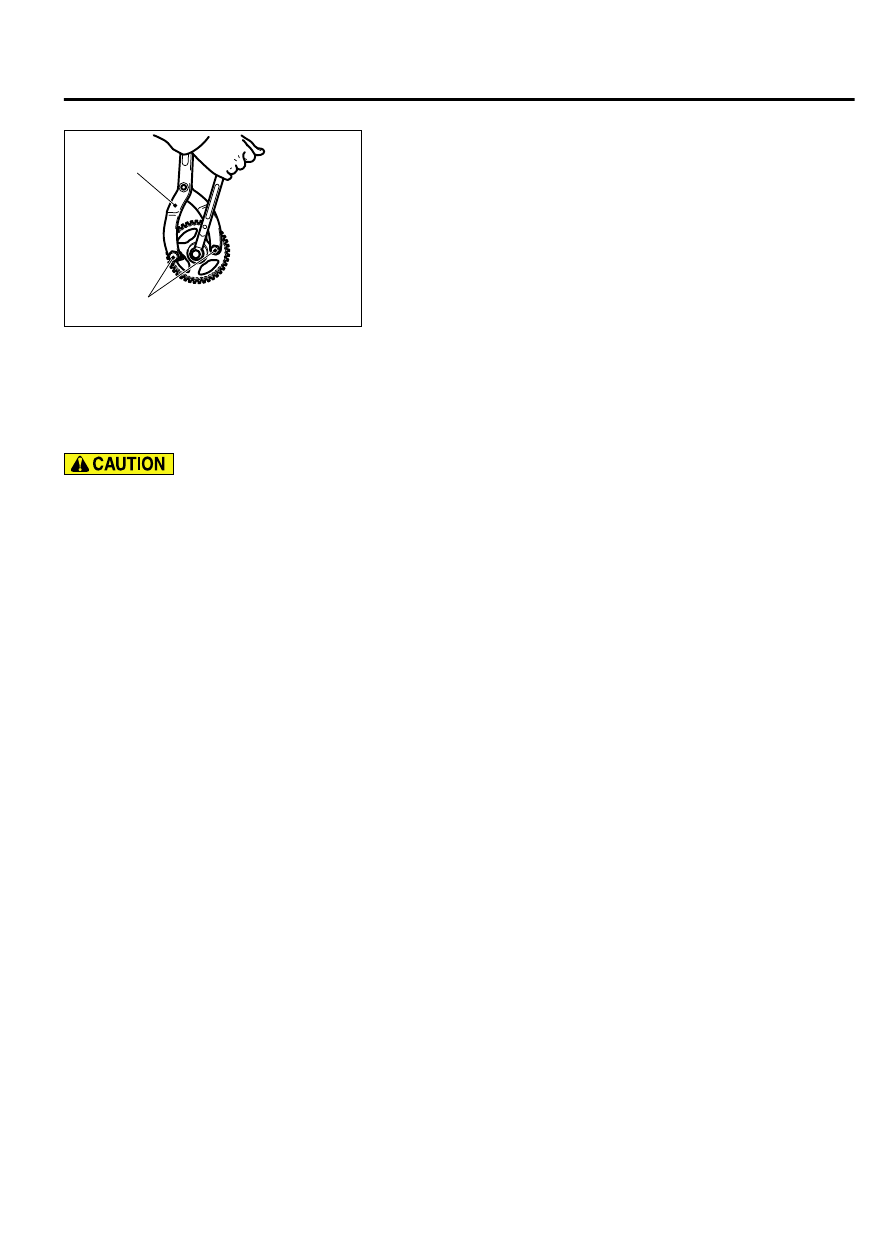

>>B<< CAMSHAFT SPROCKET INSTALLATION

ZC6006010000

MB990767

MD998719

1.

Use special tools MB990767 and MD998719 in the same way
as during removal to install the camshaft sprocket.

2.

Tighten the camshaft sprocket mounting bolt to the specified
torque.

Tightening torque: 90 ± 10 N·m (67 ± 7 ft-lb)

CAMSHAFT AND VALVE STEM SEAL

REMOVAL AND INSTALLATION

M11102000066USA0000010000

*Remove and assemble the marked parts in each
cylinder unit.

ENGINE MECHANICAL

11A-27

CAMSHAFT AND VALVE STEM SEAL

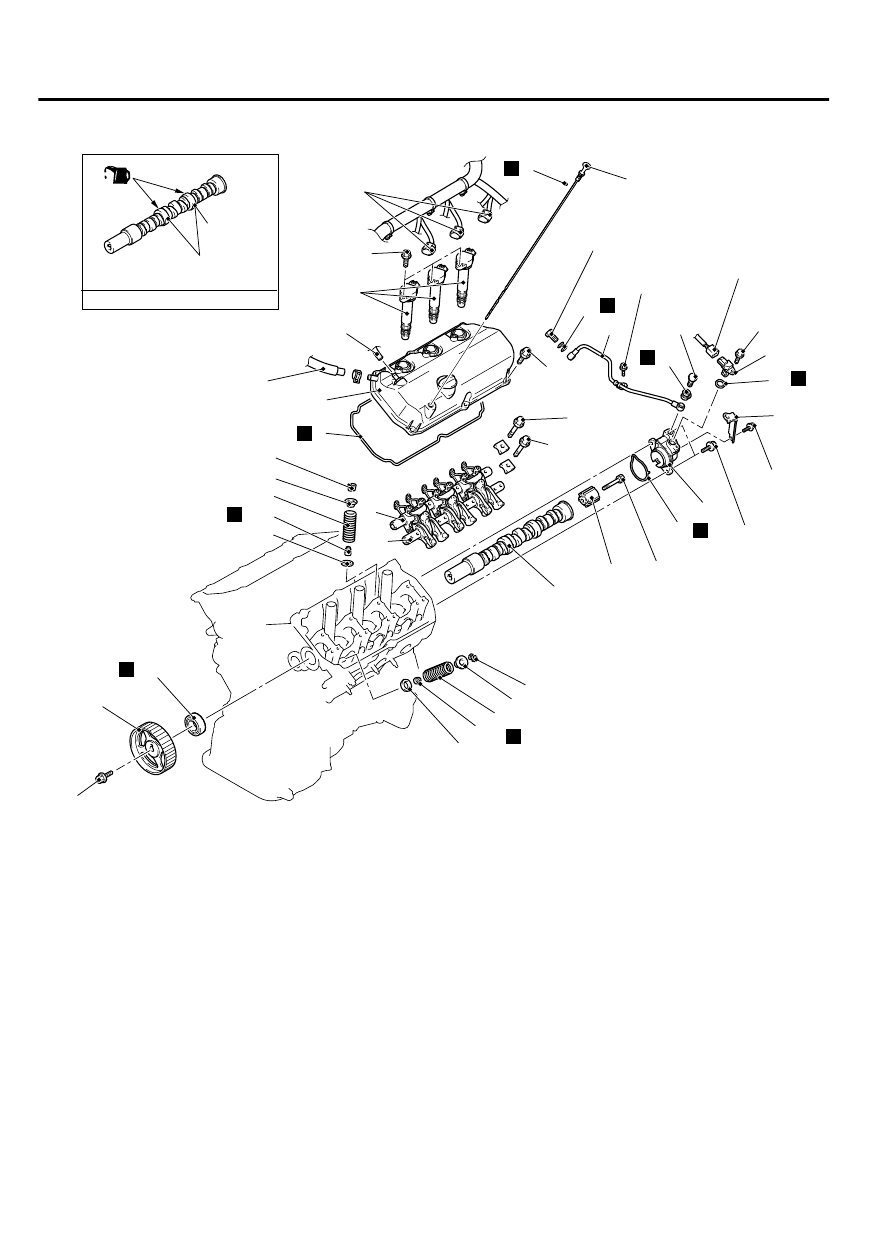

<Left bank>

ZC600590AA00

Cam section and
journal section

21

Engine oil

13 ± 1 N·m
115 ± 9 in-lb

31 ± 3 N·m
23 ± 2 ft-lb

9.5 ± 2.5 N·m
84 ± 22 in-lb

8.3 ± 1.0 N·m
74 ± 8 in-lb

30 ± 3 N·m
22 ± 2 ft-lb

30 ± 3 N·m
22 ± 2 ft-lb

11 ± 1 N·m
98 ± 8 in-lb

9.5 ± 2.5 N·m
84 ± 22 in-lb

11 ± 1 N·m
98 ± 8 in-lb

23 ± 6 N·m
17 ± 4 ft-lb

22 ± 4 N·m
16 ± 3 ft-lb

90 ± 10 N·m
67 ± 7 ft-lb

14

15

16

17

13

11

12

12

18

19

21

5

6

4

3

7

8

9

10

20

22

23*

24*

25*

26*
27*

23*

24*

25*

26*

27*

N

N

N

N

N

N

N

N

1

2

N

Camshaft removal steps

·

Engine  cover  (Refer  to  GROUP  16c,
Ignition Coil P.16c-6).

·

Timing belt (Refer to P.11A-49).

·

Thermostat housing (Refer to GROUP
14,  Water  Hose  and  Water  Pipe  P.
14-23).

1.

Engine oil level gauge

2.

O-ring

3.

Blow-by hose connection

4.

PCV hose connection

5.

Ignition coil connector

6.

Ignition coil

7.

Rocker cover

Camshaft removal steps

8.

Rocker cover gasket

<<A>>

>>D<<

9.

Rocker arm and shaft assembly (intake
side)

<<A>>

>>D<<

10. Rocker  arm,  shaft  and  lash  adjuster

assembly (exhaust side)

11. Oil pipe assembly
12. Gasket
13. Harness bracket
14. Camshaft position sensor connector
15. Camshaft position sensor
16. O-ring
17. Camshaft position sensor support

11A-28

ENGINE MECHANICAL

CAMSHAFT AND VALVE STEM SEAL
