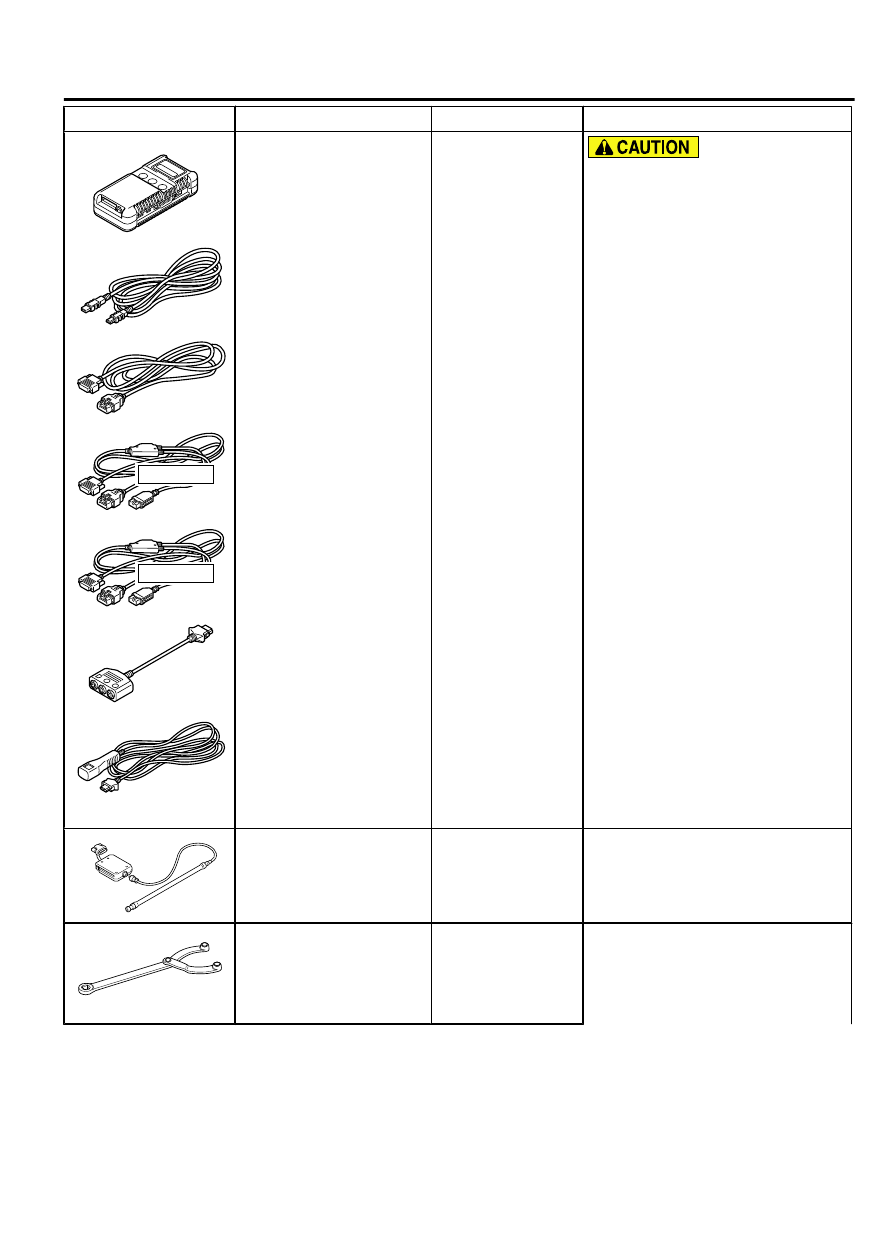

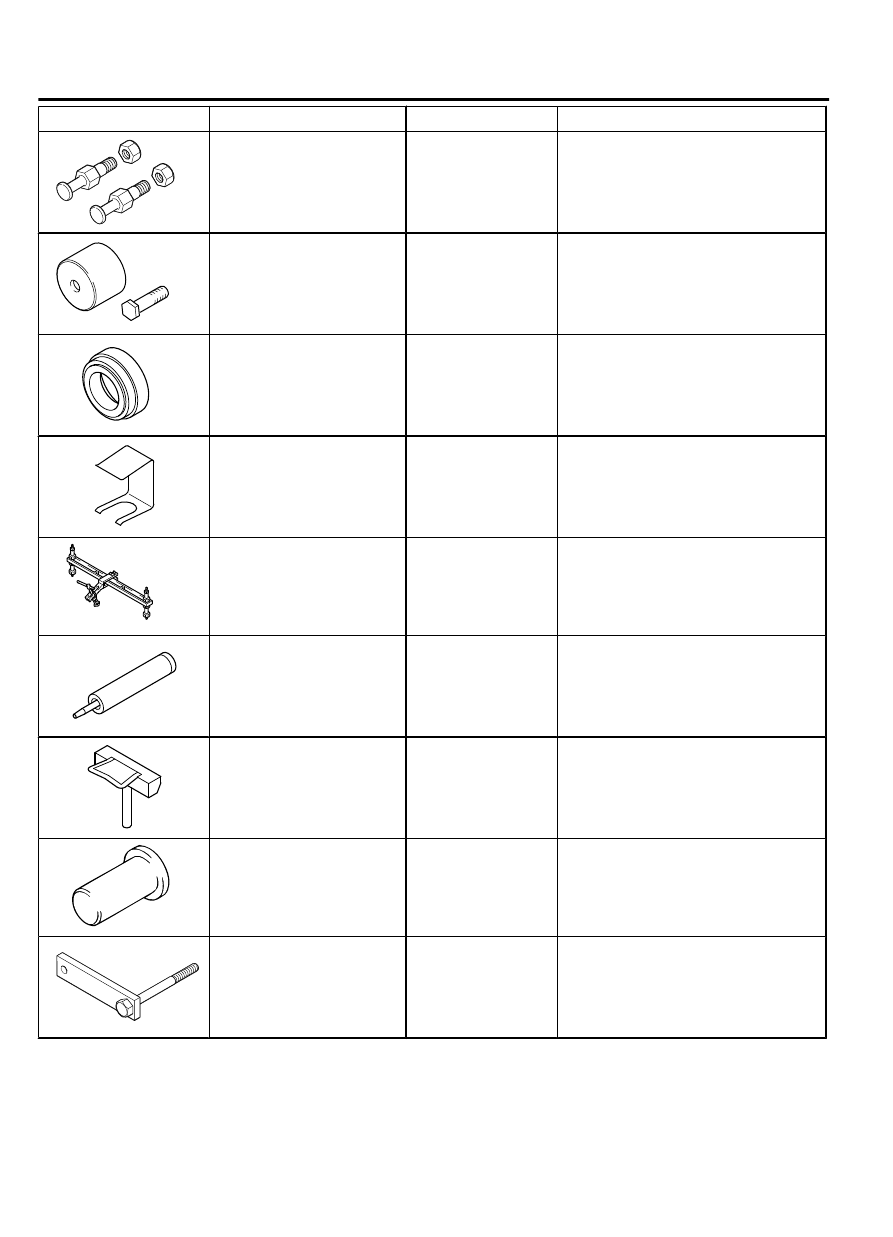

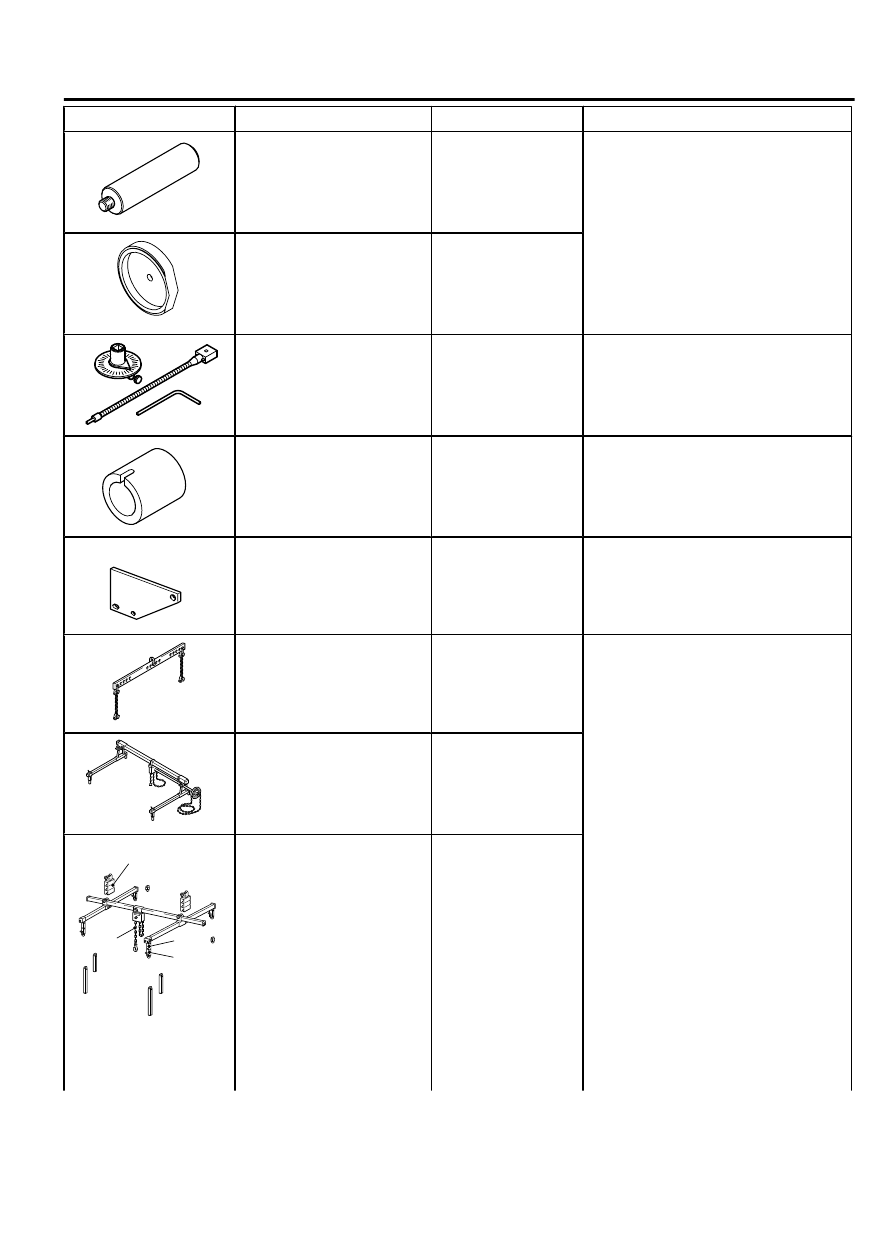

Tool

Tool number and name Supersession

Application

YB991958

MB991910

MB991826

MB991911

MB991914

MB991824

MB991827

MB991825

a

b

c

d

e

f

g

AA00

Do not use

Do not use

MB991958
Scan  tool  (M.U.T.-III  sub
assembly)

A: MB991824
Vehicle communication
interface (V.C.I.)
B: MB991827
M.U.T.-III USB cable
C: MB991910
M.U.T.-III main harness
A  (Vehicles  with  CAN
communication
system)
D: MB991911
M.U.T.-III main harness
B  (Vehicles  without
CAN

 communication

system)
E: MB991914
M.U.T.-III main harness
C (for Daimler Chrysler
models only)
F: MB991825
M.U.T.-III

 adapter

harness
G: MB991826
M.U.T.-III

 trigger

harness

MB991824-KIT

NOTE:

MB991826

M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

For

 vehicles

 with

 CAN

communication,  use  M.U.T.-III
main  harness  A  to  send
simulated  vehicle  speed.  If  you
connect M.U.T.-III main harness B
instead, the CAN communication
does not function correctly.

｠

Drive belt tension check

｠

Ignition timing check

｠

Curb idle speed check

｠

Idle mixture check

｠

Erasing  the  diagnostic  trouble
code

YB991668

MB991668
Belt tension meter set

Tool not available

Drive  belt  tension  check  [used
together  with  scan  tool  (M.U.T.-III
sub assembly)]

YB990767

MB990767
End yoke holder

MB990767-01

Holding  the  crankshaft  pulley  and
camshaft sprocket

ENGINE MECHANICAL

11A-5

SPECIAL TOOLS

Tool

Tool number and name Supersession

Application

YD998719

MD998719
Pin

MIT308239

YD998713

MD998713
Camshaft oil seal installer

MD998713-01

Press-in of the camshaft oil seal

YD998777AA00

MD998777
Camshaft oil seal installer
adapter

-

Press-fitting  the  camshaft  oil  seal
(left bank)

YD998443

MD998443
Auto-lash adjuster holder

MD998443-01

Holding the auto-lash adjuster

YD998772

MD998772
Valve spring compressor

General

 service

tool

Compressing valve spring

YB992182AA00

MB992182
Valve stem seal installer

-

Valve stem seal installation

YD998727

MD998727
Oil pan FIPG cutter

MD998727-01

Engine lower oil pan removal

MD998382AA01

MD998382
Crankshaft  front  oil  seal
installer

MD998382-01

Press-in  of  the  crankshaft  front  oil
seal

YD998781

MD998781
Flywheel stopper

General

 service

tool

Securing the drive plate

11A-6

ENGINE MECHANICAL

SPECIAL TOOLS

Tool

Tool number and name Supersession

Application

YB992075

MB992075
Handle

-

Crankshaft rear oil seal installation

YB992183AA00

MB992183
Crankshaft  rear  oil  seal
installer

-

YB991614AA00

MB991614
Angle gauge

-

Cylinder head bolt installation

YD998716AA00

MD998716
Crankshaft wrench

MD998716-01

Rotating  the  crankshaft  when
installing the timing belt

YB992208

MB992208
Engine hanger plate A

General

 Service

Tool

Supporting  the  engine  assembly
during  removal  and  installation  of
the transaxle assembly

YB991454AA01

MB991454
Engine hanger balancer

MZ203827-01

When  the  engine  hanger  is  used:
Supporting  the  engine  assembly
during  removal  and  installation  of
the transaxle assembly

NOTE:

Special tool MB991454 is a

part of engine hanger attachment
set MB991453.

YB991895

MB991895
Engine hanger

Tool not available

B991928

A

B

C

D

E

F

Slide bracket (HI)

MB991928
Engine hanger

A: MB991929
Joint (50) ×2
B: MB991930
Joint (90) ×2
C: MB991931
Joint (140) ×2
D: MB991932
Foot (standard) ×4
E: MB991933
Foot (short) ×2
F: MB991934

Tool not available

ENGINE MECHANICAL

11A-7

SPECIAL TOOLS

Tool

Tool number and name Supersession

Application

Chain

 and

 hook

assembly

ON-VEHICLE SERVICE

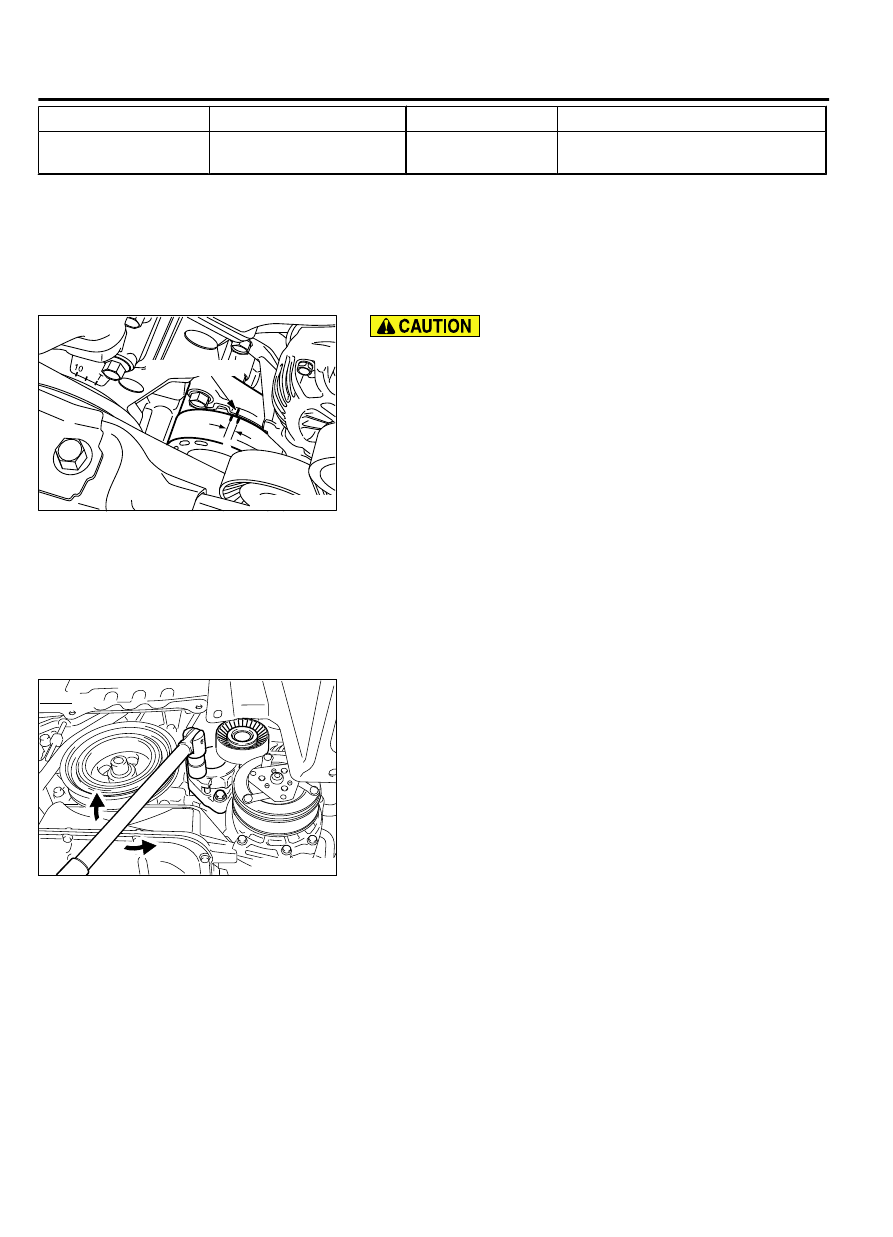

GENETATOR DRIVE BELT TENSION CHECK

M11102000918USA0000010000

ZK600370 AA00

Indicator mark

A

Check  the  drive  belt  tension  after  turning  the  crankshaft
clockwise one turn or more.

1.

Make sure that the indicator mark is within the area marked
with A in the illustration.

2.

If the mark is out of the area, replace the drive belt. (Refer
to P.11A-21).

NOTE:

The drive belt tension adjustment is not necessary,

as the engine is equipped with an auto-tensioner.

AUTO-TENSIONER CHECK

M11102000905USA0000010000

OPERATION CHECK

1.

Turn OFF the engine, then check to see that the drive belt is
not protruding from the pulley width of the auto-tensioner.

ZK600333AA00

2.

Remove the drive belt. (Refer to P.11A-21).

3.

Securely insert the spindle handle or ratchet handle at a 12.7
mm  (1/2-inch)  angle  into  the  hexagonal  boss  of  the  auto
tensioner. Turn the auto-tensioner slowly to the left and right
to check and see that there is no binding or noise.

4.

If there are any problems in the procedure 1 or 3, replace the
auto-tensioner. (Refer to P.11A-49).

5.

Install the drive belt. (Refer to P.11A-21).
