Mitsubishi Outlander XL. Manual - part 149

THEFT-ALARM SYSTEM

CIRCUIT DIAGRAMS

90-293

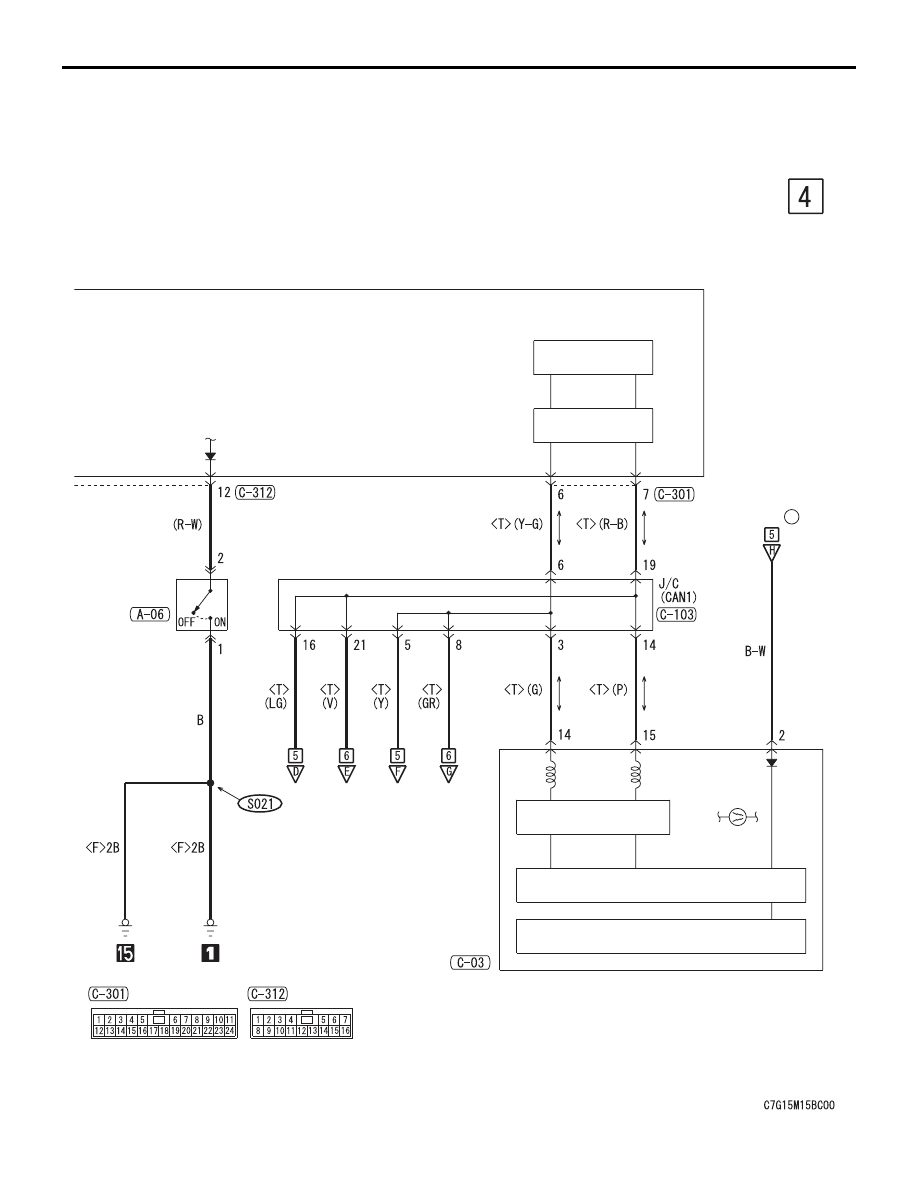

CAN TRANSCEIVER
CIRCUIT

INTERFACE
CIRCUIT

COMBINATION
METER

CAN DRIVE
CIRCUIT

CPU

TONE
ALARM

LCD (THEFT-ALARM INDICATOR)

HOOD
SWITCH

ETACS-ECU

(FUSE    )

12

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

THEFT-ALARM SYSTEM

CIRCUIT DIAGRAMS

90-294

THEFT-ALARM SYSTEM (CONTINUED)

<VEHICLES WITHOUT KOS>

KEYLESS
ENTRY
RECEIVER

KEYLESS
ENTRY
TRANSMITTER

WIRELESS CONTROL MODULE

ETACS-ECU

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

IG1
RELAY

FUSE

8

THEFT-ALARM SYSTEM

CIRCUIT DIAGRAMS

90-295

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

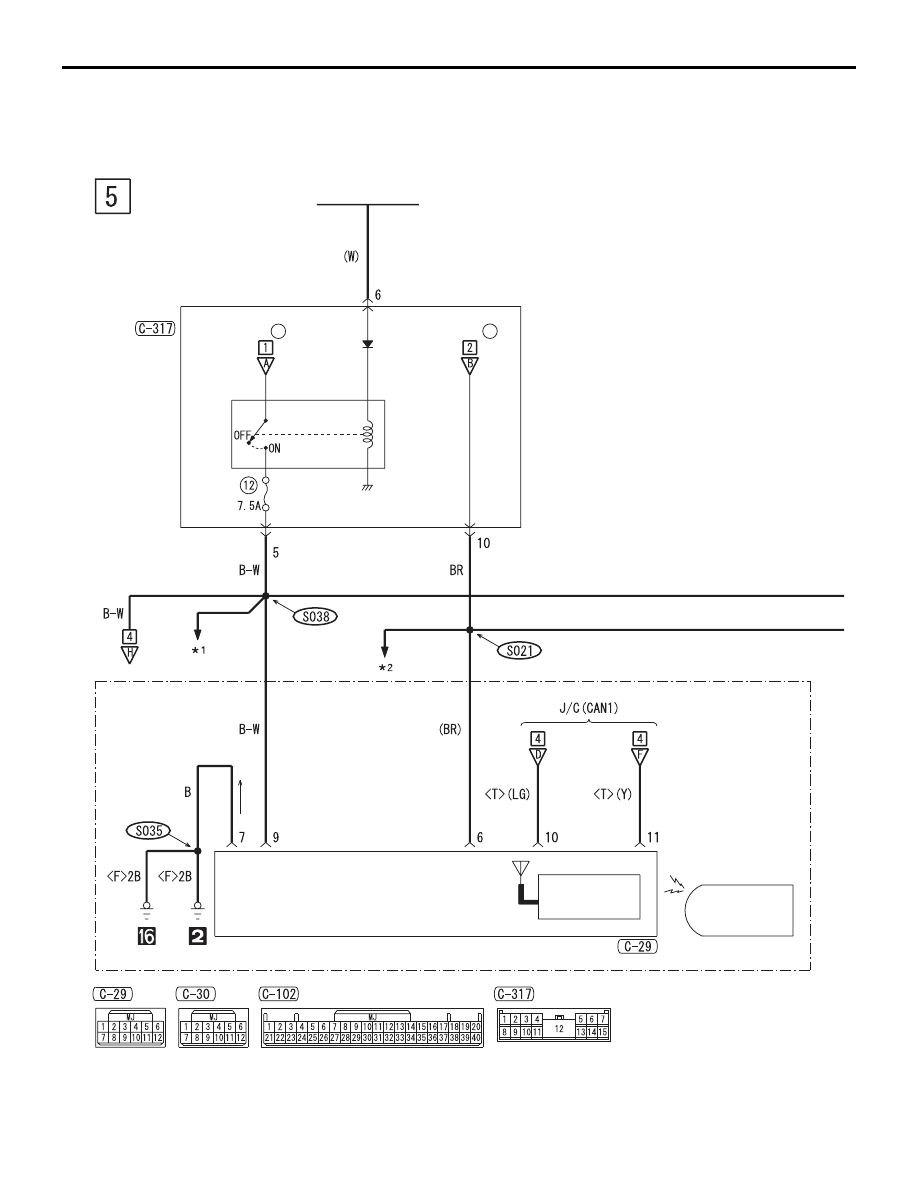

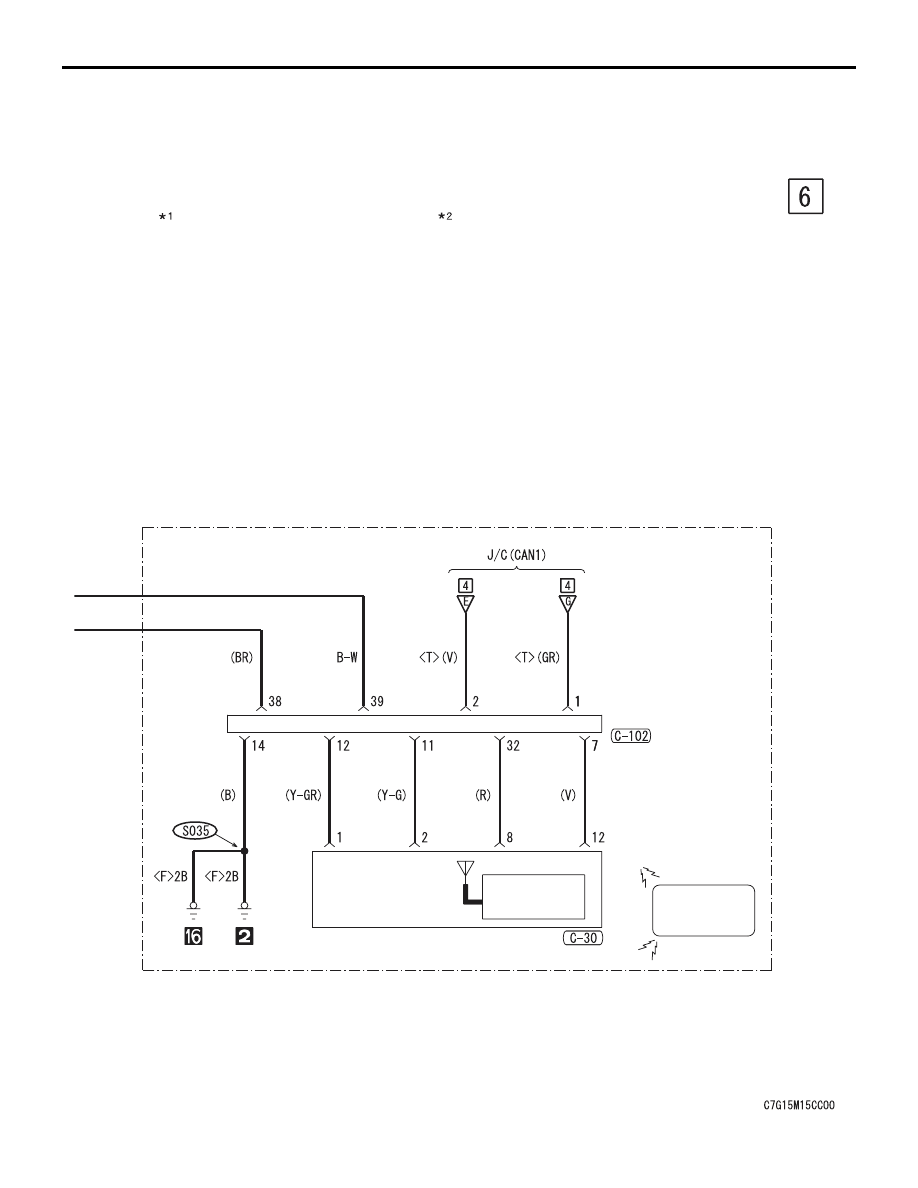

<VEHICLES WITH KOS>

KEYLESS
OPERATION
KEY

RECEIVER ANTENNA MODULE

KEYLESS
ENTRY
RECEIVER

:  ·AIR CONDITIONING SYSTEM

·CONTROLLER AREA NETWORK (CAN)
·DAYTIME RUNNING LIGHT
·FOG LIGHT
·FUEL WARNING LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·IGNITION KEY REMINDER TONE ALARM
·POWER WINDOWS
·REAR WIPER AND WASHER
·TAILLIGHT, POSITION LIGHT, LICENSE PLATE LIGHT
 AND LIGHTING MONITOR TONE ALARM
·TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS) AND
 ACTIVE SKID CONTROL SYSTEM (ASC)
·CONTROLLER AREA NETWORK (CAN)
·DAYTIME RUNNING LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·HEADLIGHT AUTOMATIC LEVELING SYSTEM
·HEATED DOOR MIRROR
·HEATED SEAT
·INVECS-II 6A/T
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT, LICENSE PLATE LIGHT
 AND LIGHTING MONITOR TONE ALARM
·TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

:

NOTE

KOS-ECU

THEFT-ALARM SYSTEM

CIRCUIT DIAGRAMS

90-296

THEFT-ALARM SYSTEM (CONTINUED)

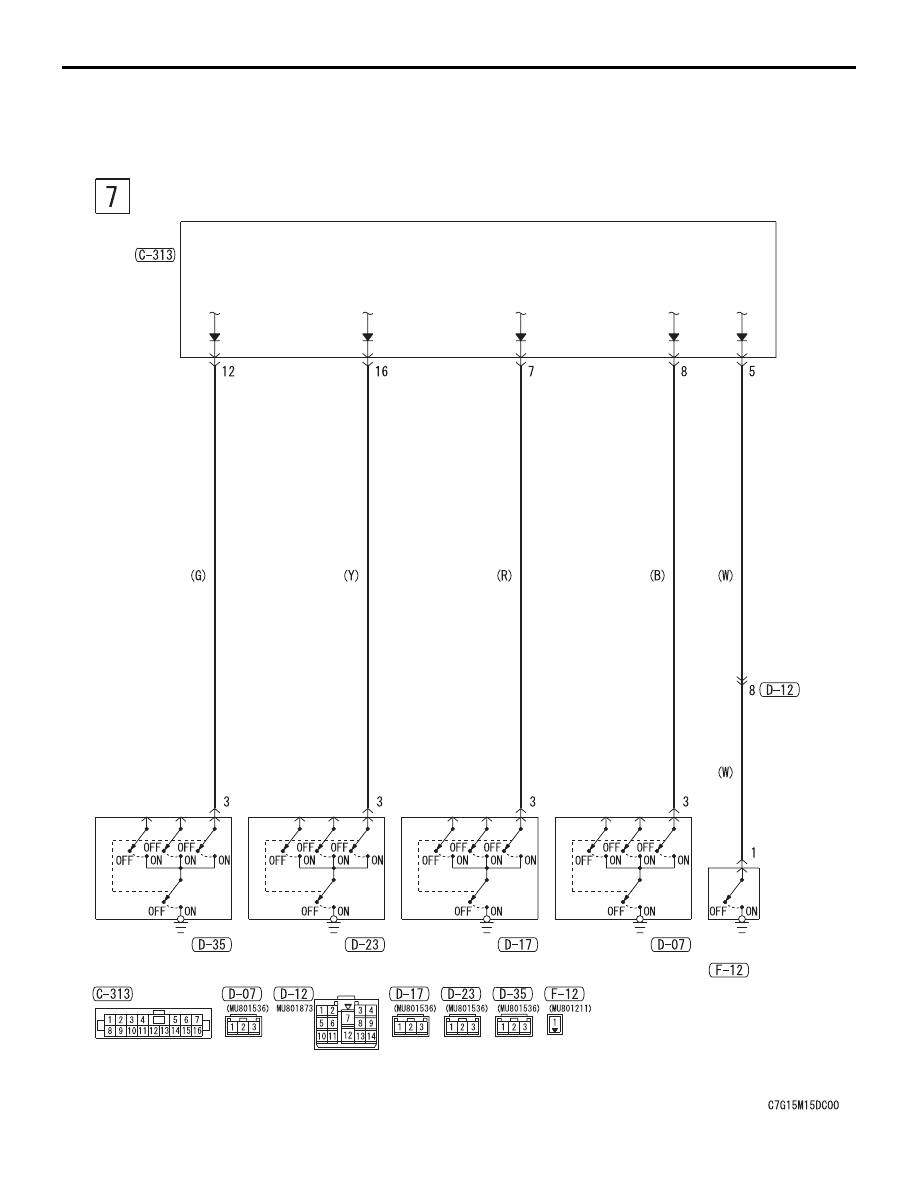

LIFTGATE
SWITCH

ETACS-
ECU

REAR DOOR
SWITCH (RH)

REAR DOOR
SWITCH (LH)

FRONT DOOR
SWITCH (LH)

FRONT DOOR
SWITCH (RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE
