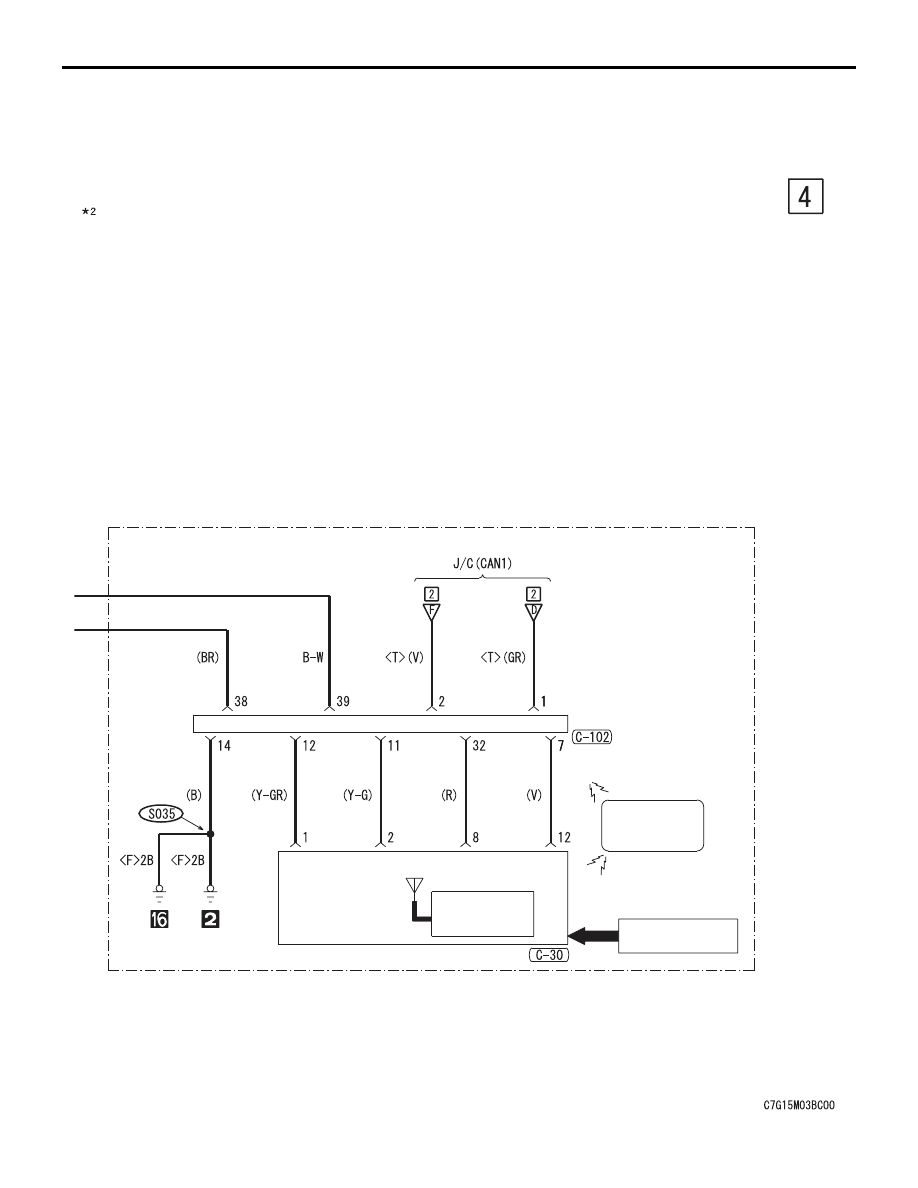

IMMOBILIZER SYSTEM

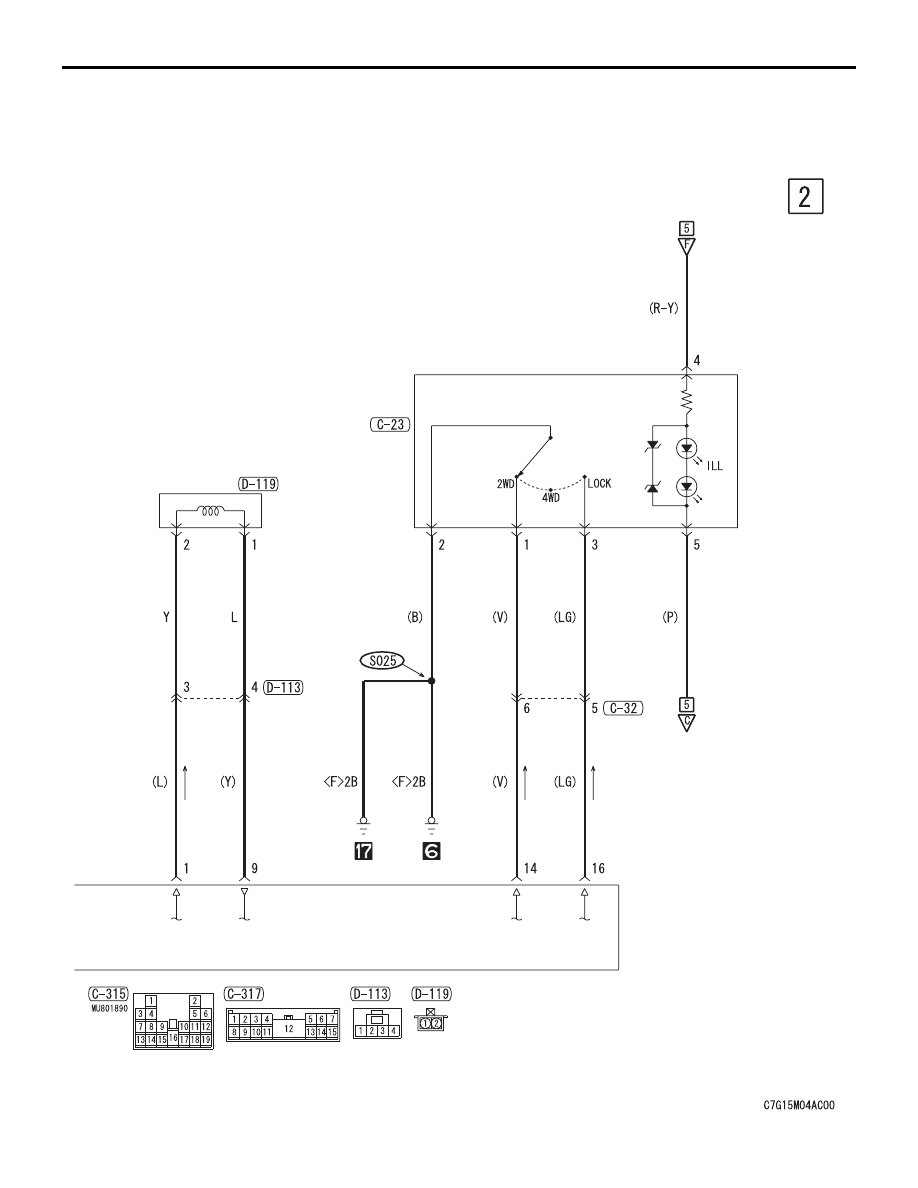

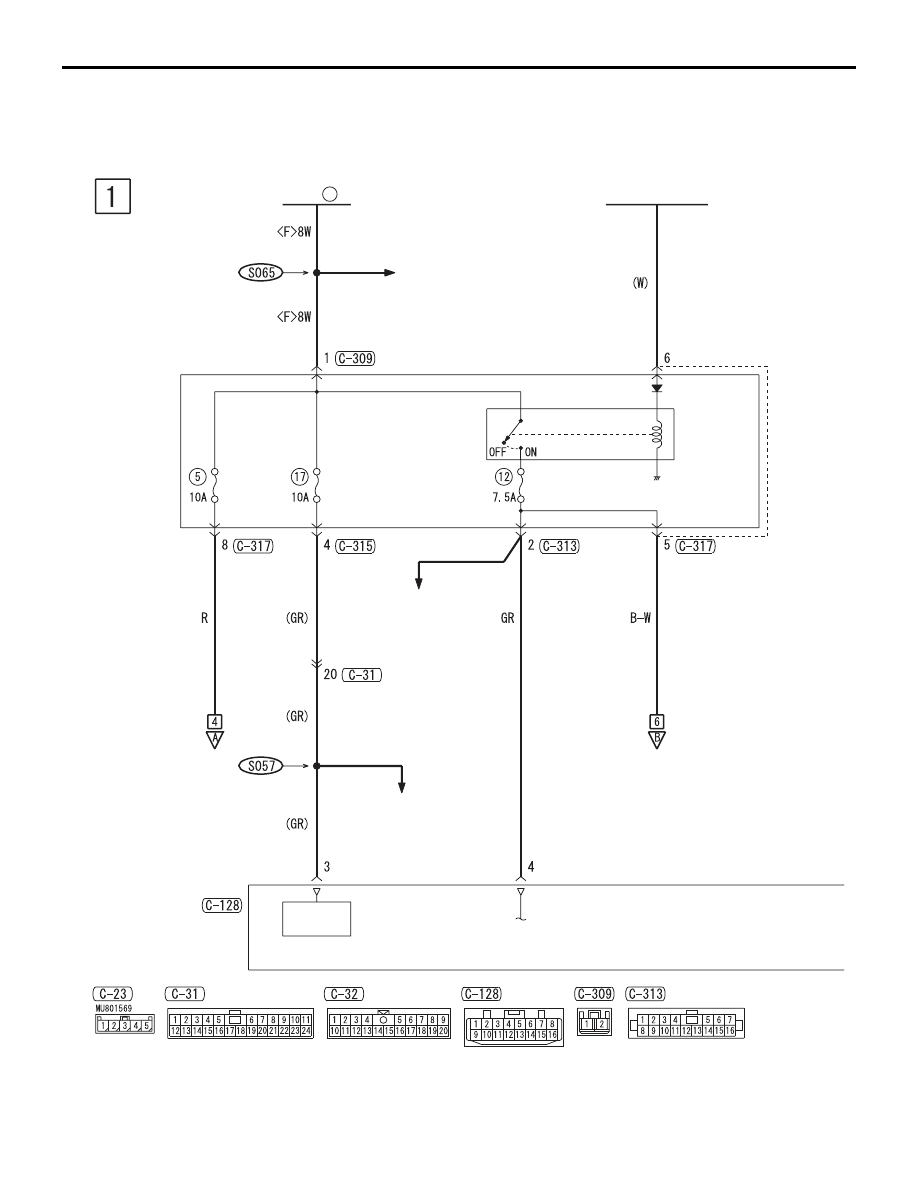

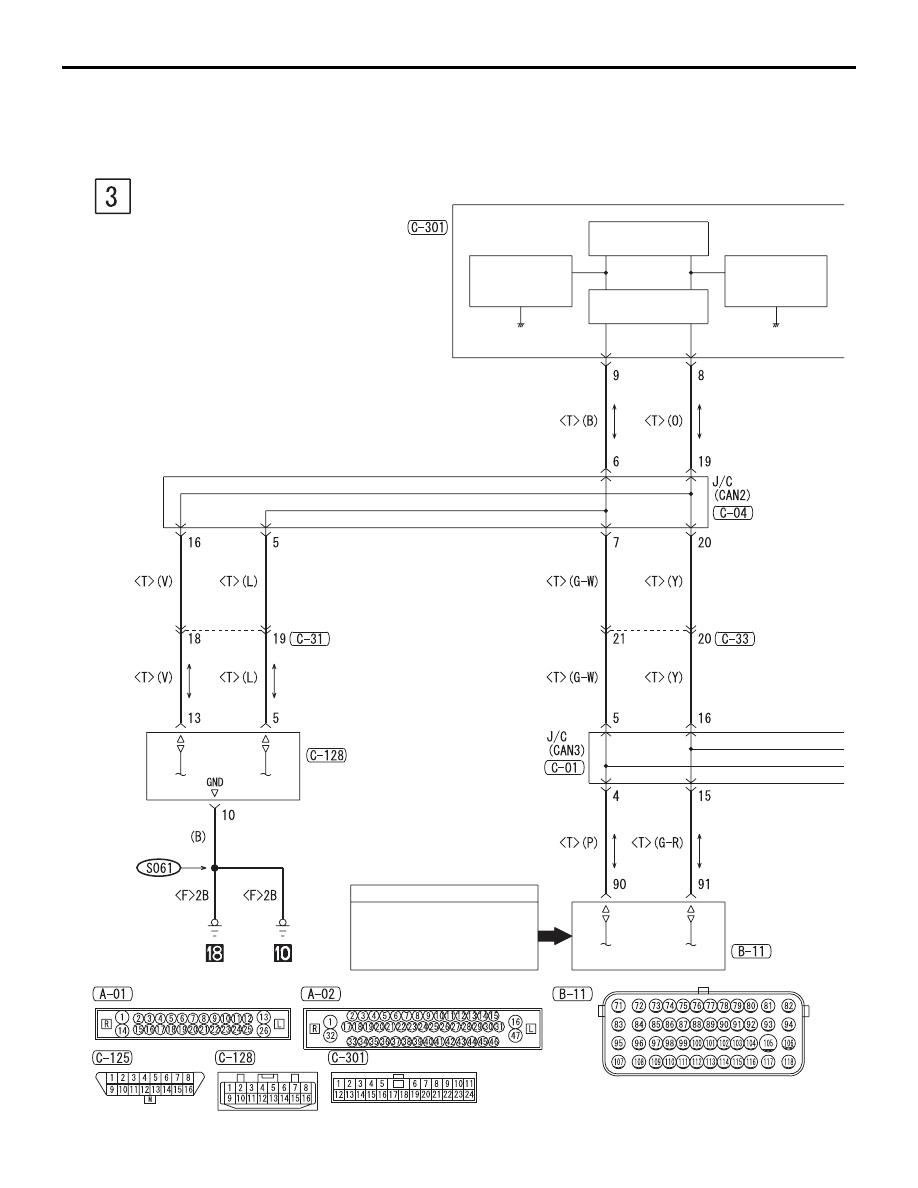

CIRCUIT DIAGRAMS
90-249
IGNITION
KEY RING
ANTENNA
KEYLESS
OPERATION
KEY
ID
CODE
TRANSPONDER
RECEIVER ANTENNA MODULE
<VEHICLES WITH KOS>
KOS-ECU
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
: ·AIR CONDITIONING SYSTEM
·BRAKE WARNING LIGHT
·CONTROLLER AREA NETWORK (CAN)
·DAYTIME RUNNING LIGHT
·FOG LIGHT
·FUEL WARNING LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·IGNITION KEY REMINDER TONE ALARM
·METER AND GAUGE
·OIL PRESSURE WARNING LIGHT
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·TAILLIGHT, POSITION LIGHT, LICENSE PLATE LIGHT
AND LIGHTING MONITOR TONE ALARM
·TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
