Mitsubishi Outlander XL. Manual - part 136

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

CIRCUIT DIAGRAMS

90-241

COMBINATION METER

CPU

FRONT SIDE

CAN DRIVE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

CAN TRANSCEIVER
CIRCUIT

DATA LINK
CONNECTOR

ETACS-ECU

(FUSE    )

12

LED DRIVE
CIRCUIT

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET     PU : PURPLE

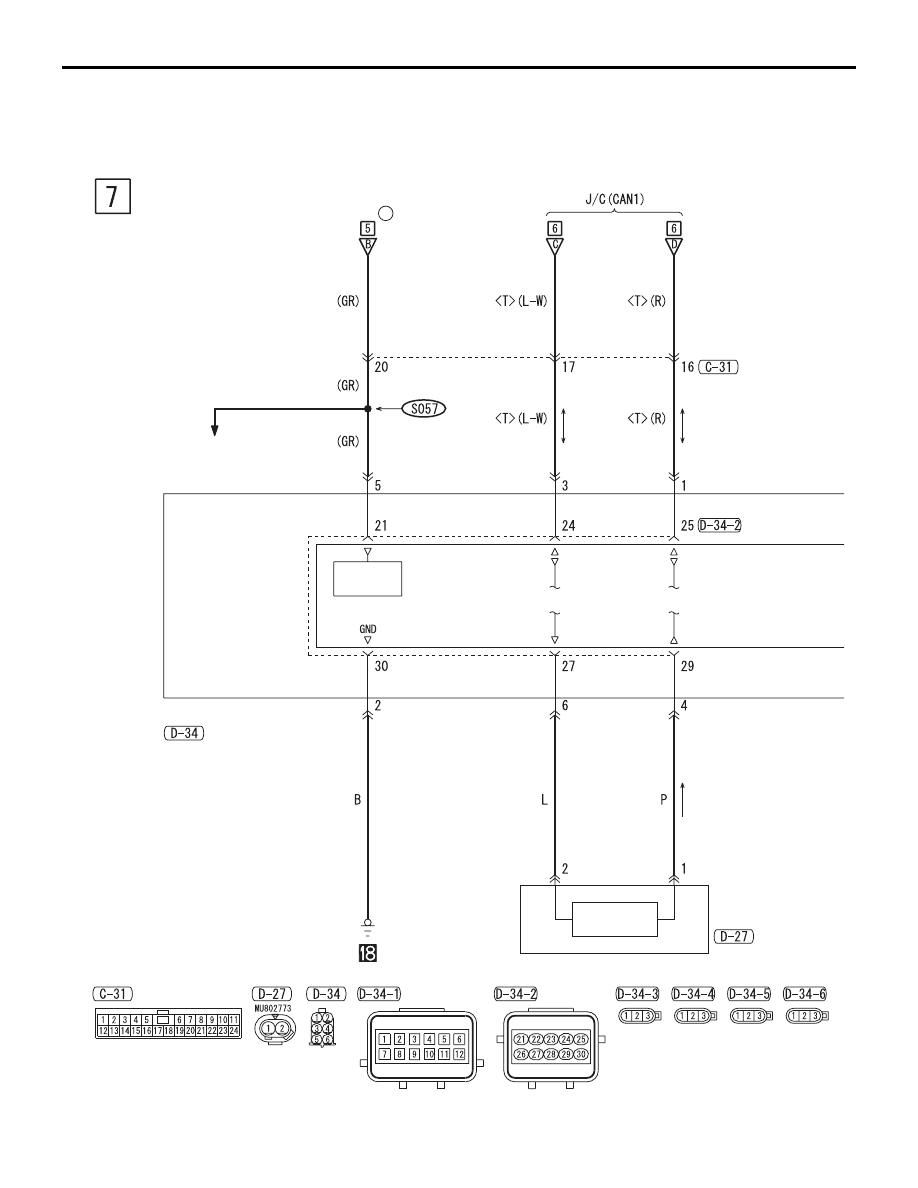

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

CIRCUIT DIAGRAMS

90-242

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) (CONTINUED)

(FUSE     )

17

ETACS-ECU

POWER
SUPPLY

OCCUPANT
CLASSIFICATION-
ECU

HALL IC

SEAT
SLIDE
SENSOR

ELECTRIC
CONTROLLED
AWD

FRONT SEAT
ASSEMBLY (LH)

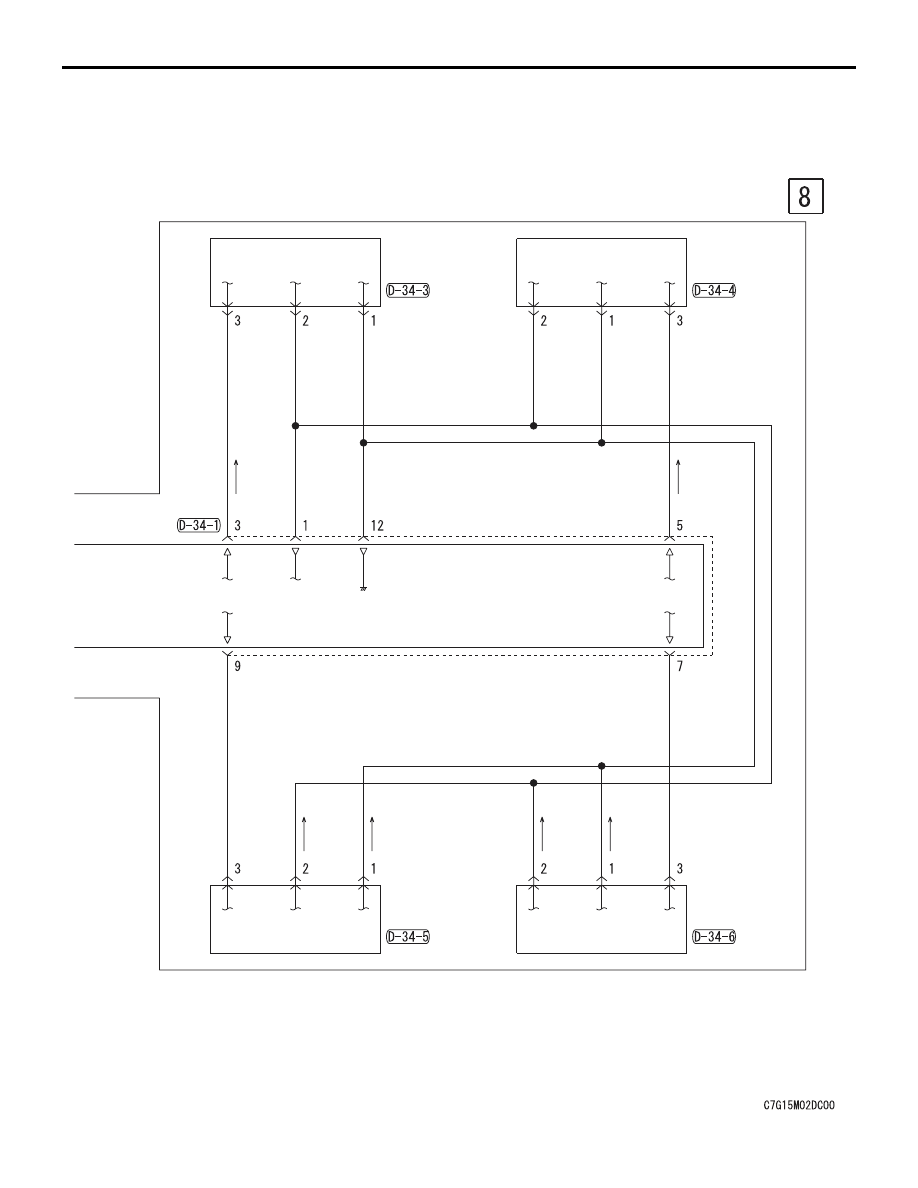

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

CIRCUIT DIAGRAMS

90-243

WEIGHT
SENSOR
(FRONT: LH)

WEIGHT
SENSOR
(REAR: LH)

WEIGHT
SENSOR
(REAR: RH)

WEIGHT
SENSOR
(FRONT: RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

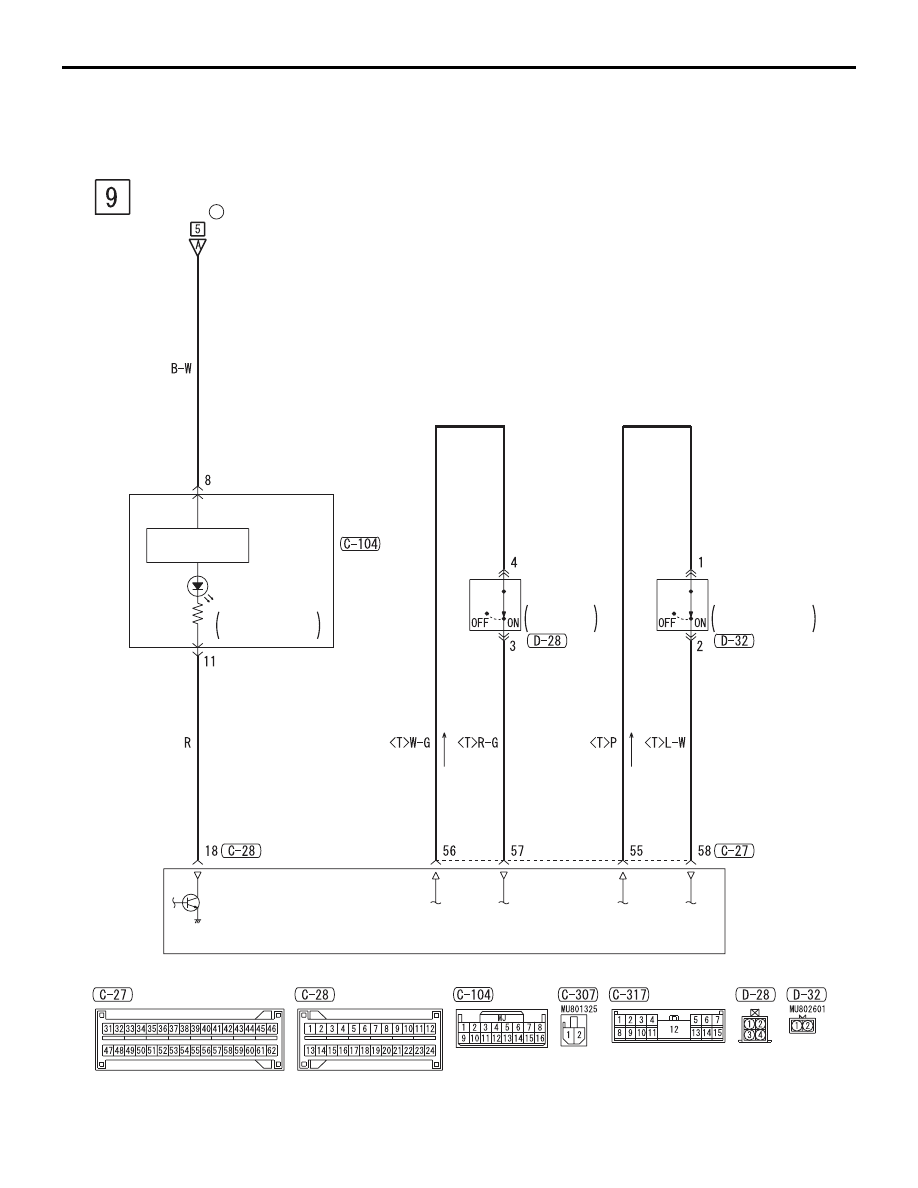

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

CIRCUIT DIAGRAMS

90-244

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) (CONTINUED)

SEAT BELT
SWITCH
DRIVER'S
SIDE

SEAT BELT
SWITCH
PASSENGER'S
SIDE

CENTER
PANEL
UNIT

ETACS-ECU

(FUSE     )

12

INTERFACE
CIRCUIT

SRS-ECU

AIR BAG OFF
INDICATOR
LIGHT
PASSENGER'S
SIDE
