Mitsubishi Outlander XL. Manual - part 1341





GROUP 55

HEATER, AIR CONDITIONING AND

VENTILATION

CONTENTS

GENERAL DESCRIPTION.............

55-2

HEATER UNIT.....................

55-4

HEATER CONTROL..................

55-6

A/C COMPRESSOR..................

55-7

A/C-ECU.........................

55-7

DUCT...........................

55-10

VENTILATION SYSTEM.............

55-11

55-1

GENERAL DESCRIPTION

M25501000001USA0000010000

The  blower,  heater,  and  evaporator  have  been
integrated with the heater and A/C system to achieve
a greater fan power and noise reduction. Manual A/C
is installed on LS models; automatic A/C is installed
on XLS models.

FEATURES

IMPROVEMENTS IN COMFORT

The  outside/inside  air  circulation  switching,  air
outlet, and outlet air temperature are automatically
controlled  according  to  the  ambient  temperature,
solar  radiation,  and  passenger  compartment
temperature  so  that  the  optimum  air  conditioning
has been achieved. <Automatic A/C>

By  the  adoption  of  clean  air  filter,  the  air  quality
inside  the  passenger  compartment  has  been
improved.

IMPROVEMENTS IN OPERATION
PERFORMANCE

Operability has been improved by the adoption of
large triple dial.

Customize  function  has  been  added  for  the
improved convenience.

IMPROVEMENTS IN FUEL ECONOMY

The high efficiency compressor with a 2-step profile
oil separator has been installed, thus improving the
fuel economy.

The  idle-up  speed  is  controlled  in  two  steps  to
secure the air cooling performance during summer
and  to  improve  the  fuel  economy  in  the  seasons
with moderate temperature.

Improvement  of  fuel  economy  by  the  cooling  fan
control depending on the refrigerant pressure and
vehicle speed.

GLOBAL ENVIRONMENT PROTECTION

New  refrigerant  system  (HFC134a)  has  been
adopted.

By the optimization of A/C system, the refrigerant
charging amount has been reduced.

Clean air filter media and its cover are separated to
reduce waste materials.

IMPROVEMENTS IN SERVICE QUALITY

Reduction  of  refrigerant  gas  leakage  and
improvement  in  serviceability  by  incorporating
condenser and receiver

Clean air filter is installed to the backside of glove
box to facilitate the filter replacement.

IMPROVEMENTS IN RESPONSIBILITY
Reliable  information  transmission  is  achieved  by
connecting  A/C-ECU  and  each  ECU  via  CAN
communication.

SPECIFICATIONS

Item

Specification

Air conditioning switch type

Rotary type

Compressor type

MSC90CAS

Cooling output

5.5 kW

Heating output

5.7 kW

Refrigerant

Type

R134a (HFC-134a)

Charge quantity g (oz)

480 - 520 (16.9 - 18.3)

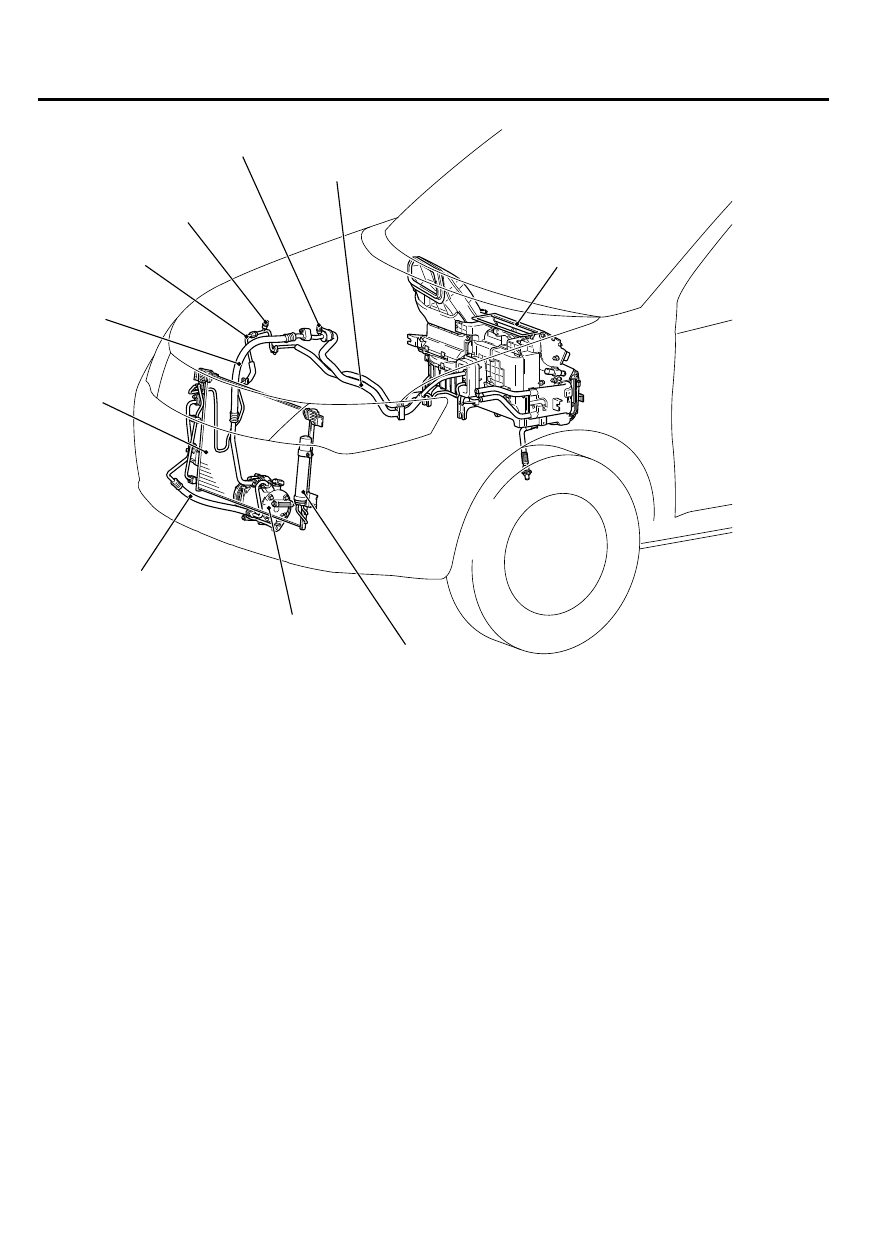

CONSTRUCTION DIAGRAM

55-2

HEATER, AIR CONDITIONING AND VENTILATION

GENERAL DESCRIPTION

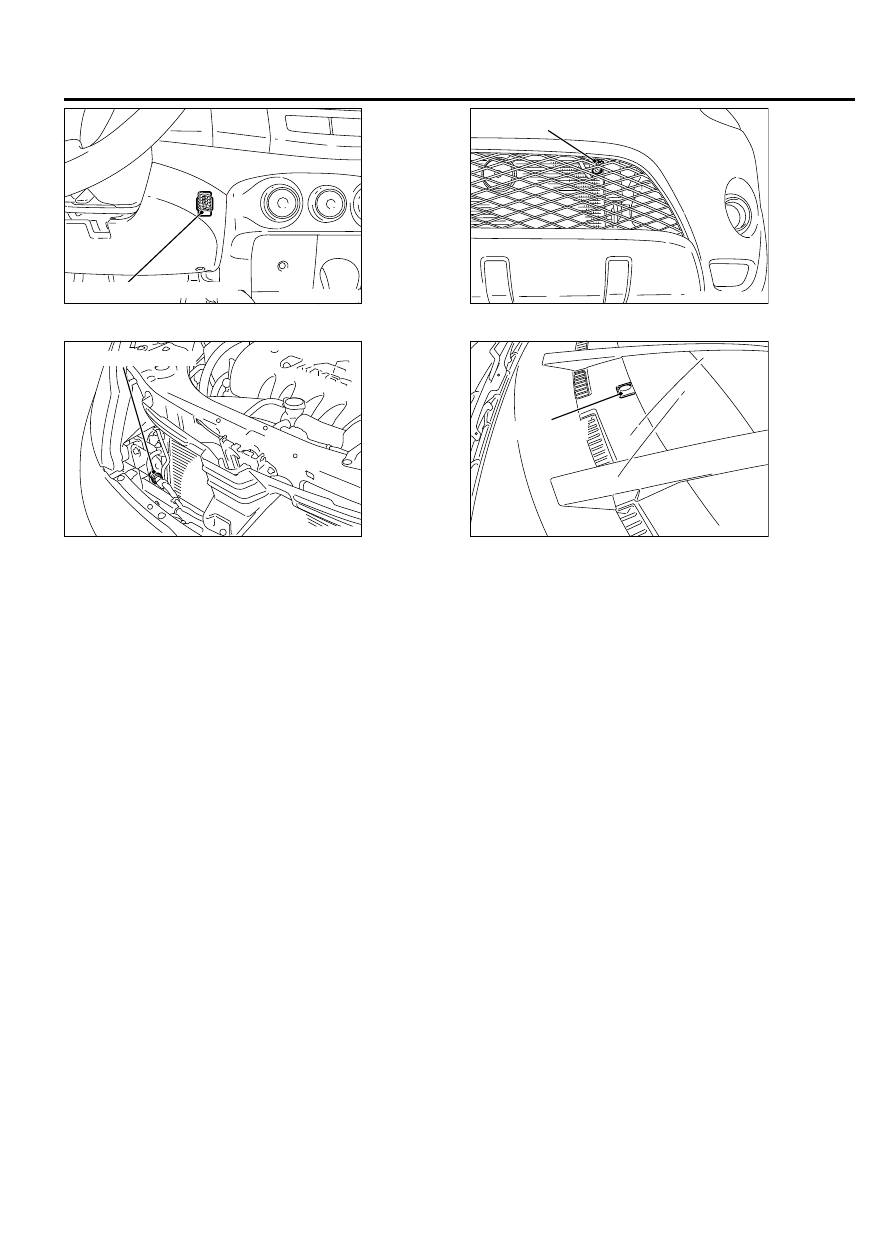

ZC600369 0000

Interior temperature sensor

ZC6003700000

Ambient temperature sensor



ZC6003710000

A/C pressure sensor

ZC6003720000

Photo sensor



HEATER, AIR CONDITIONING AND VENTILATION

55-3

GENERAL DESCRIPTION

Heater unit

Liquid pipe

Suction pipe

Suction
flexible hose

Discharge
flexible hose

Condenser

A/C compressor

ZC6000210000

Low-pressure side valve

High-pressure
side valve

Receiver

HEATER UNIT

M25501000008USA0000010000

55-4

HEATER, AIR CONDITIONING AND VENTILATION

HEATER UNIT
