FOG LIGHT <VEHICLES WITHOUT DISCHARGE HEADLIGHT>

FOG LIGHT FUNCTION

ZC6032450000

OFF

HEAD

Fog light switch

OFF

ON

Fog light output

Lighting switch

Headlight auto cut output

(Illuminated) ON

(Extinguished) OFF

(Illuminated) OFF

(Extinguished) ON

TAIL

When the fog light switch is turned to ON with the tail
lights or the headlights lit (the tail light switch or the
headlight switch is ON), the ETACS-ECU illuminates
the fog lights.

If the tail light or the headlight is turned off with the
lighting switch OFF while the fog lights lit, the fog lights
turn  off  at  the  same  time  to  prevent  unattended
operation.



54A-14

CHASSIS ELECTRICAL

LIGHTING

INTERIOR LIGHT

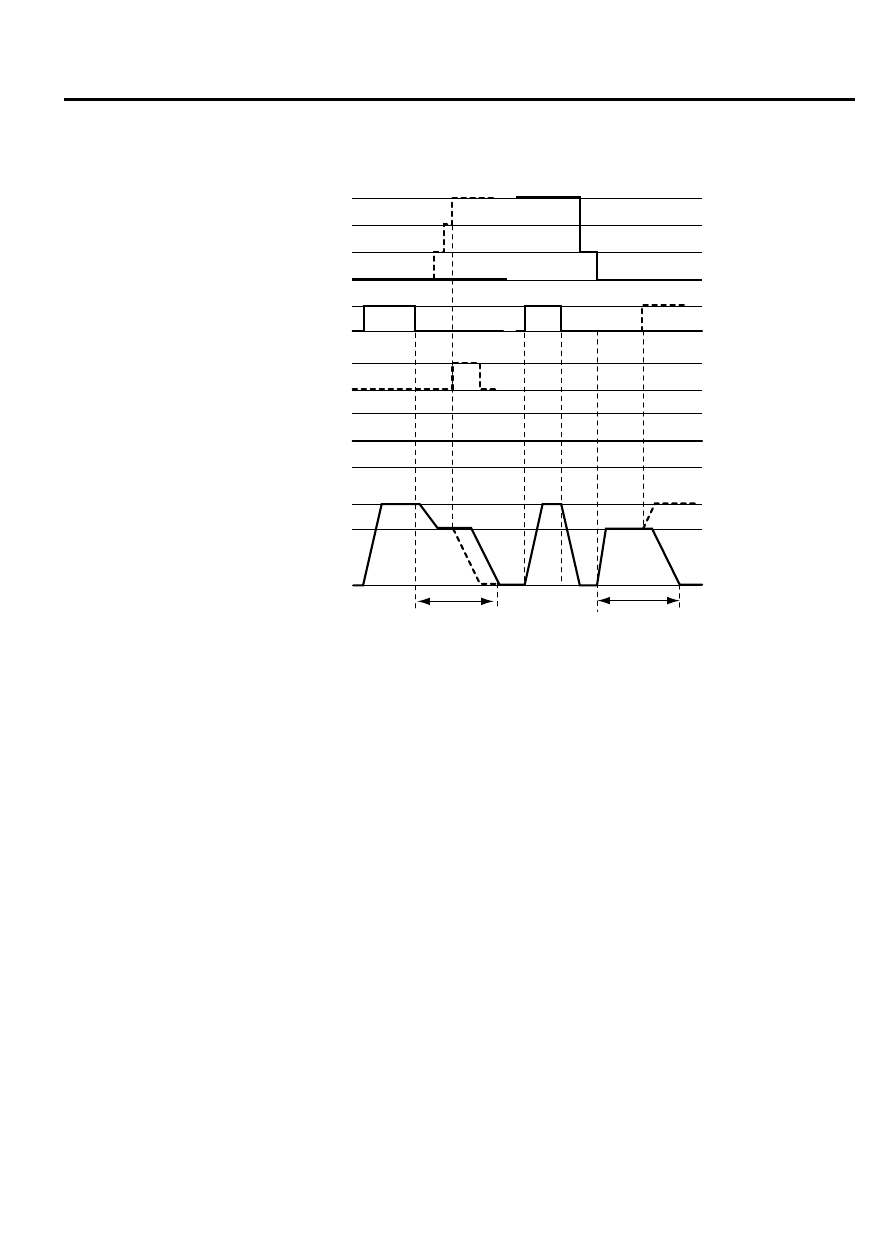

INTERIOR LIGHT DIMMER CONTROL FUNCTION (THE INITIAL CONDITION: 15 SECONDS)

ZC603246 0000

(All closed) OFF

(Any one open) ON

ON

OFF

Key removed

ACC

LOCK

UNLOCK

OFF

Door switch

(Unlock) OFF

(Lock) ON

Driver's door lock
actuator switch (lock switch)

Ignition switch

100%

0%

50%

Interior light brightness

Keyless entry
lock or unlock signal

15 seconds

15 seconds

When  the  interior  light  switch  is  set  to  the  DOOR
position,  ETACS-ECU  controls  the  interior  light  as
follows.

1.

When the ignition switch is OFF:
By opening any door or liftgate, the light turns ON
(100%), and dims (50%) when the door or liftgate
is closed, then and turns off after 15 seconds.
However, when the ignition switch is turned ON or
the door lock is operated, the lights turn off at that
time.

2.

When the ignition switch is ON:
By opening any door or liftgate, the light (100%)
turns  ON  and  OFF  when  the  door  or  liftgate  is
closed.

3.

When all doors and the liftgate are closed, and the
ignition key is removed*:
By removing the ignition key with all doors and the
liftgate closed, the light turns ON 50%, and turns
off after 15 seconds.
By inserting the ignition key again or operating the
door lock with the light lit, the lights turns off.

NOTE:

｠

*: For the vehicles with KOS, it is operated the same
way when the steering lock is locked or when the
emergency key is removed from the key cylinder.

｠

For the vehicles with the keyless entry system, the
delayed light-off time and the operation times of the
keyless  entry  interior  light  answer  back  can  be
changed  by  the  customize  function  (Refer
to P.54A-17).

CHASSIS ELECTRICAL

54A-15

LIGHTING

INTERIOR LIGHT AUTOMATIC-SHUTOFF FUNCTION (THE INITIAL CONDITION: 30 MINUTES)

ZC603247 0000

ON

OFF

ACC

Ignition switch

(All closed) OFF

(Any one open) ON

Door switch

(Illuminated) ON

(Extinguished) OFF

Interior light

t: Within 30 minutes

T: 30 minutes

T

T

t

t

t

When  an  interior  light  such  as  the  room  light  [all
interior  lights  connecting  to  the  room  light  fuse  (the
front  room  light,  the  rear  room  light,  the  luggage
compartment  light,  and  the  ignition  key  cylinder
illumination  lights)]  is  lit,  but  either  one  of  the
conditions  is  met,  the  interior  light  is  turned  off
automatically  for  preventing  the  battery  discharge
caused by the unattended operation or the door-ajar.

｠

After 30 minutes with the interior light lit while the
ignition  switch  is  OFF,  the  light  turns  off
automatically.

｠

After  30  minutes  with  any  door  opened  while  the
ignition  switch  is  OFF,  the  light  turns  off
automatically.

｠

After the auto-turn OFF, the interior light returns to
the illumination state when the doors are opened/
closed, keyless entry transmitter switch is operated,
or  ignition  switch  is  turned  to  ACC  position.  After
returning,  the  light  turns  OFF  after  30  minutes,
when the interior light auto turn off condition is met.

NOTE:

The interior light automatic shut-off time

can be adjusted by the customize function (Refer
to P.54A-17).



IGNITION KEY CYLINDER ILLUMINATION LIGHT AND FOOT LIGHT CONTROL FUNCTION

ZC603248

T

T

T

T

0000

(Closed) OFF

(Opened) ON

ON

OFF

(Key removed) ON

(Key inserted) OFF

 (Illuminated) ON

(Extinguished) OFF

Driver's seat door switch

UNLOCK

LOCK

Driver's seat door

Key reminder switch

Ignition key cylinder
illumination light output

Ignition switch (IG)

T: 30 seconds

The  ETACS-ECU  controls  the  ignition  key  cylinder
illumination light as described below.

｠

With the ignition switch OFF, the light is illuminated
when the driver's door is opened, and it is turned off
30  seconds  after  the  driver's  door  is  closed.

However, the light is turned off if the ignition switch
is turned ON or doors are locked within 30 seconds.

54A-16

CHASSIS ELECTRICAL

LIGHTING

｠

When the ignition key is removed from the ignition
key cylinder, the light illuminates for 30 seconds.*

NOTE:

 *: For the vehicles with KOS, it is

operated the same way when the steering lock is
locked or when the emergency key is removed from
the key cylinder.

CONFIGURATION FUNCTION

M25400000119USA0000010004

With the scan tool MB991958 operation, the following
functions  can  be  programmed.  The  programmed

information  is  held  even  when  the  battery  is
disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting

 contents

(scan  tool  MB991958
display)

Adjusting contents

Turn

 power

source

Adjustment  of  turn-
signal

 light

operation condition

ACC or IG1

Operable with ACC or ON position

IG1

Operable with ON position (default)

Comfort flasher With/without

comfort

 flasher

function

Disable

Without function

Enable

With function (default)

Comfort  flasher
switch time

Switch

 operation

time  to  activate  the
comfort

 flasher

function

Normal

0.4 seconds (default)

Long

0.8 seconds

Hazard  answer
back

Adjustment  of  the
number  of  keyless
hazard warning light
answer

 back

flashes

Lock:1, Unlock:2

LOCK:  Flashes  once,  UNLOCK:  Flashes
twice (default)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Dome

 light

delay timer with
door

Adjustment

 of

interior  light  delay
shutdown time

0sec

0 second (no delay shutdown time)

7.5sec

7.5 seconds

15sec

15 seconds

30sec

30 seconds (default)

60sec

60 seconds

120sec

120 seconds

180sec

180 seconds

Head  light  auto
cut customize

Adjustment

 of

headlight  automatic
shutdown function

Disable

Without function

C-spec.

With function (default)

Interior

 light

auto cut timer

Adjustment

 of

interior

 light

automatic shutdown
function  operation
time

Disable

Without function

3min

3 minutes

30min

30 minutes (default)

60min

60 minutes

CHASSIS ELECTRICAL

54A-17

LIGHTING
