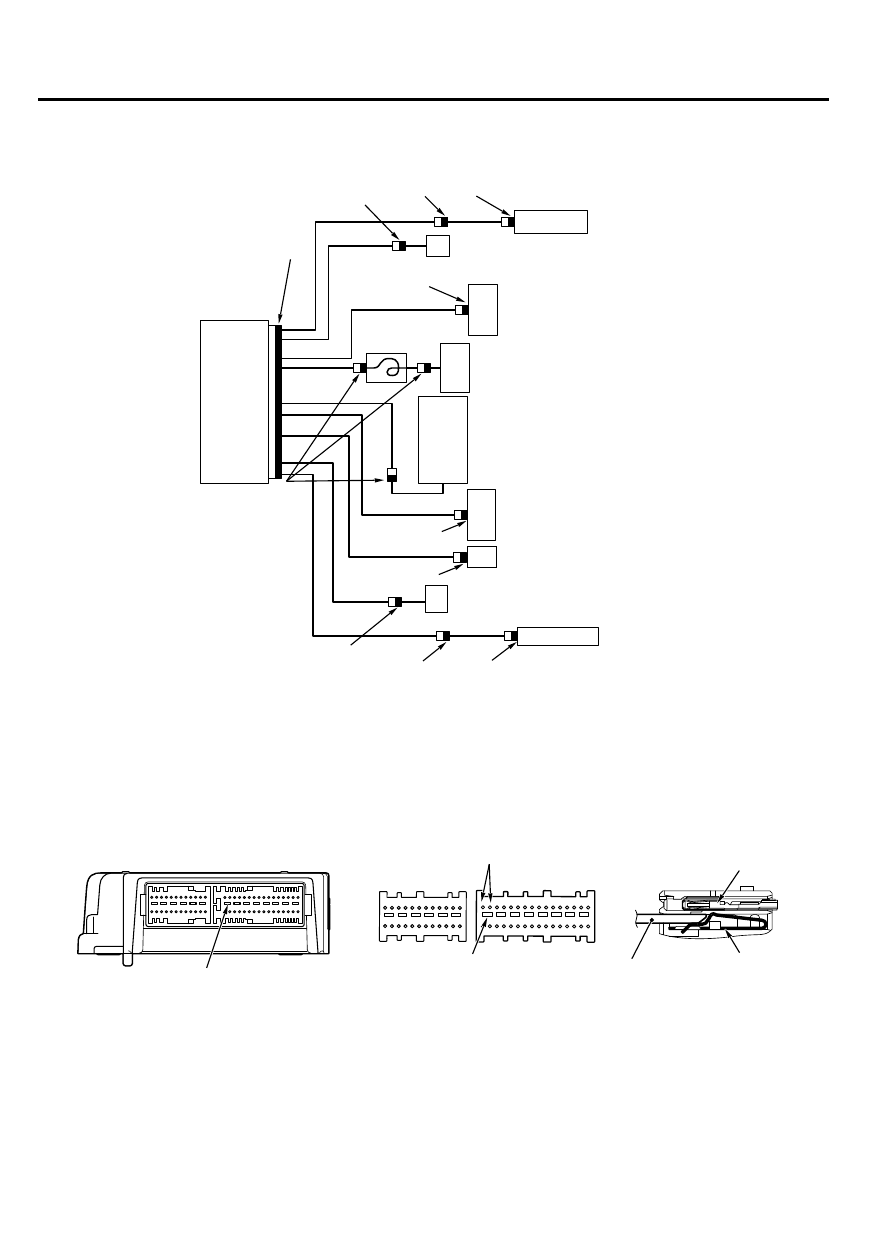

SRS AIR BAG SPECIAL CONNECTOR
M25201000090USA0000010000
SRS-ECU
A
A
A
A
A
A
A
A
A
A
Clock spring
Side-airbag module (RH)
Seat belt with pre-tensioner (LH)
Side-airbag module (LH)
Seat belt with pre-tensioner (RH)
Passenger's (front) air bag module
Driver's air bag module
Curtain air bag module (RH)
Curtain air bag module (LH)
Lap belt pre-tensioner (LH)
0000
ZC501964
A
To enhance the system reliability, a connector short
circuiting mechanism is integrated in the SRS-ECU
connector, air bag module connectors, clock spring
connector, and pre-tensioner connectors (black
connector "A" shown in the figure).
CONNECTOR SHORT-CIRCUIT MECHANISM
ZC501966
SRS-ECU connector
Partition panel
(SRS-ECU-side
connector)
Partition panel
Wiring harness-side connector
(terminal to short-circuit)
Short spring
Short spring
(wiring harness-side
connector)
Connector connected
Wiring harness-side connector
Terminal to short-circuit
0000
This mechanism prevents the improper deployment of
air bag module because of the current application to
the squib due to the static electricity when connectors
between SRS-ECU and air bag modules (squibs) are
disconnected. When the connector is disconnected,
the short spring short circuits the power supply side
terminal and ground side terminal of squibs, and
prevents the static electricity from generating the
potential difference. This connector mechanism is
adopted for the following connectors.
52B-22
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
SYSTEM CONSTRUCTION
